Brake Light Switch (29), TCS/ESP

Brake Light Switch (29), TCS/ESP

Location
Brake light switch (29)

Main use
Brake light information is used by the control module to:
- Disengage the cruise control
- Limit fuel during idling
- Enable diagnosis of the vehicle speed signal.

Type
Closing contact.

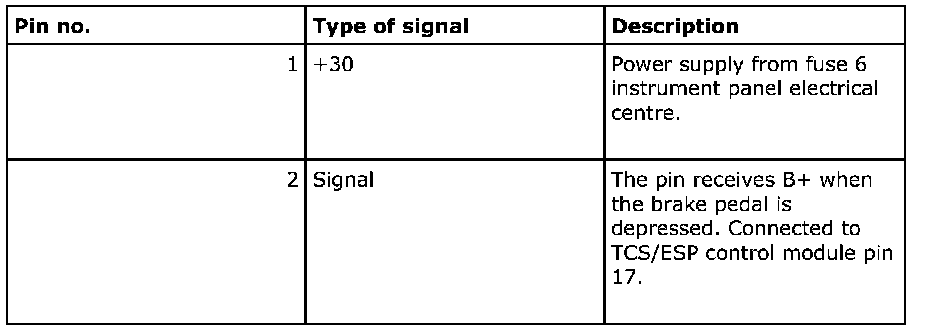

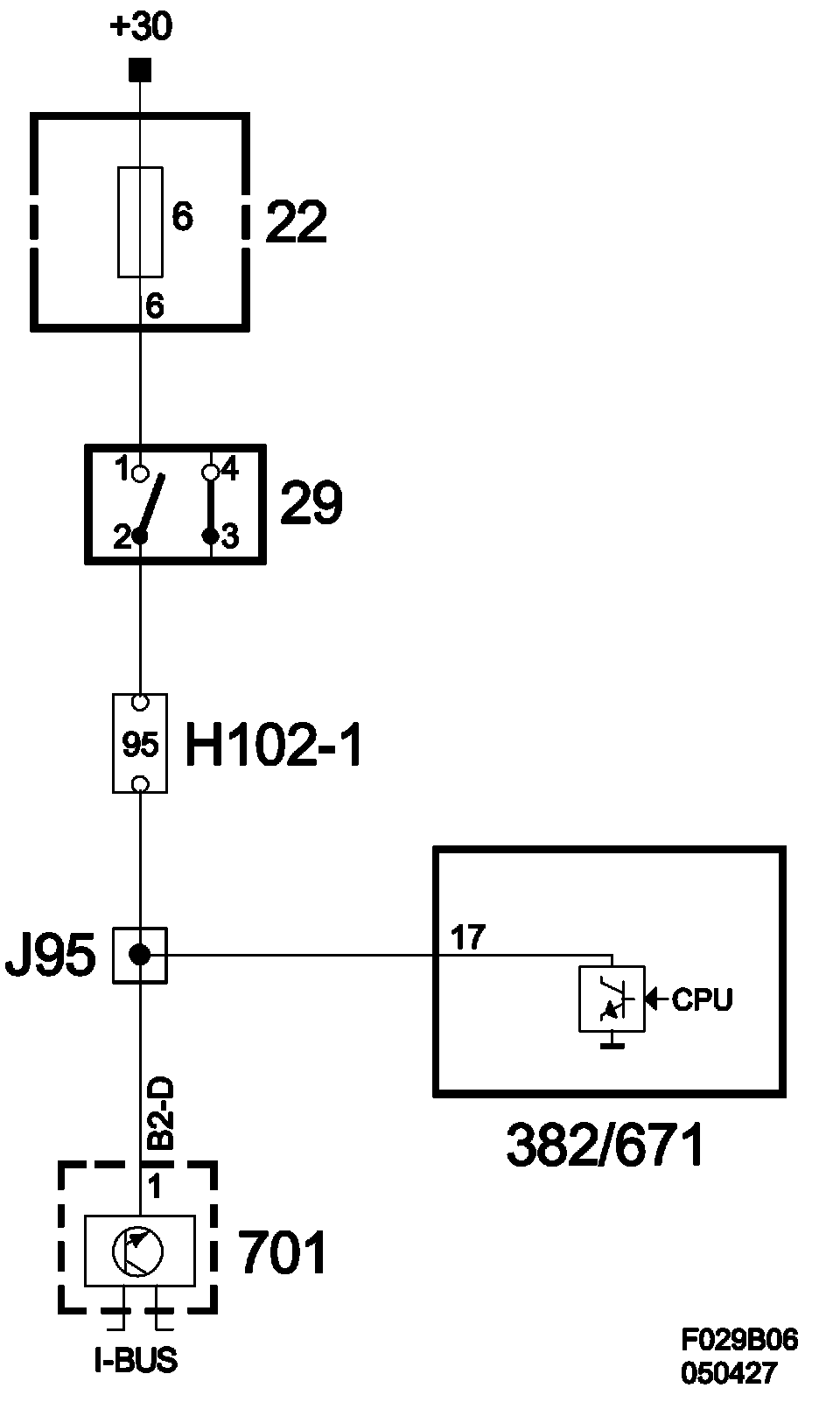

Connection







Connection
