Backup Lamp Switch: Service and Repair

Reversing Light Switch, 4WD

To remove
1. Raise the car.

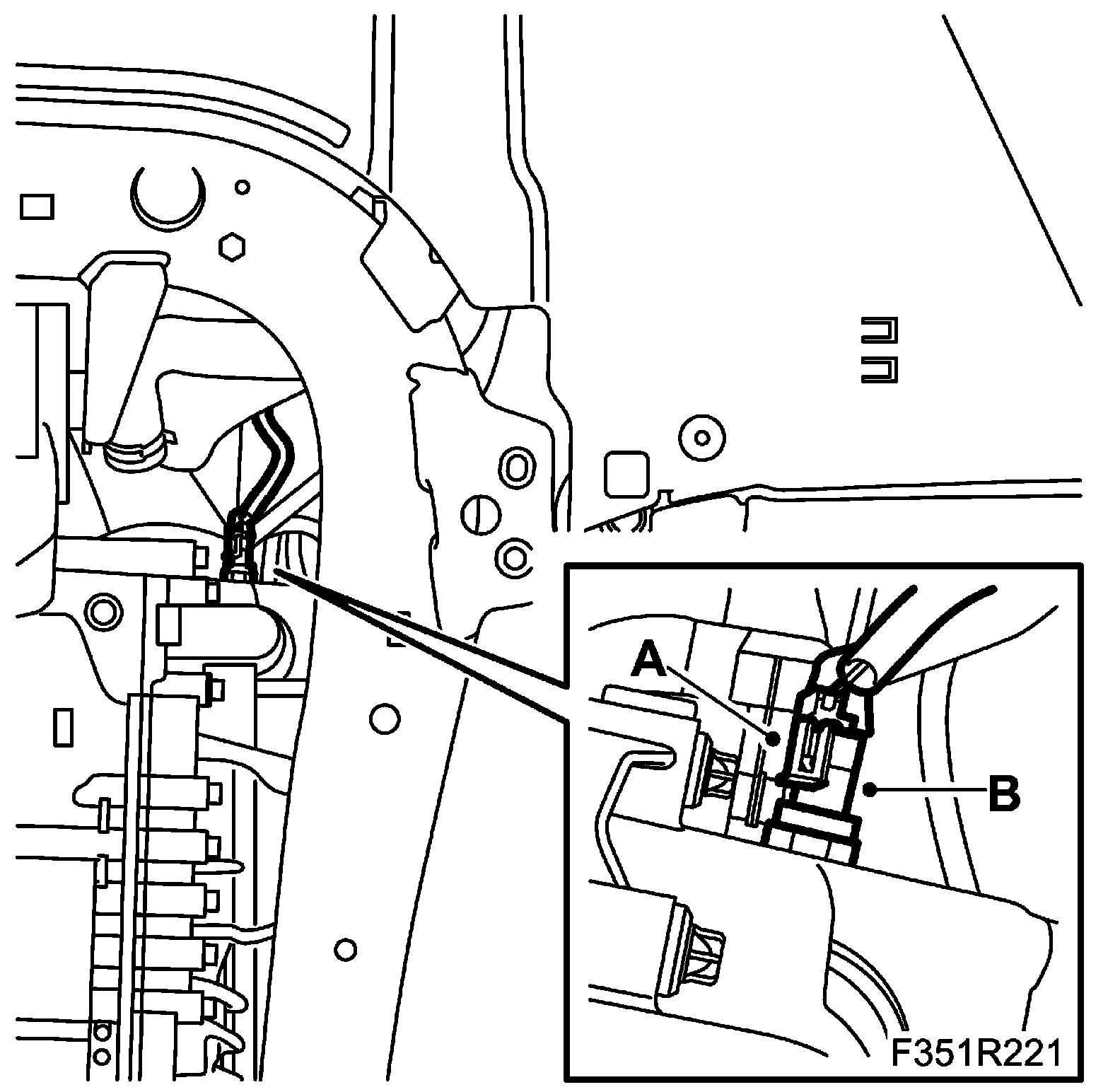

2. Unplug the connector (A).





3. Remove the reversing light switch (B).

To fit
1. Fit the reversing light switch (B) with a new sealing ring.
Tightening torque 20 Nm (15 lbf ft)





2. Plug in the connector (A).
3. Lower the car.
