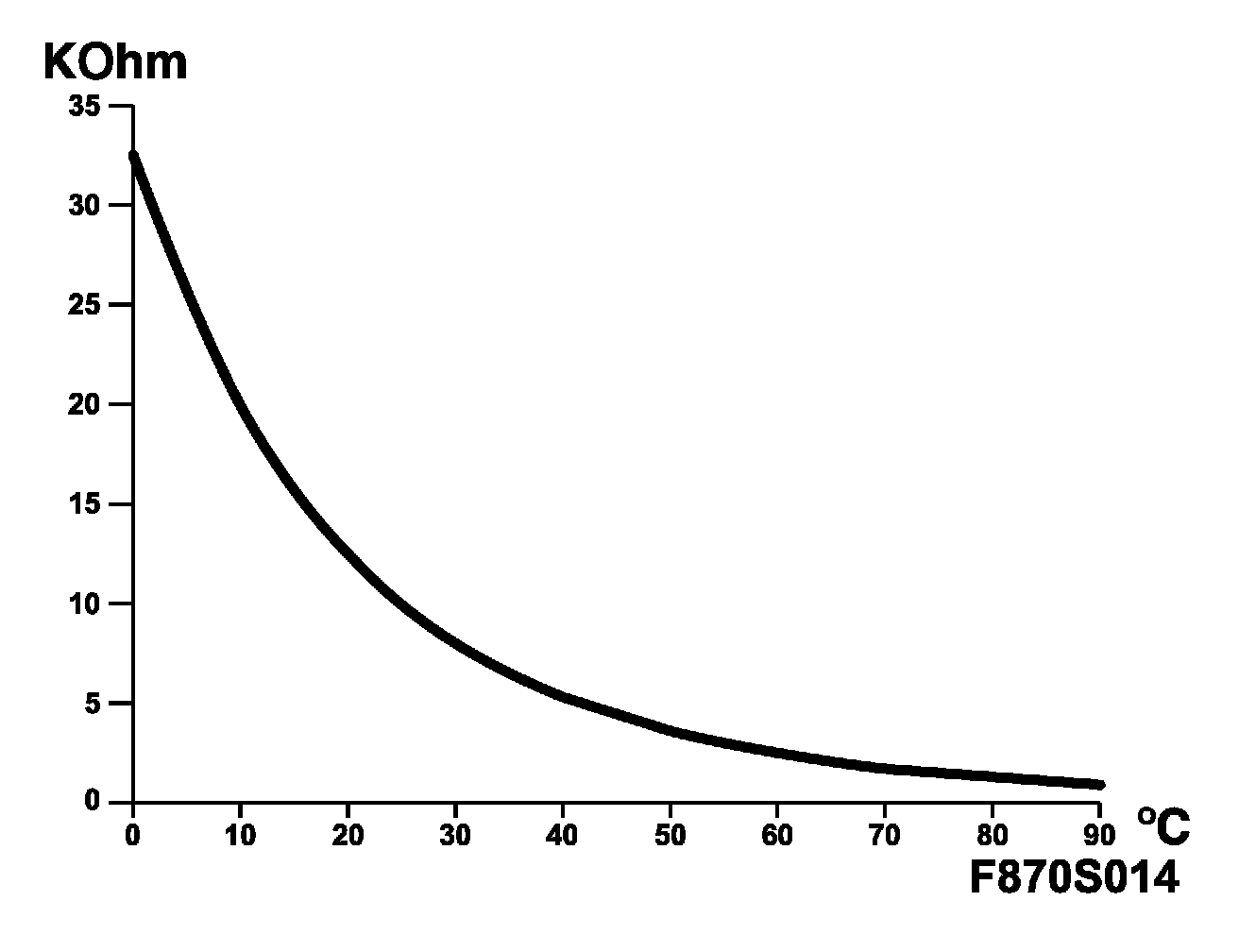

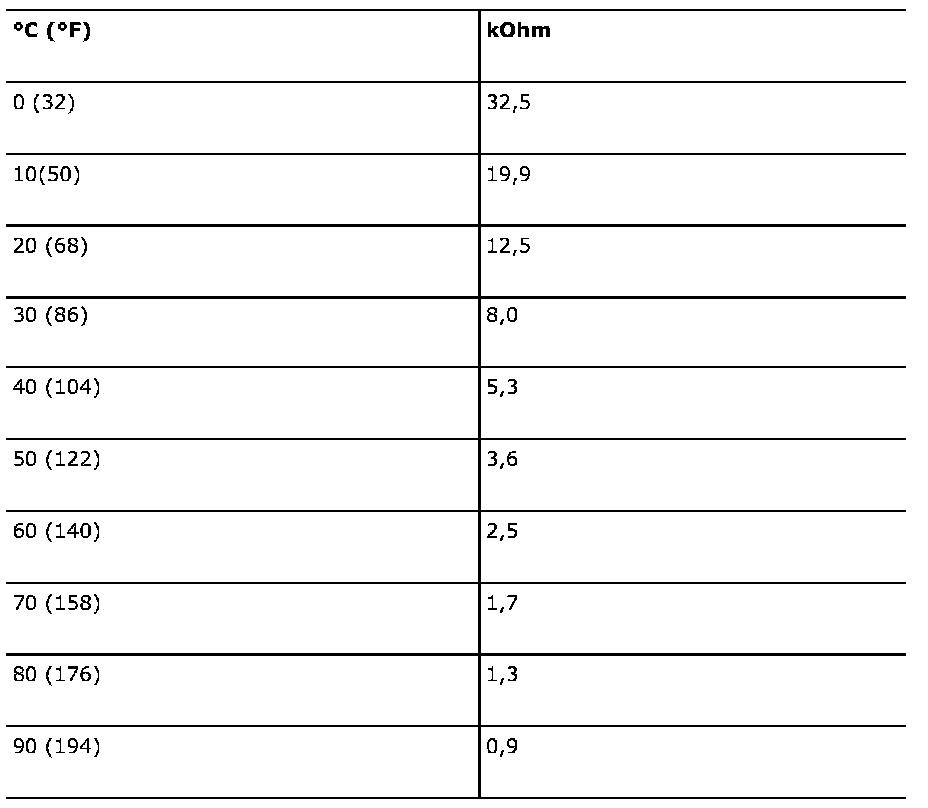

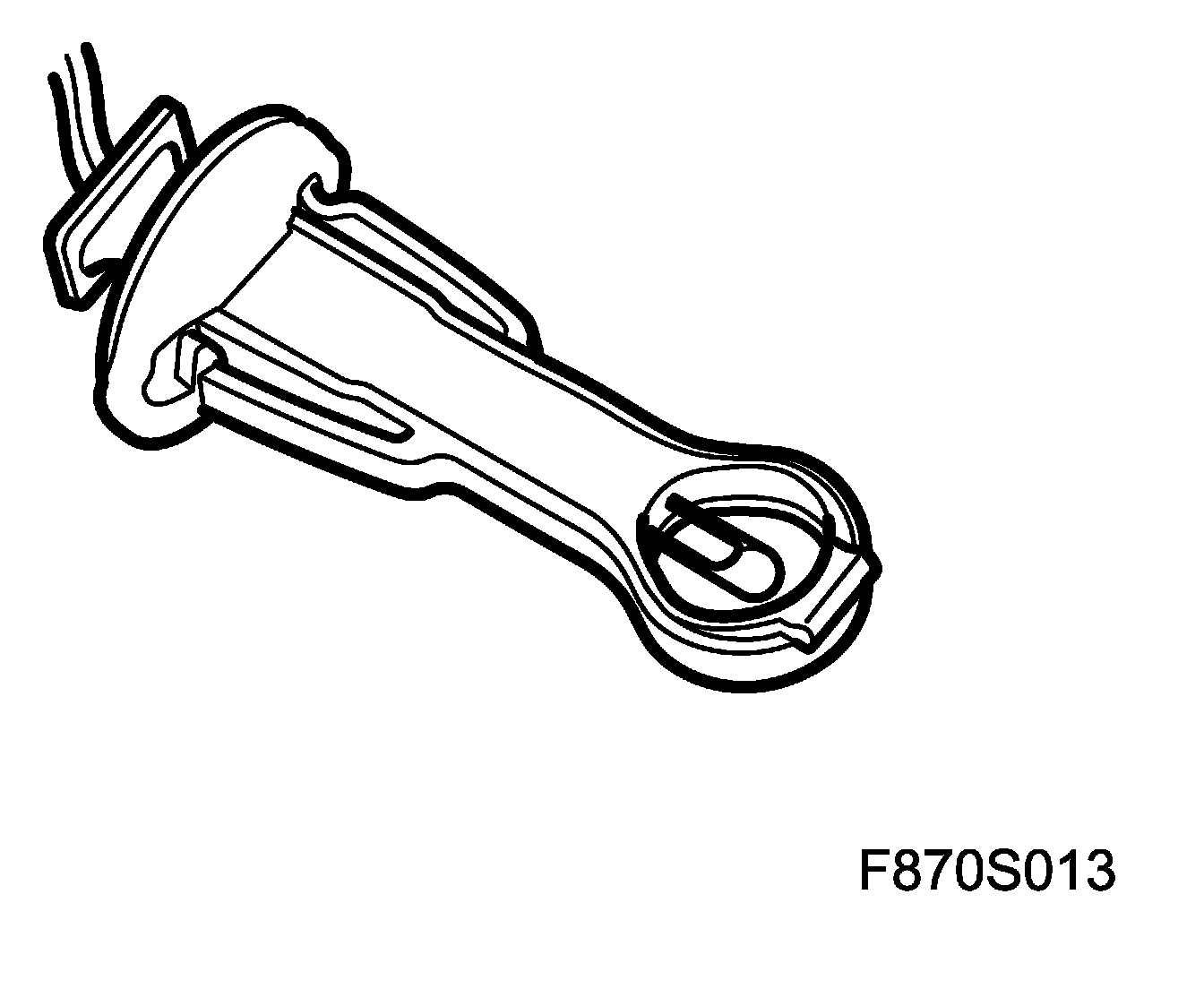

Mixed Air Temperature Sensor, RH Floor (217RH)



Mixed Air Temperature Sensor, RH Floor (217RH)











Voltage fed with 5 V through a 19.6 kOhms resistor in the control module.
