Coolant Level Switch (242)

Coolant level switch (242)

Location
Coolant level switch (242)

Main task
To warn of low coolant level.

Type
Magnetic reed actuated by a magnet situated in a float.

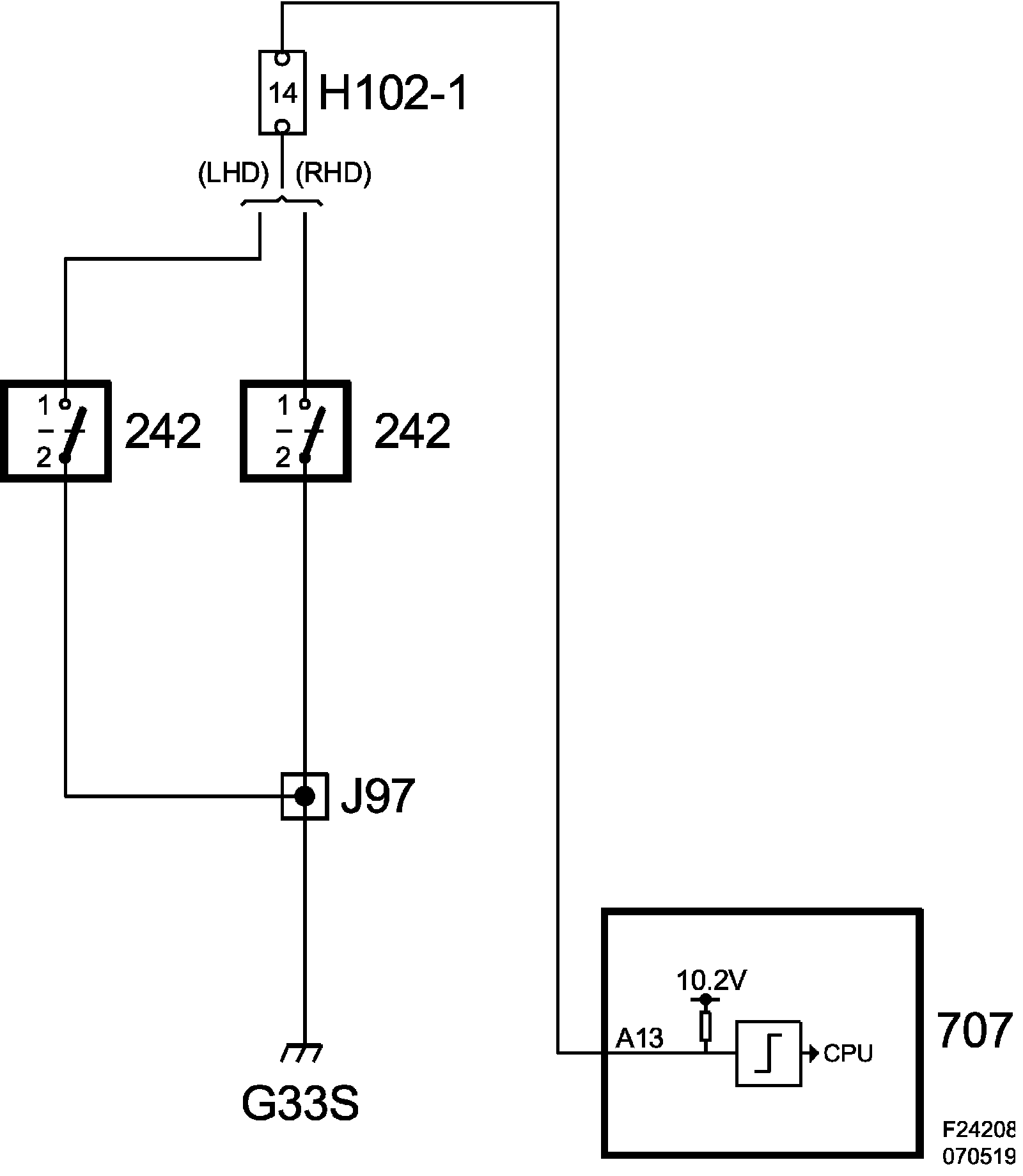

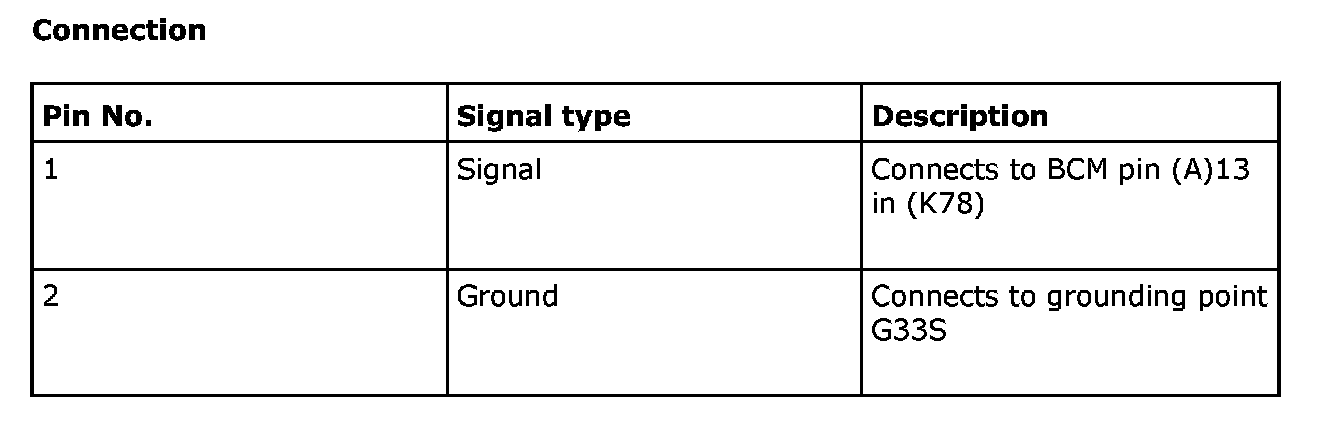

Connection








Function
The float will drop when the coolant level is low so that the ring magnet acts on the reed and closes the circuit.
