Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Lateral Accelerometer >> Specifications

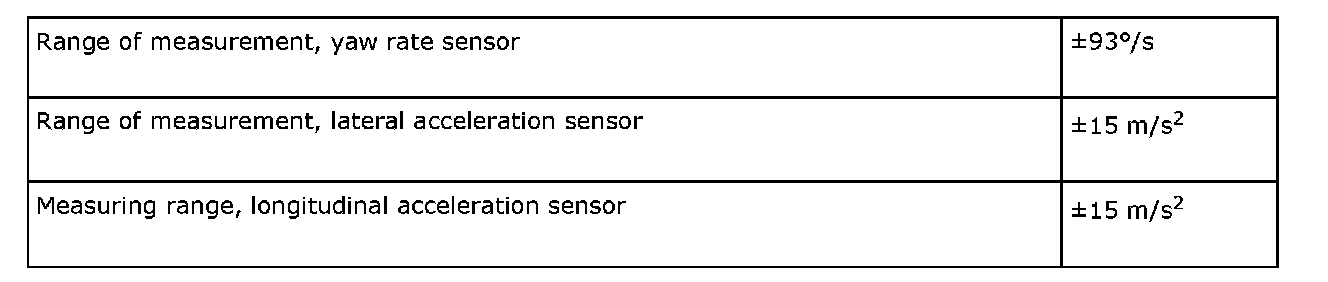

Lateral Accelerometer: Specifications

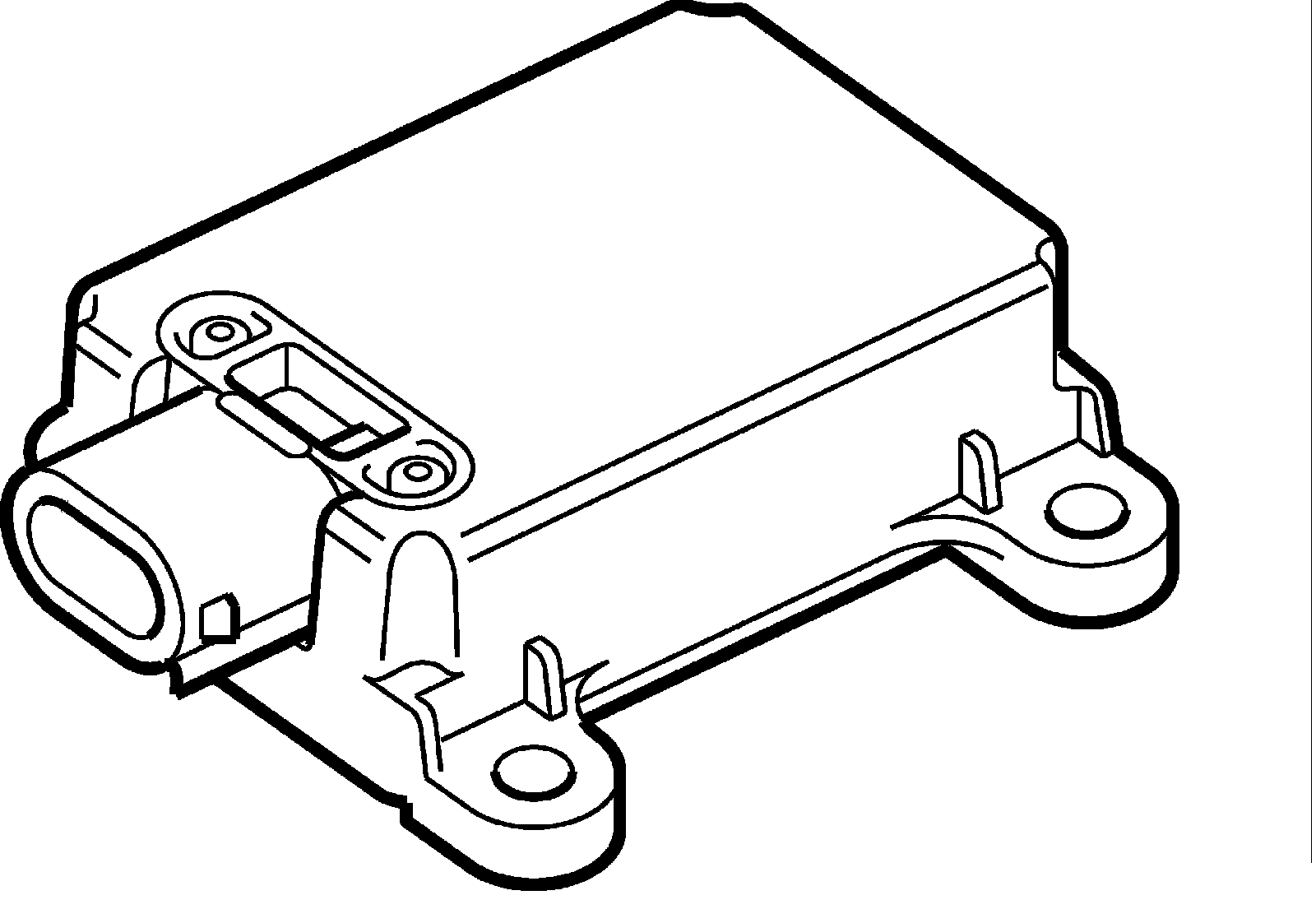

Yaw Sensor (658)

Yaw Sensor (658) (Part 1):




Yaw Sensor (658) (Part 2):
