FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Power Seat Switch
>>
Diagrams
>>
Switch, Power Seat (357)
>>
CV
CV
Switch, Power Seat (357)
Location:
on the outside of the seat towards the door

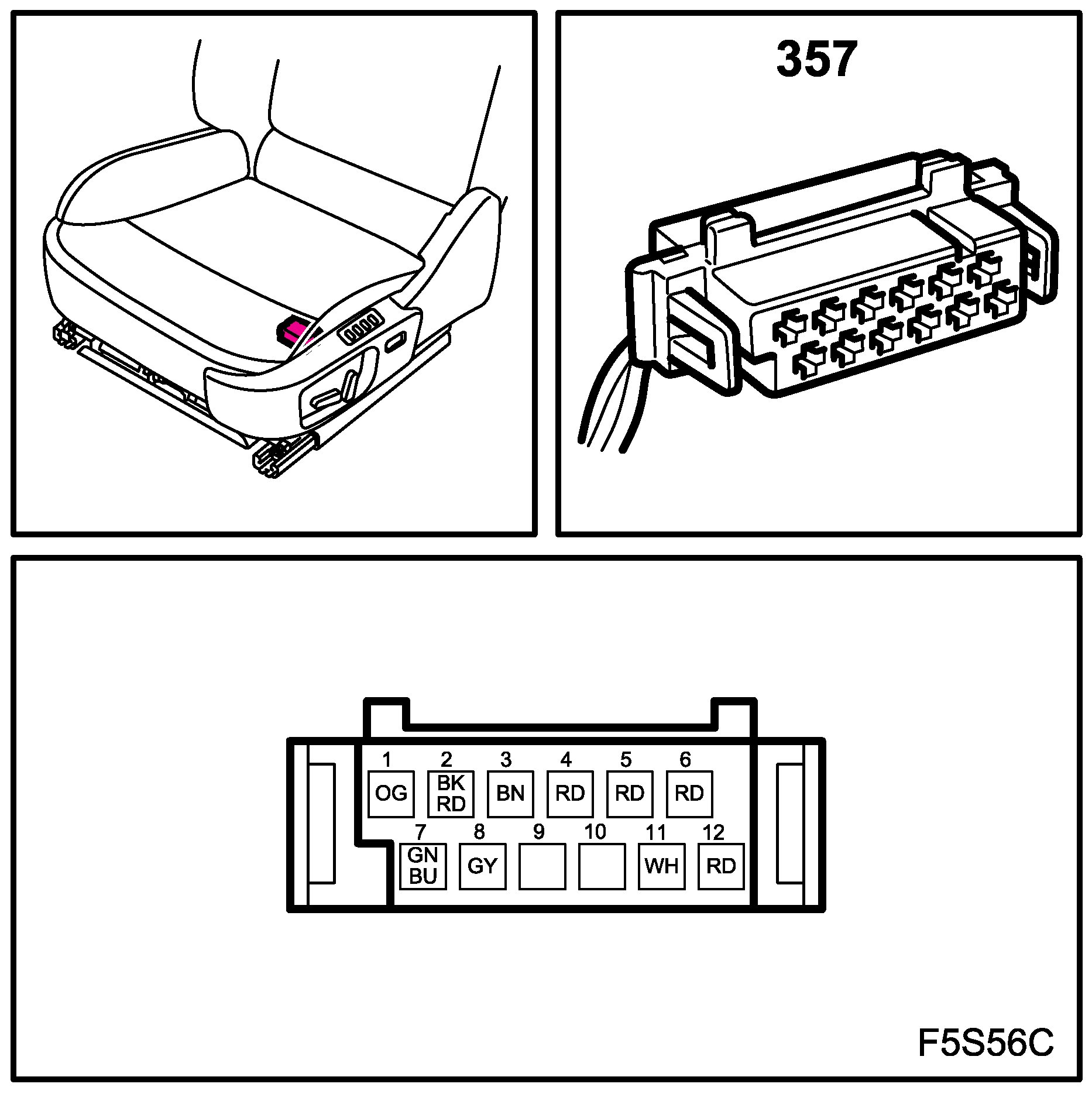

CV LH
Switch, Power Seat (357):

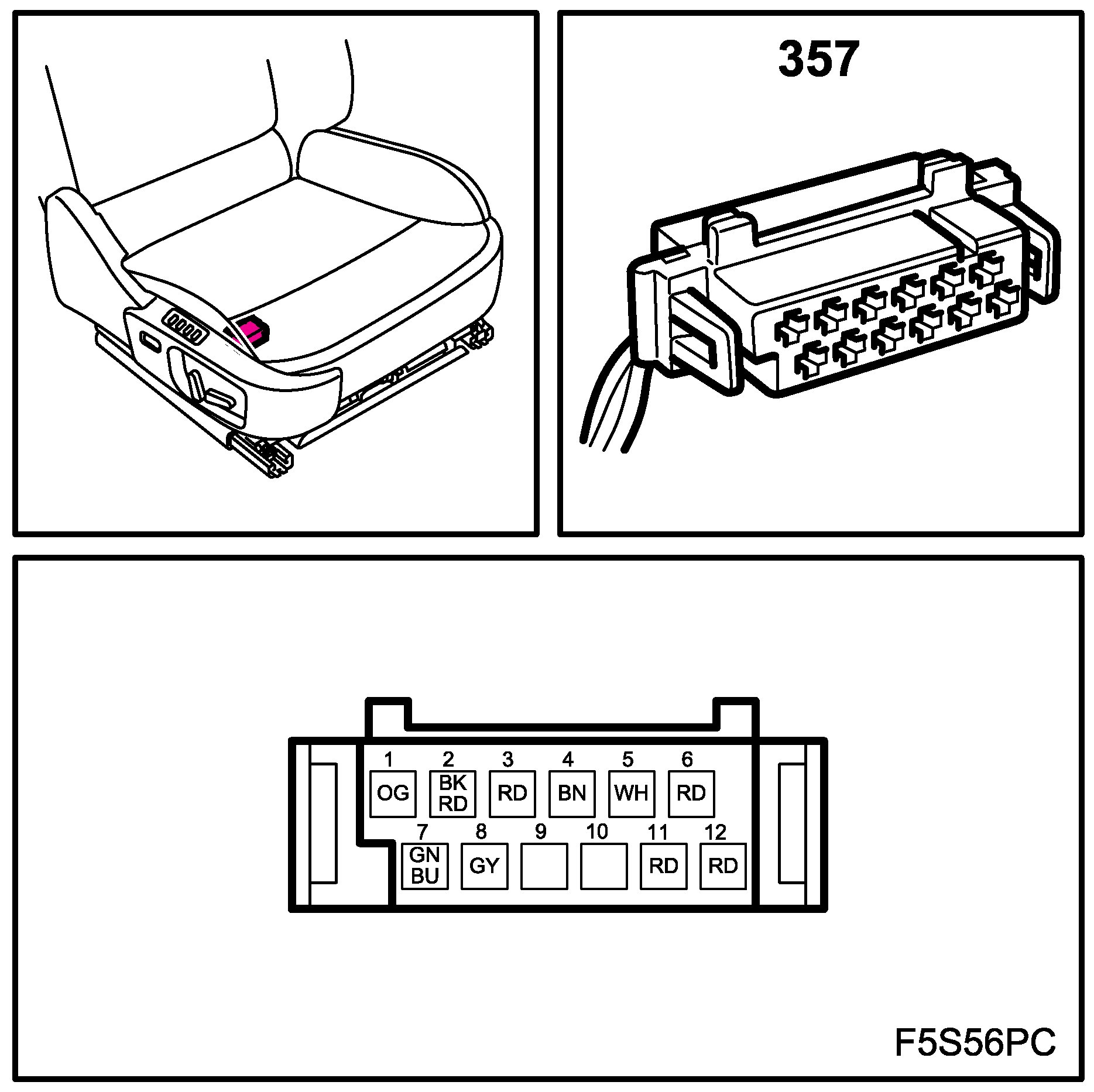

CV RH
Switch, Power Seat (357):
