Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> Switch, Electrically Adjustable Driver's Seat With Memory (357d) >> CV

CV



Switch, Electrically Adjustable Driver's Seat With Memory (357d)

Location: on the outside of the seat towards the door

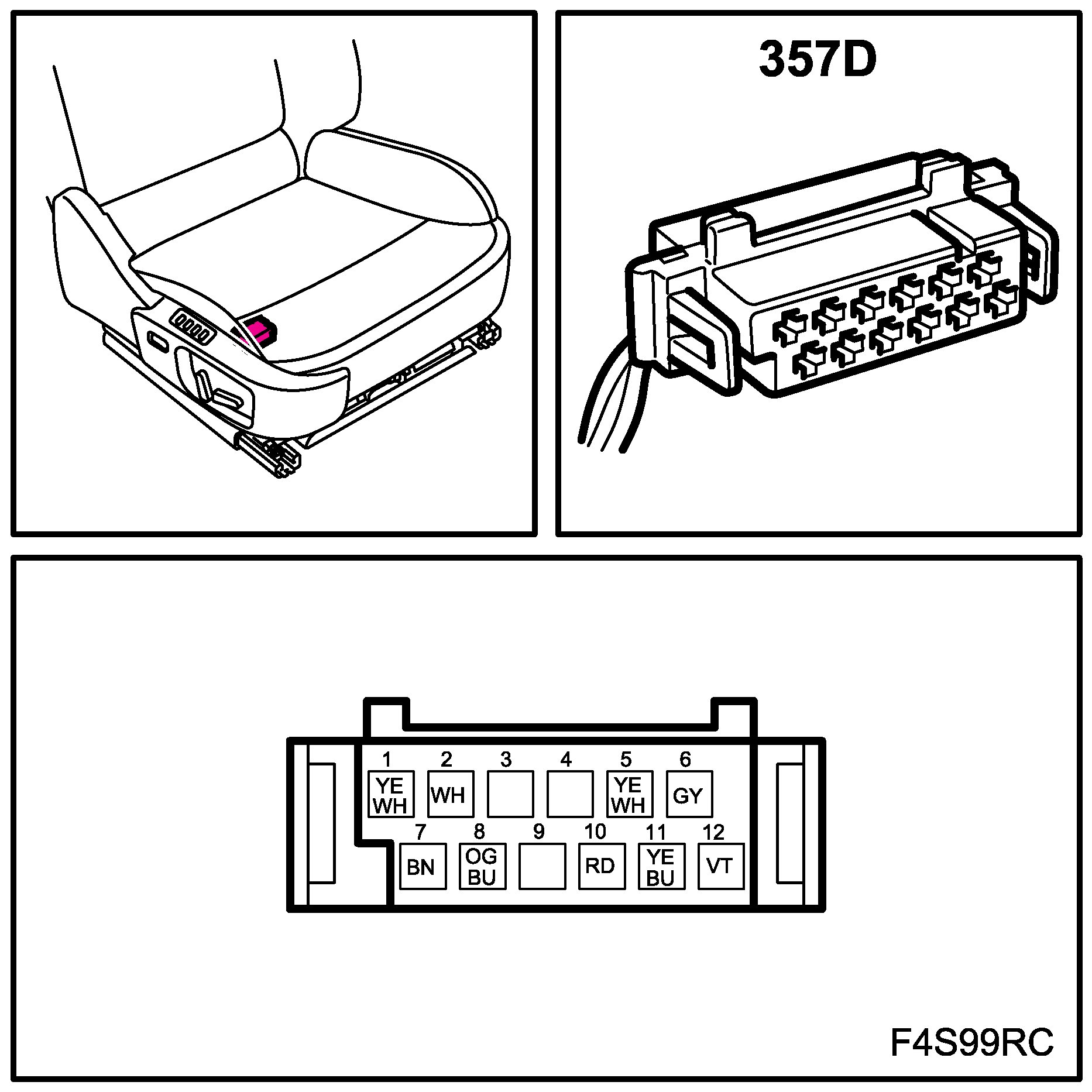

CV LH


Switch, Electrically Adjustable Driver's Seat With Memory (357D):

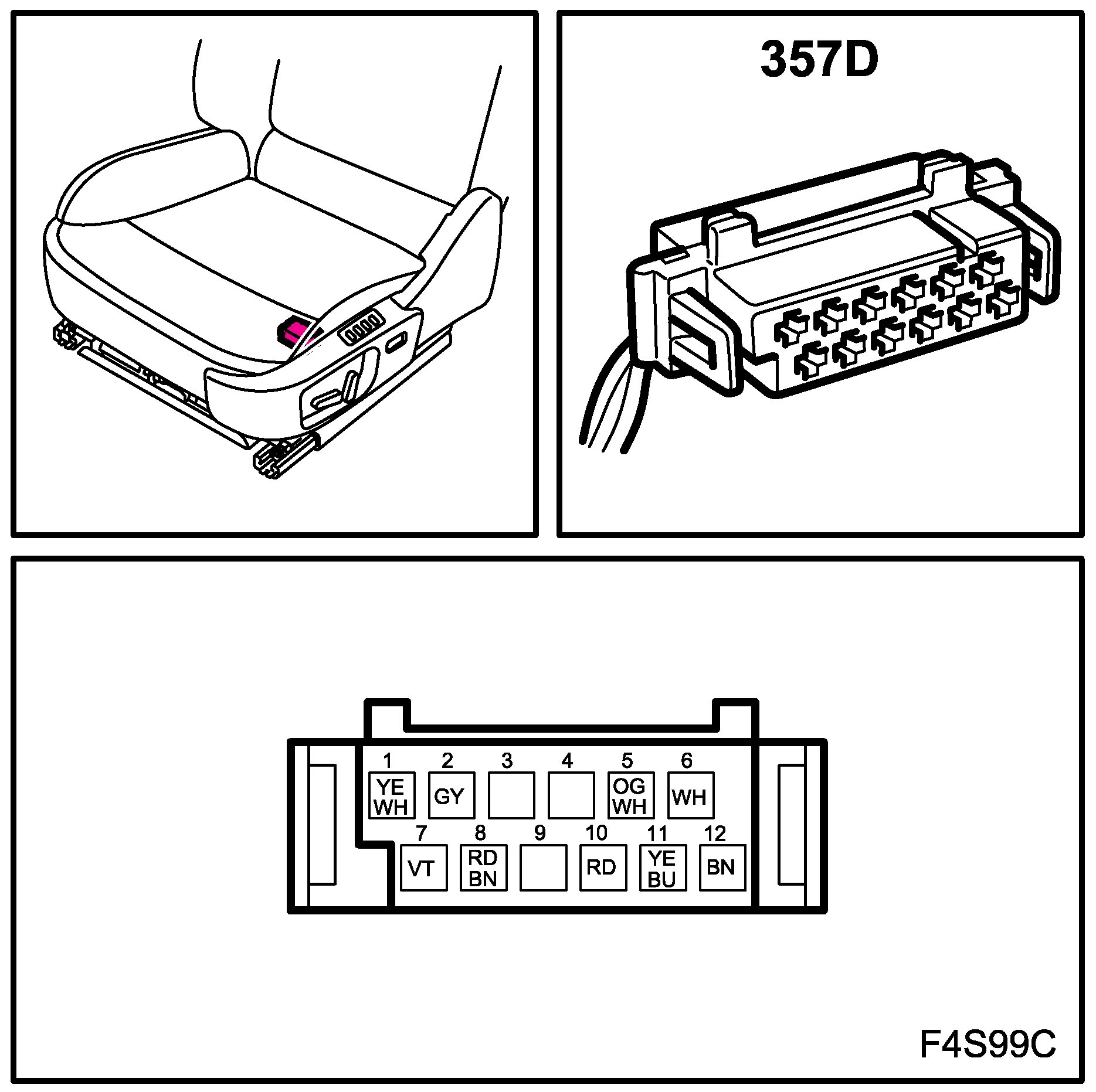

CV RH


Switch, Electrically Adjustable Driver's Seat With Memory (357D):
