CV

Anti-theft Alarm Sensor (690), CV

To remove

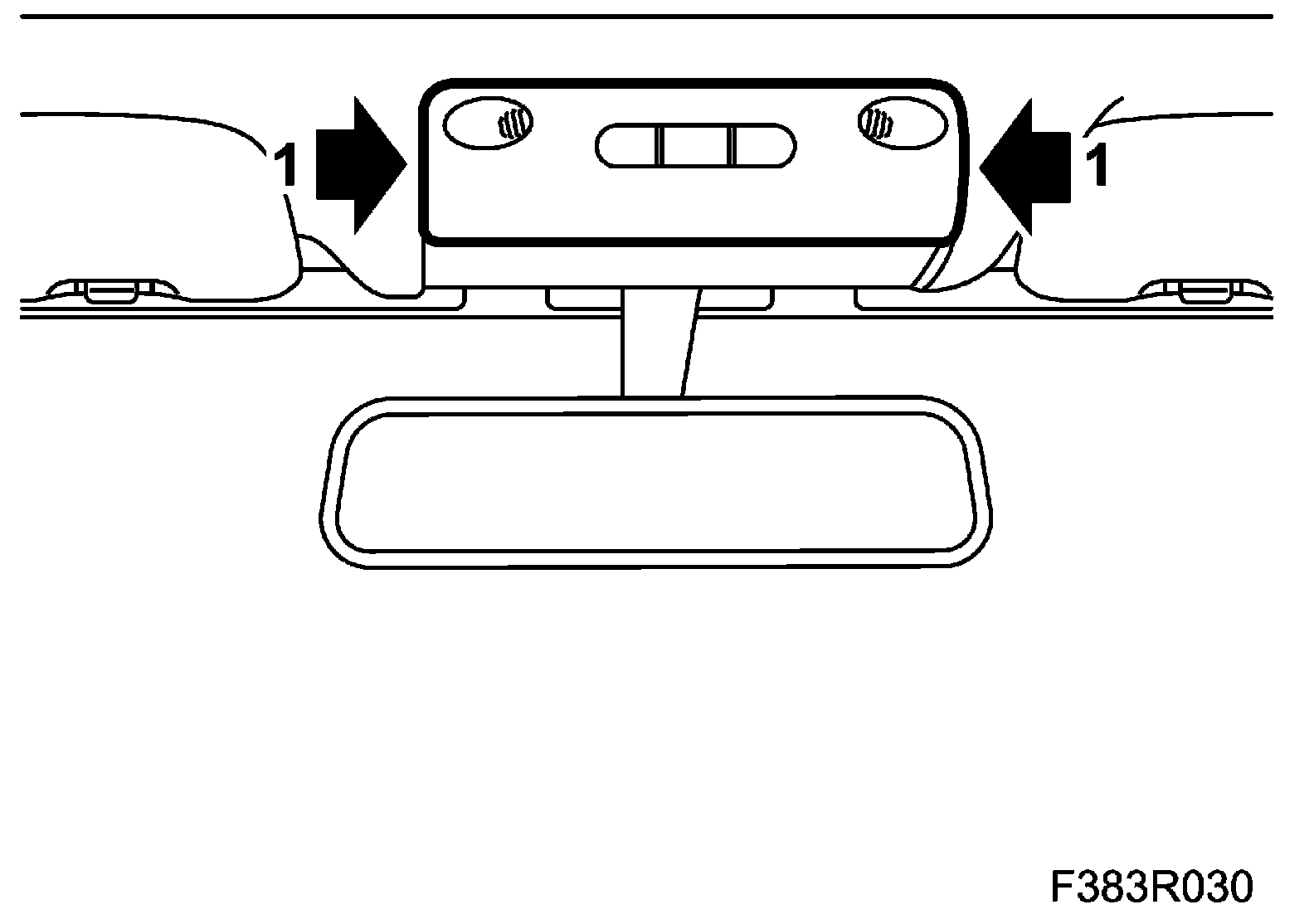

1. Remove the roof lamp from the window frame trim.





2. Remove the anti-theft alarm sensor by pressing a screwdriver against the clip.

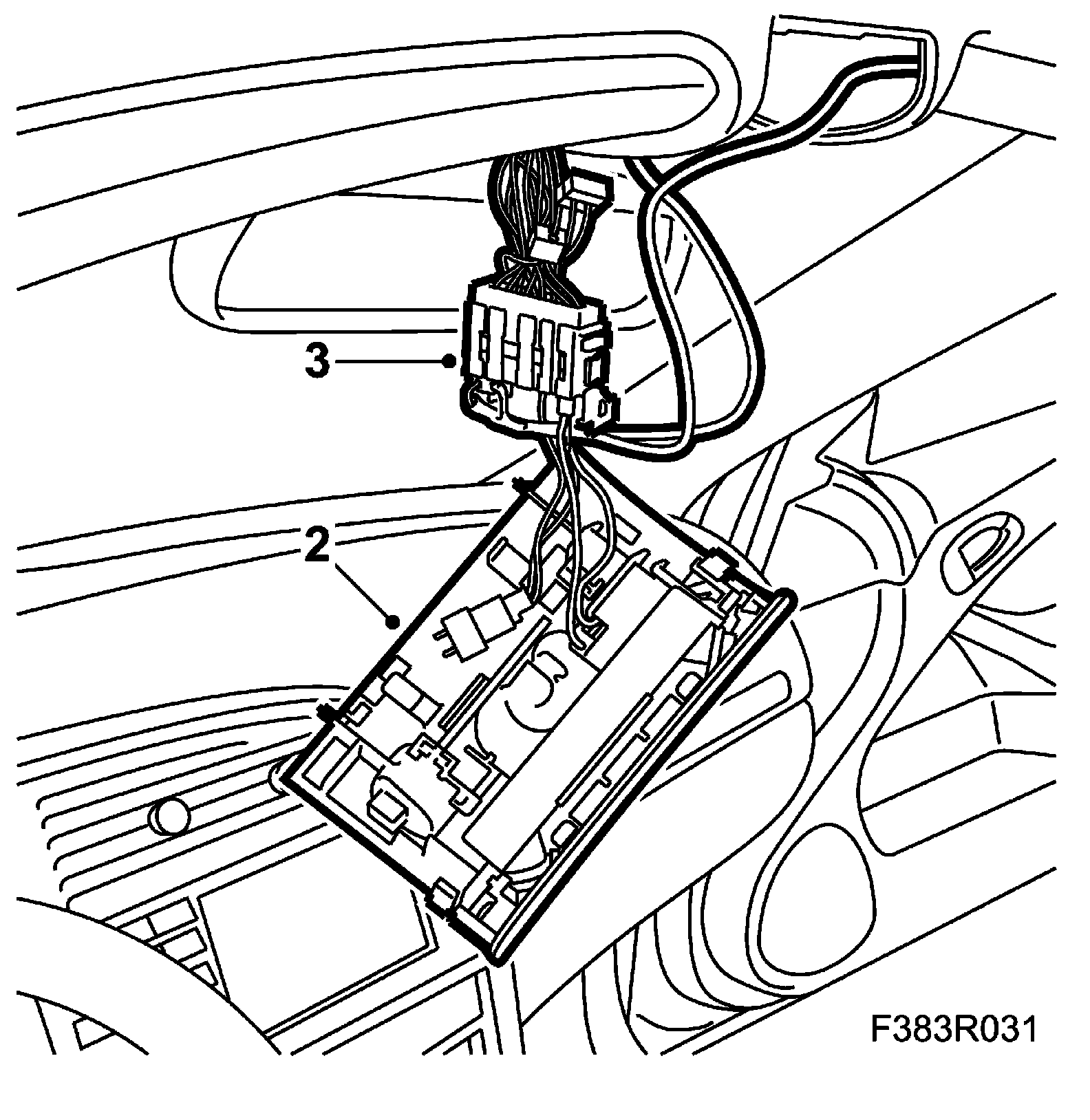

3. Unplug the connector.

To fit

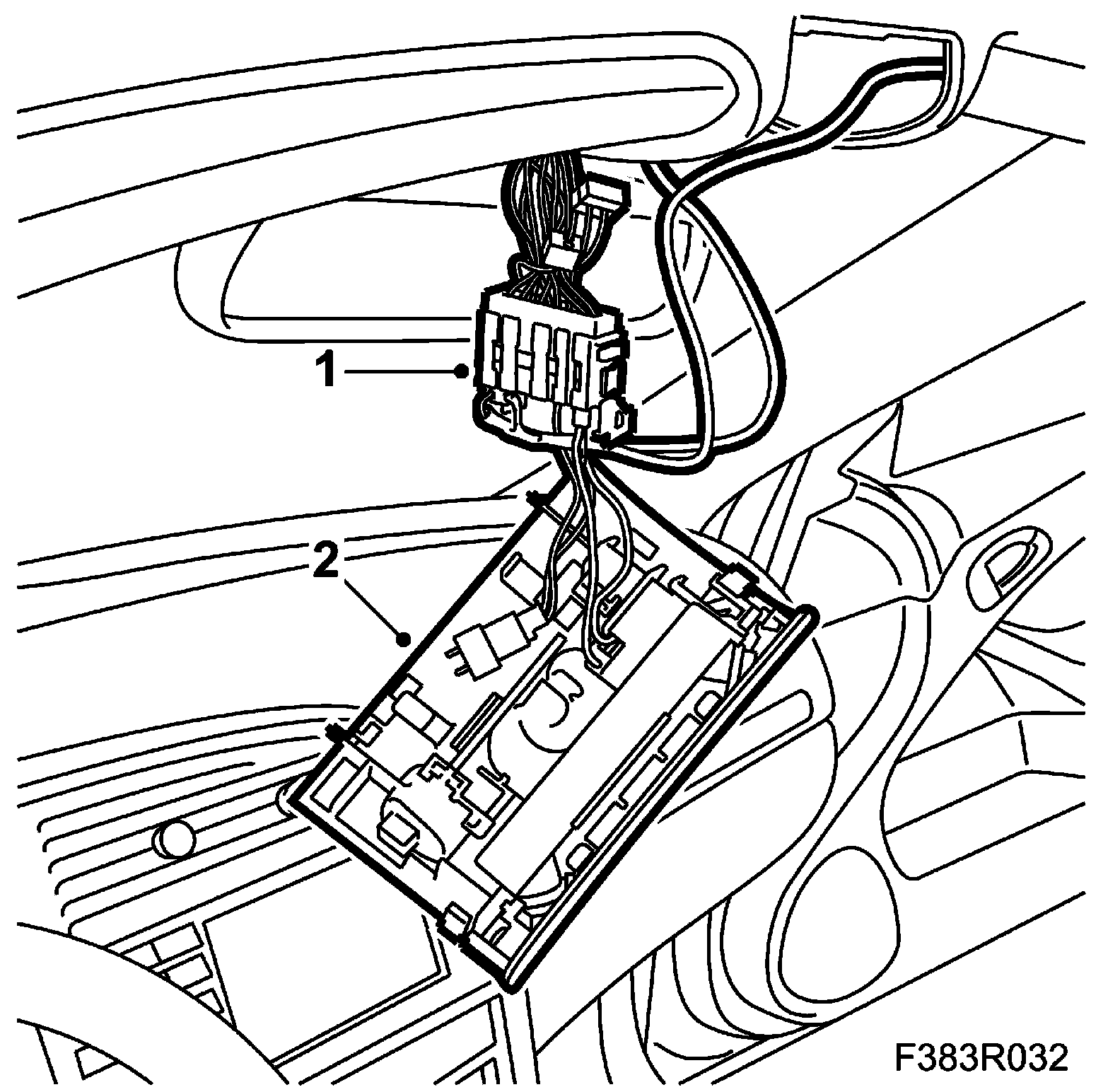

1. Plug in the connector.

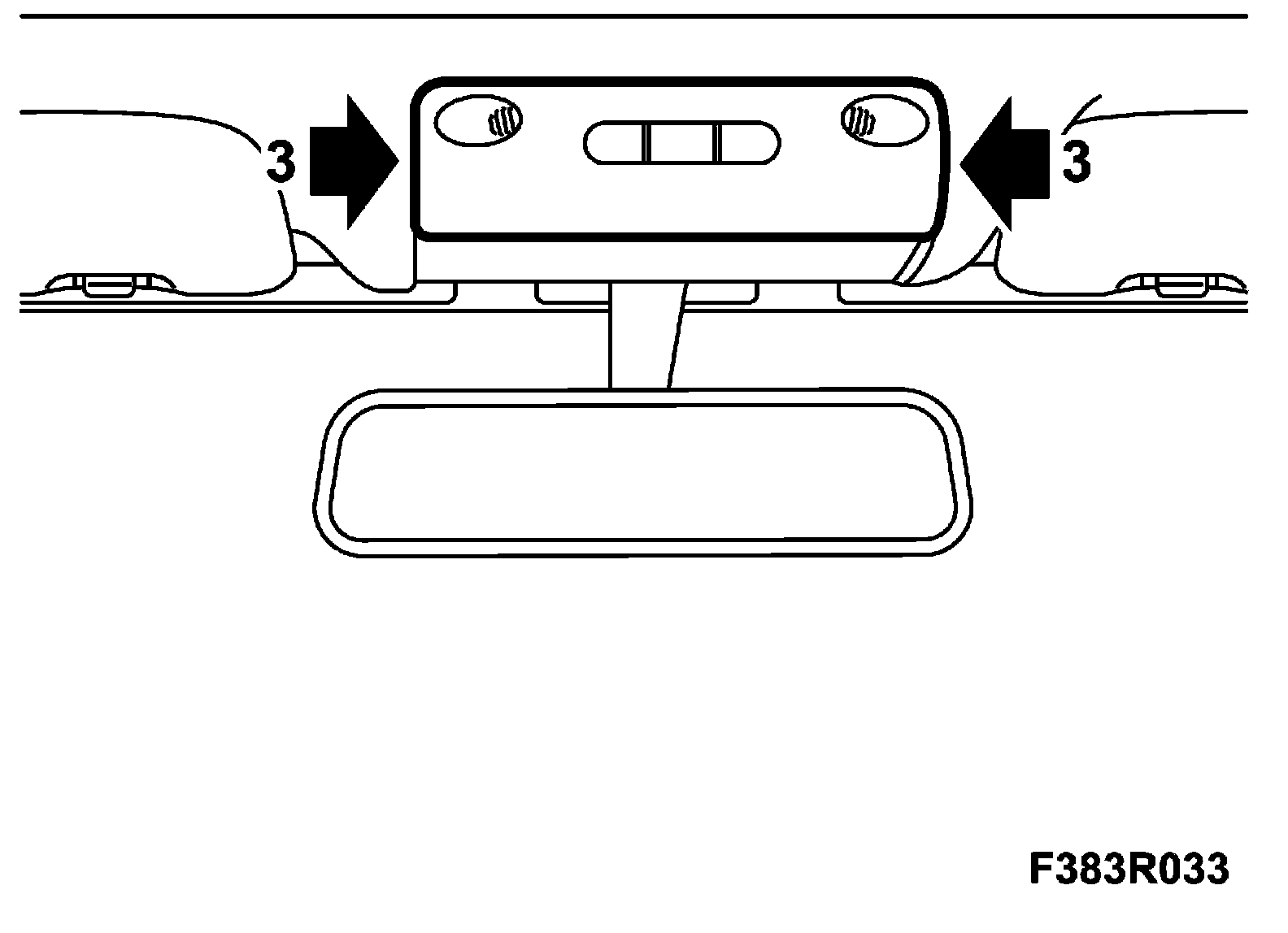

2. Fit the anti-theft alarm sensor. There should be an audible click.
3. Refit the roof lamp.
