Distance Sensor, SPA, 5D

Distance Sensor, SPA, 5D

To remove
1. Remove Bumper shell, rear, 5D.

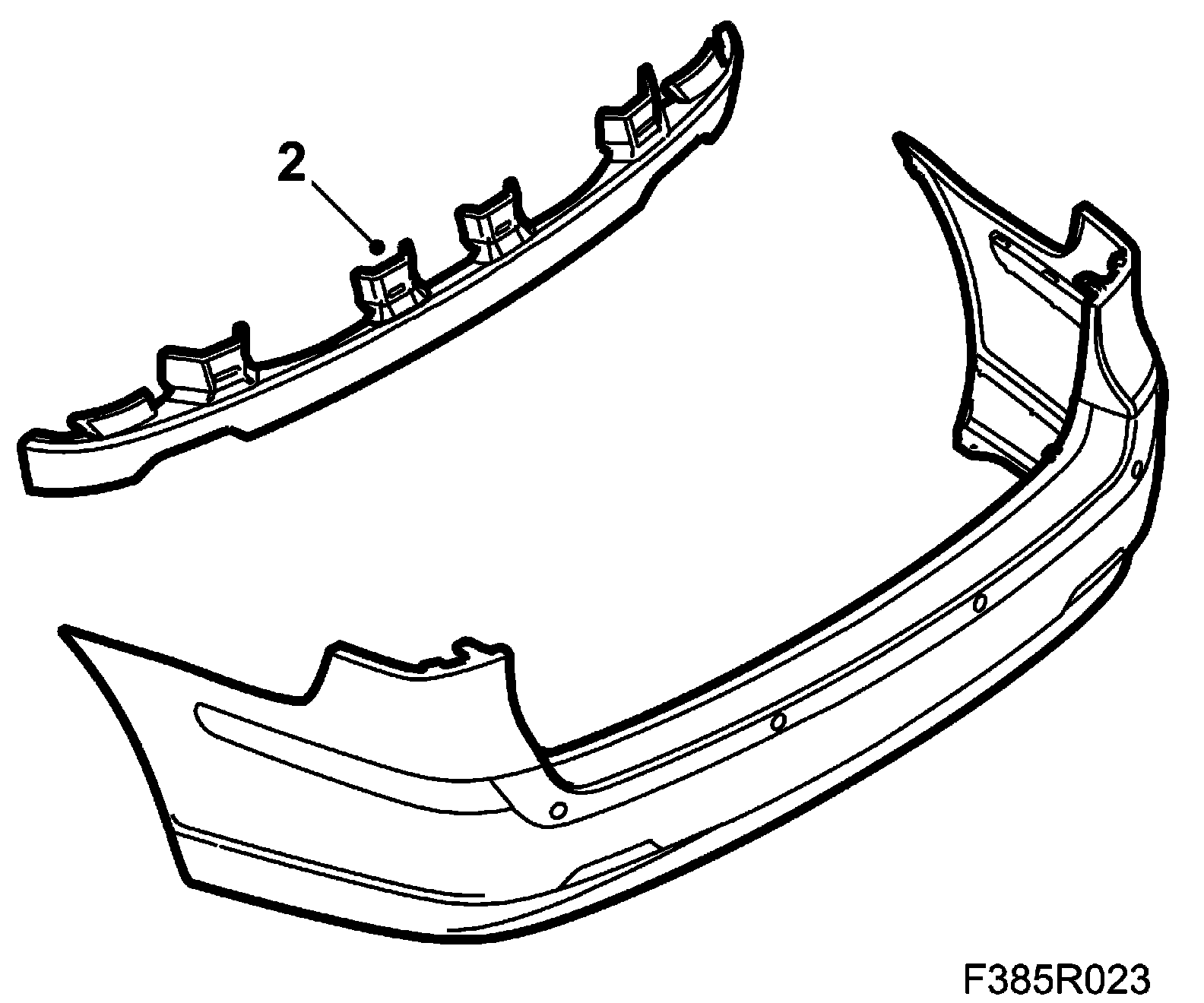

2. Remove the cellular block from the bumper shell.

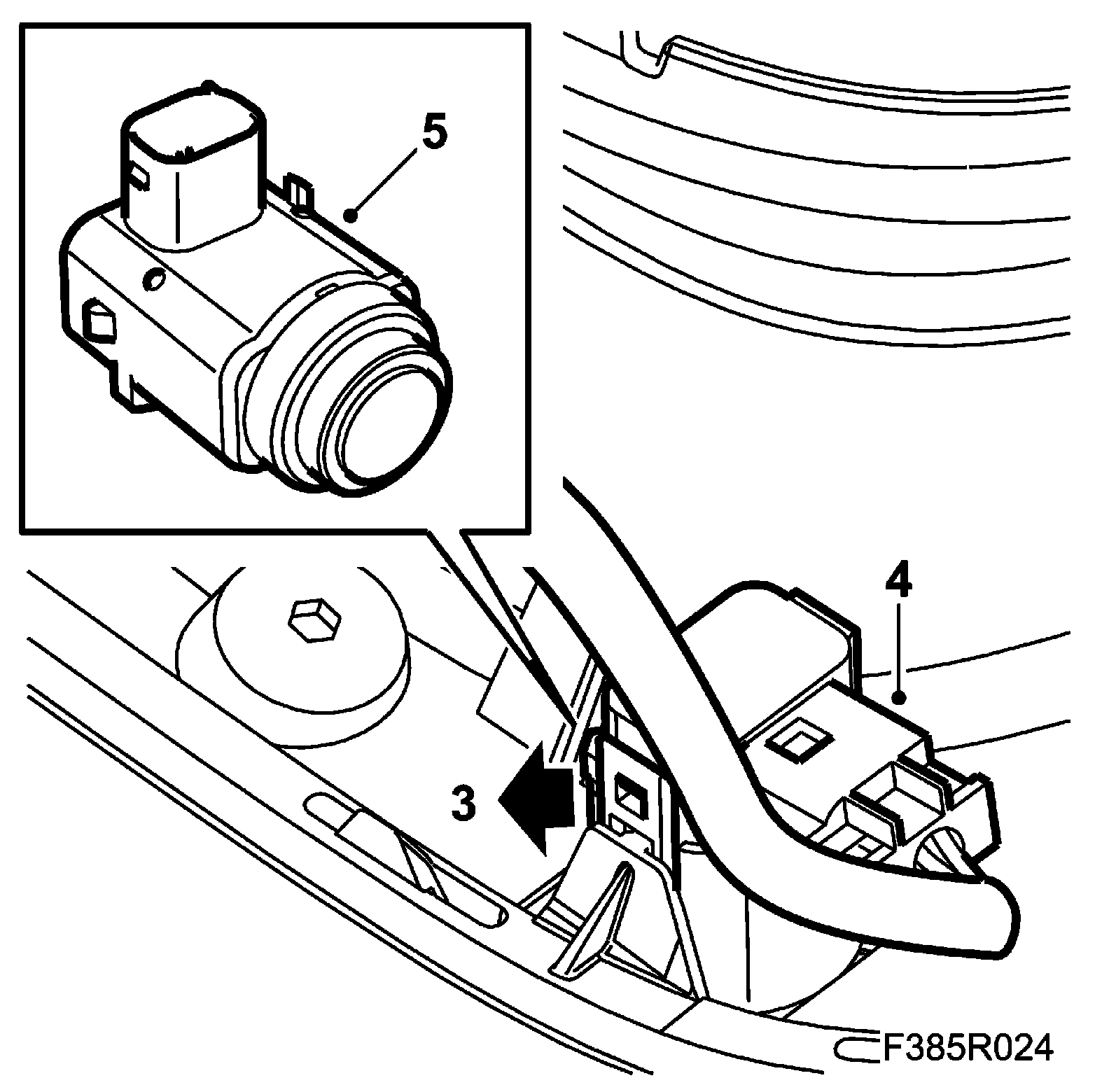

3. Detach the sensor from the bumper shell by pressing out the locking tabs.





4. Unplug the sensor connector.
5. Remove the sensor seal.

To fit

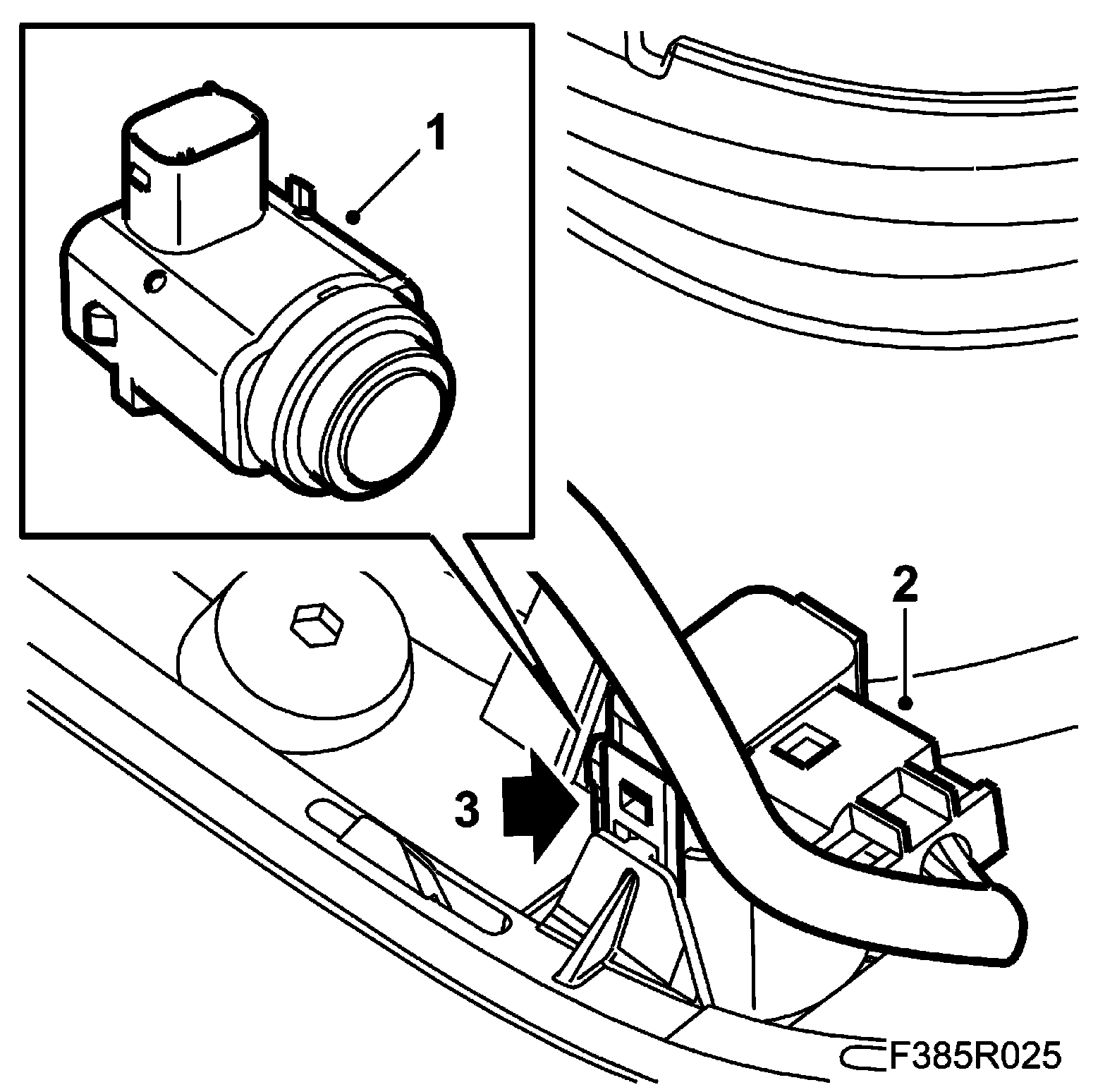

1. Fit the sensor seal.





2. Plug in the sensor connector.
3. Fit the sensor to the bumper shell.
4. Fit the cellular block by guiding it in towards the bumper shell. Press on the block.





5. Fit Bumper shell, rear, 5D.

Changing the sensor holder

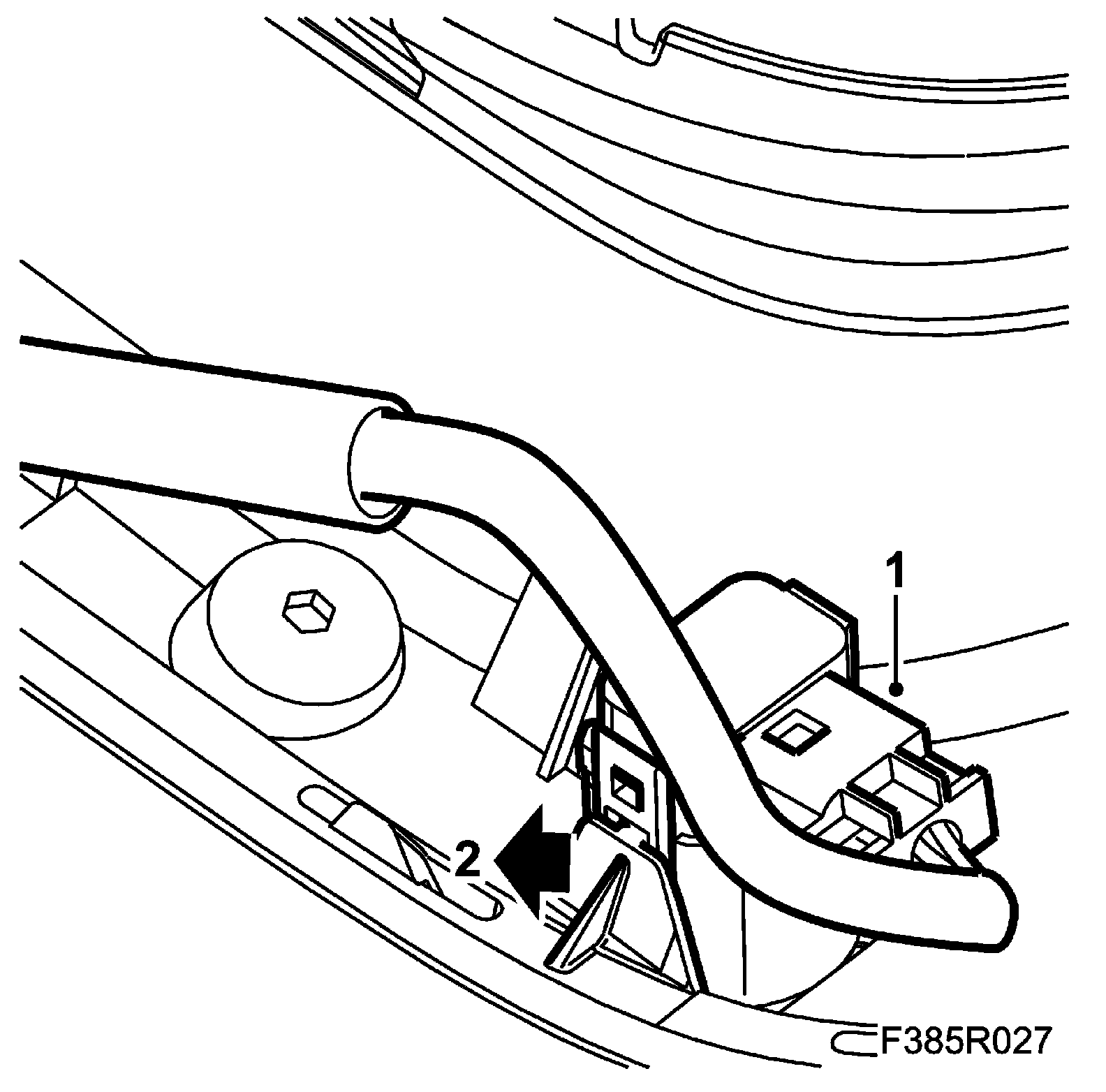

1. Remove the sensor.





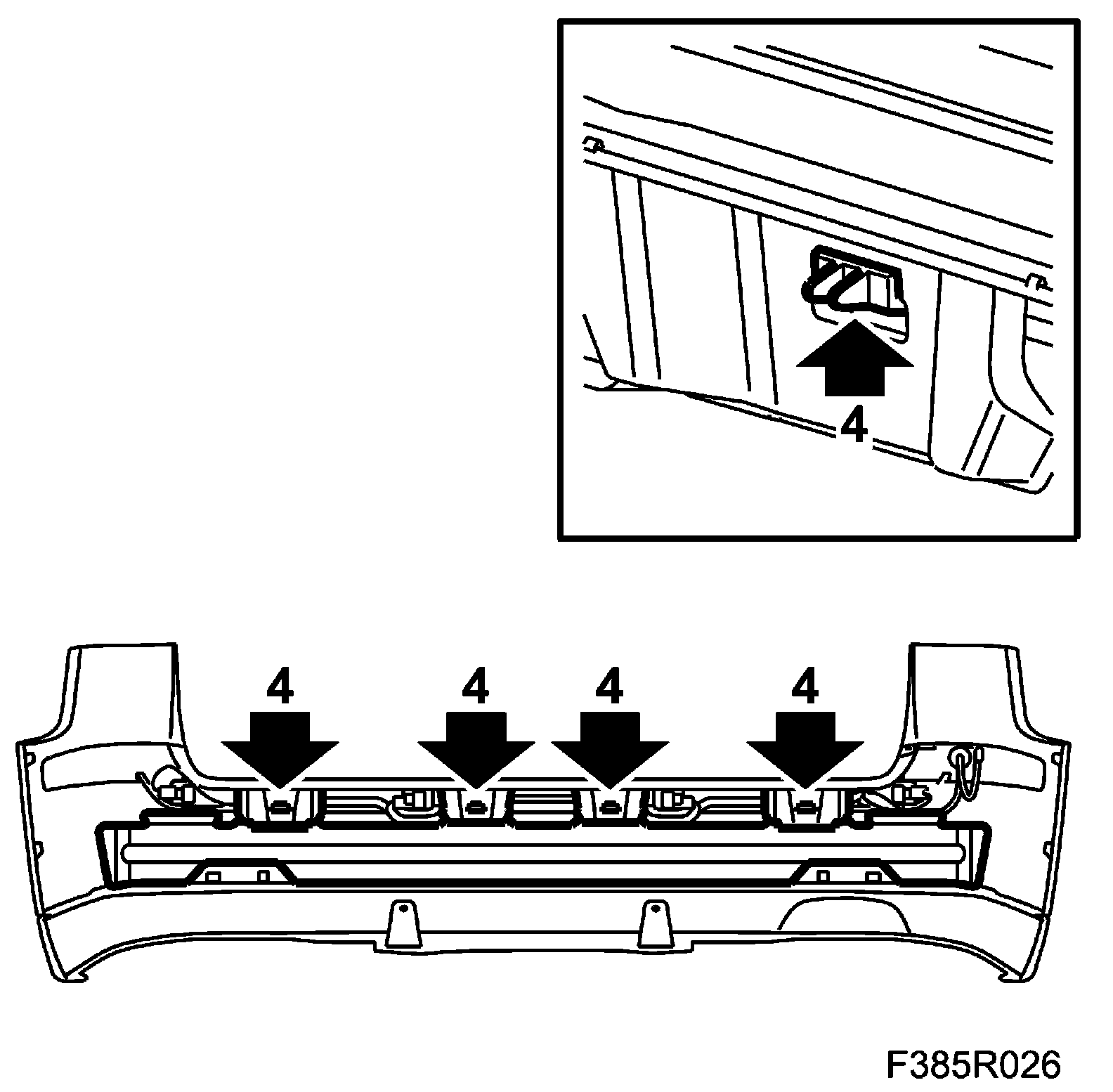

2. Press out the decor strip locking tabs and remove the holders.
3. Fit the new holder to the decor strip.

NOTE: The holder must be fitted with the wide locking tab down.

4. Fit the sensor.
