Integrated Accessory Switch Assembly: Service and Repair

Switch Panel (737A)

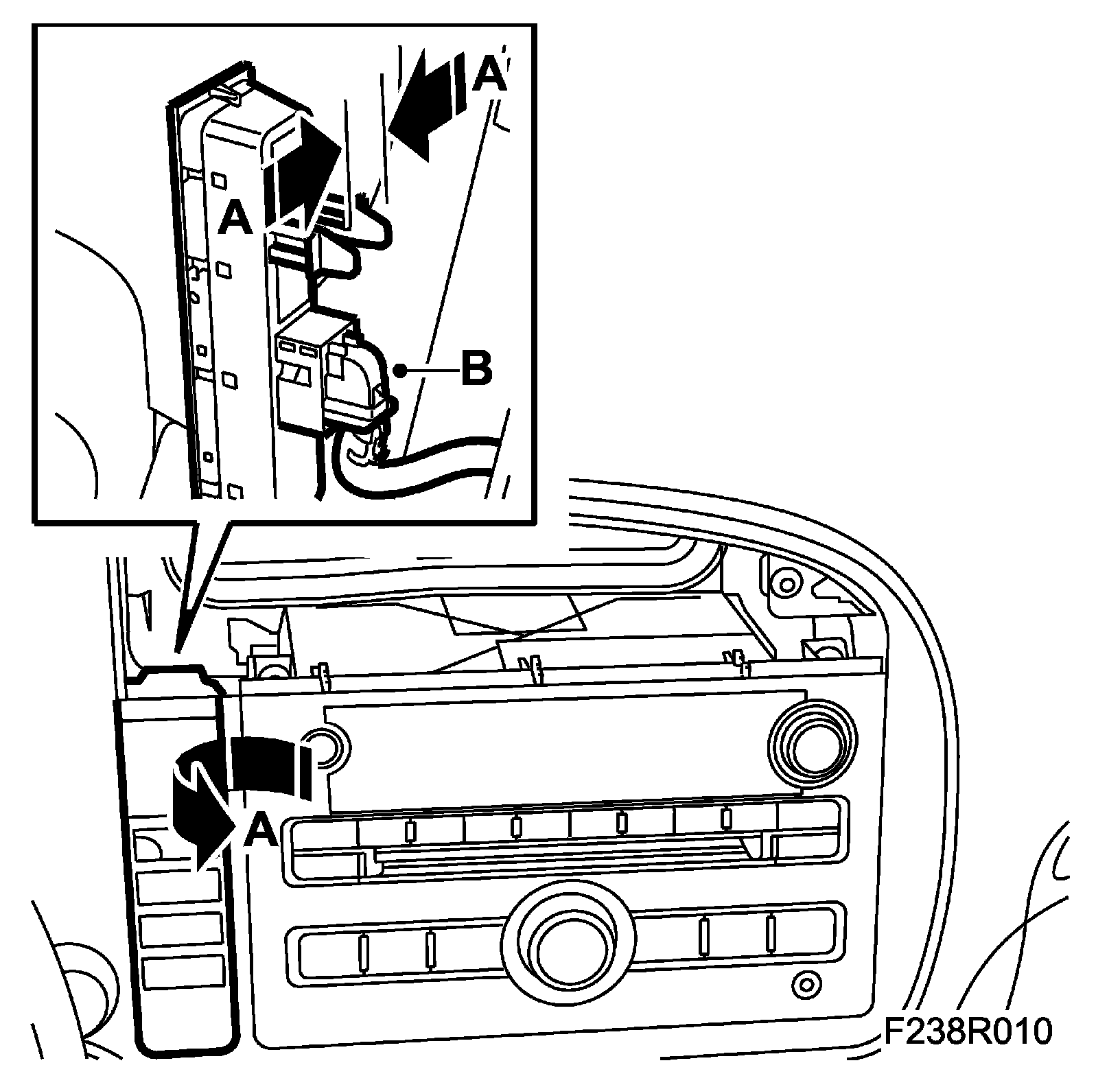

To remove
1. Remove Center air vent, panel.
2. Remove the switch panel by pressing together the two tabs (A) on the back and then pressing out the switch panel from behind, starting at the top.





3. Unplug the connector (B).

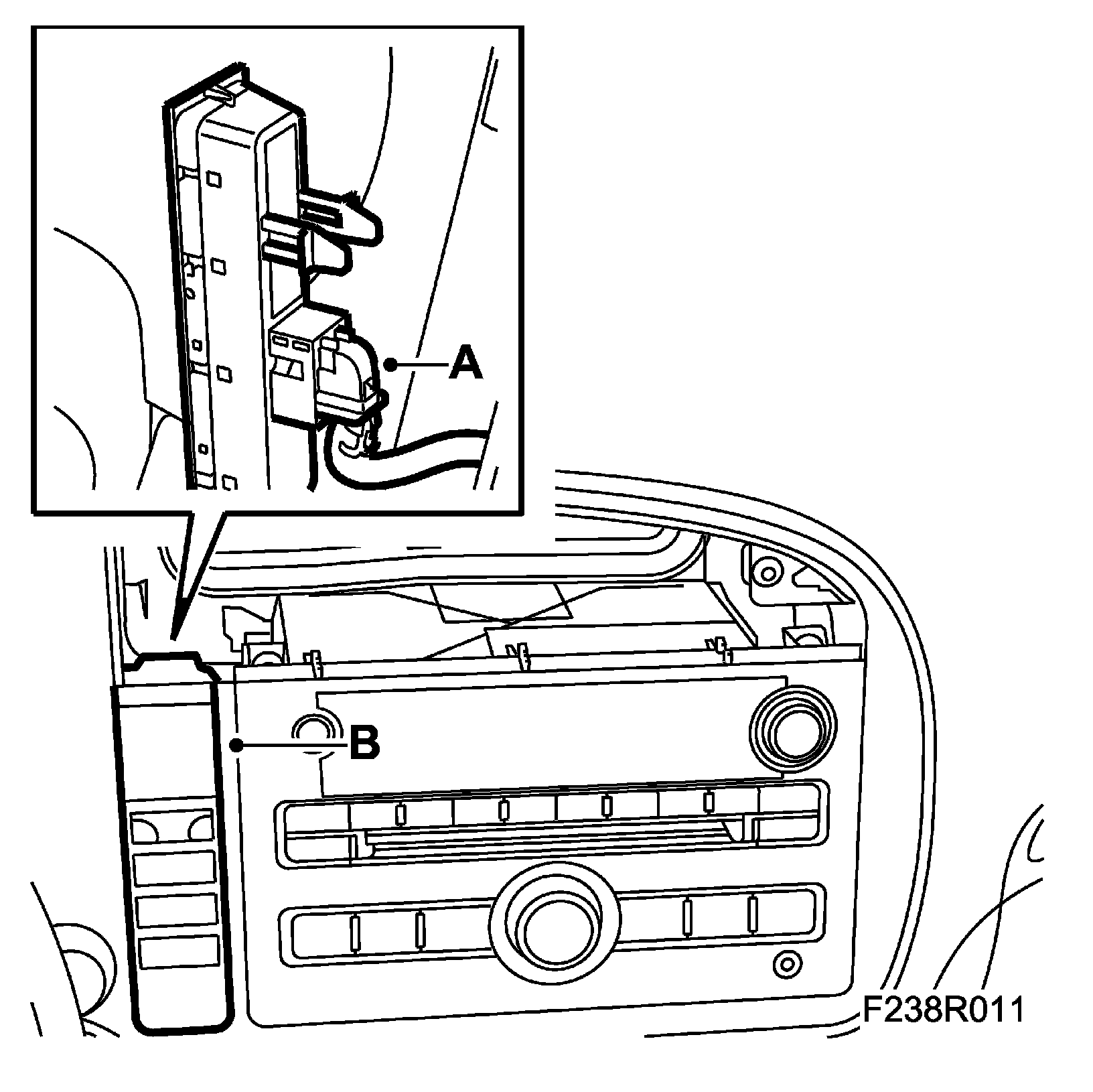

To fit
1. Plug in the connector (A).





2. Fit the switch panel (B) by positioning the hook in the bottom and then pressing in the top.
3. Align and fit Center air vent, panel.
