Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt Tensioner
>>
Diagrams
>>
Belt Tensioner, Passenger (236P)
>>
4D/5D
4D/5D

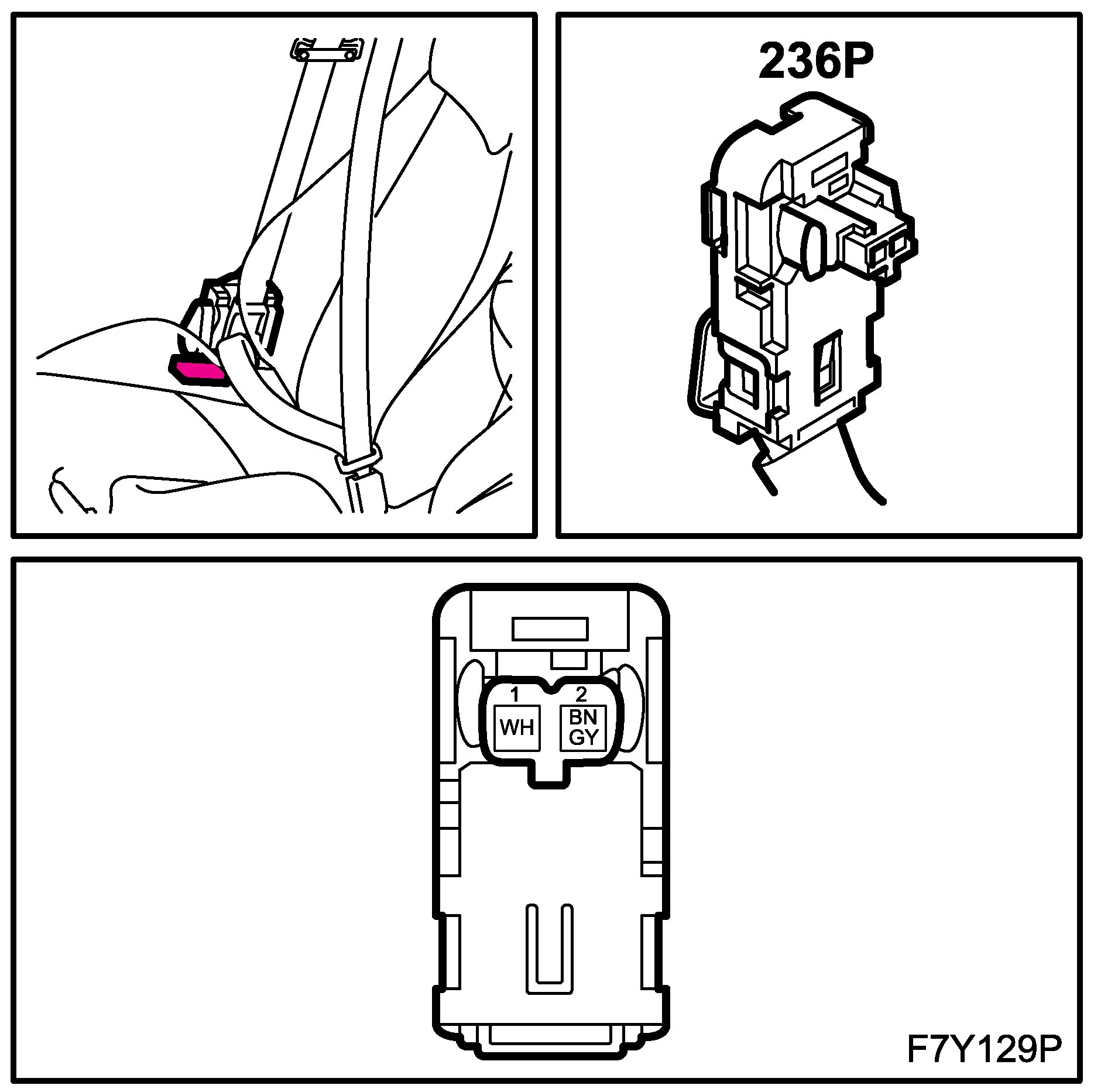

Belt Tensioner, Passenger (236P)
Location:
in the passenger side B-pillar
4D/5D
Belt Tensioner, Passenger (236P):
