Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

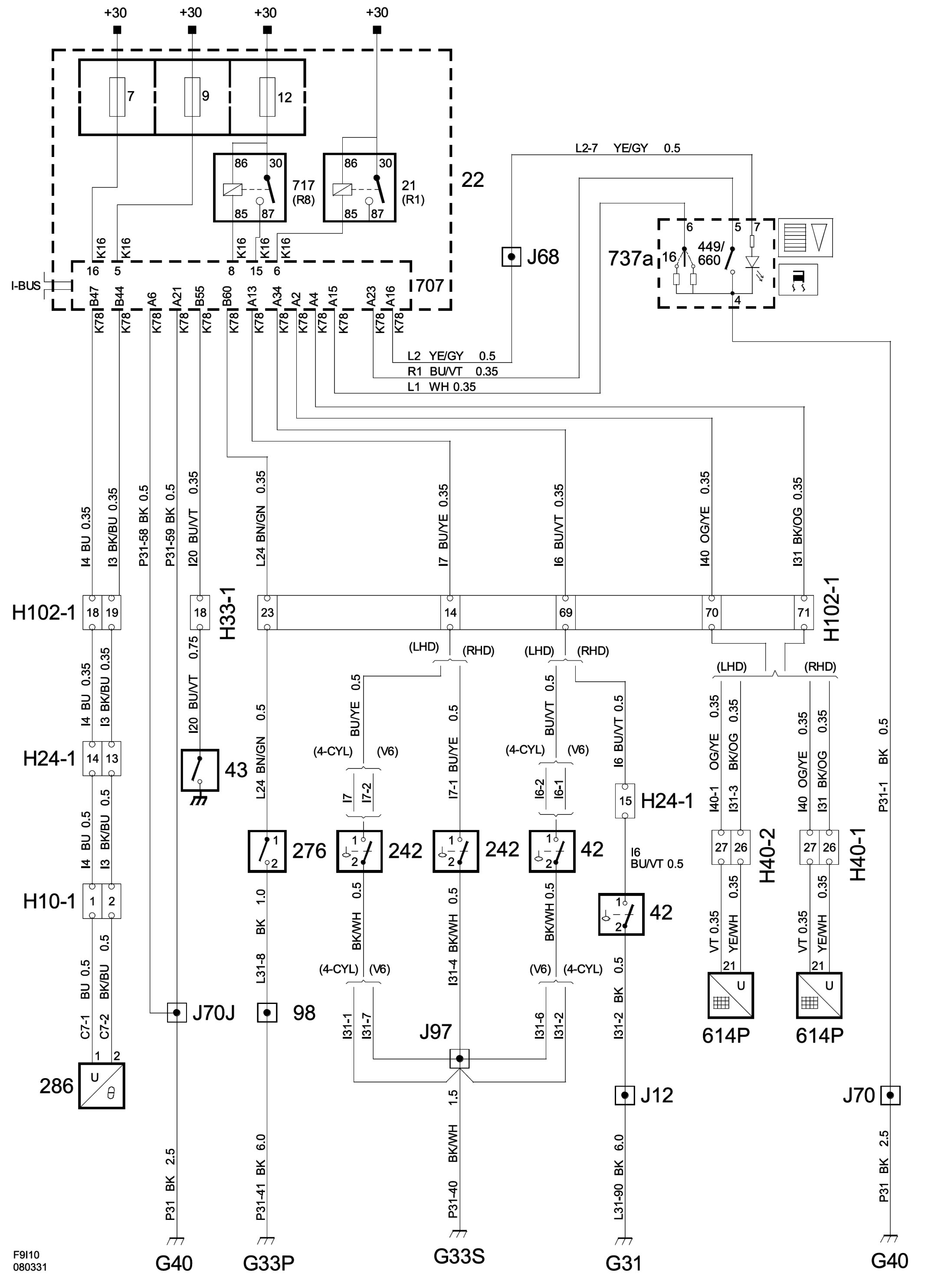

Panel Electronics Module

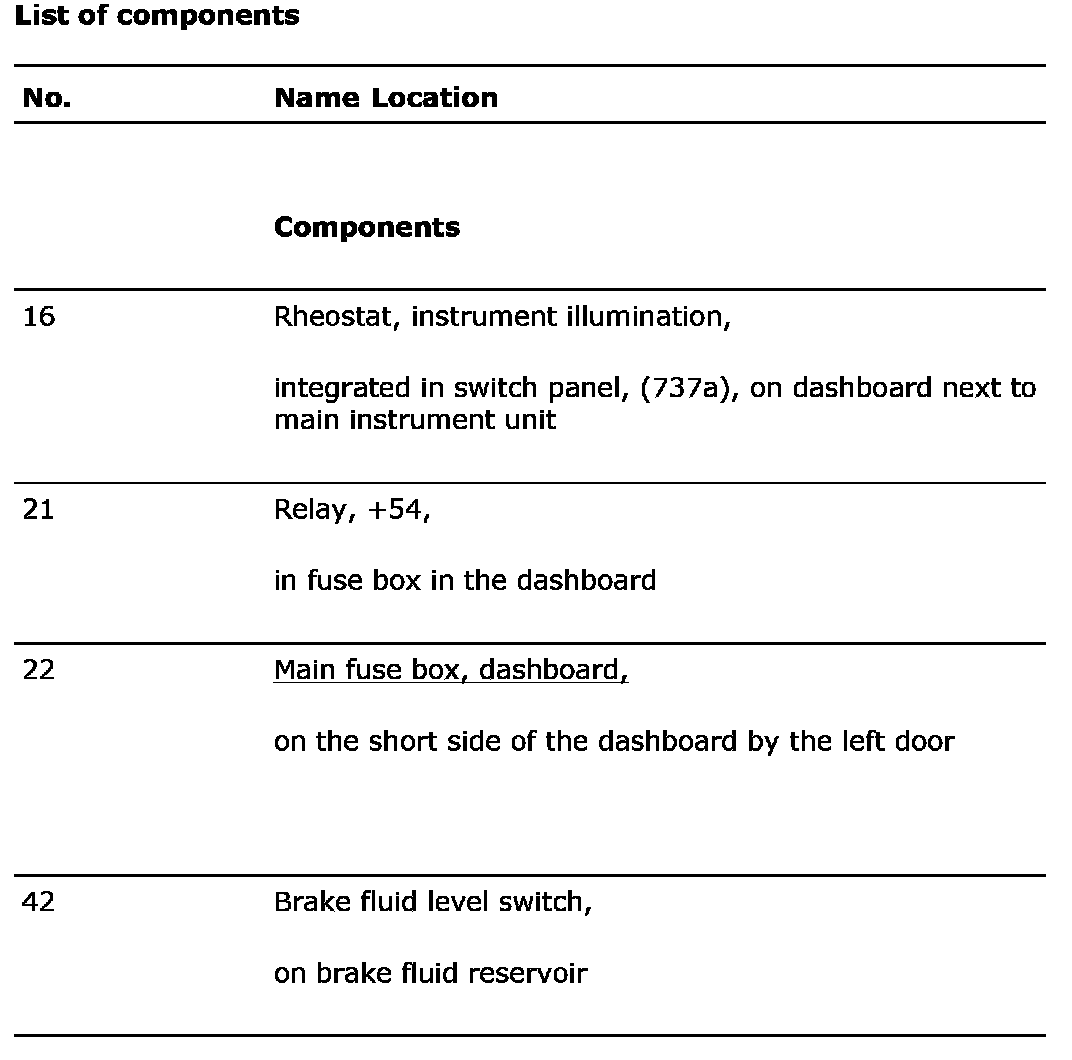

List of components

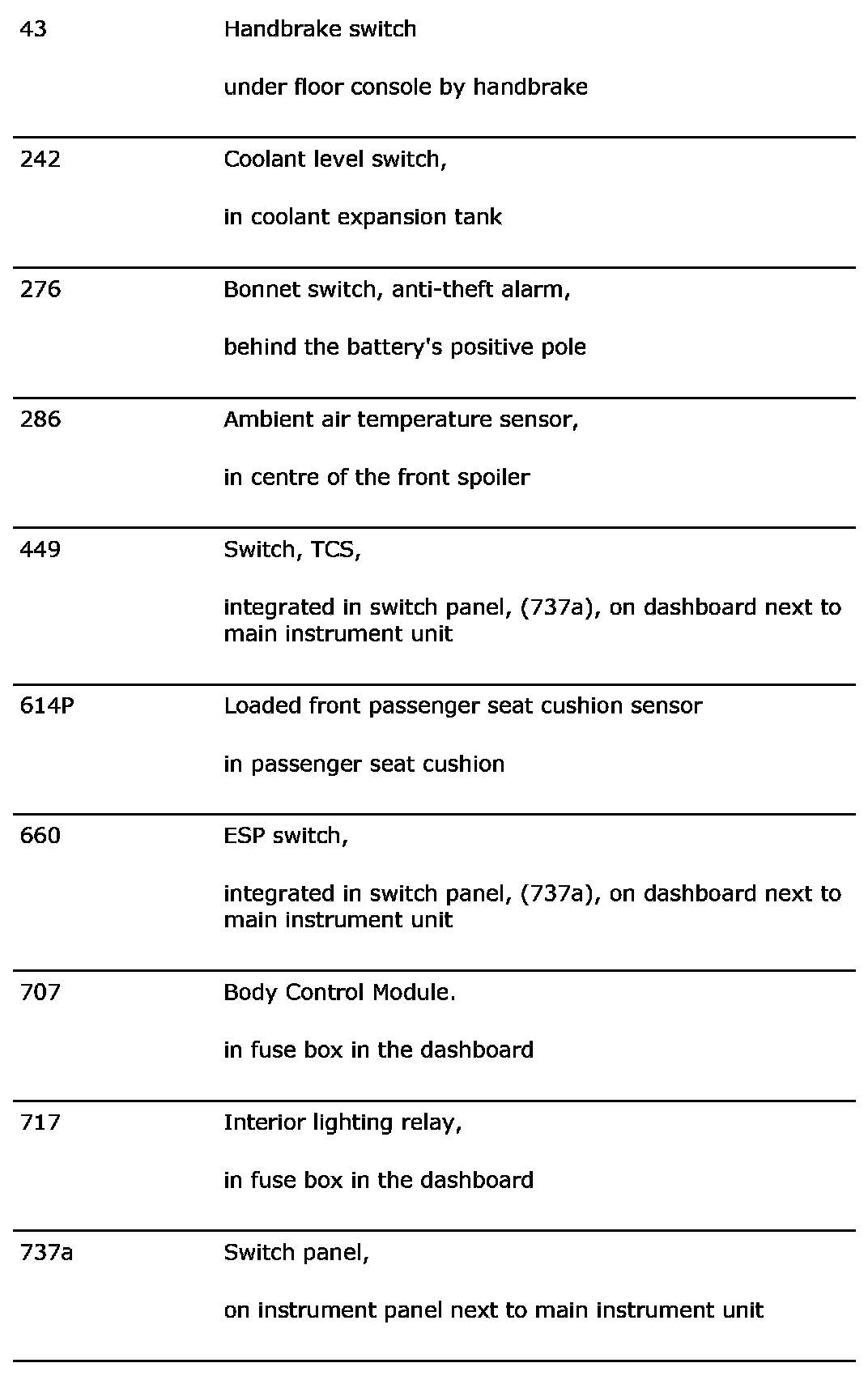

Part 1:

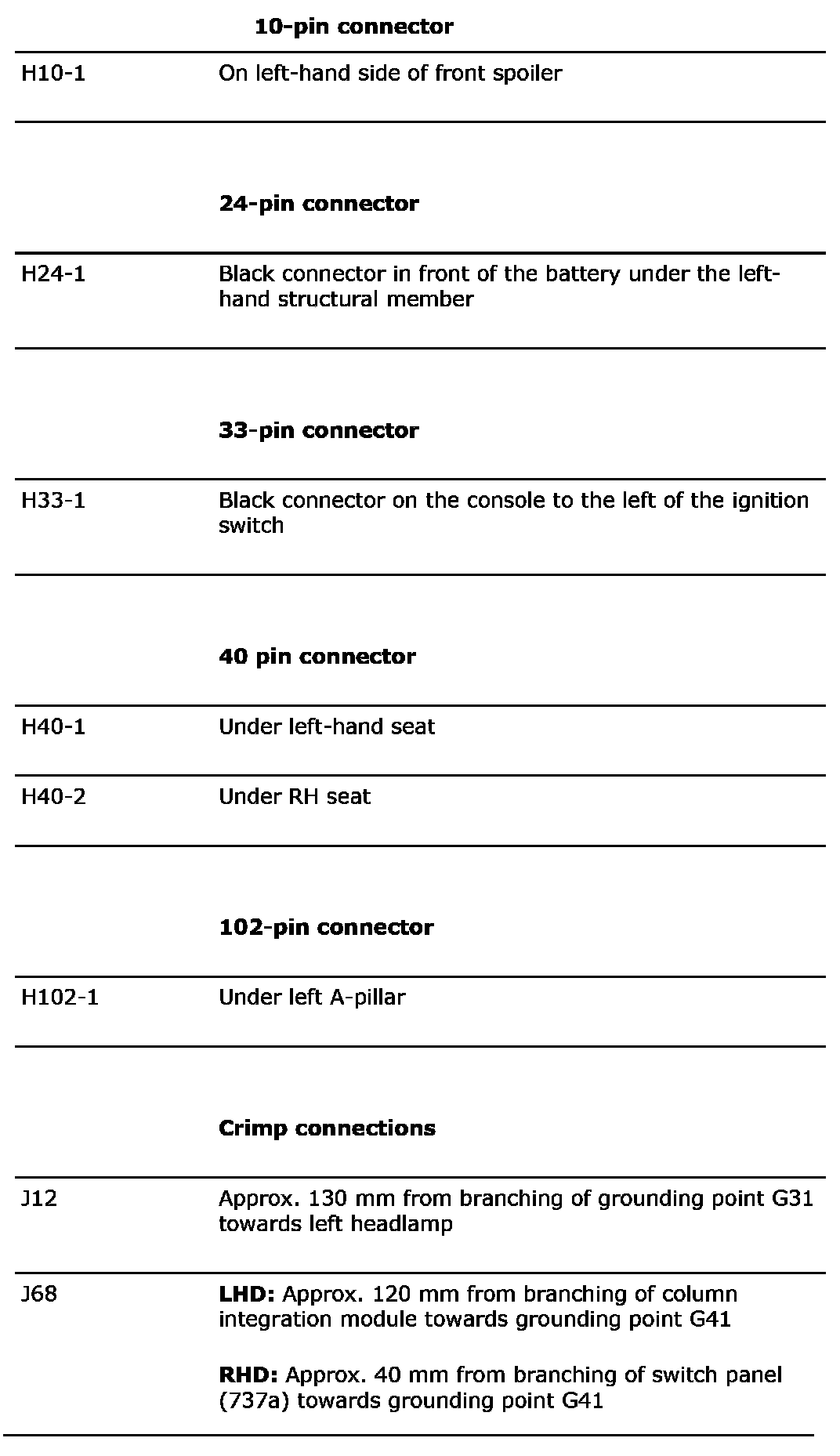

Part 2:

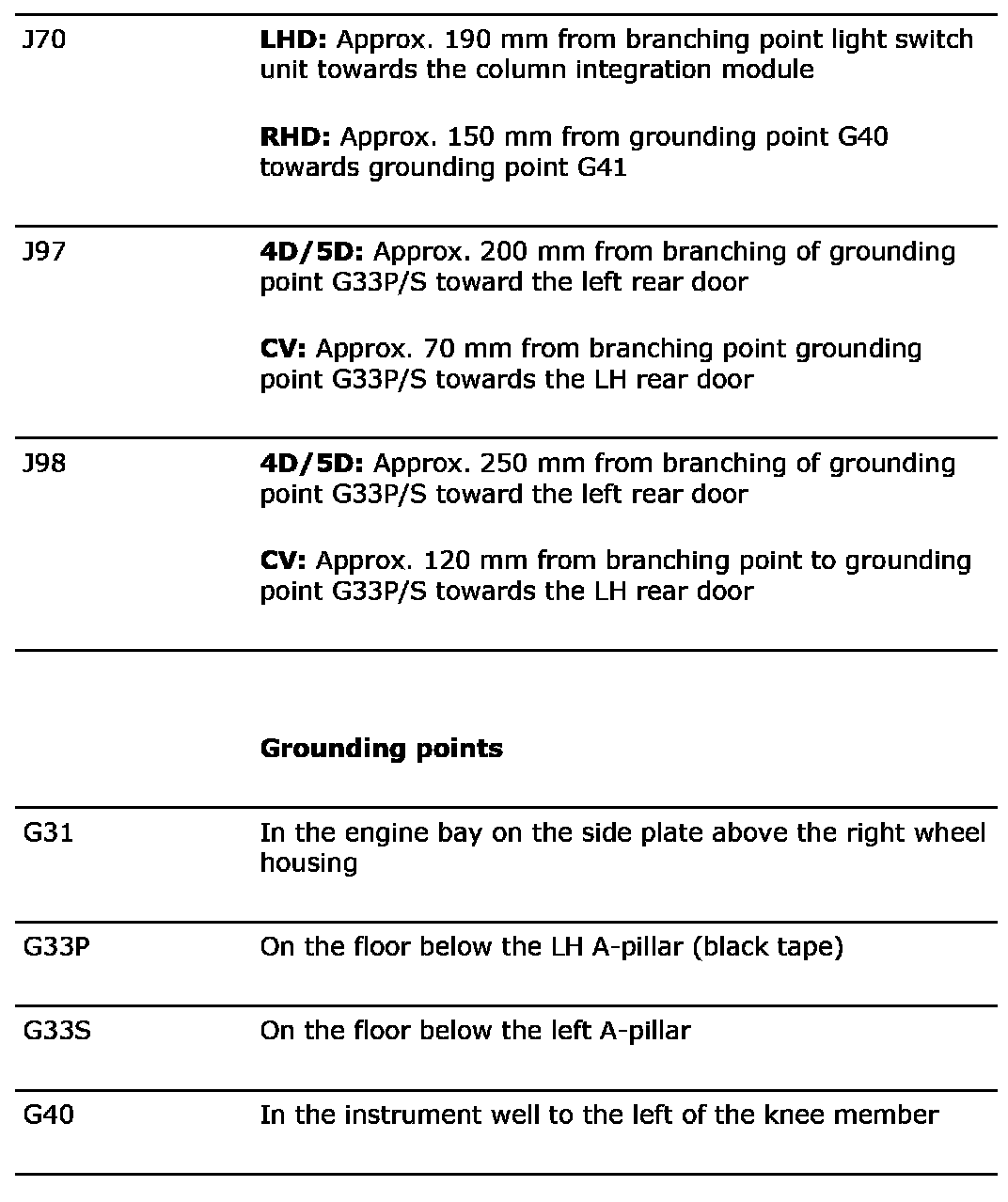

Part 3:




Part 4:
