Compressor Clutch Relay: Diagrams

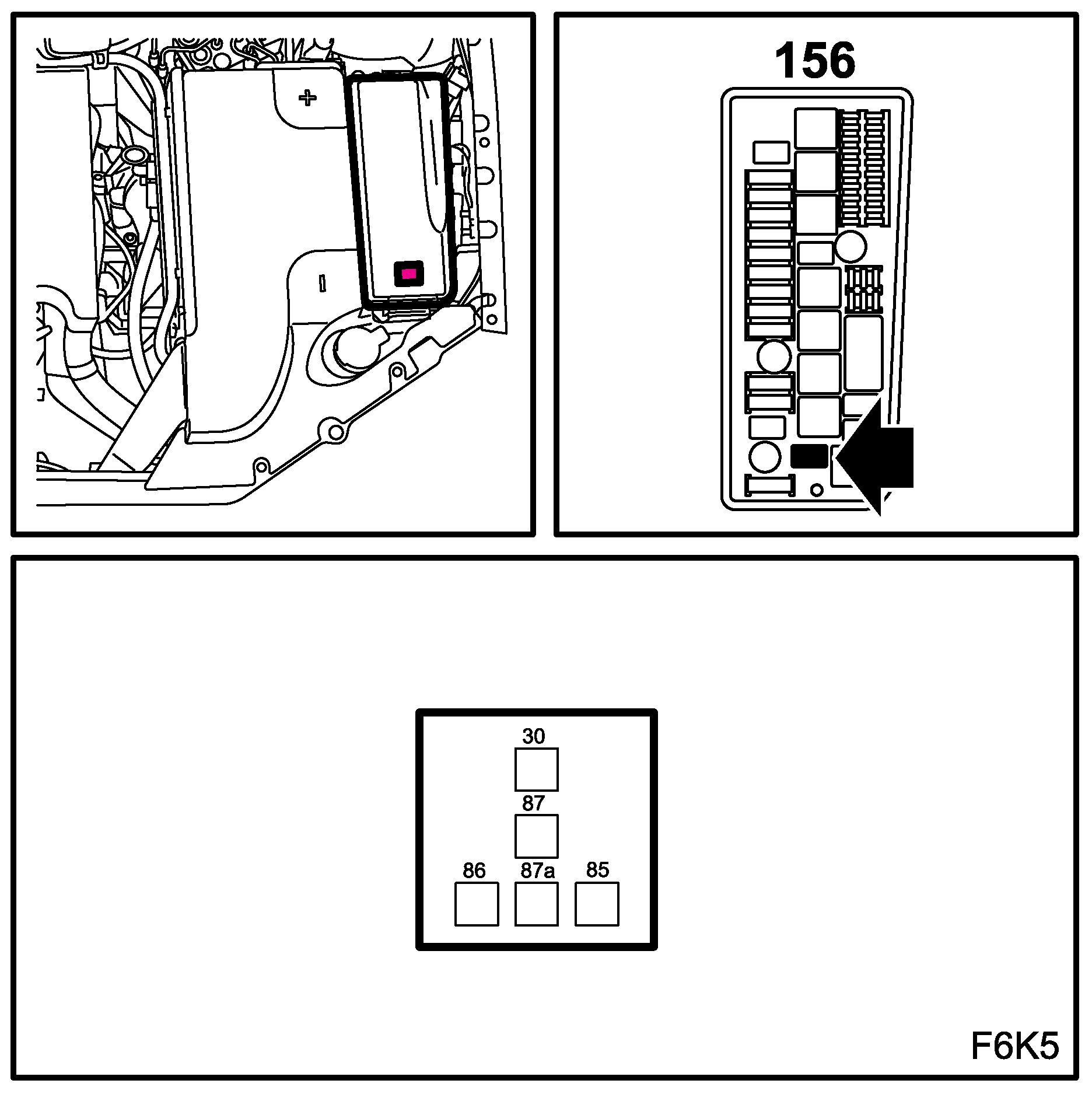

A/C Compressor Relay (156)
Location:
B207/B284
in the electrical centre in front of the battery
A/C Compressor Relay (156):
A/C Compressor Relay (156)
Location:
B207/B284
in the electrical centre in front of the battery
