Relay Unit, Radiator Fans (706A), With Two Radiator Fans



Relay Unit, Radiator Fans (706a), B207 With Two Radiator Fans

Location

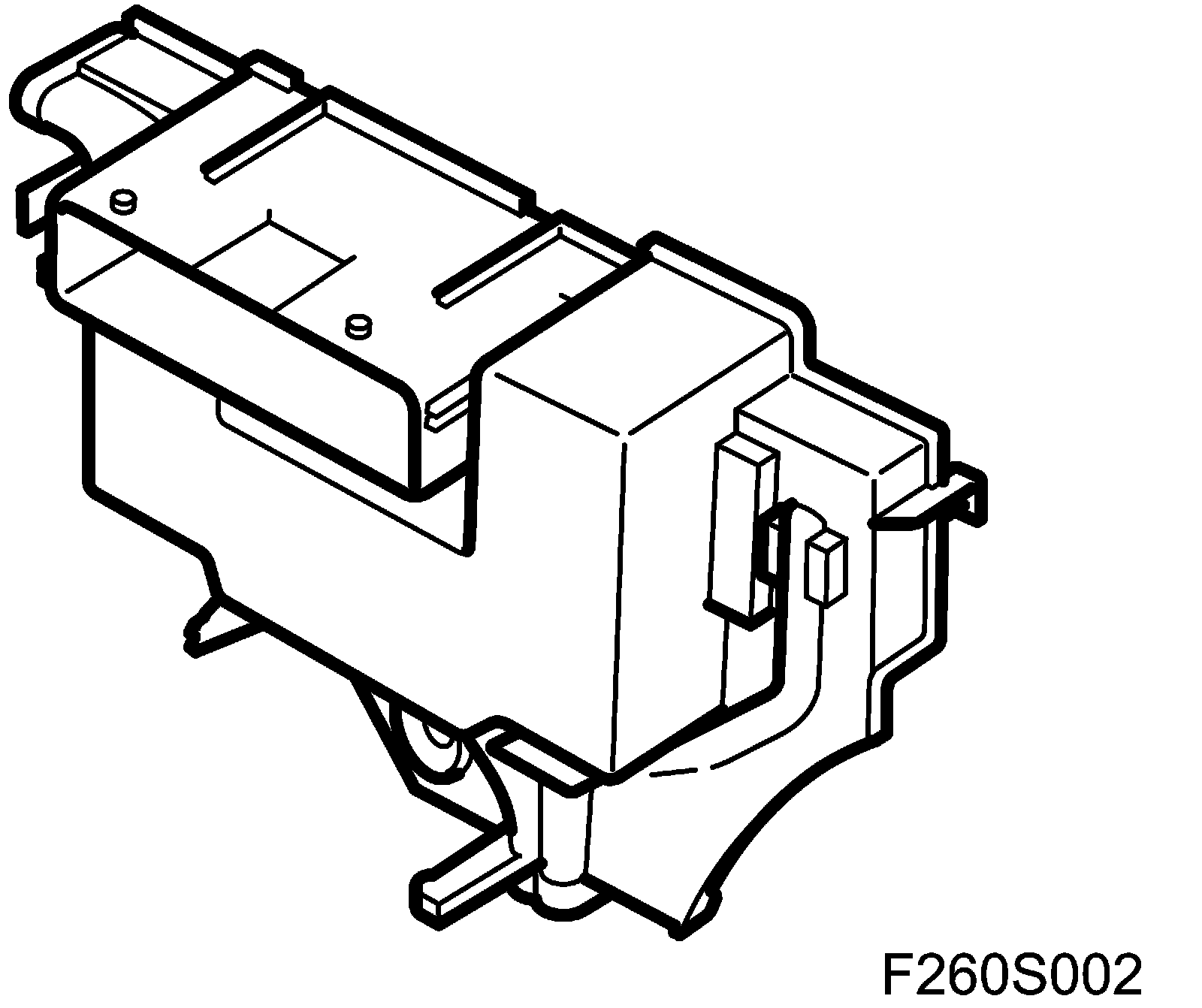

Relay unit, radiator fans (706)

Main task
To control the radiator fans.

Type







Relay box containing relays and resistors.

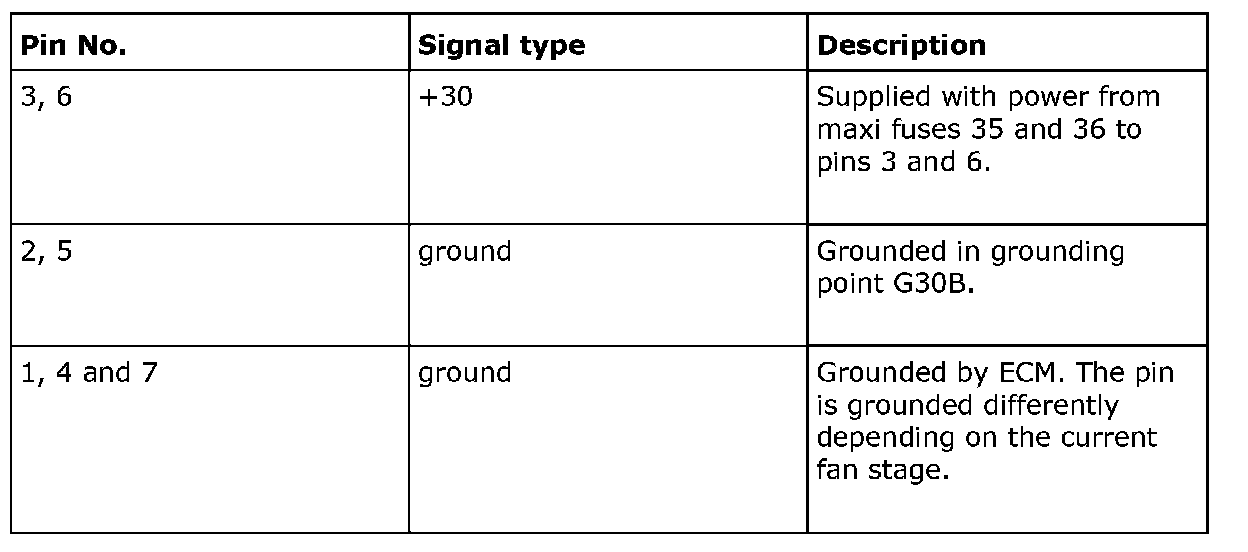

Connection

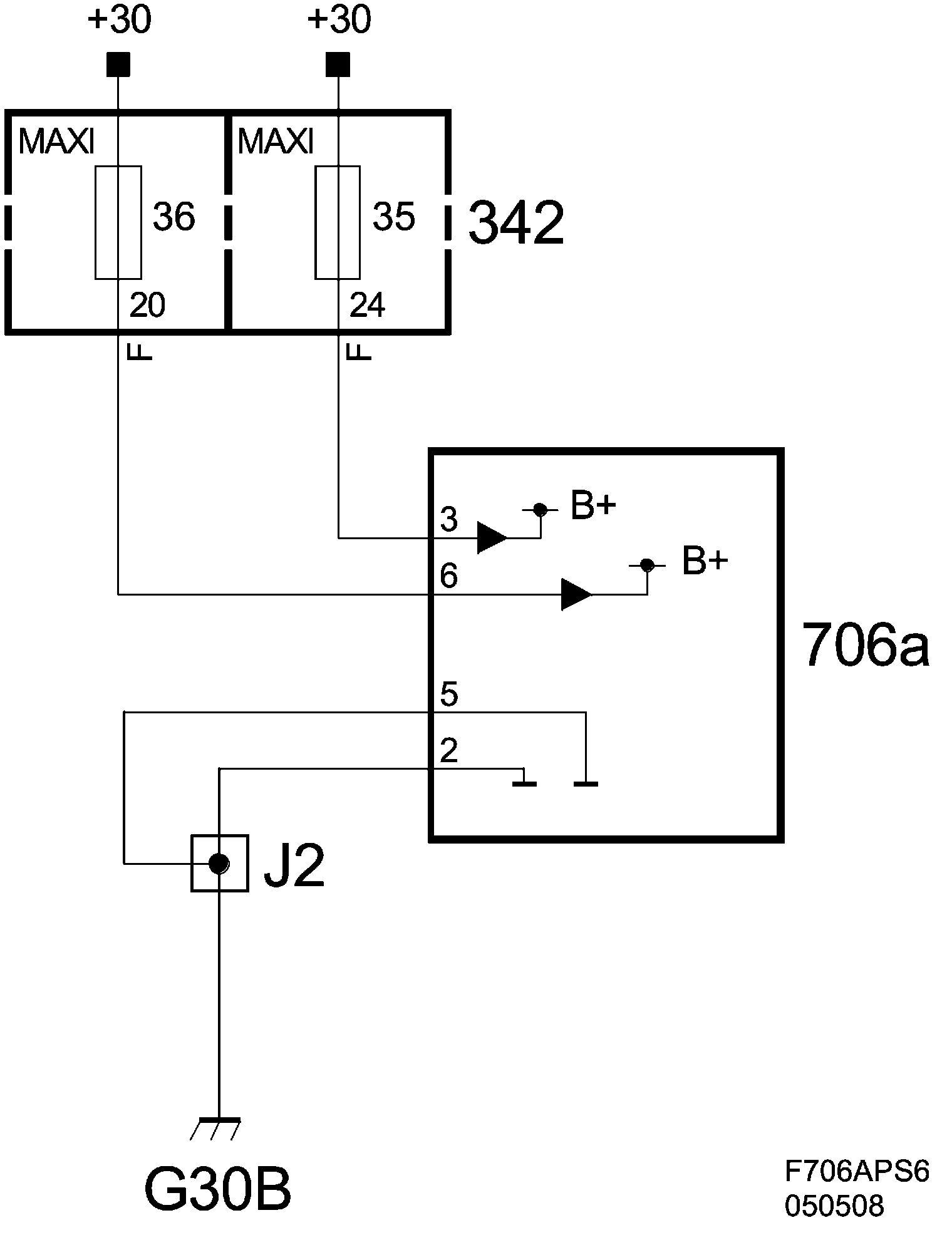

power supply

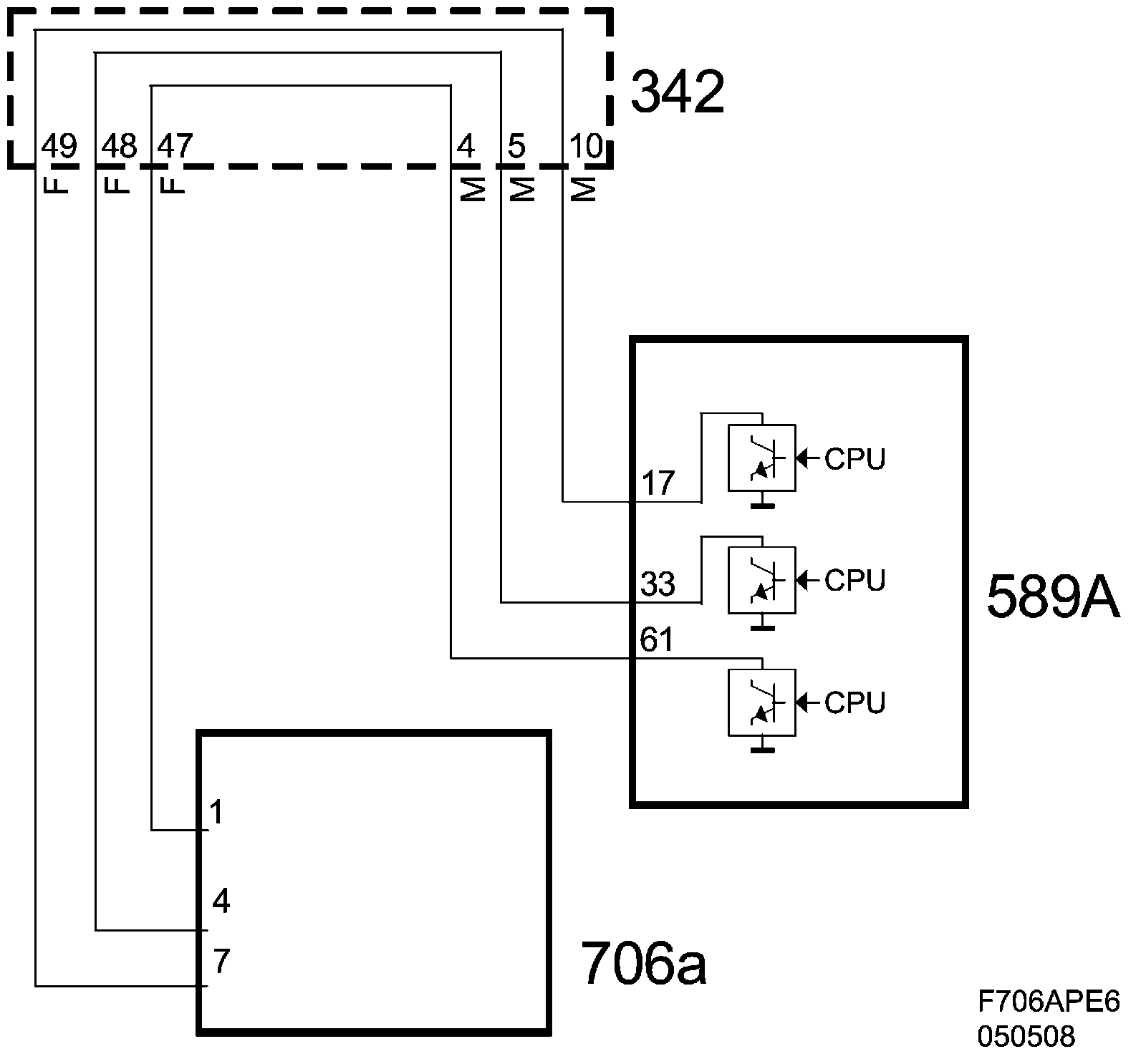

control
