Relay Unit, Radiator Fans (706A), B207 With Two Radiator Fans

Relay unit, radiator fans (706a), B207 with two radiator fans

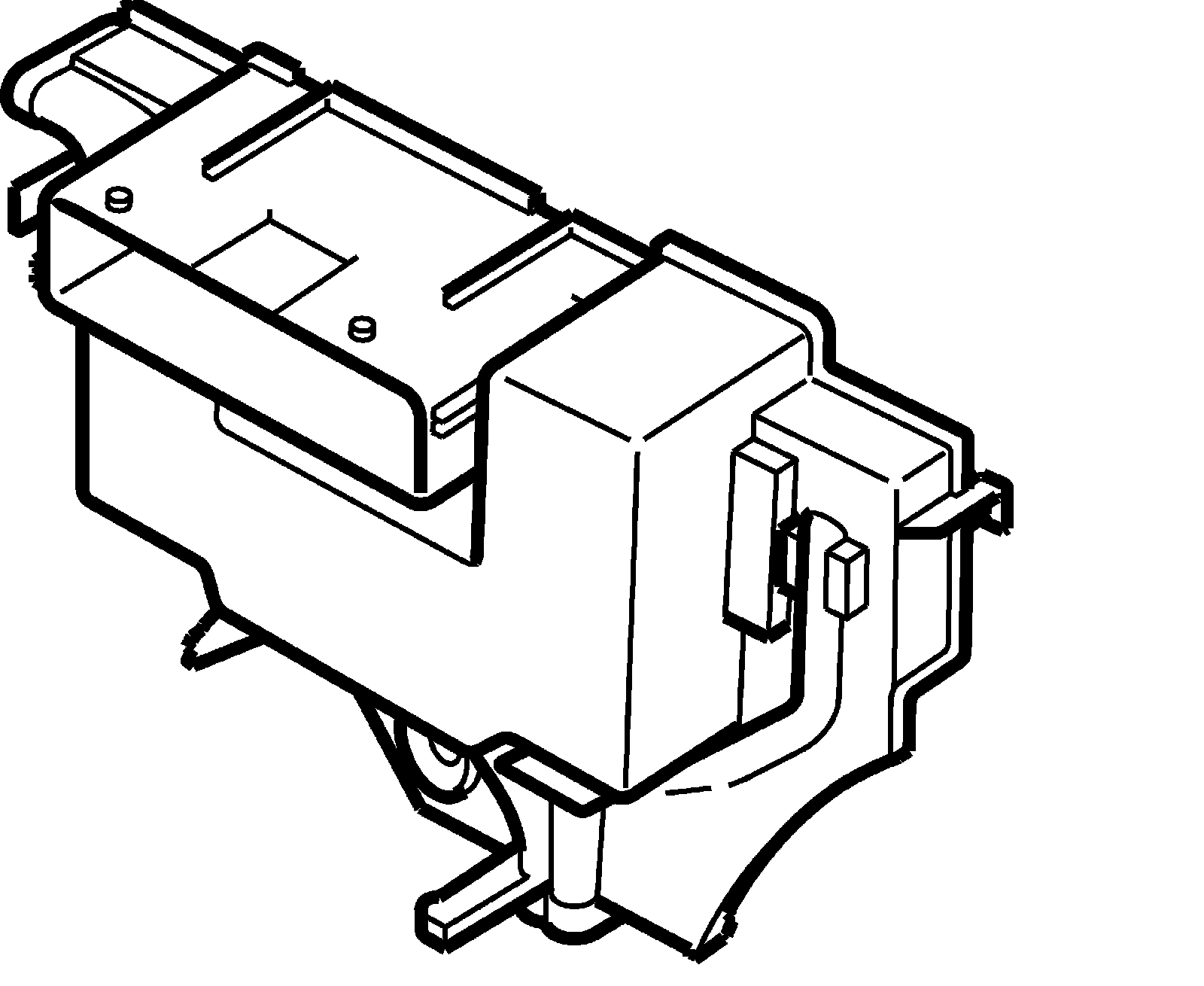

Location
Relay unit, radiator fans (706)

Main task
To control the radiator fans.

Type





Relay box containing relays and resistors.

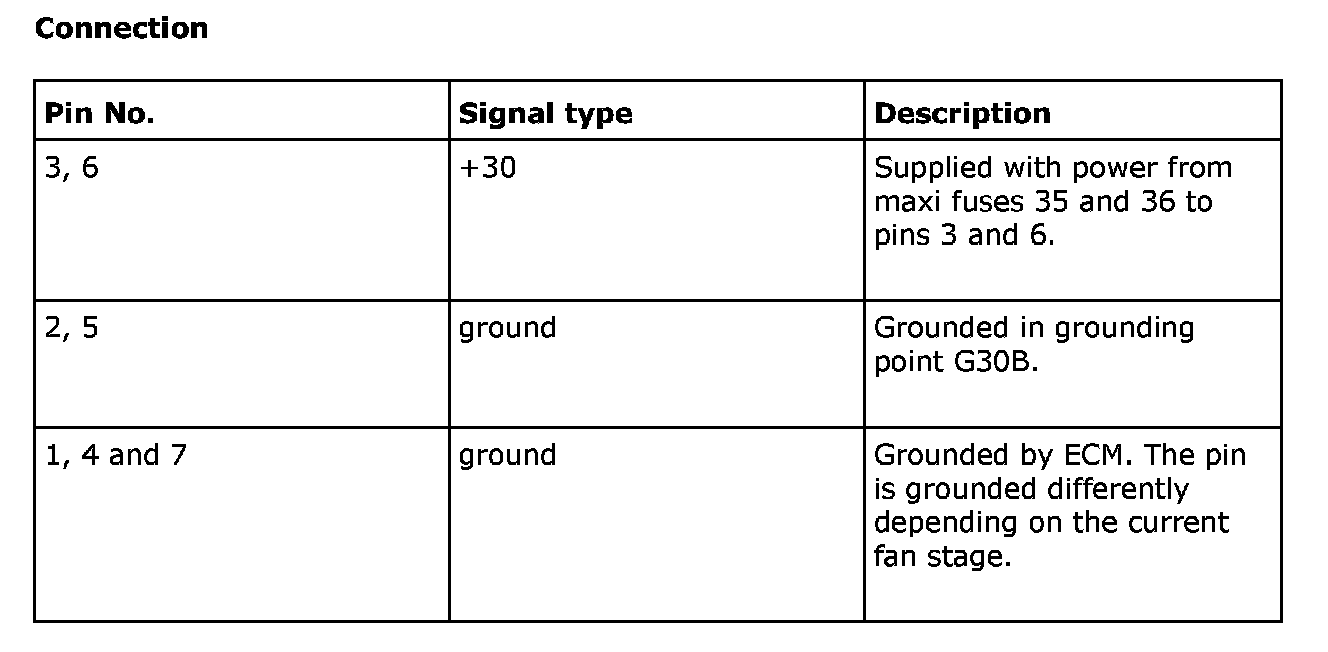

Connection

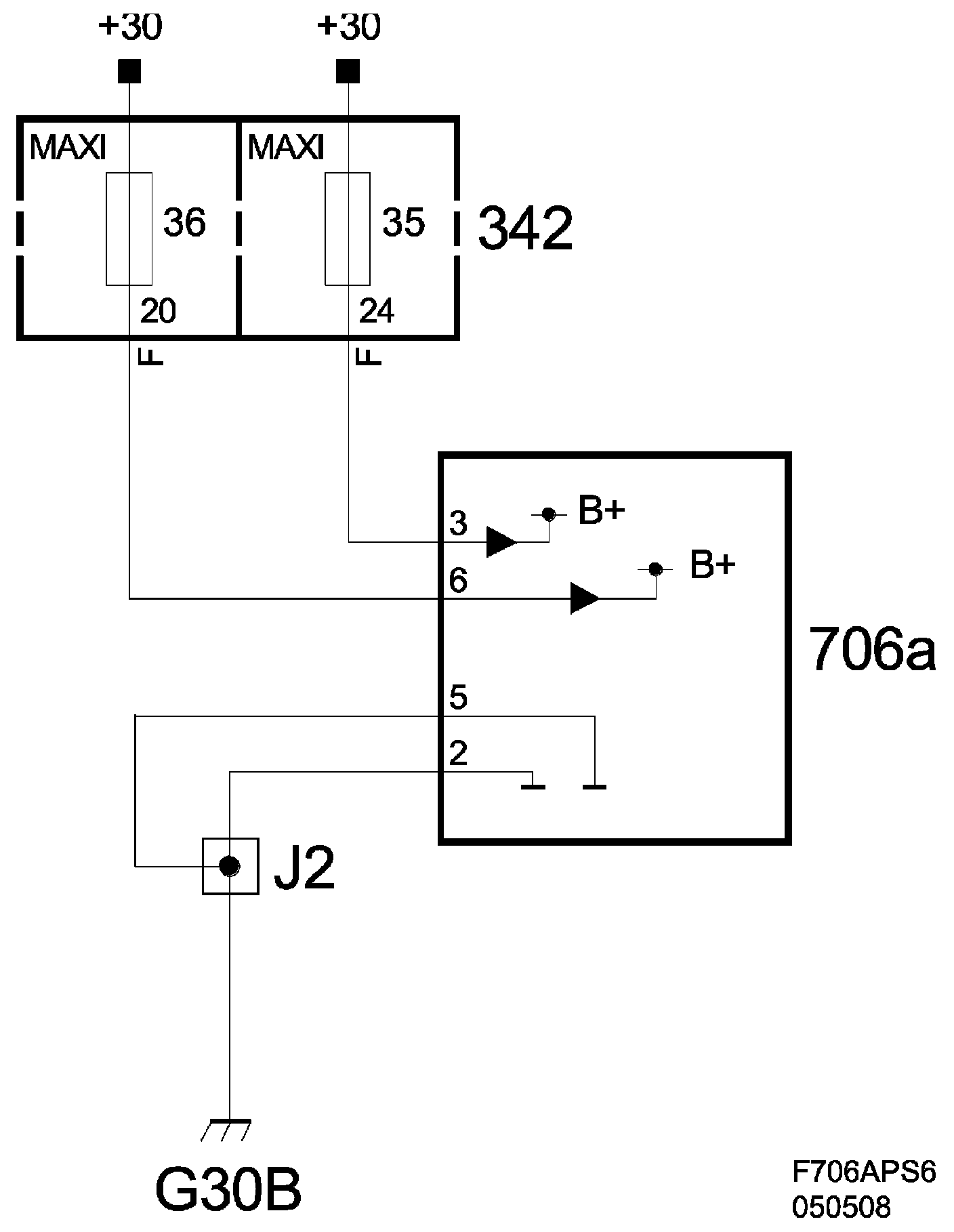

power supply

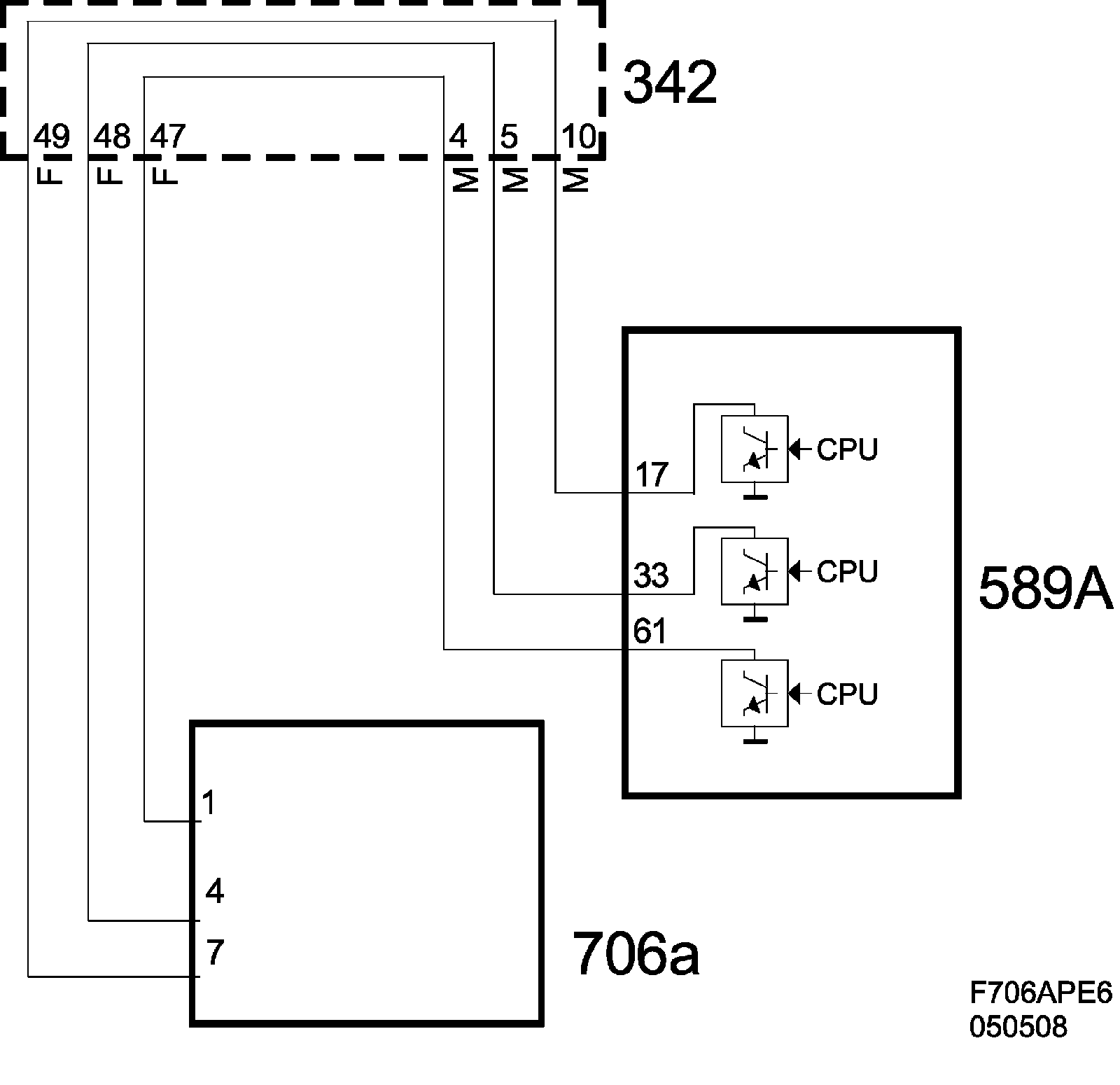

control
