Radiator Fan Relay Unit (706B), With One Radiator Fan



Radiator Fan Relay Unit (706b), B207 With One Radiator Fan

Location
Relay unit, radiator fans (706)

Main task
To control the radiator fans.

Type







Relay box containing relays and resistors.

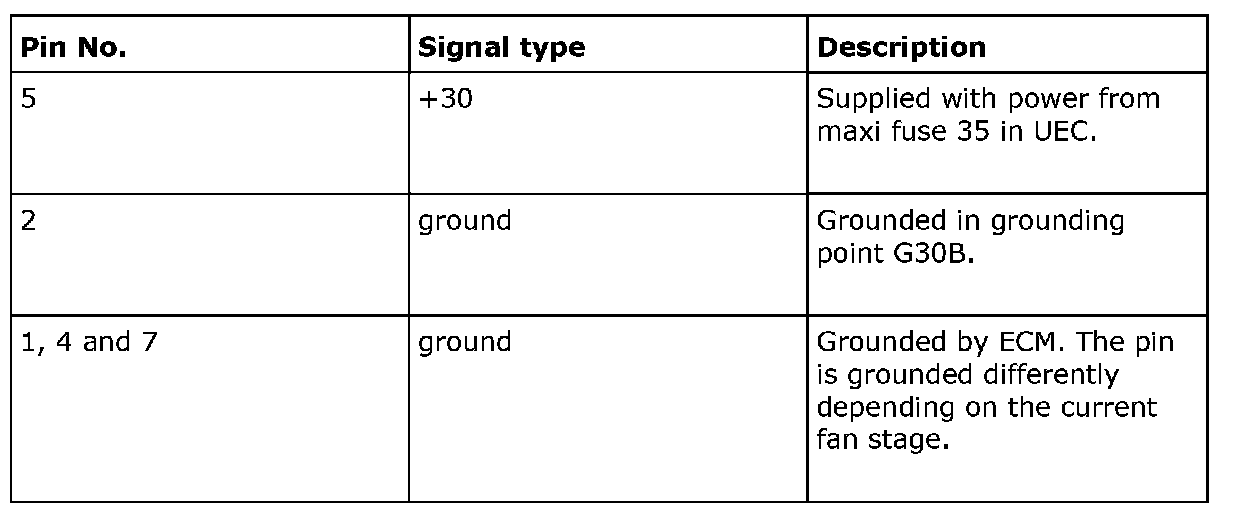

Connection

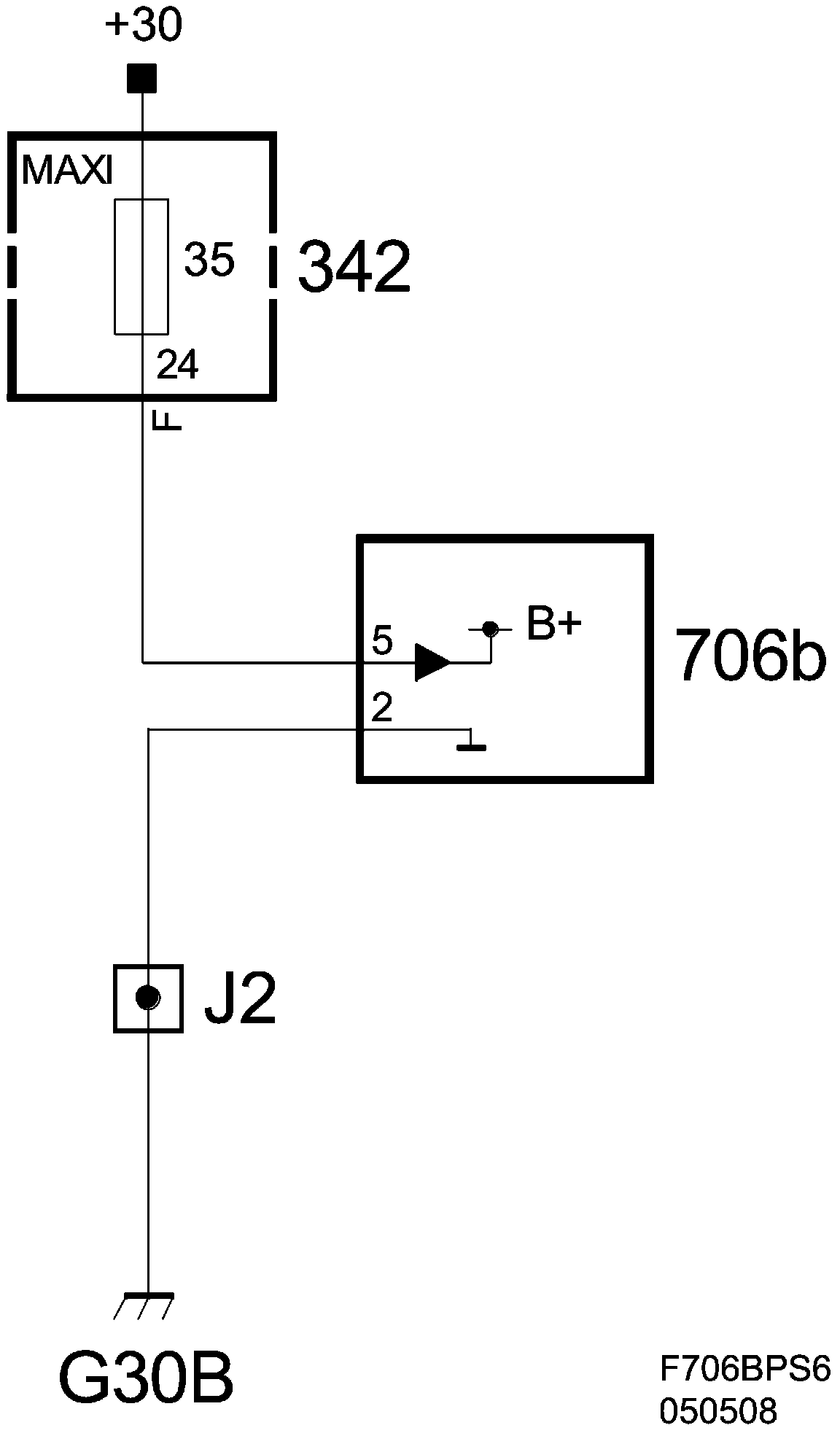

power supply

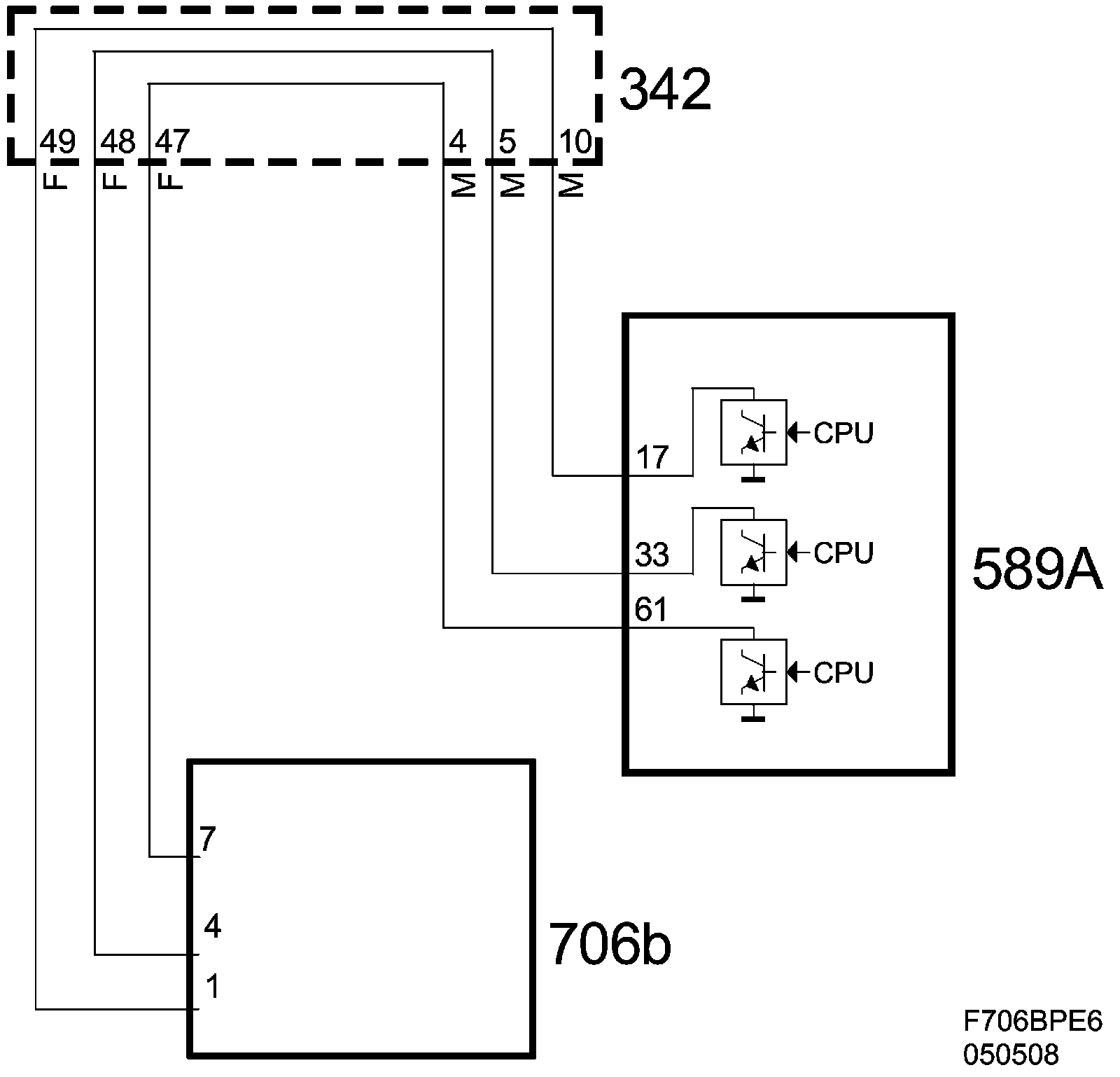

control
