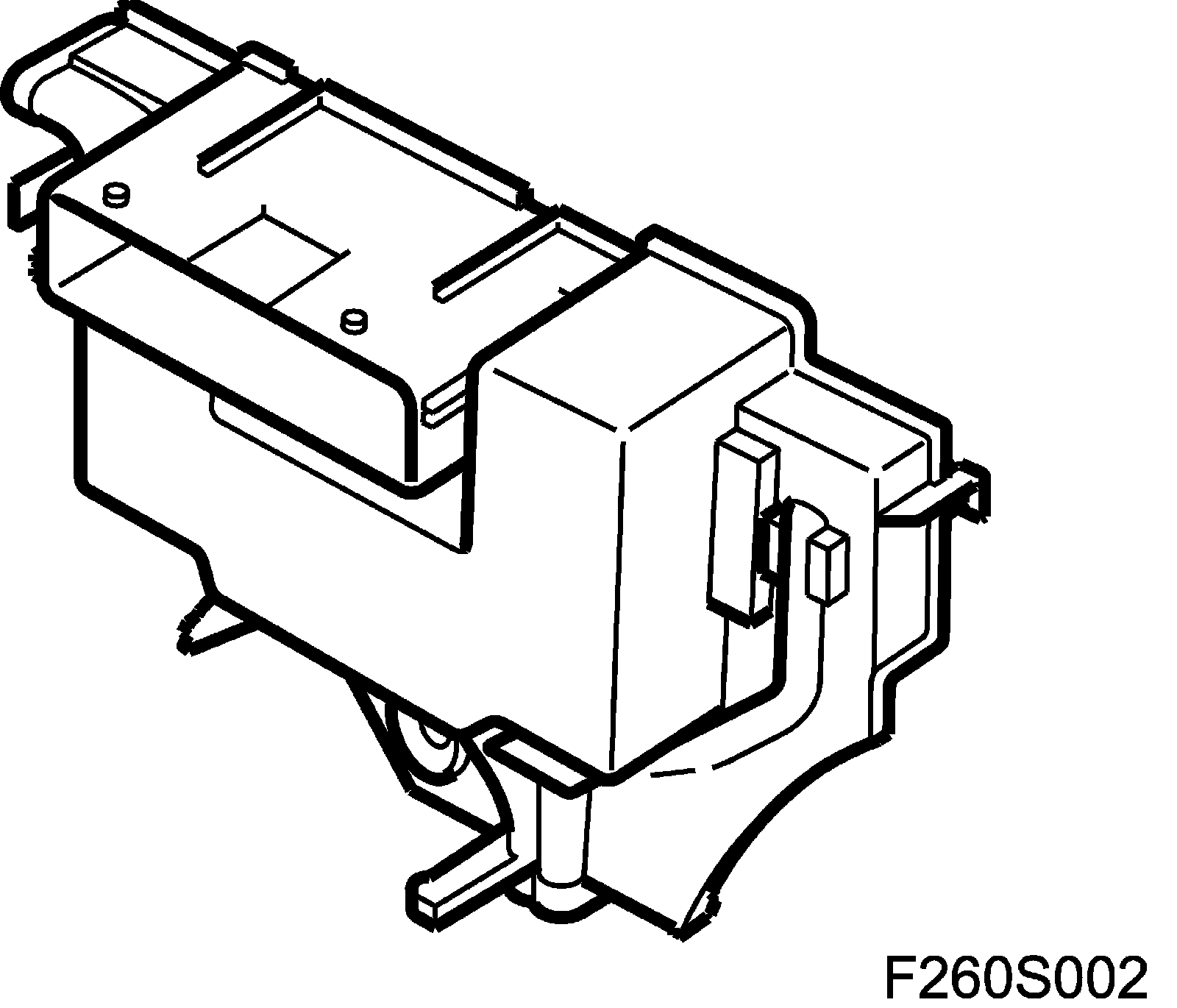

Radiator Fan Relay Unit (706B), B207 With One Radiator Fan

Radiator fan relay unit (706b), B207 with one radiator fan

Location
Relay unit, radiator fans (706)

Main task
To control the radiator fans.

Type





Relay box containing relays and resistors.

Connection

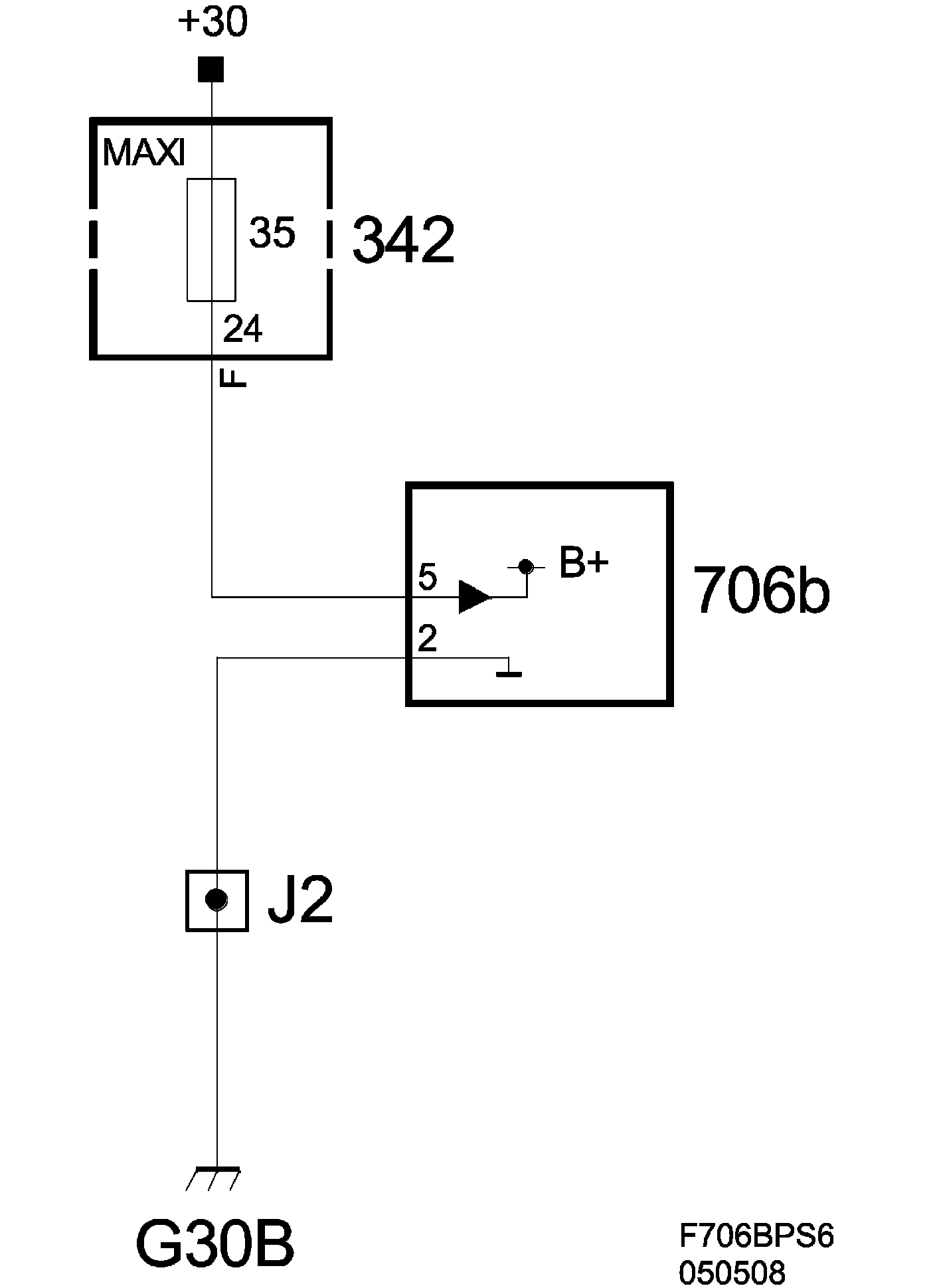

power supply





control
