Solenoid Valve, Limited Slip Differential Clutch (763)

Solenoid valve, limited slip differential clutch (763)

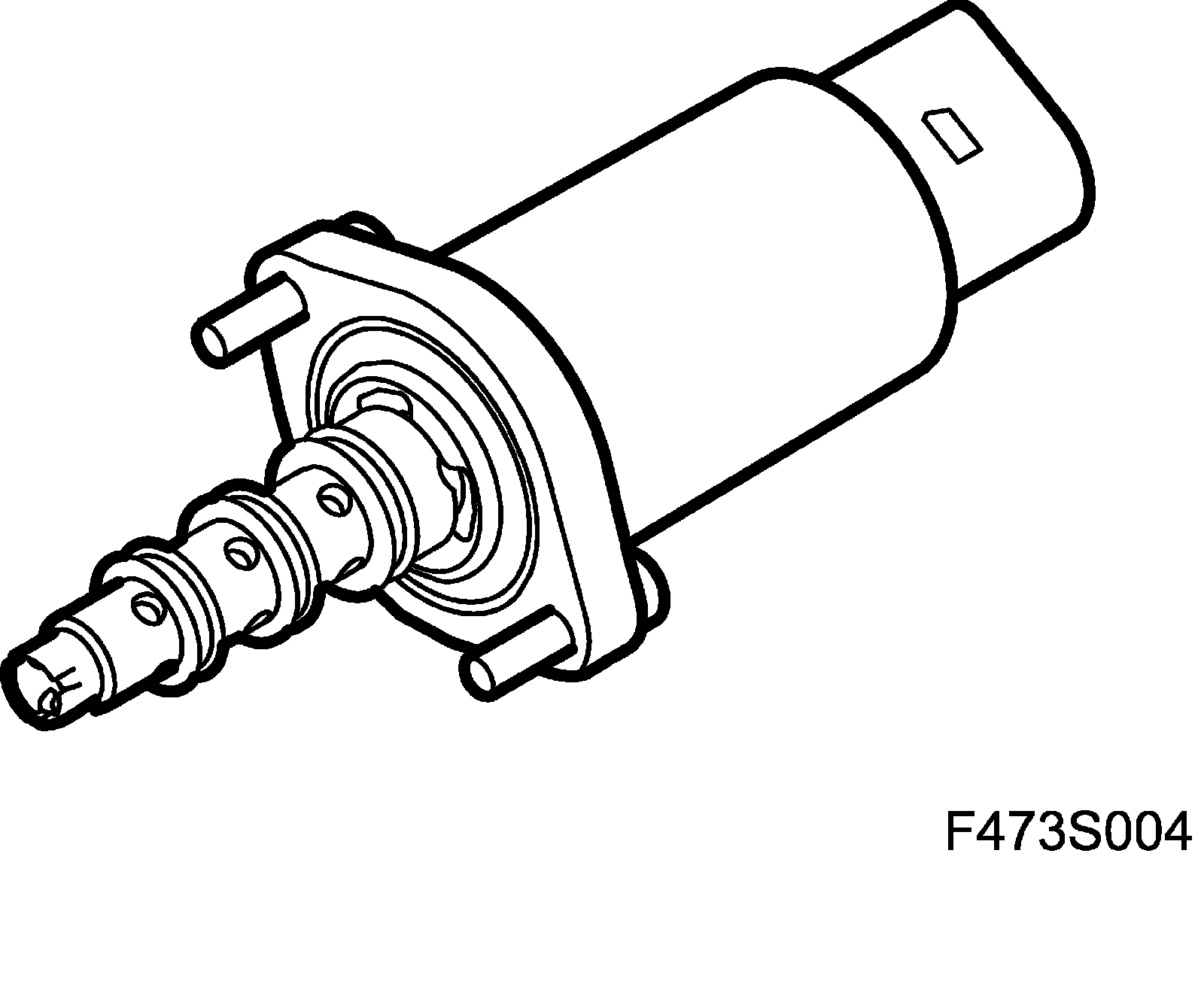

Location

Solenoid valve, limited slip differential clutch (763)

Main function

To control the hydraulic pressure to the limited slip differential clutch.

Type

Solenoid.

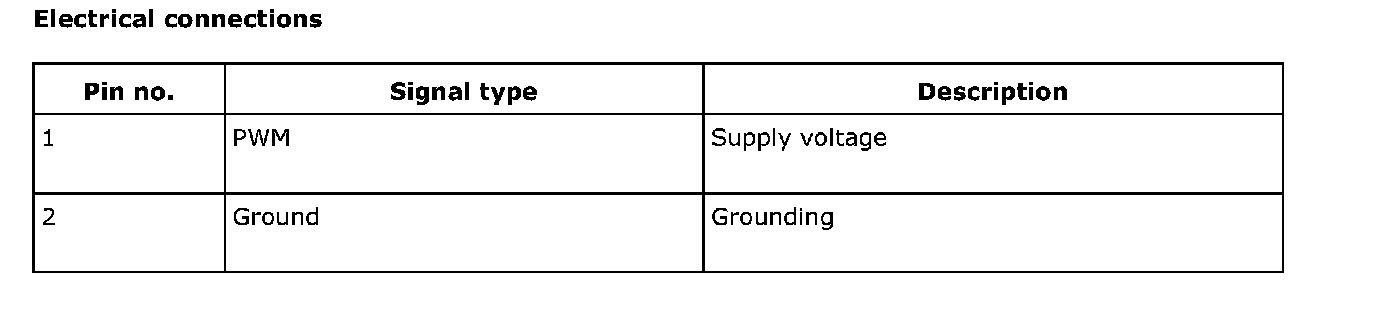

Electrical connections

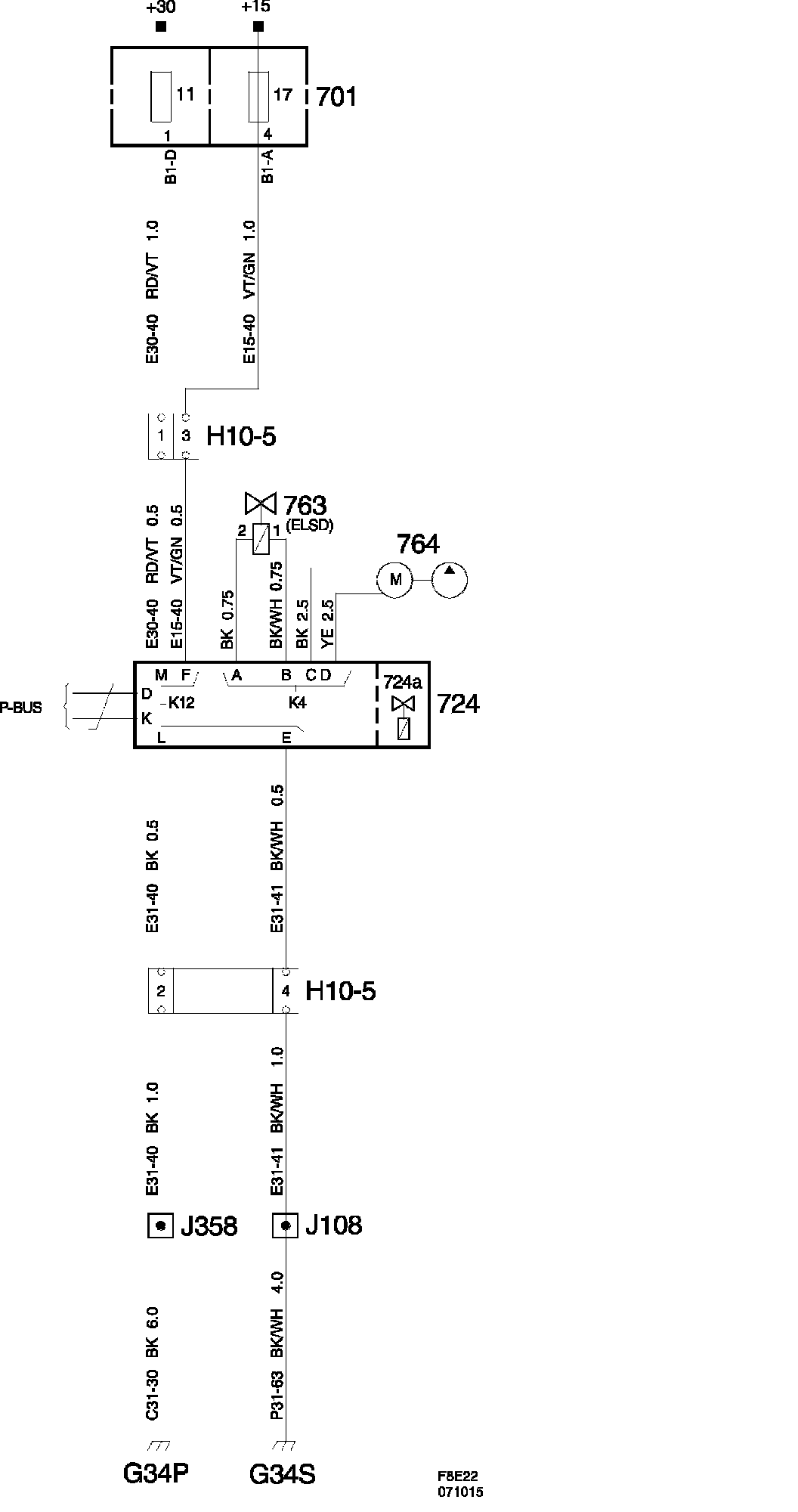

Diagram





Function

The pressure control valve is electrically controlled and its function is to regulate the limited slip differential clutch's hydraulic pressure (030 bar) to the operating piston. It is controlled by the XWD control module and is supplied with a PWM voltage. The valve can be replaced separately.
