Solenoid Valves SLT, TCM FA 57 (531)

Solenoid Valves SLT, TCM FA 57 (531)

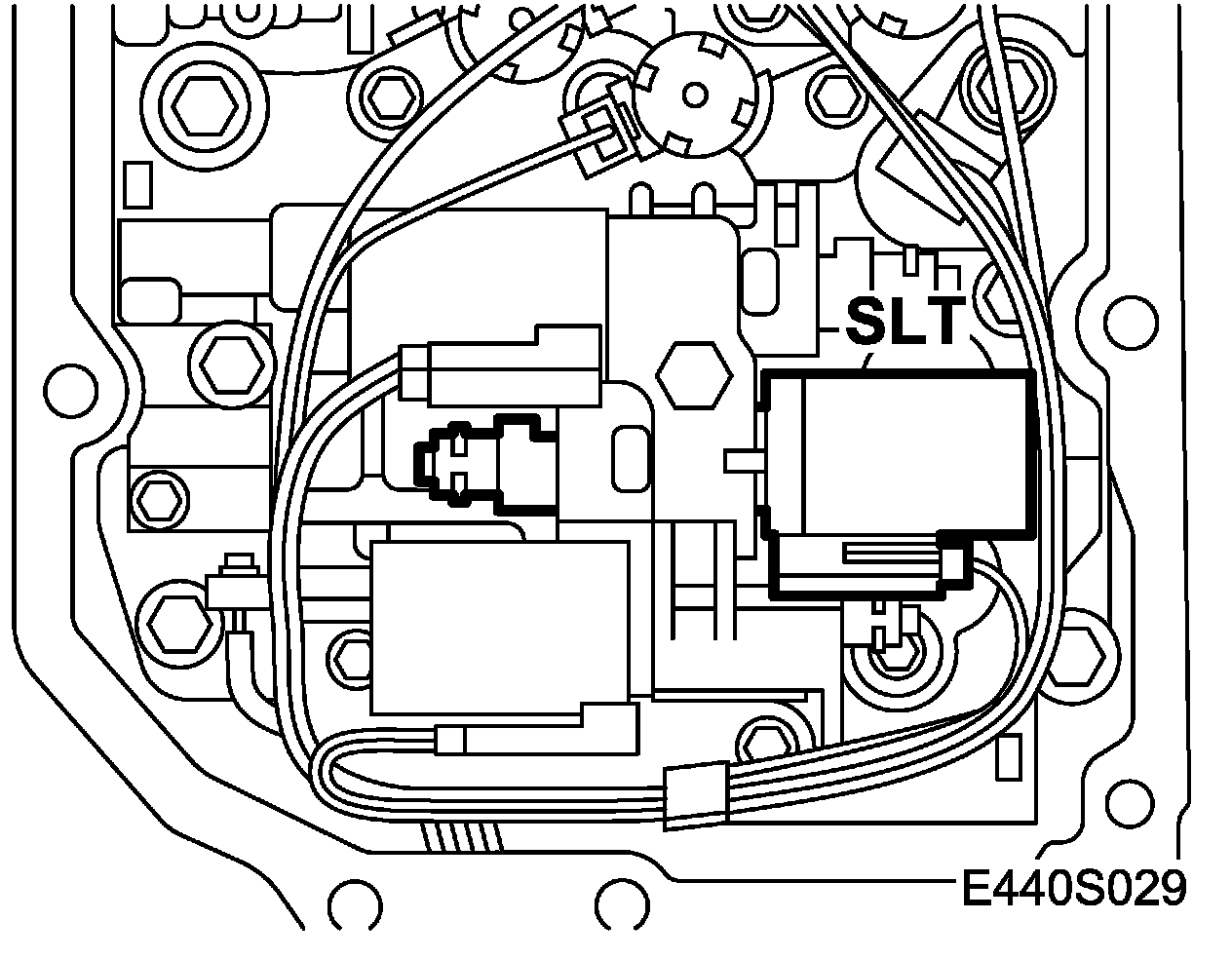

Location
Shift solenoid, S1-S5 (531)







Main use
To regulate the transmission system pressure.

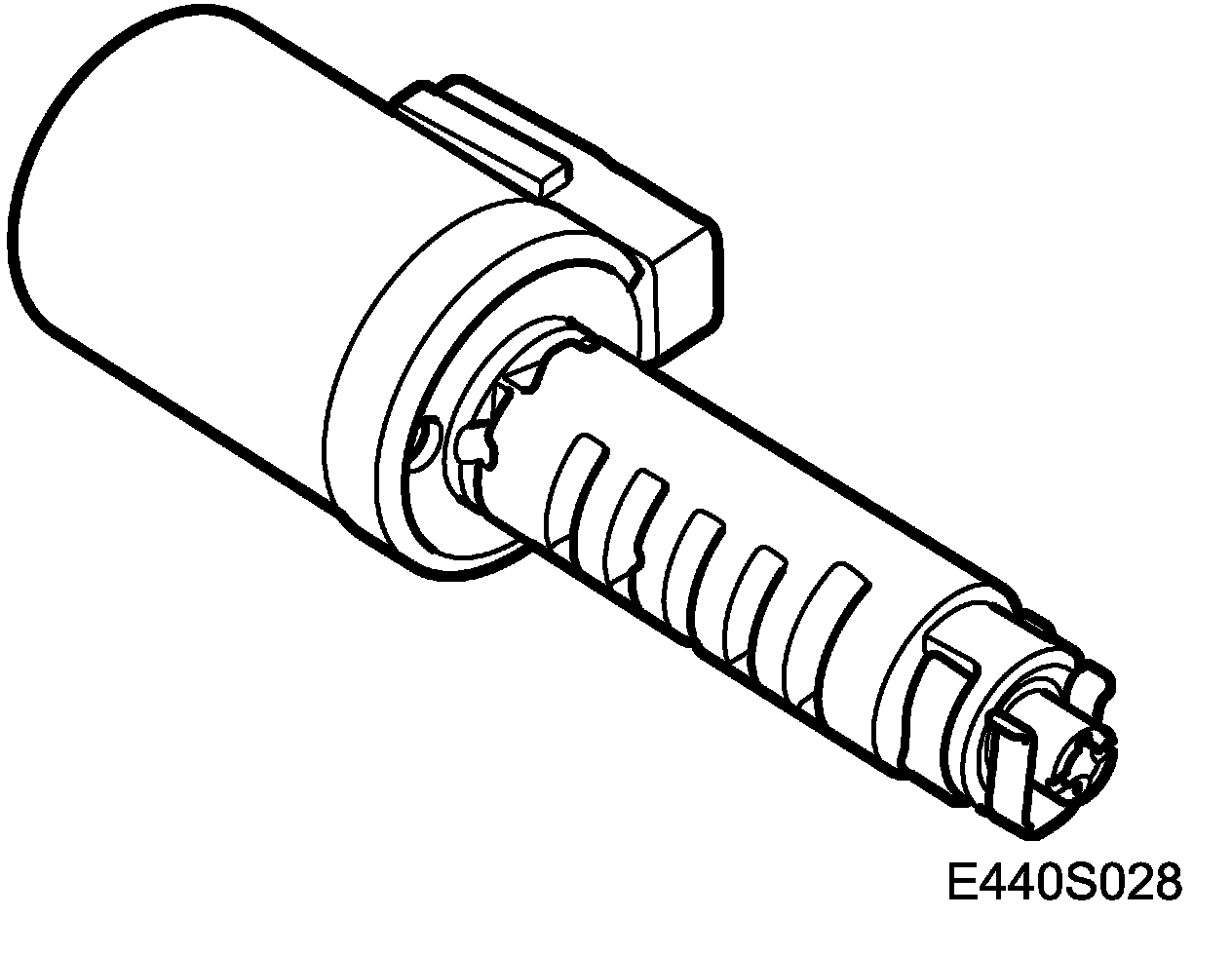

Type
Electromagnetic, PWM governed.







Activation

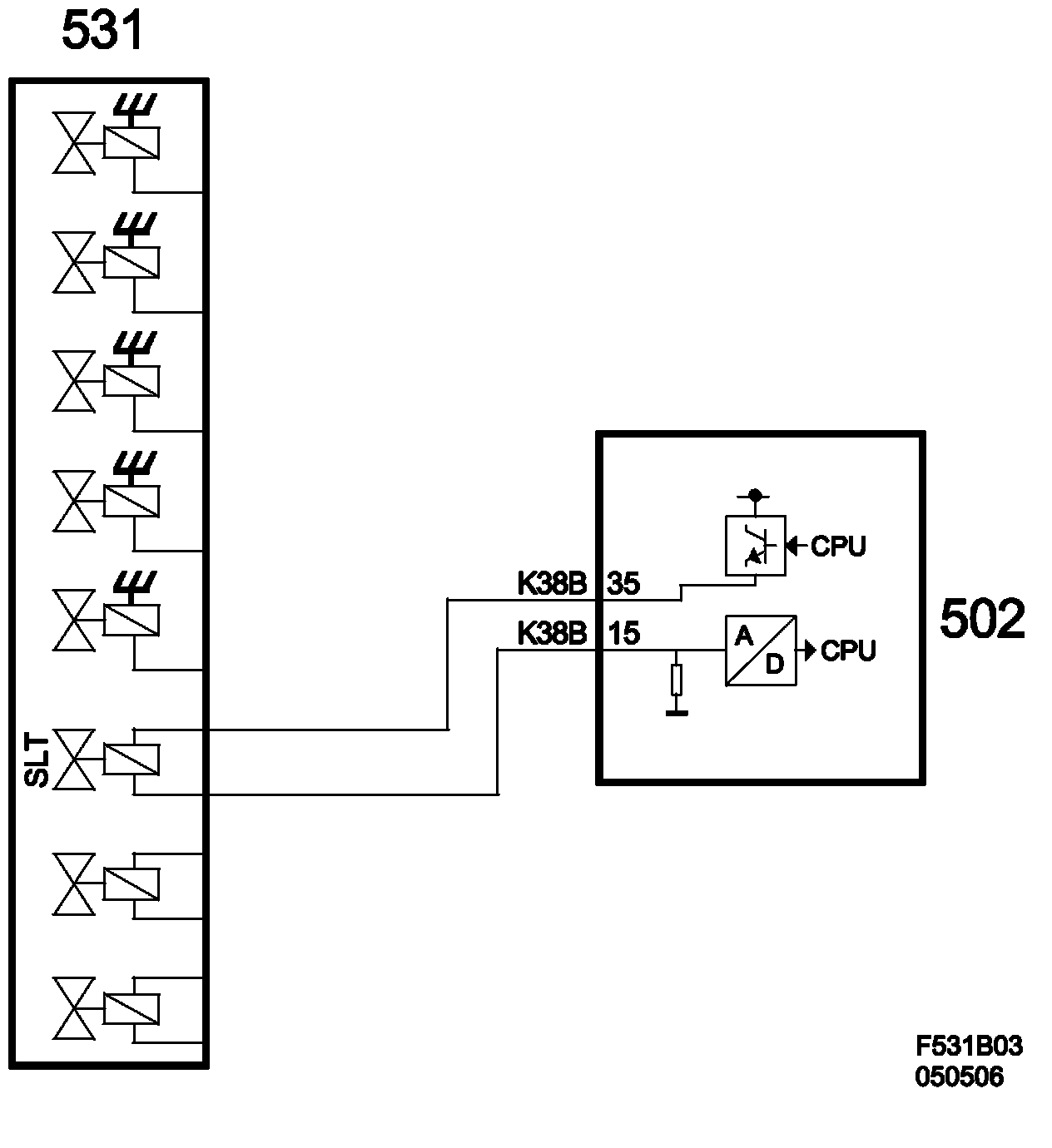

The solenoid is governed from pin 35 (B) on TCM using a 300Hz voltage. Grounding takes place on pin 15 (B) on TCM. The current varies between 0 - 1000 mA. The solenoid is open when current is not applied. 0A = high oil pressure 1000mA = low oil pressure.
