Solenoid Valves SLS, TCM FA 57 (531)

Solenoid Valves SLS, TCM FA 57 (531)

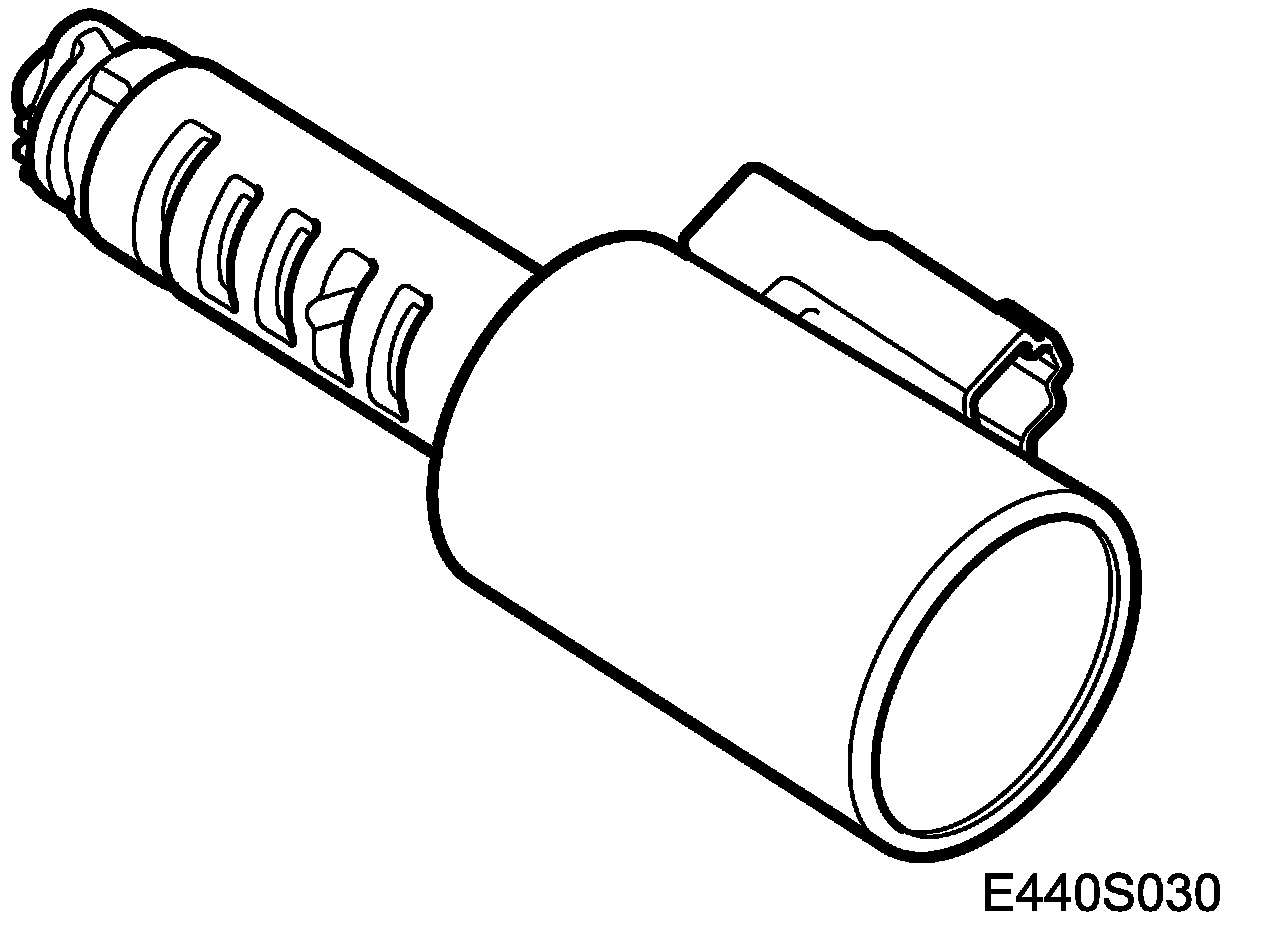

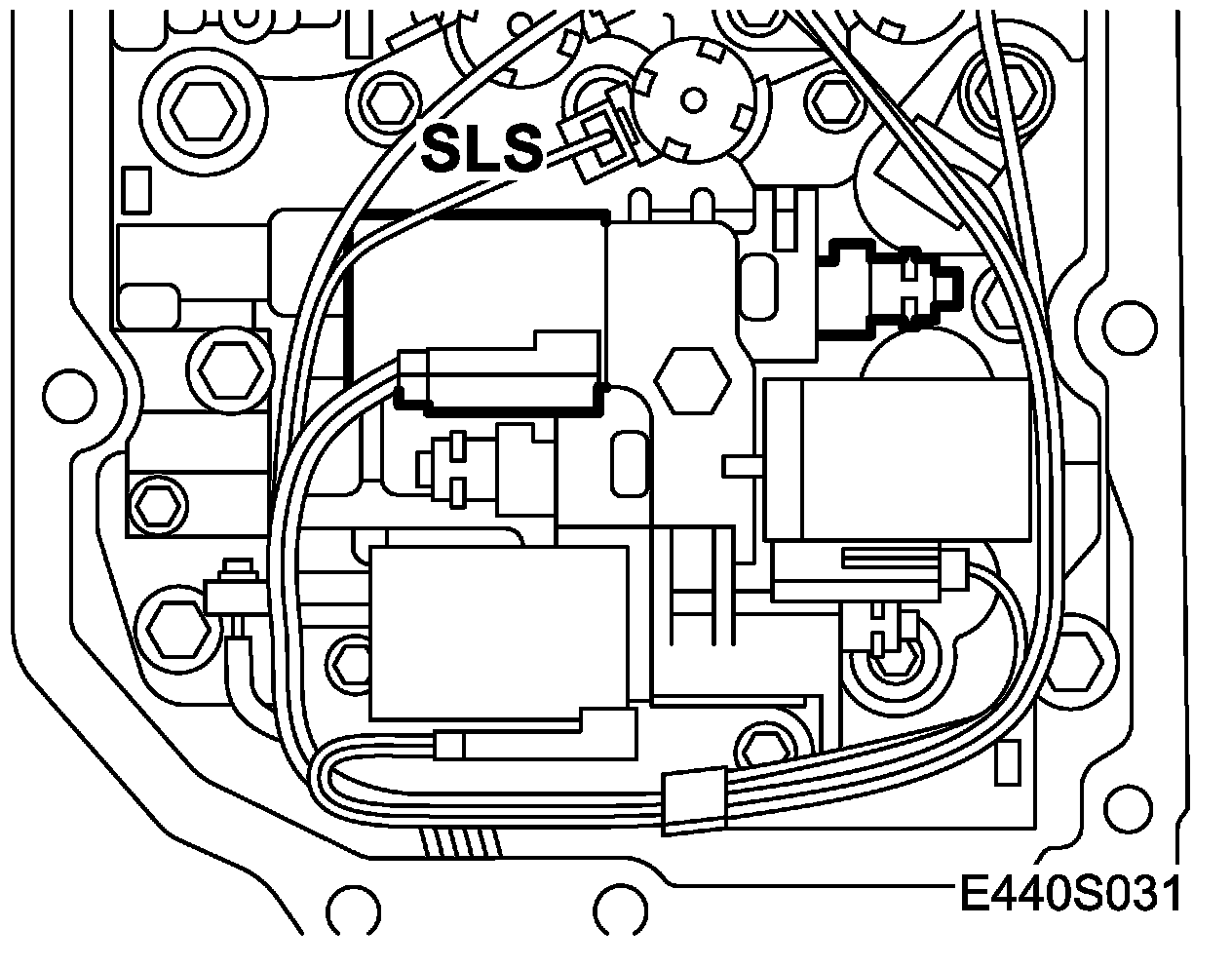

Location
Solenoid valves, TCM (531)







Main use
To regulate the oil pressure to the various clutches/brakes in the transmission.

Type
Electromagnetic, PWM governed.







Activation

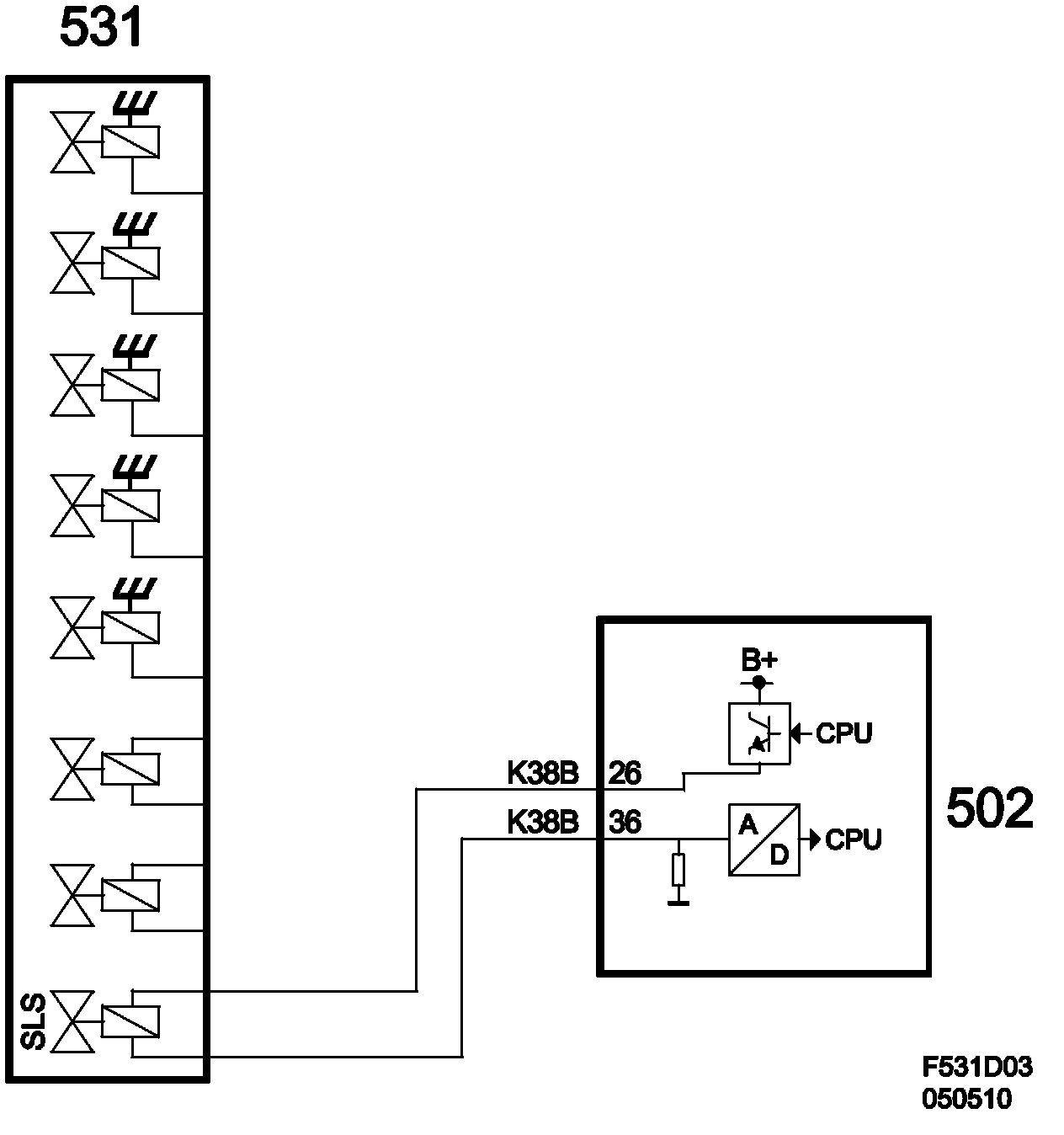

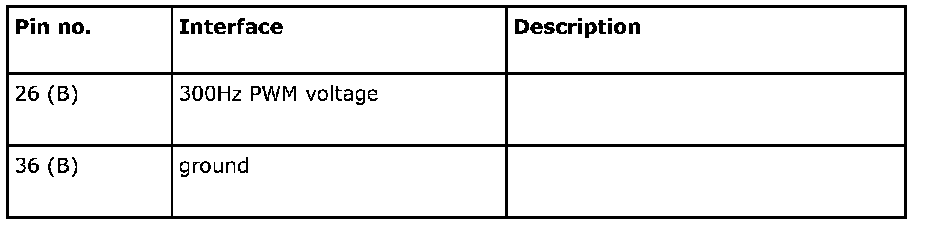

The solenoid is governed from pin 26 (B) on TCM using a 300Hz PWM voltage. Grounding takes place on pin 36 (B) on TCM. The current varies between 0-1000 mA. The solenoid is open when current is not applied. 0A = high oil pressure 1000mA = low oil pressure.
