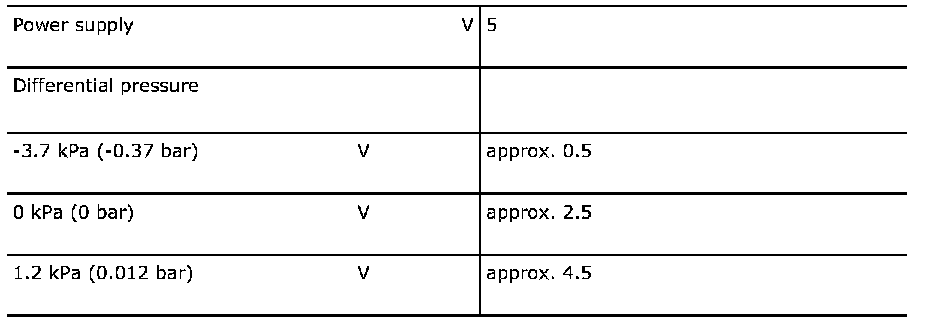

Fuel Tank Pressure Sensor: Specifications



EVAP Pressure Sensor (585)















The pressure sensor determines the difference in pressure between the tank and the atmosphere, and supplies the control module with a proportional voltage.
