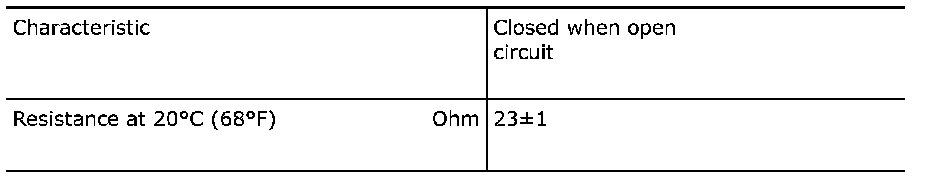

Wastegate: Specifications

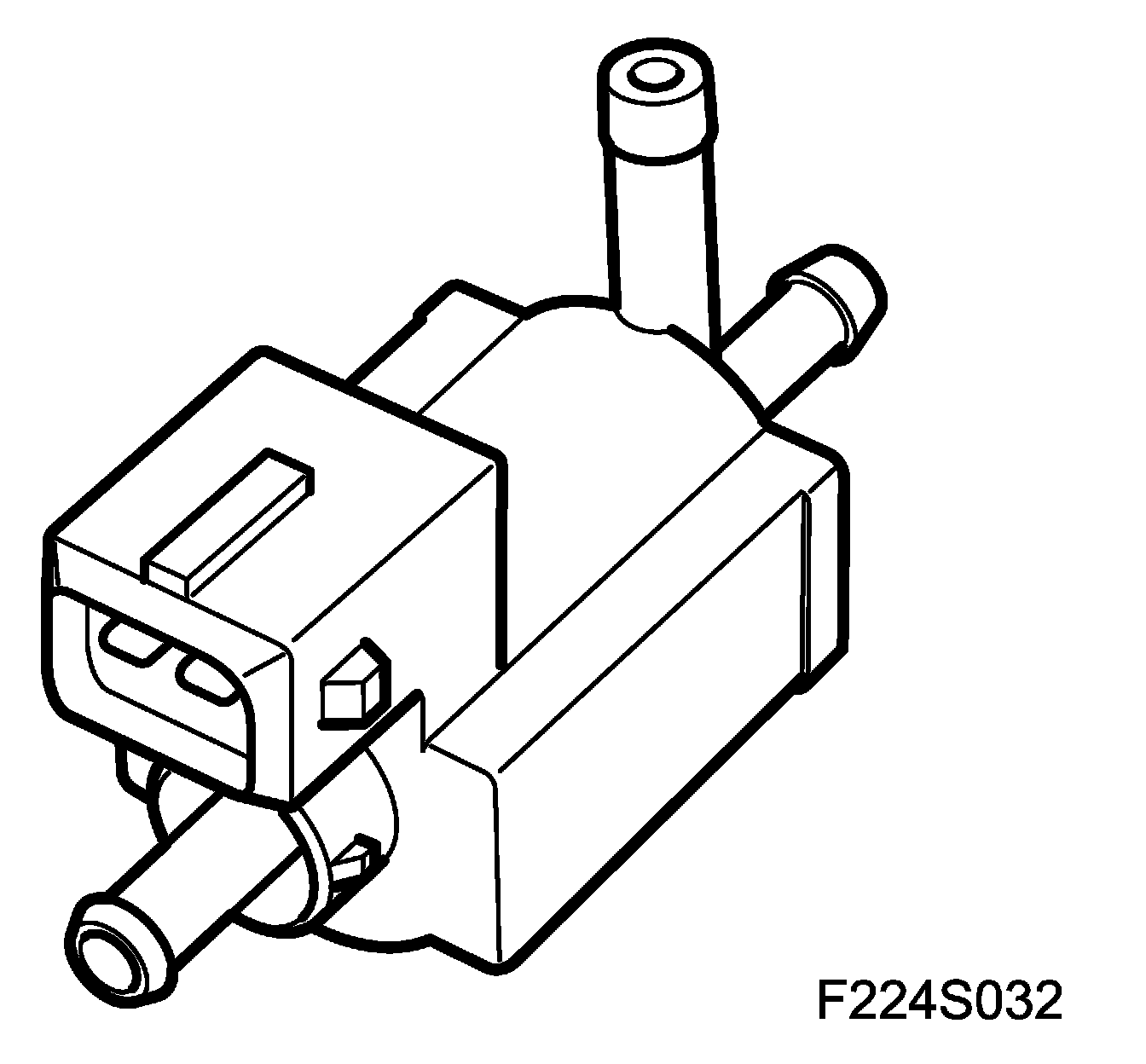

Solenoid Valve, By-Pass, Turbo (605)











When the solenoid valve is not supplied with current the bypass valve control lead is connected after the throttle.
