Wastegate: Diagrams

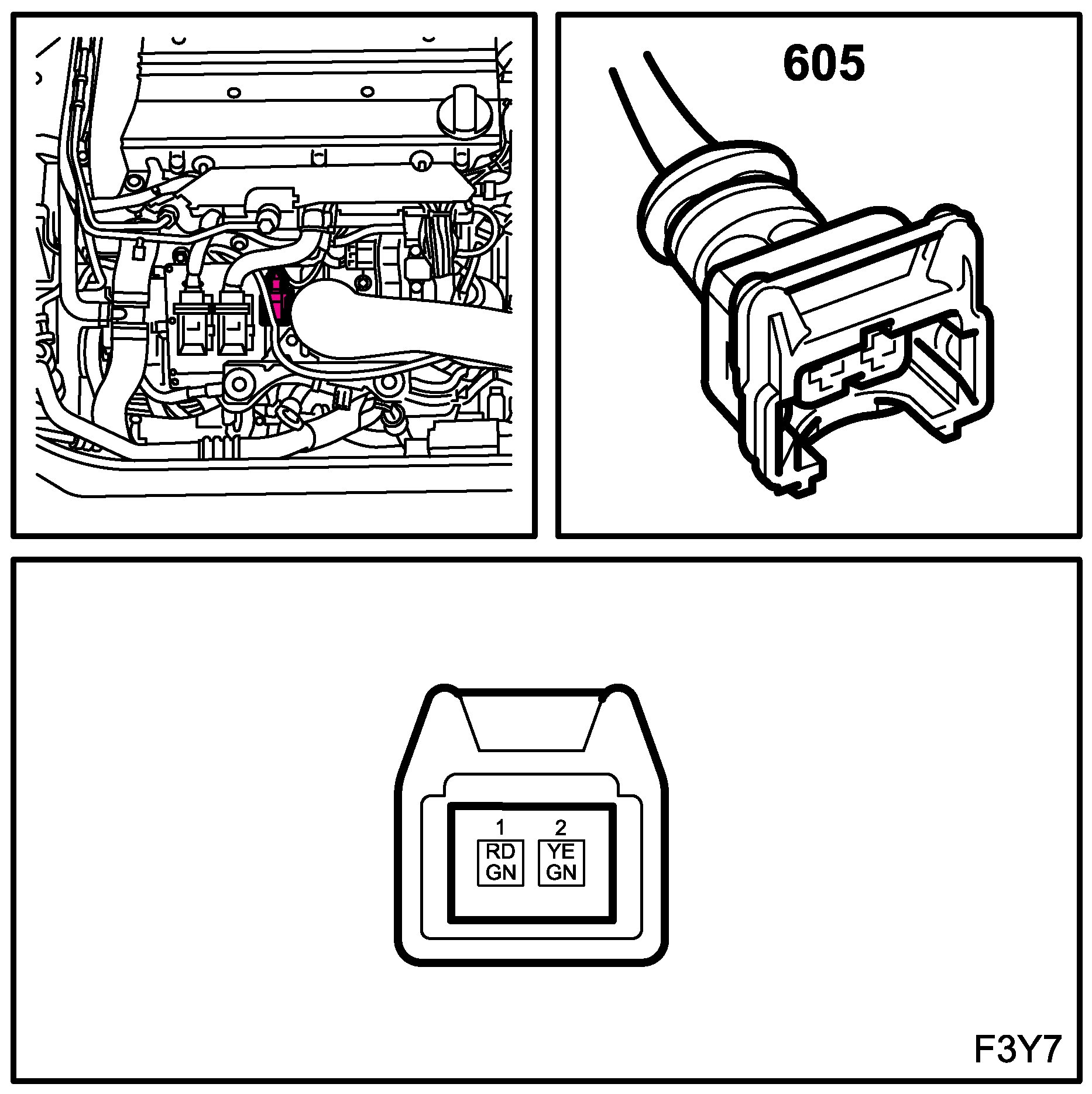

Solenoid Valve, Turbo Bypass (605)

Location:

B207
between the throttle body and the engine control module

Solenoid Valve, Turbo Bypass (605):
