Fuel Filler Pipe, Hose

Fuel Filler Pipe, Hose

WARNING:
The work involved in removing the fuel pipe requires working with the vehicle's fuel system. The following points should therefore be heeded in conjunction with these measures:
^ Have a class BE fire extinguisher on hand: Be aware of the risk of sparks, i.e. in connection with electric circuits, short-circuiting, etc.
^ Absolutely No Smoking:
^ Ensure good ventilation: If there is approved ventilation for evacuating fuel fumes then this must be used.
^ Wear protective gloves: Prolonged exposure of the hands to fuel can cause irritation to the skin.
^ Wear protective goggles.

IMPORTANT: Be particulary observant regarding cleanliness when working on the fuel system. Loss of function may occur due to very small particles. Prevent dirt and grime from entering the fuel system by cleaning the connections and plugging pipes and lines during disassembly. Use 82 92 948 Plugs, A/C system assembly. Keep components free from contaminants during storage.

To remove
1. Drain the fuel tank if necessary.
2. Raise the car.

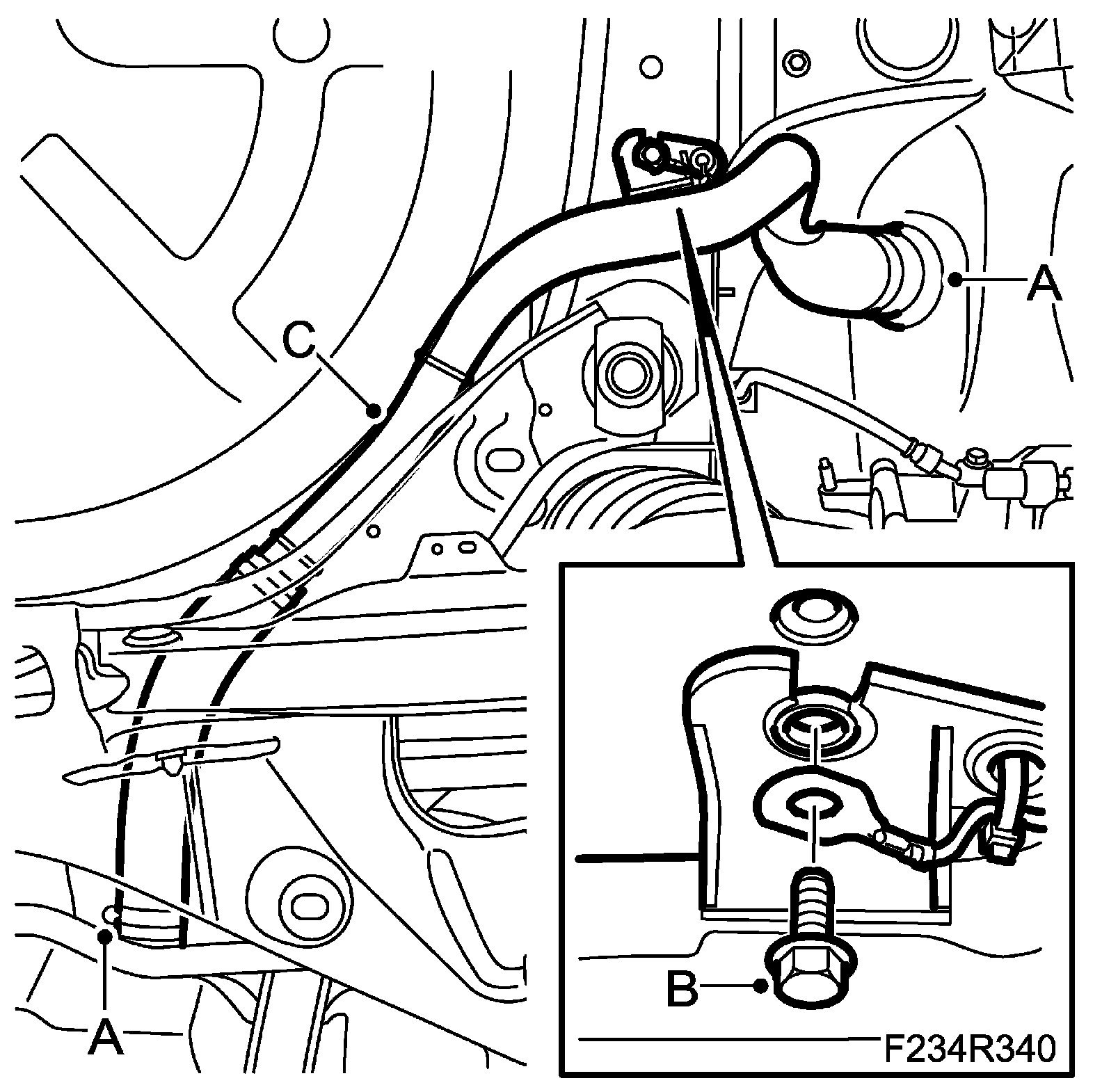

3. Remove the hose.





^ Undo the hose clamps (A).
^ Remove the bolt (B).
^ Remove the hose (C).

To fit

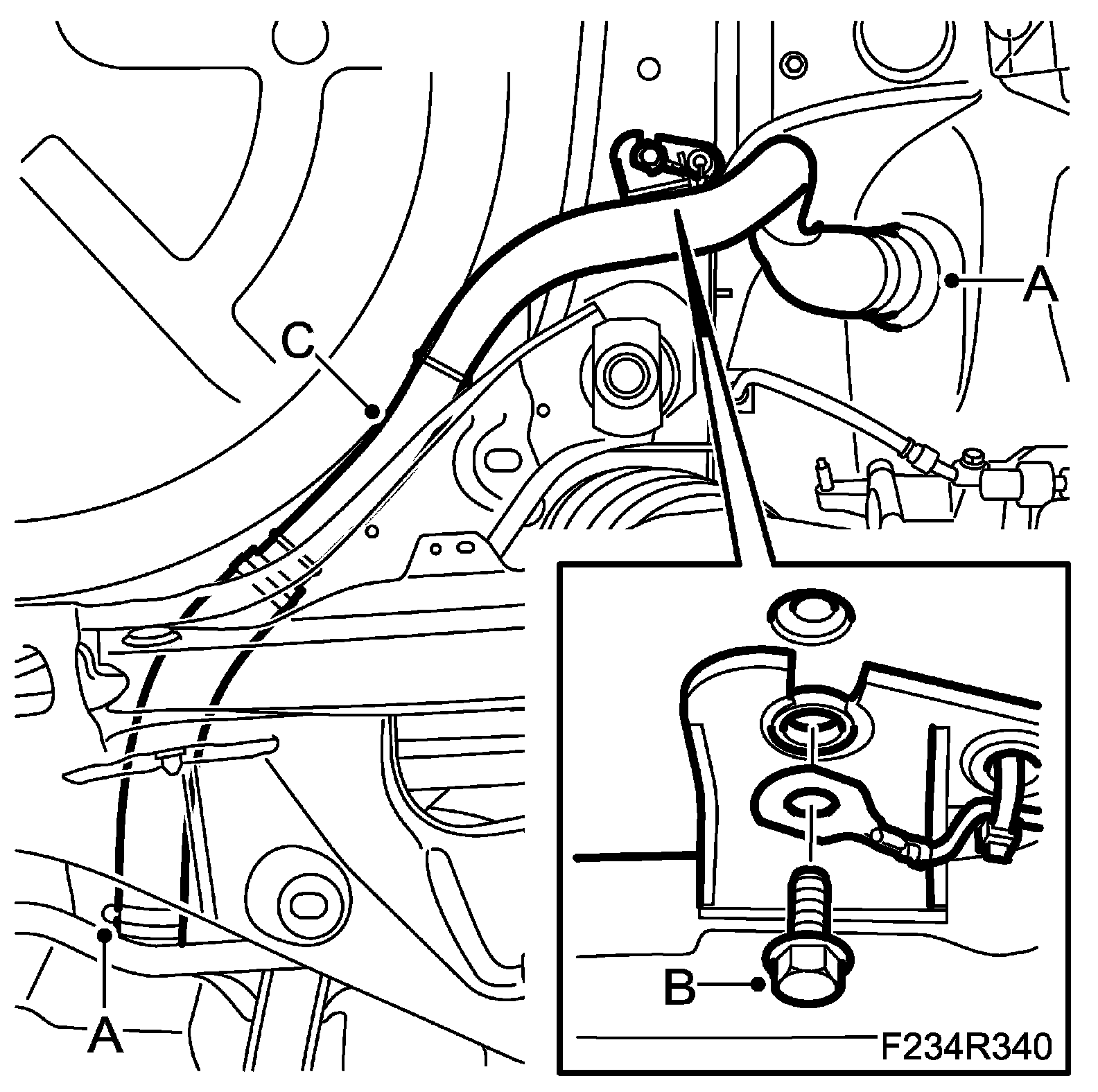

1. Fit the hose.





^ Fit the hose (C) with hose clamps (A).
^ Fit the bolt (B).
^ Tighten the hose clamps (A).

2. Lower the car.
3. Fill with petrol of the correct octane rating, and fit the filler cap.
