Fuel Injection

Fuel Injection

General

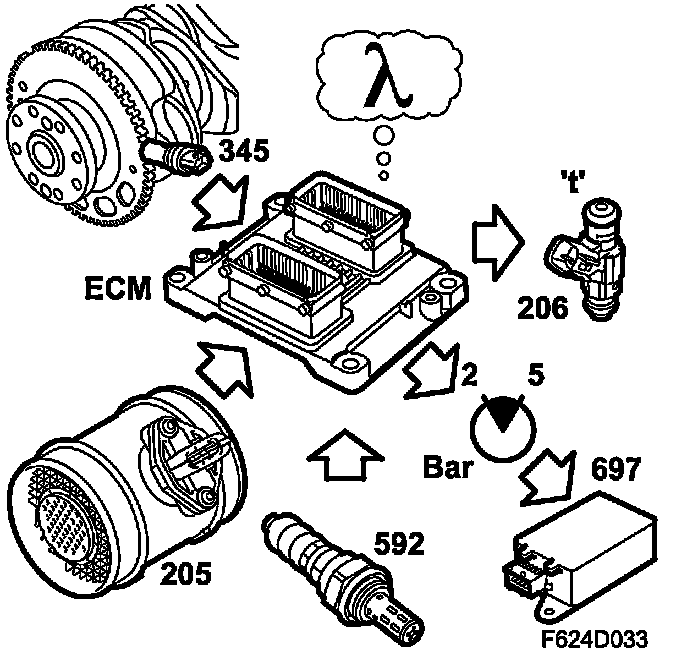

Fuel injection is sequential. Continual lambda control is done with the help of a wideband oxygen sensor. In order to maintain the correct amount of fuel, ECM varies injection timing and fuel pressure. The most important starting values for fuel injection are:
^ Engine speed
^ Air mass

Through use of a wideband oxygen sensor, lambda control can be active even if the current lambda value deviates from 1.00. This is not possible with a conventional narrow band oxygen sensor.

Some advantages of continual lambda control with wideband sensor are:
^ Control of he current lambda value over the entire load/engine speed range. This provides improved emissions at full load.
^ Possibility to have the EVAP canister purge valve active throughout the entire load/engine speed range.
^ Improved ability to diagnose components such as the catalytic converter and AIR.

Lambda value

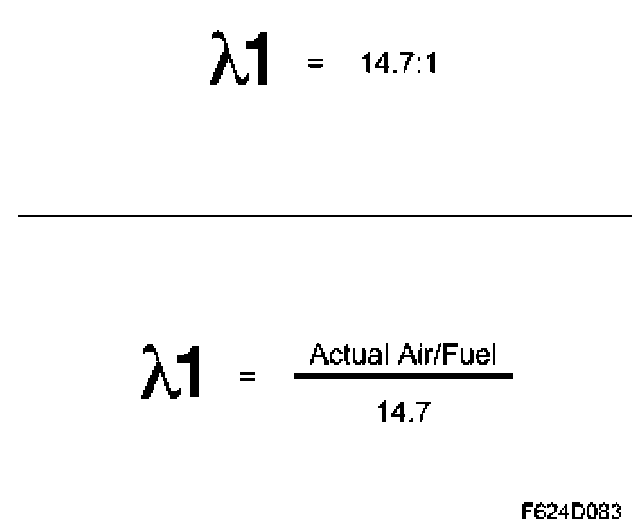

The lambda value describes the relationship between the actual mixture ratio and the mixture ratio for stoichiometric combustion (14.7:1 for petrol) Lambda = actual A/F / 14.7.

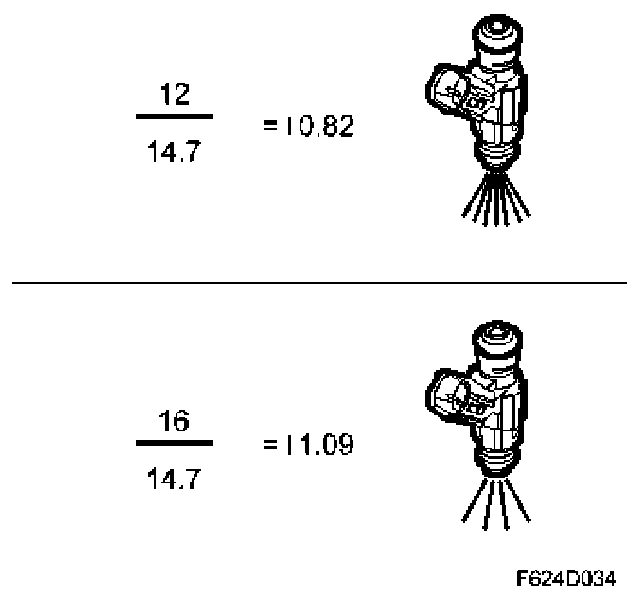

Example:





^ A mixture richer than stoichiometric, e.g. 12.0 parts air to 1 part fuel (12.0:1) generates a lambda value of 12.0/14.7 = 0.82.
^ A mixture leaner than stoichiometric, e.g. 16.0 parts air to 1 part fuel (16.0:1) generates a lambda value of 16.0/14.7 = 1.09.

The lambda value at idling speed is about 1.00 or a little less.

At high engine torque, the lambda value drops due to the extra fuel supplied via full load enrichment.

The lowest specific fuel consumption is obtained when the lambda value is between 1.10 and 1.20. The best output is obtained when lambda is 0.85-0.95. Neither of these is optimal for emissions, as the catalytic converter must operate at around lambda = 1.00.

Basic quantity, fuel

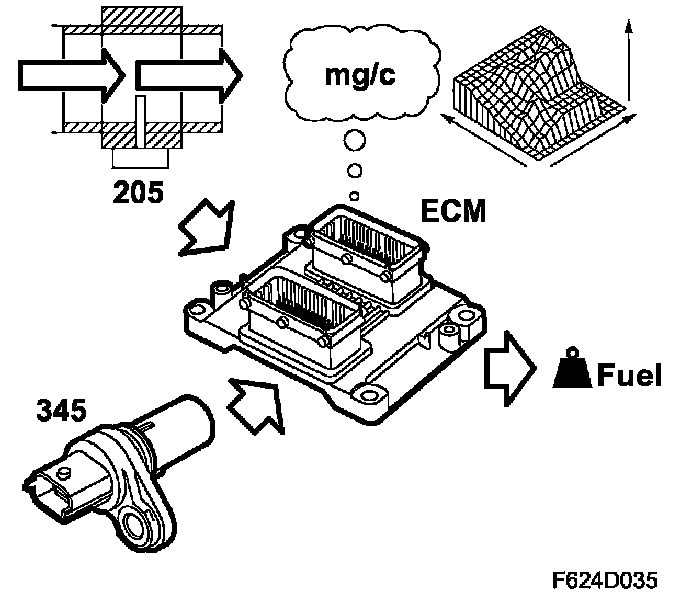

The mass air flow sensor transmits a voltage whose size is determined by mass air flow. When mass air flow increases, the voltage increases. The control module converts the voltage to grams of air/second (g/s).

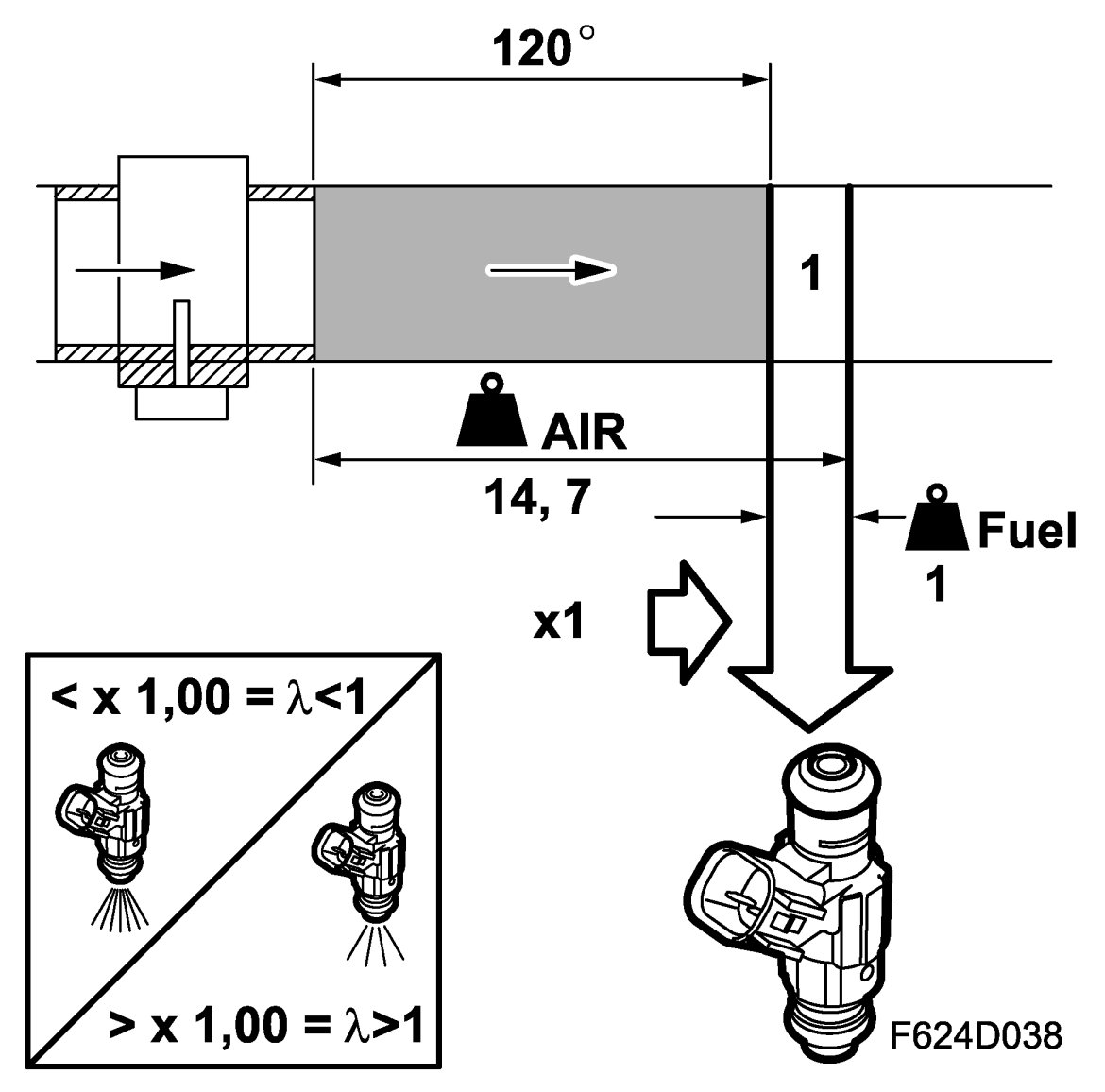

It is the size of the air mass (capacity, volumetric efficiency) drawn into each cylinder that is most interesting since it is this air to which fuel shall be supplied. The control module registers the air mass taken in during one engine revolution. Since the engine is a 6-cylinder, 4-speed engine, three cylinders draw in air during the same engine revolution. The air mass that passes the mass air flow sensor is divided by three. Now the control module knows how much air each cylinder has drawn in. The unit is now changed to milligrams of air/combustion (mg/c).

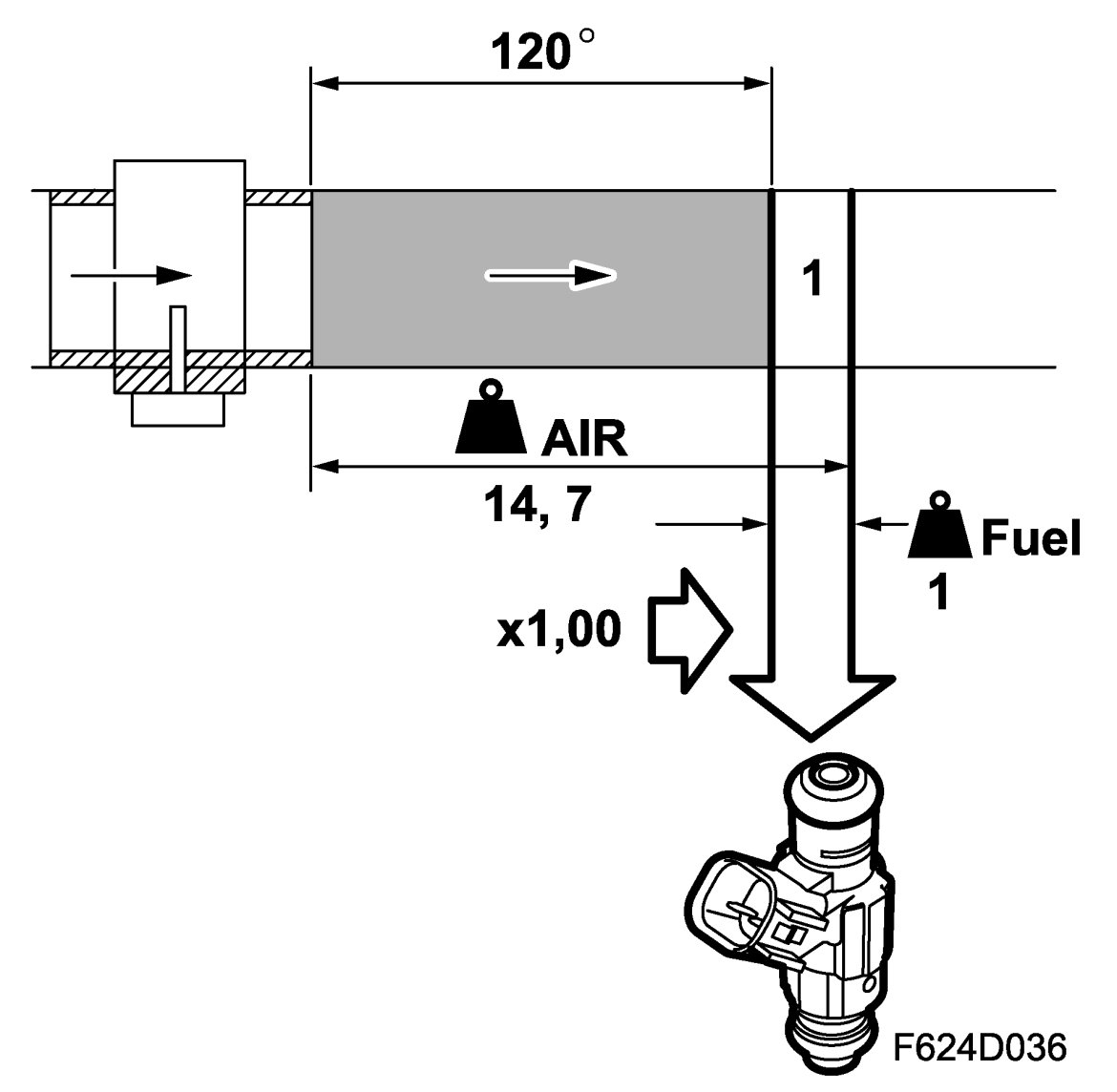

To achieve lambda = 1, there must be a specific fuel/air ratio, namely 1 kg fuel to 14.7 kg air. As we know how much air has been drawn into each cylinder per combustion, the control module can easily calculate how much fuel is to be injected into the cylinders each time. The milligrams air/combustion is divided by 14.7 and the result is the number of mg fuel/combustion to be injected into the cylinder.

The value is corrected in a matrix to account for air vibrations and thereby measurement errors of the mass air flow sensor. Additionally, certain operating points need to deviate from lambda = 1.00 to generate the best driveability or emissions.

The following text is an account of why the basic fuel quantity must sometimes be adjusted to a leaner, or most often, a slightly richer mixture so that the engine will run smoothly and emissions will be kept within required limits.

Compensation, general





The calculated basic quantity of fuel will enable the engine to run perfectly under normal conditions, i.e. as long as it is warm and the load or rpm does not change. However, the fuel/air mixture must sometimes be corrected for the engine to function well and emissions to remain low under all conditions.

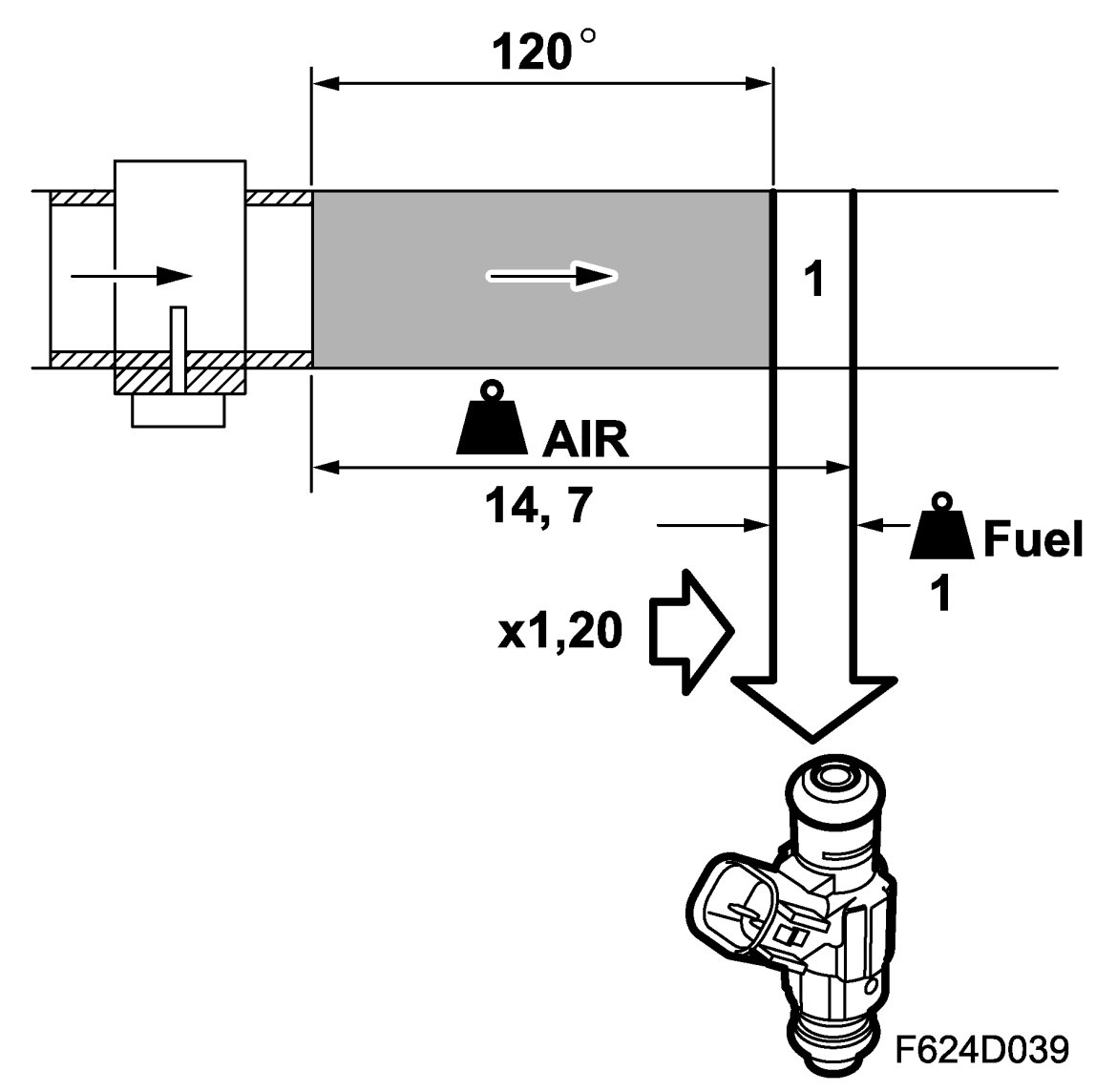

The basic fuel quantity is multiplied by a correction factor which is normally 1.00. If the correction factor is changed, for example to 1.01, the fuel quantity will be increased by 1%. If instead the correction factor is changed to 0.98, the fuel quantity will be reduced by 2%. Lambda control is usually disabled if the correction has a value other than 1.00. Otherwise the compensation would be corrected by lambda control and be ineffective.





^ A compensation factor over 1.00 generates a richer mixture, which is the same as a lower lambda value.
^ A compensation factor below 1.00 generates a leaner mixture, which is the same as a higher lambda value.

Compensation after start

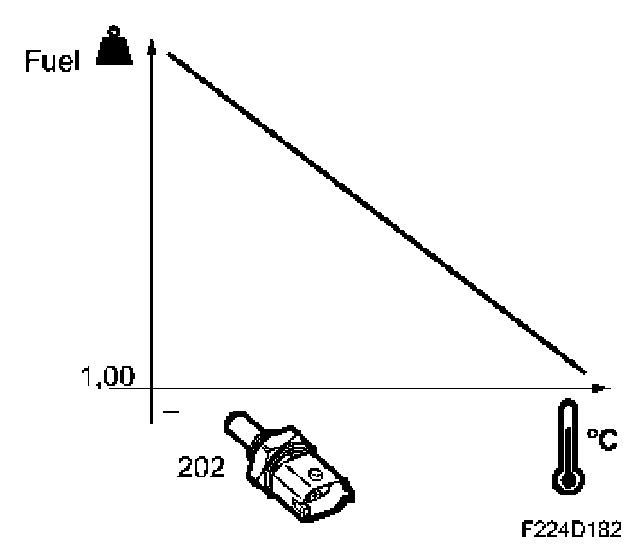

Right after engine start, the correction factor is slightly over 1 and then slowly drops to 1.00. High high over 1 the correction factor is and how long it takes before it reaches 1.00 is determined by coolant temperature.

On cars with a carburettor engine, this function is called choke.





Requested lambda value drops during compensation.

Function during increasing load

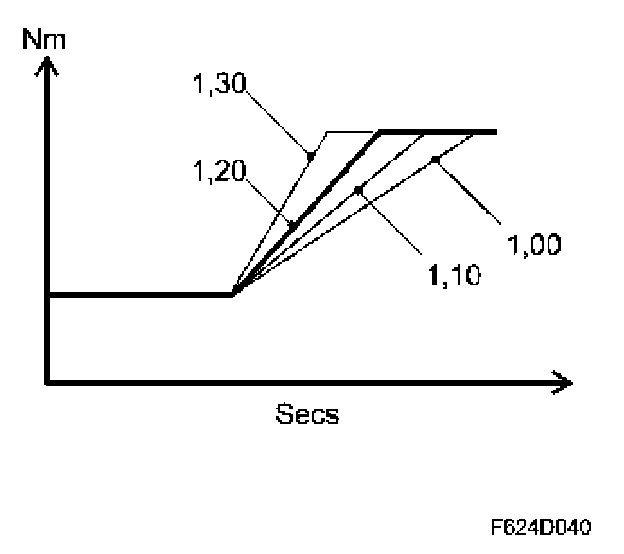

A sudden load increase causes the mg air/combustion to increase rapidly and it is well known that petrol engines then require a richer mixture. This is because fuel is deposited on the walls of the intake manifold due to the increase in pressure there, and the wet-film thickness increases. The fuel quantity used here must be replaced by a slightly larger quantity of injected fuel, which is achieved by increasing the correction factor by a few percentage points. For example, the correction factor can be increased from 1.00 to 1.03, which gives 3% more fuel.

As soon as the load increase stops, the correction factor returns to its original value.





Requested lambda value drops during compensation.

Function during decreasing load

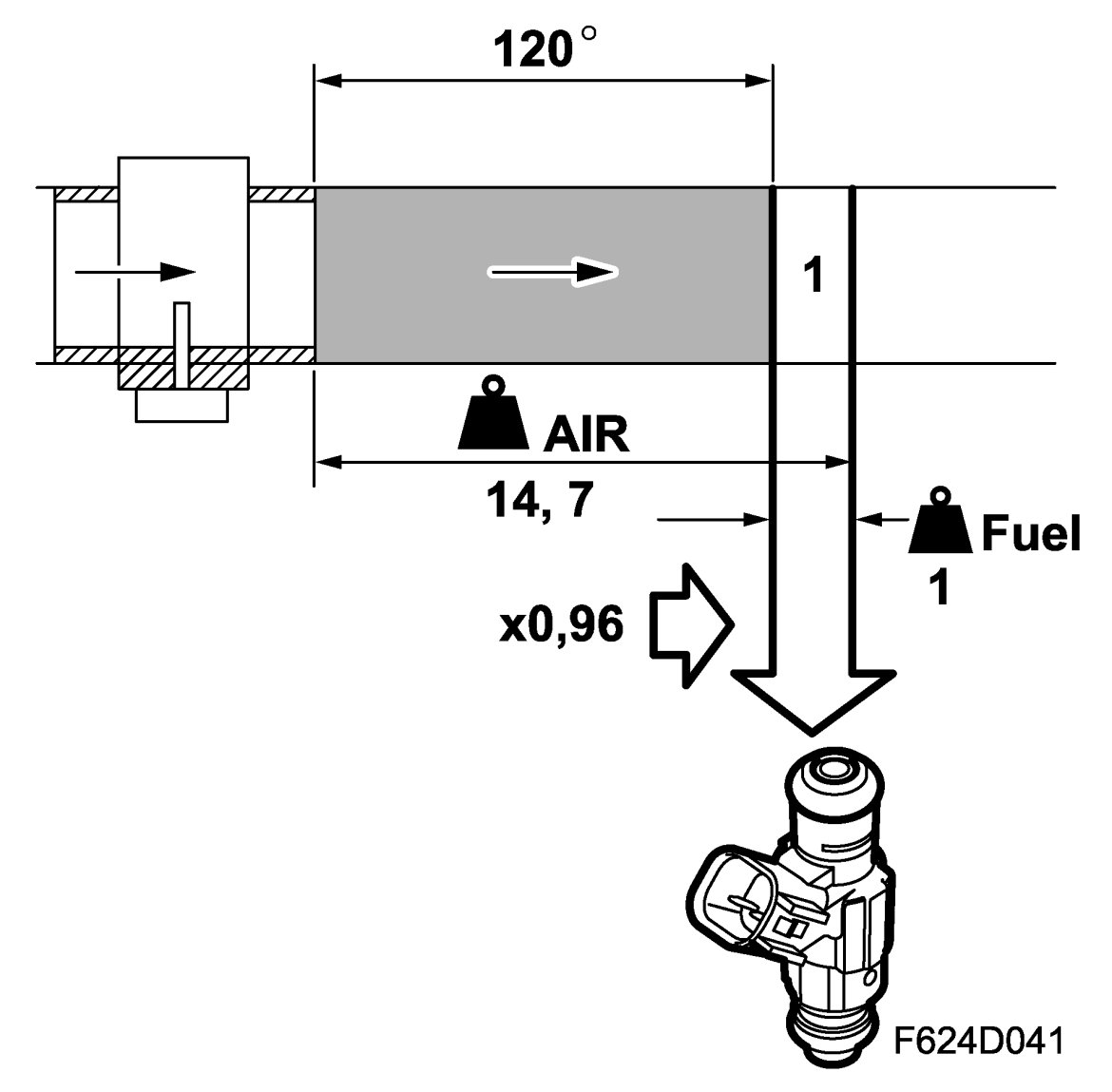

In the case of a load reduction, the function is reversed. The wet-film deposited on the walls of the intake manifold thins quickly as the pressure drops. The quantity of injected fuel must then be reduced to avoid a negative effect on emissions and fuel consumption, so the correction factor is reduced by a few percentage points. For example, the correction factor can be reduced from 1.00 to 0.96, giving a 4% reduction in fuel quantity.

How far from 1.00 the correction factor migrates in conjunction with load change depends on how quickly the air mass/combustion changes and on coolant temperature.

On a car with a carburettor engine, the function described above corresponds to the accelerator pump or damper piston.

Requested lambda value increases during compensation.

Knocking

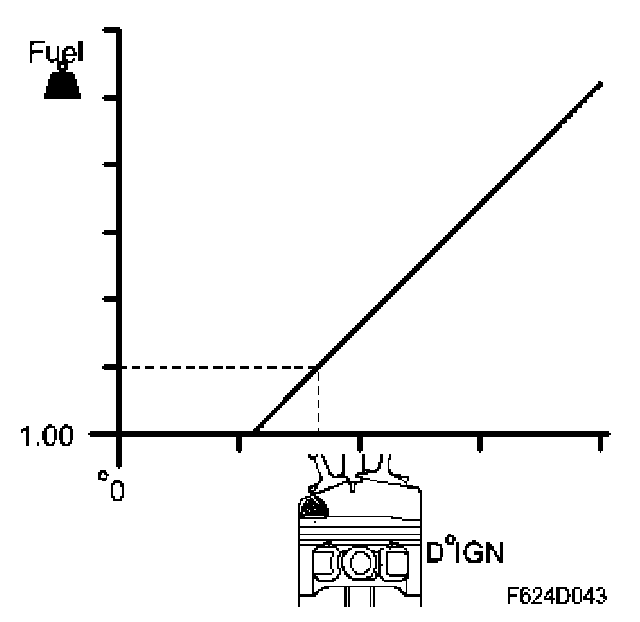

Engine knocking is corrected through delayed firing of the cylinder in question. If knocking continues despite a delay in ignition timing, the fuel will be enriched through an increase in the correction factor.

Lambda control is active during compensation.





Requested lambda value drops during compensation.

Full load





At high engine load, the requested lambda value will drop to prevent engine component overheating. The lower lambda value also reduces the engine's knock tendencies.

ECM calculates exhaust temperature and corrects the lambda value to keep the calculated value within given limit values.

Lambda control is active during compensation.





Requested lambda value drops during compensation.

Lambda control





General
Using basic fuel quantity and any compensations, ECM calculates the requested lambda value. This is converted to values for:
^ Injection timing
^ Fuel pressure

ECM can compare the actual lambda value with the requested one by measuring the actual lambda value in the exhaust flow. Should they deviate, ECM corrects injection timing and, as necessary, fuel pressure.

At idling speed and when driving with a moderate load, the lambda value is about 1.00.

Requested lambda value drops during high engine load.

Lambda control as well as requested and actual lambda values can be read out using the diagnostic tool.

Lambda control is active when coolant temperature exceeds 35 degrees C.

Purging





General

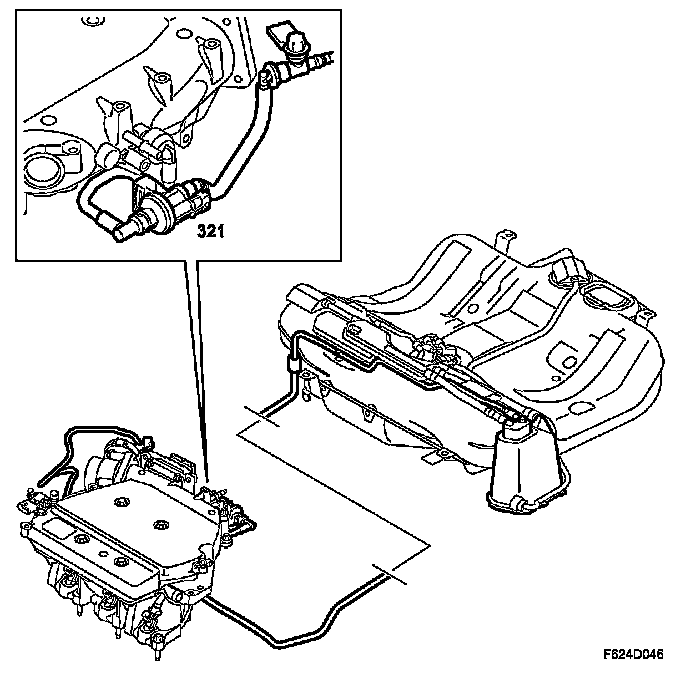

The fuel which evaporates in the tank is passed through a pipe to the evaporative emission canister. The active charcoal in the canister absorbs the hydrocarbon vapours. When the engine starts, ambient air is drawn through the canister via the purge valve into the intake manifold. The petrol vapours follow with it and are burned in the engine.

Through the use of continual lambda control, purging can also be active when driving with a high engine load.

Function





The flow is regulated by the pulse conditions so that is always constitutes a particular proportion of the total flow consumed by the engine.

If the air/fuel ratio of the flow differs from 14.7:1, lambda control is affected. However it is not the task of lambda control to correct for purge surplus. Purge therefore has a correction factor which is influenced by lambda control as soon as the purge begins. The entire lambda control deviation from 1.00 is transferred to the purge correction factor, which means that the lambda control fluctuates around 1.00 (0%) even if the purge contains large quantities of hydrocarbon or consists of pure air.

When the purge is not active, a factor of 1.00 is used and the entire fuel error is corrected by lambda control as well as multiplicative and additive adaptation
