Power Supply
Power Supply
Power Supply
IMPORTANT:
Turn the key to LOCK or remove it whenever the car is not being used. In OFF position, the battery will discharge within a couple of hours.

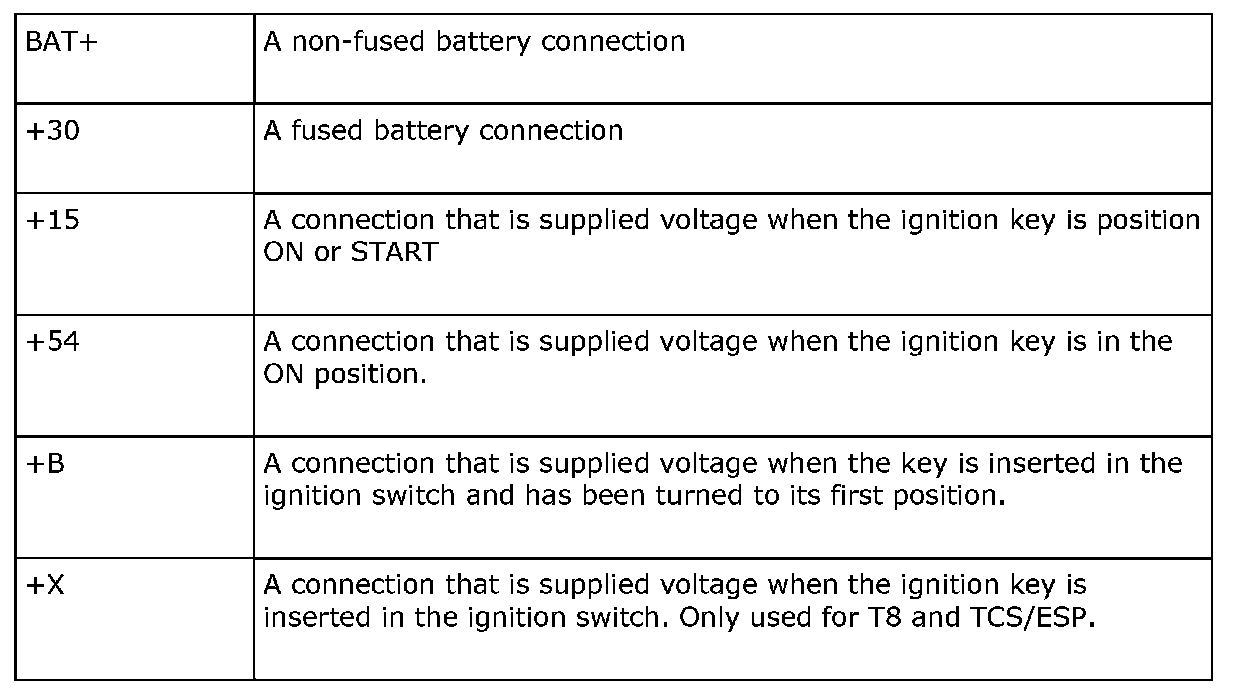

The vehicle power supply system is divided into:
