Vanity Lamp: Description and Operation

Lamp, Vanity Mirror Lighting (359LH/RH)

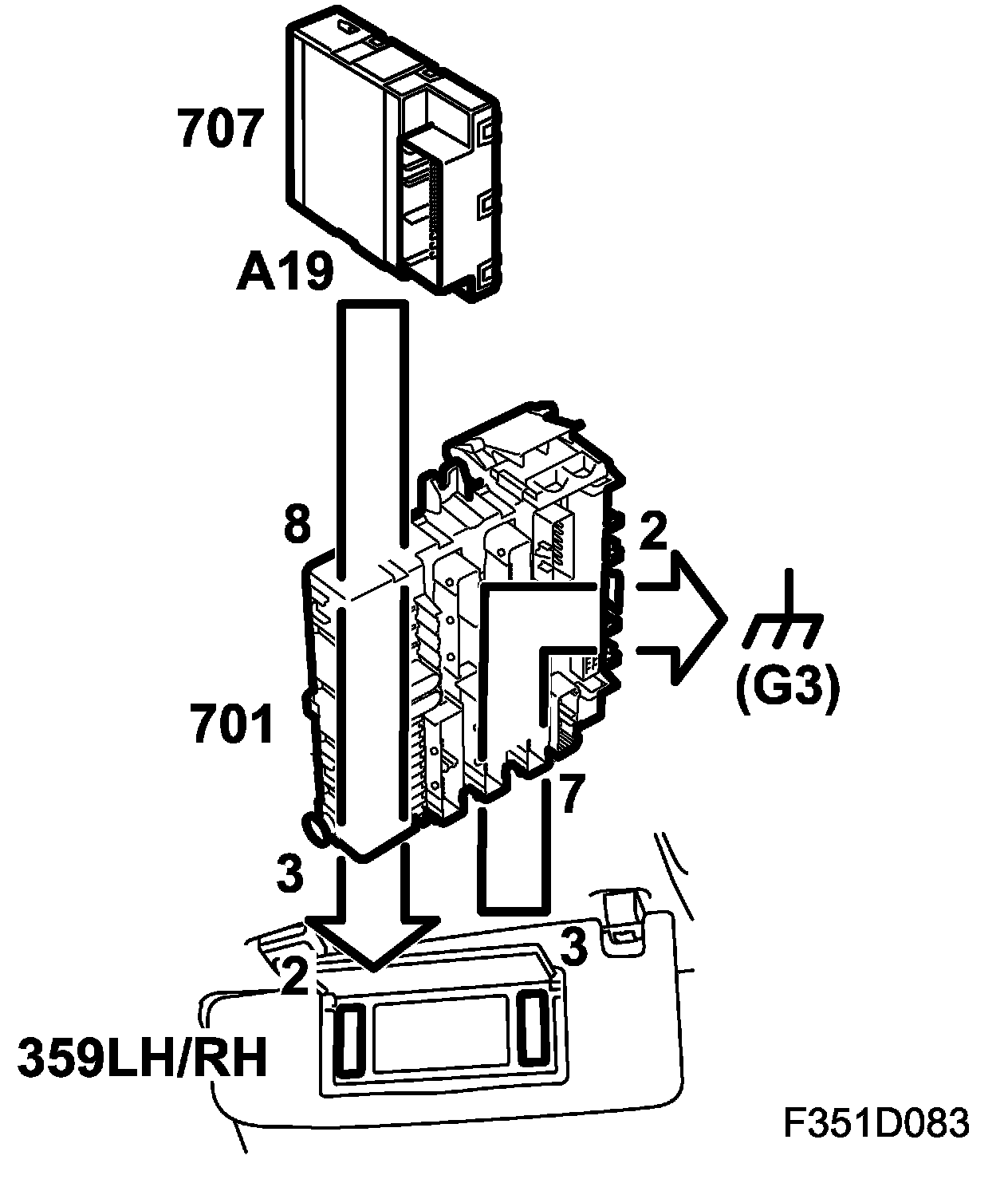

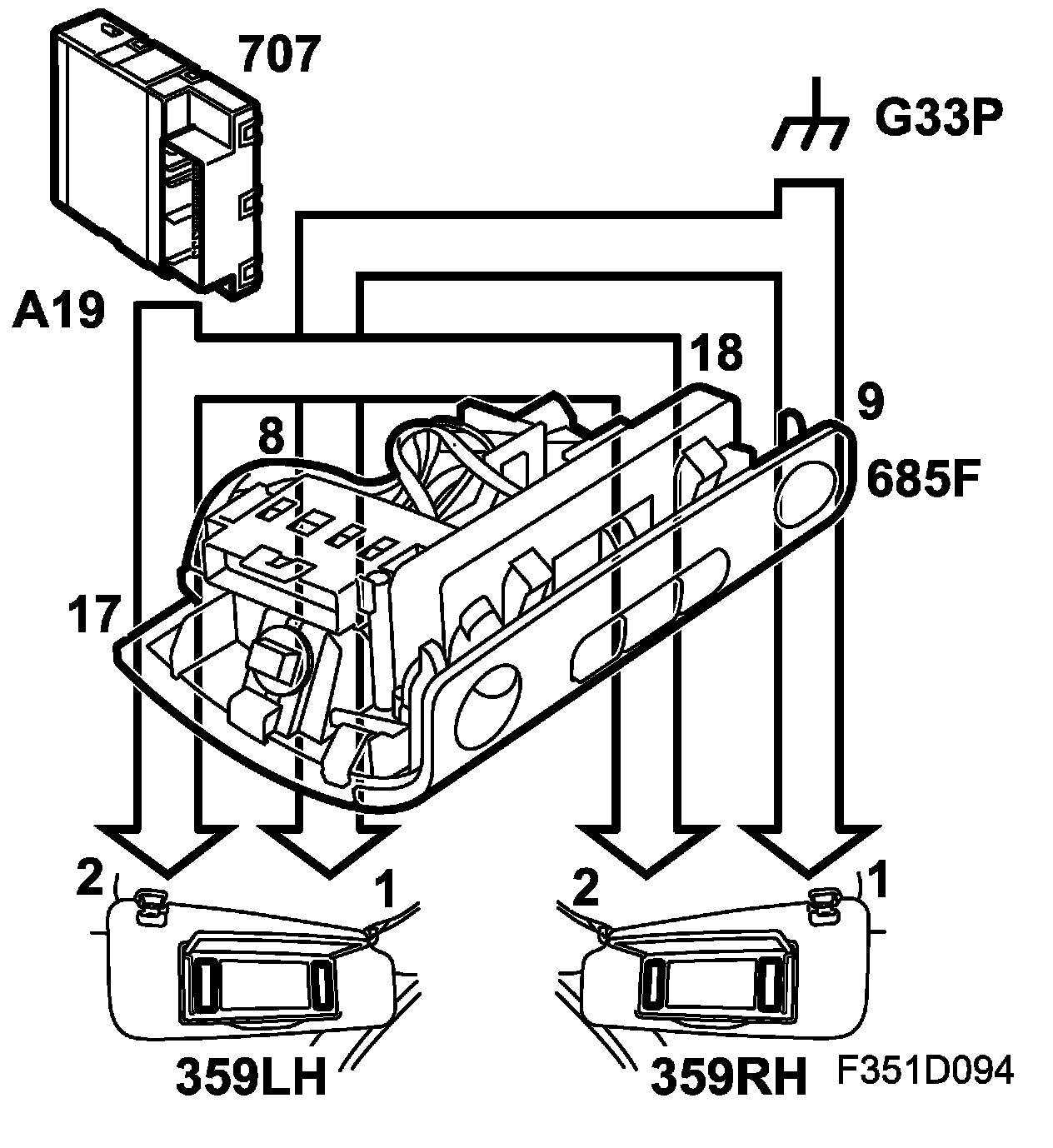

Location
Vanity mirror lighting lamp, left (359LH)
Vanity mirror lighting lamp, right (359RH)

Main task
Used as lighting for the vanity mirror.

Type
Two lamps and a switch are built in to the sun visor. The switch is activated by the vanity mirror.

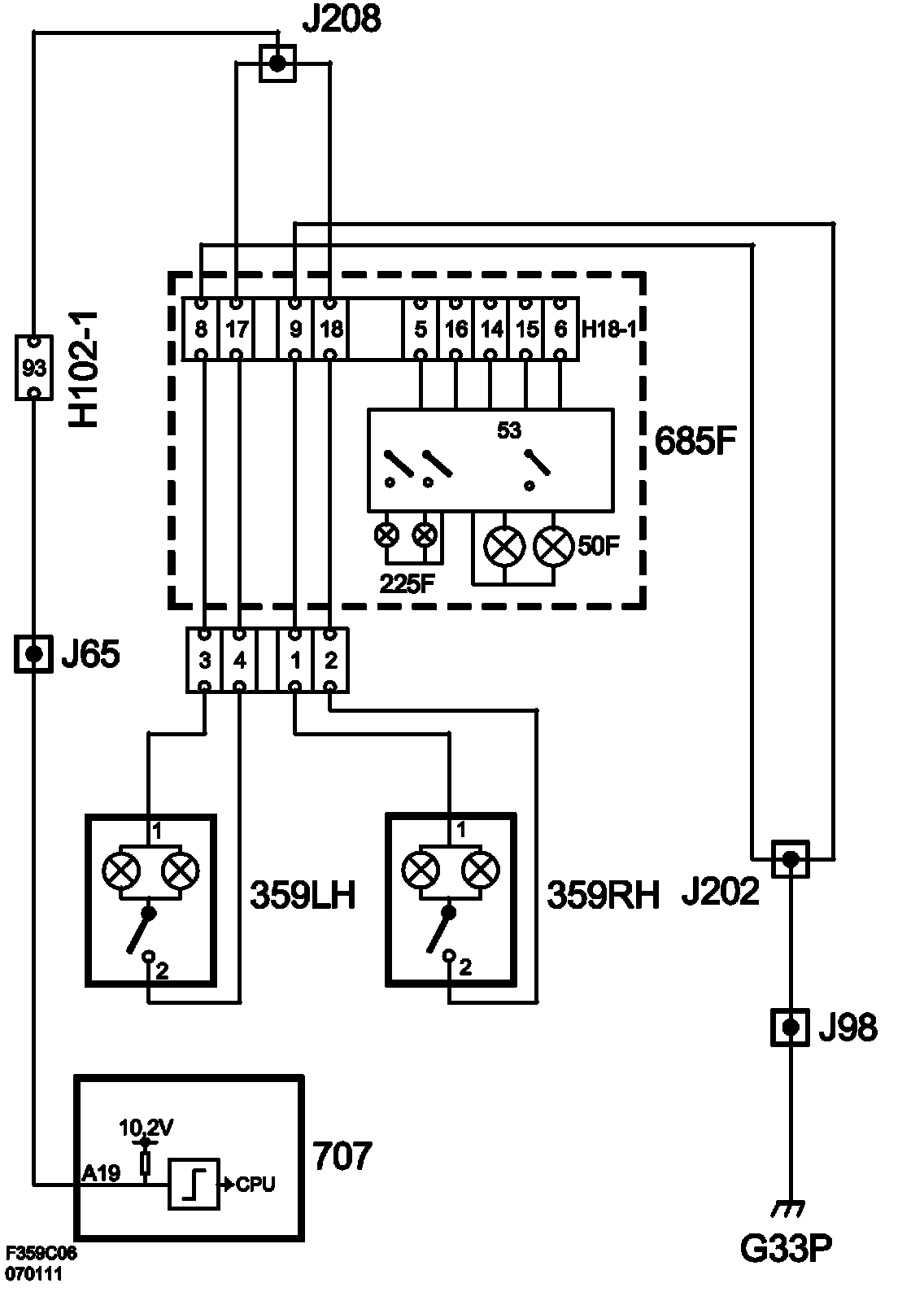

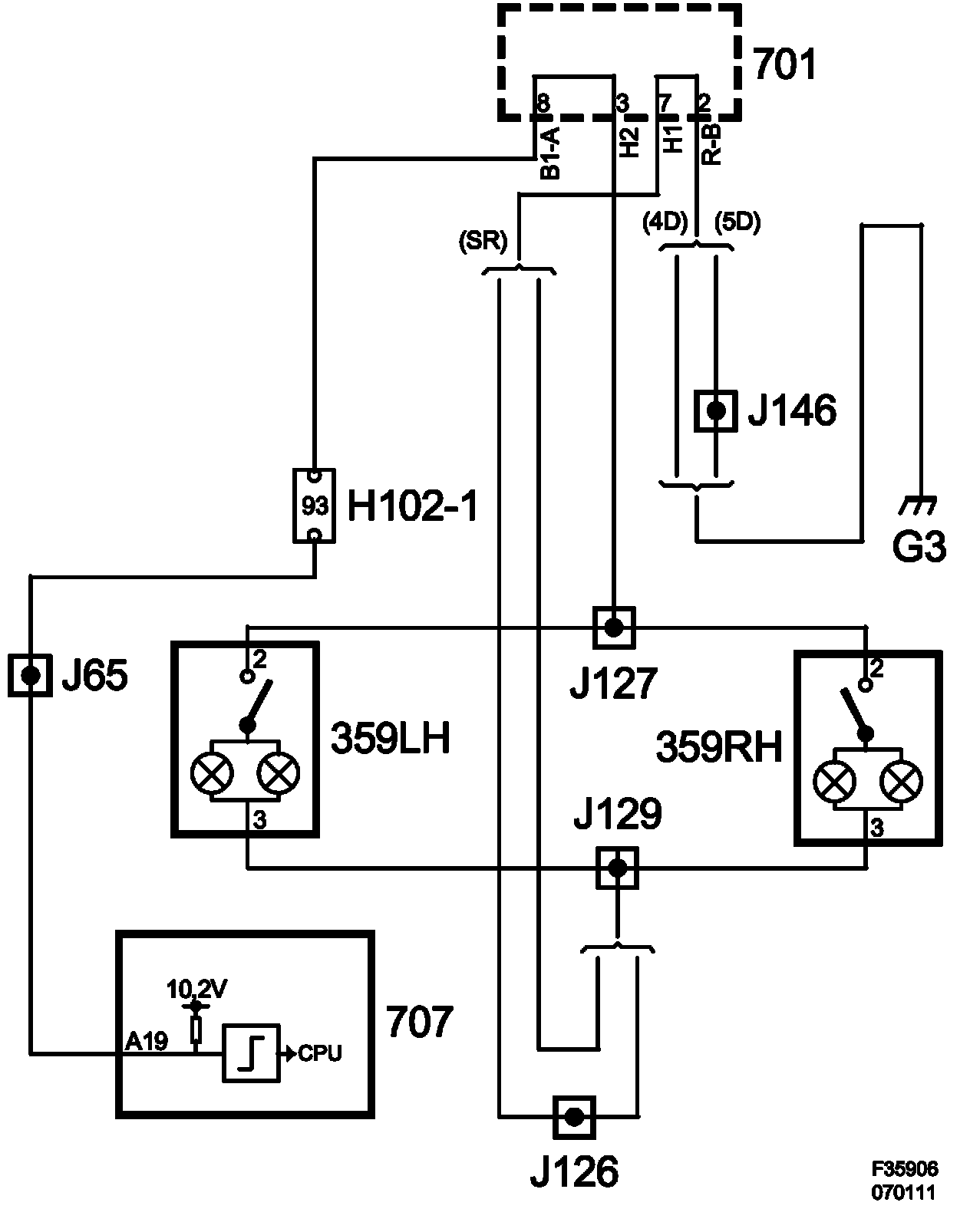

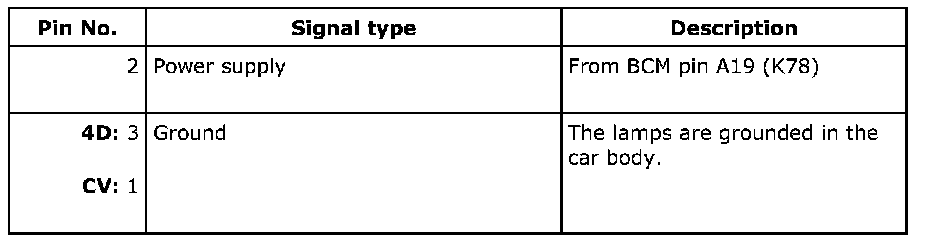

Connection
