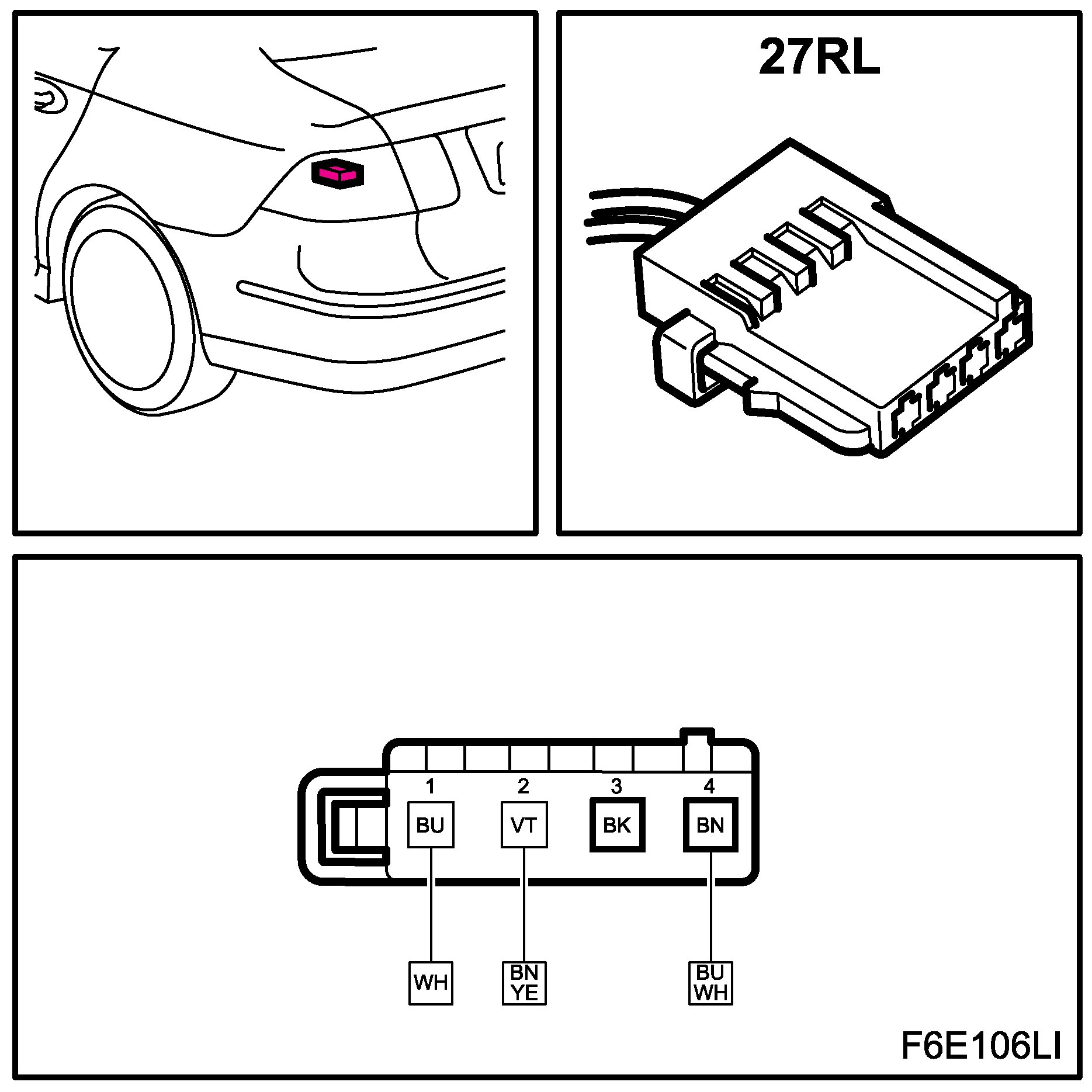

Rear Left Direction Indicator Bulb (27RL)
>>
4D/CV
4D/CV
Rear Left Direction Indicator Bulb (27RL)
Location:
in the rear wing's light cluster
4D/CV
Rear Left Direction Indicator Bulb (27RL):
