Control Module, AHL (664)/AFL (752)

Control Module, AHL (664)/AFL (752)

To remove
Carry out procedure before control module removal.

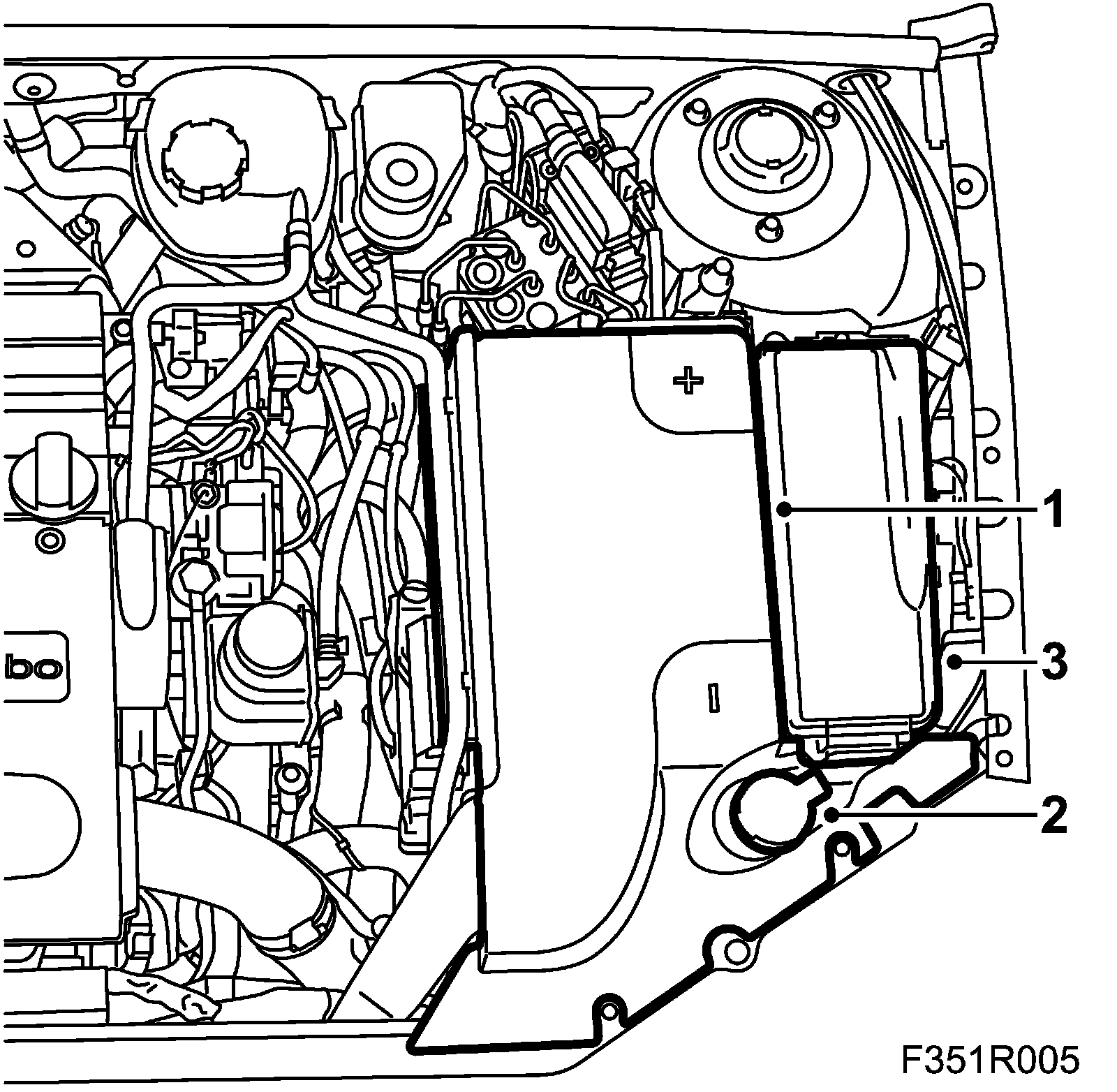

1. Remove the battery cover lid.







2. Remove the filler pipe of the washer reservoir.
3. Remove the main fuse box cover.

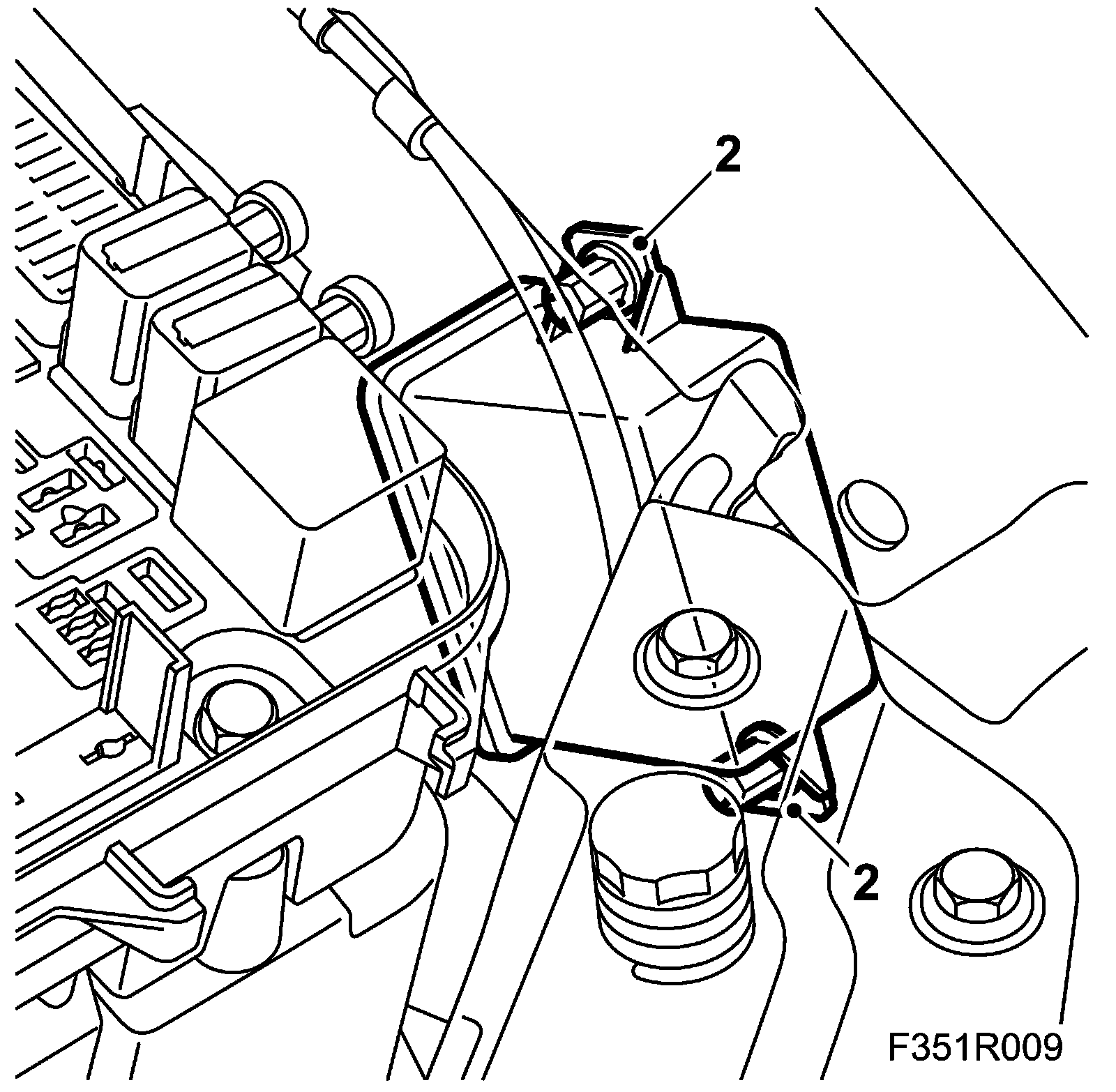

4. Remove the nuts.







IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.

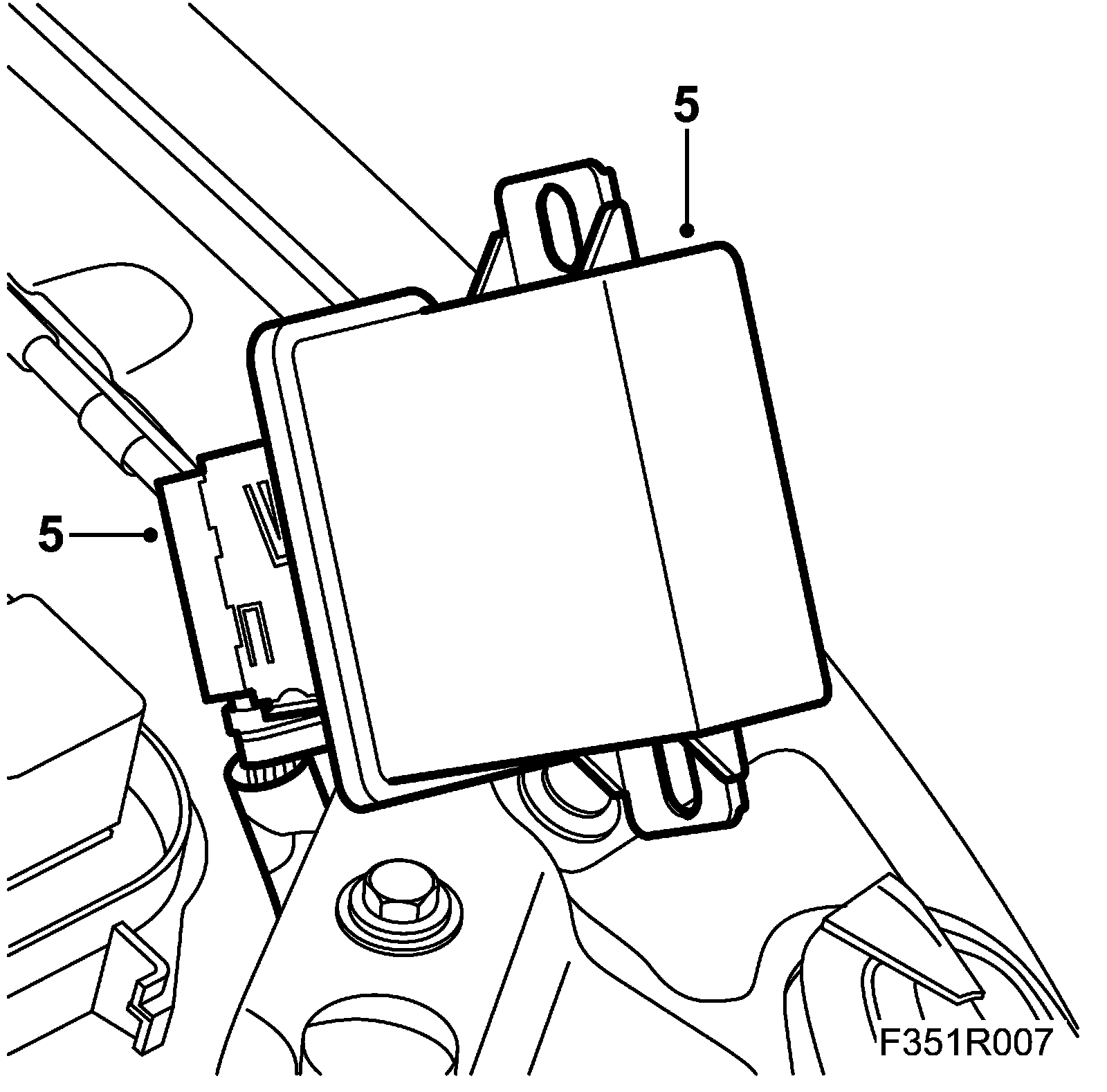

5. Lift up the control module and detach the connector.







To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.

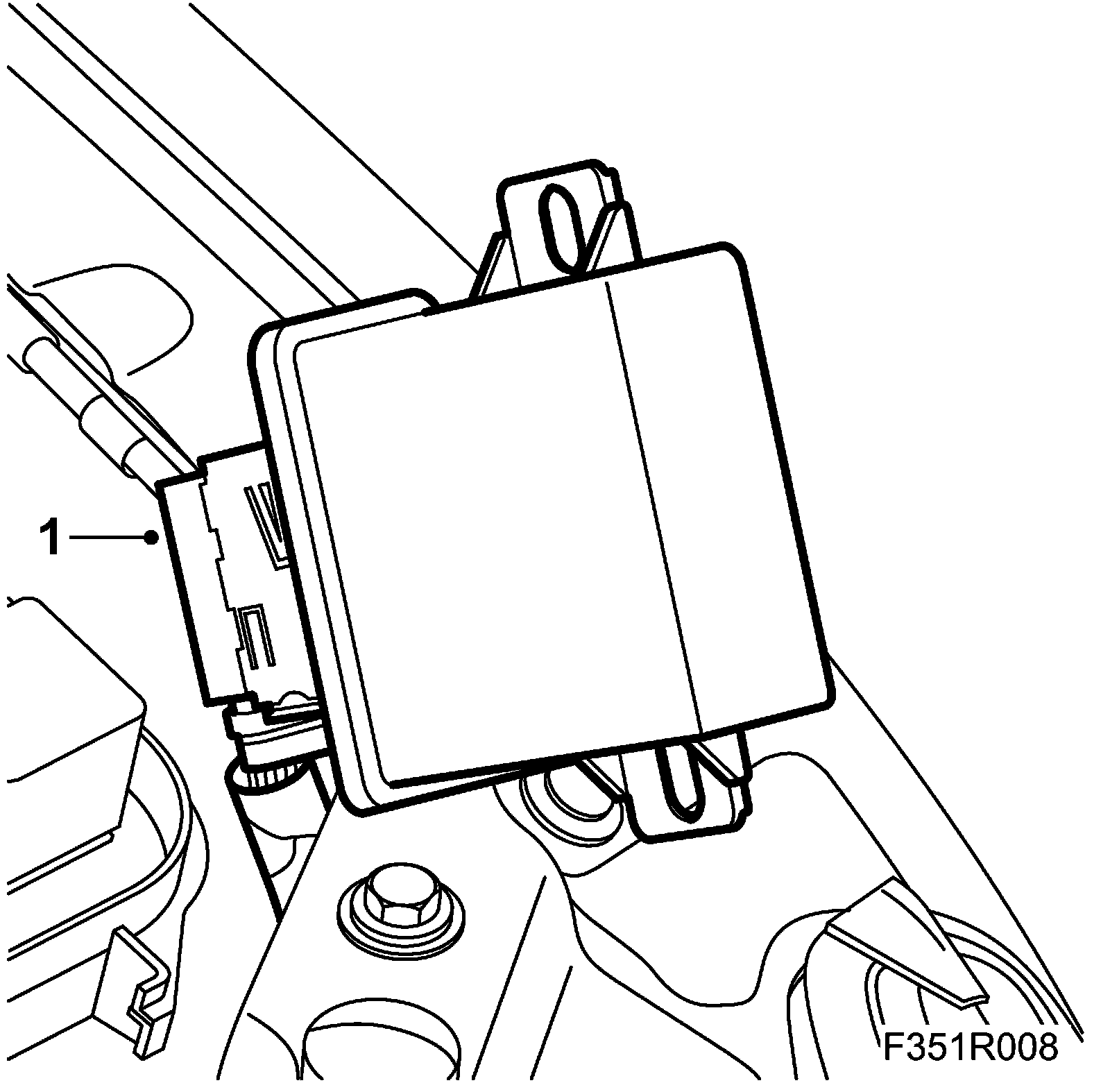

1. Plug in the connector.







2. Fit the control module.

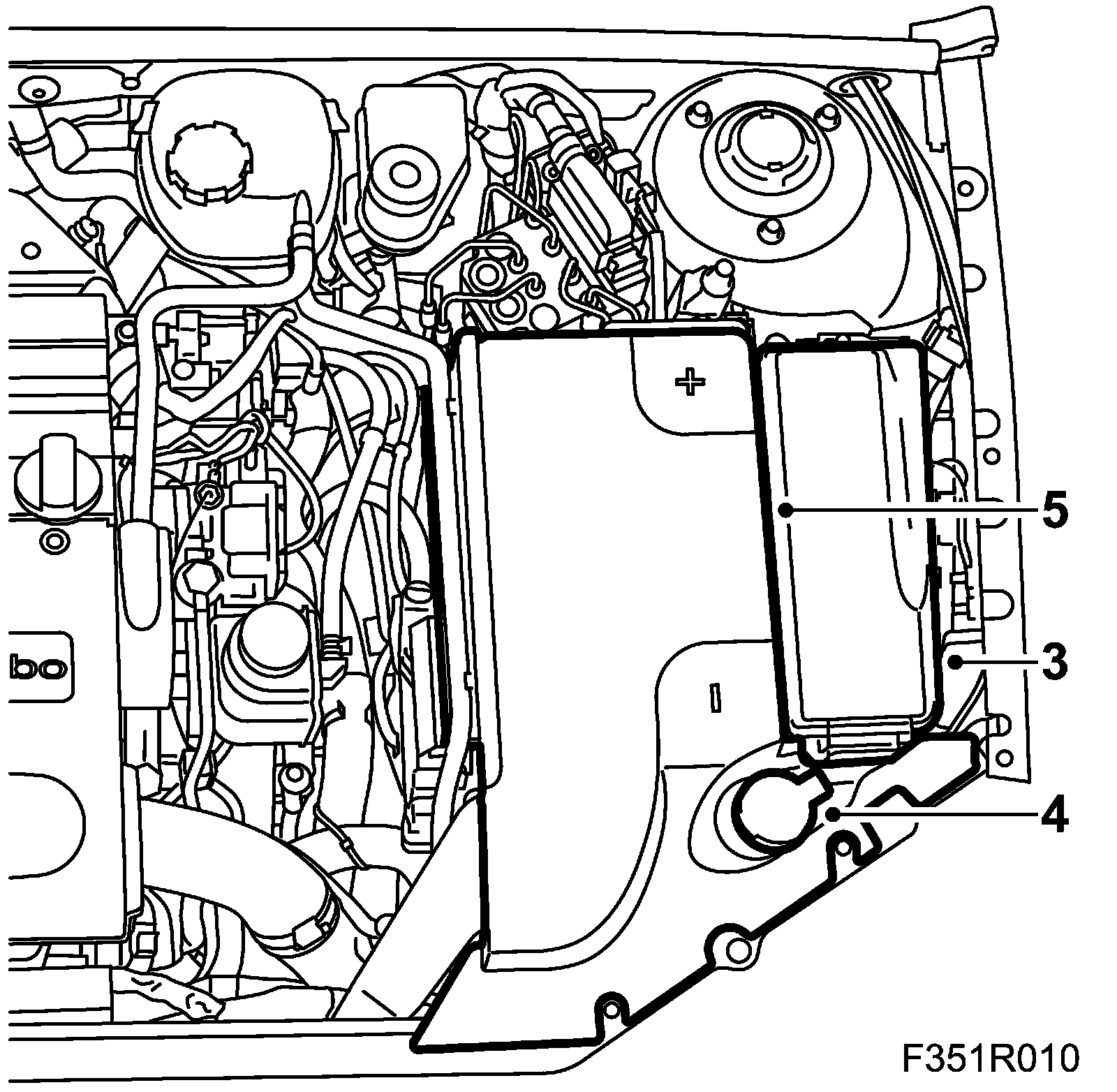

3. Fit the main fuse box cover.







4. Fit the filler pipe of the washer reservoir.
5. Fit the battery cover lid.
6. Carry out Procedure after changing the control module. The control module is calibrated when "Add" is carried out, see calibration of control module.
