Dipped Beam Halogen Bulb

Dipped Beam Halogen Bulb

To remove
1. Turn the ignition key to the LOCK position.

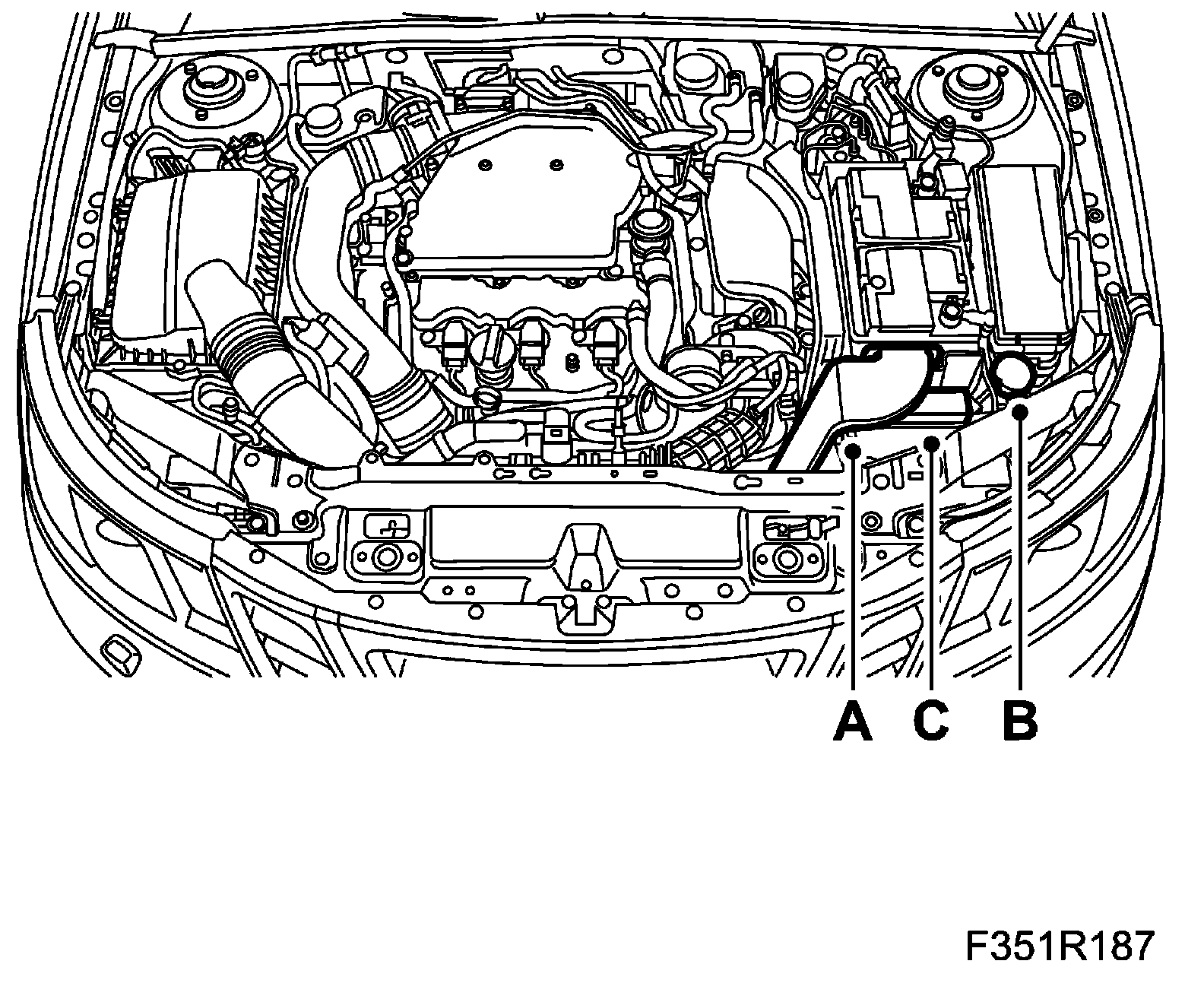

2. LH: Remove the battery cover, air inlet pipe (A), washer fluid filler pipe (B) and the main fuse box (C).

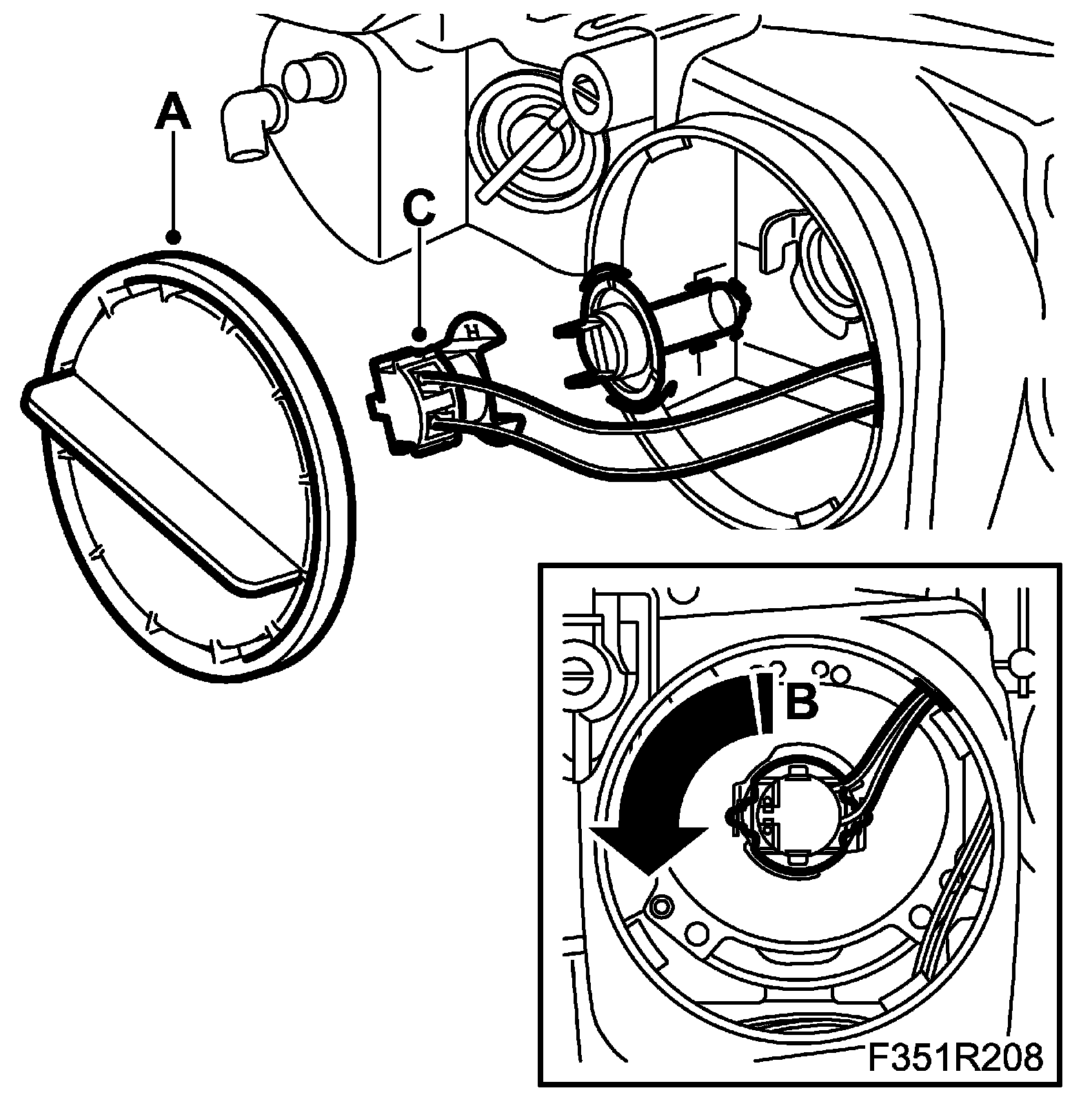

3. Remove the bulb:





^ Remove the protective cover (A) by turning anticlockwise.
^ Remove the bulb by turning it anticlockwise (B). Then lift the bulb straight out of the headlamp.
^ Detach the lamp connector (C).

To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

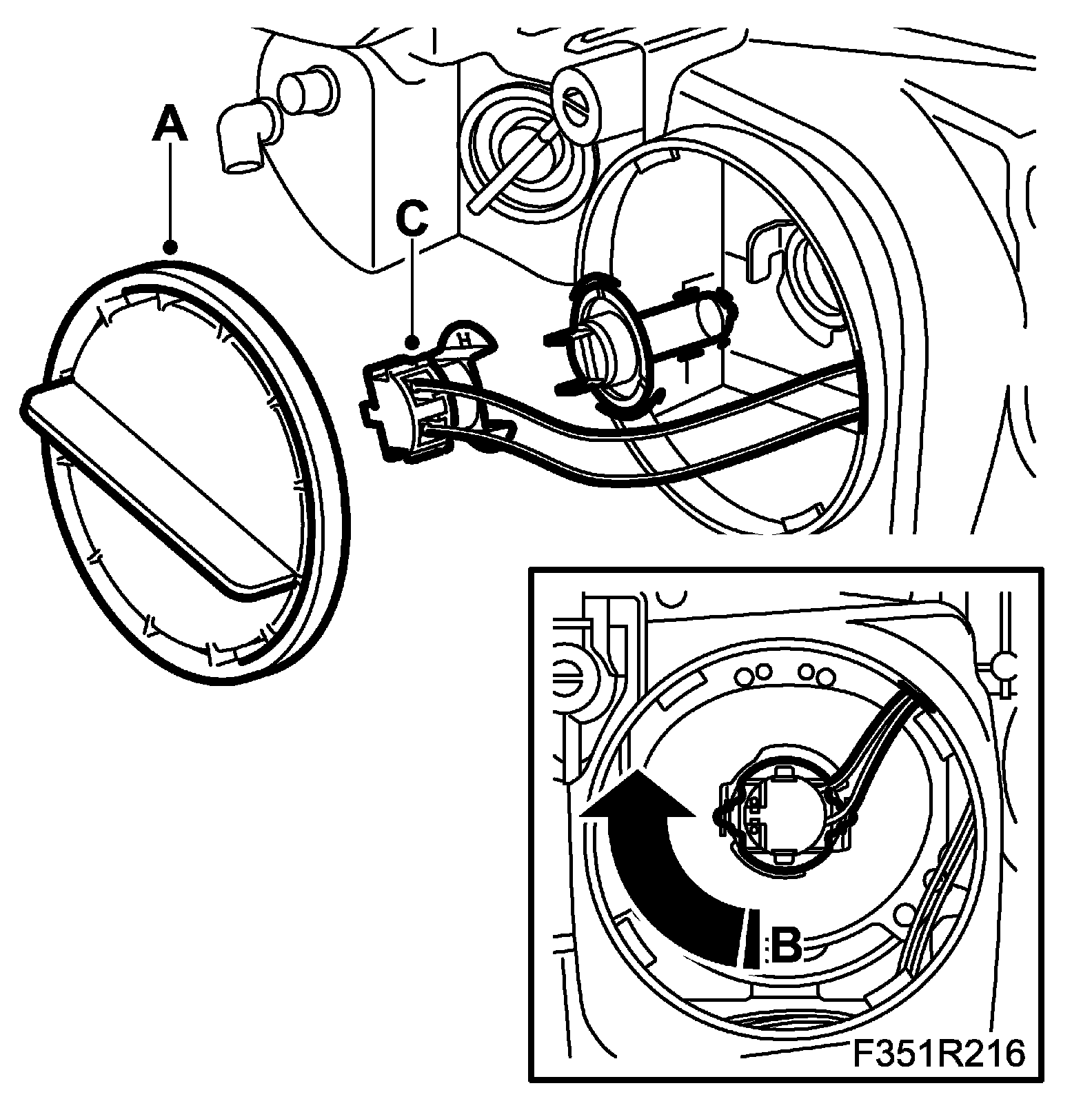

1. Fit the bulb:





^ Attach the lamp connector (C).
^ Fit the bulb by turning it clockwise (B).
^ Fit the protective cover (A) by turning it clockwise.

2. LH: Fit the main fuse box (C), washer fluid filler pipe (B), air inlet pipe (A) and battery cover.





3. Clear any diagnostic trouble codes.
