Rear Load Angle Sensor (704R)

Rear Load Angle Sensor (704R)

Location
Rear load angle sensor (704R)







Main task
The task of the angle sensor is to provide the AHL control module information on the vertical position of the rear of the car.

Type
Tilt sensor

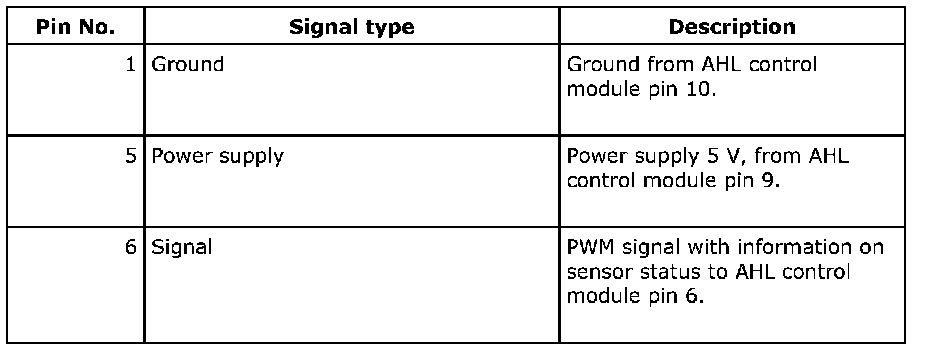

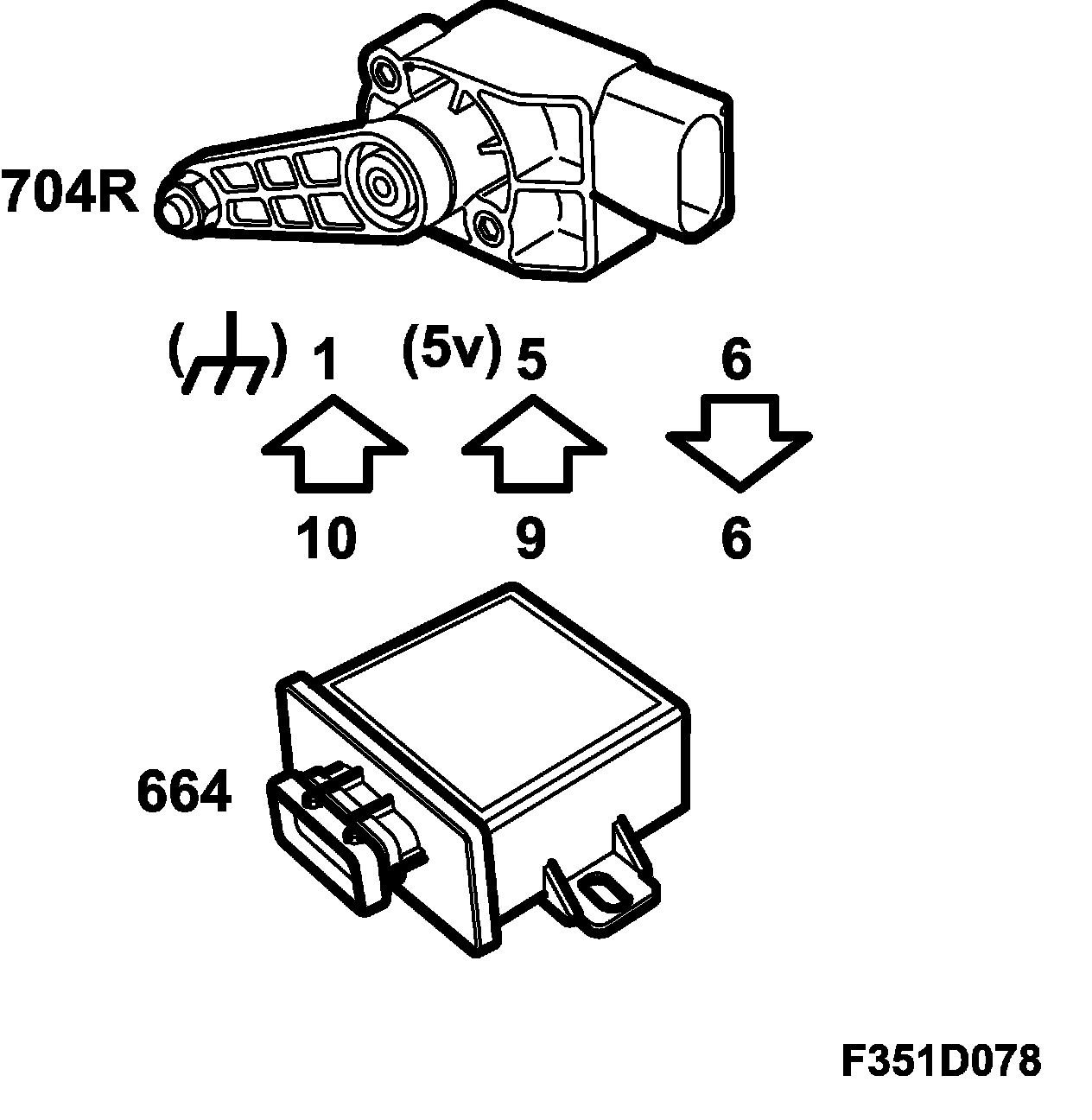

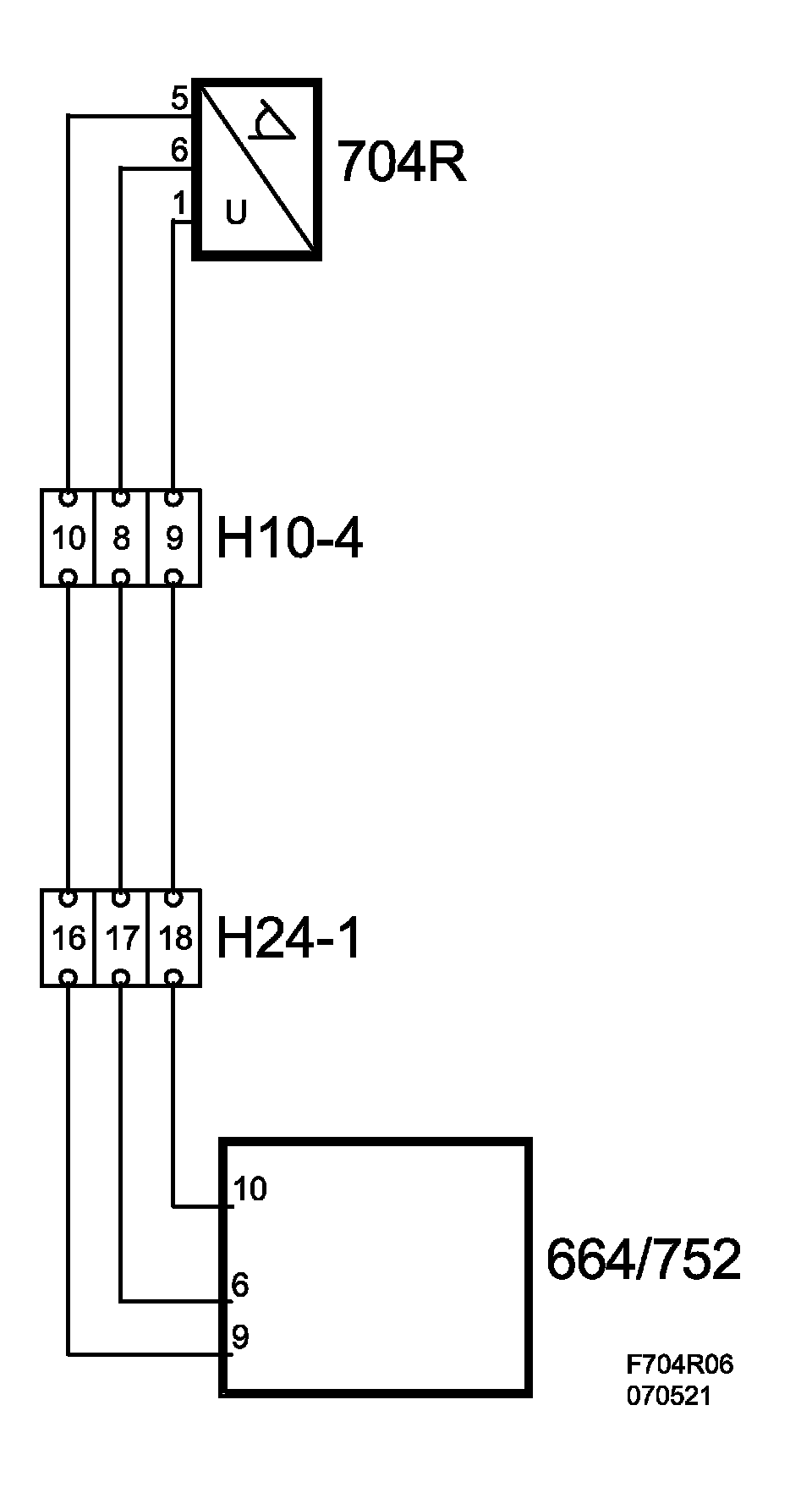

Connection
