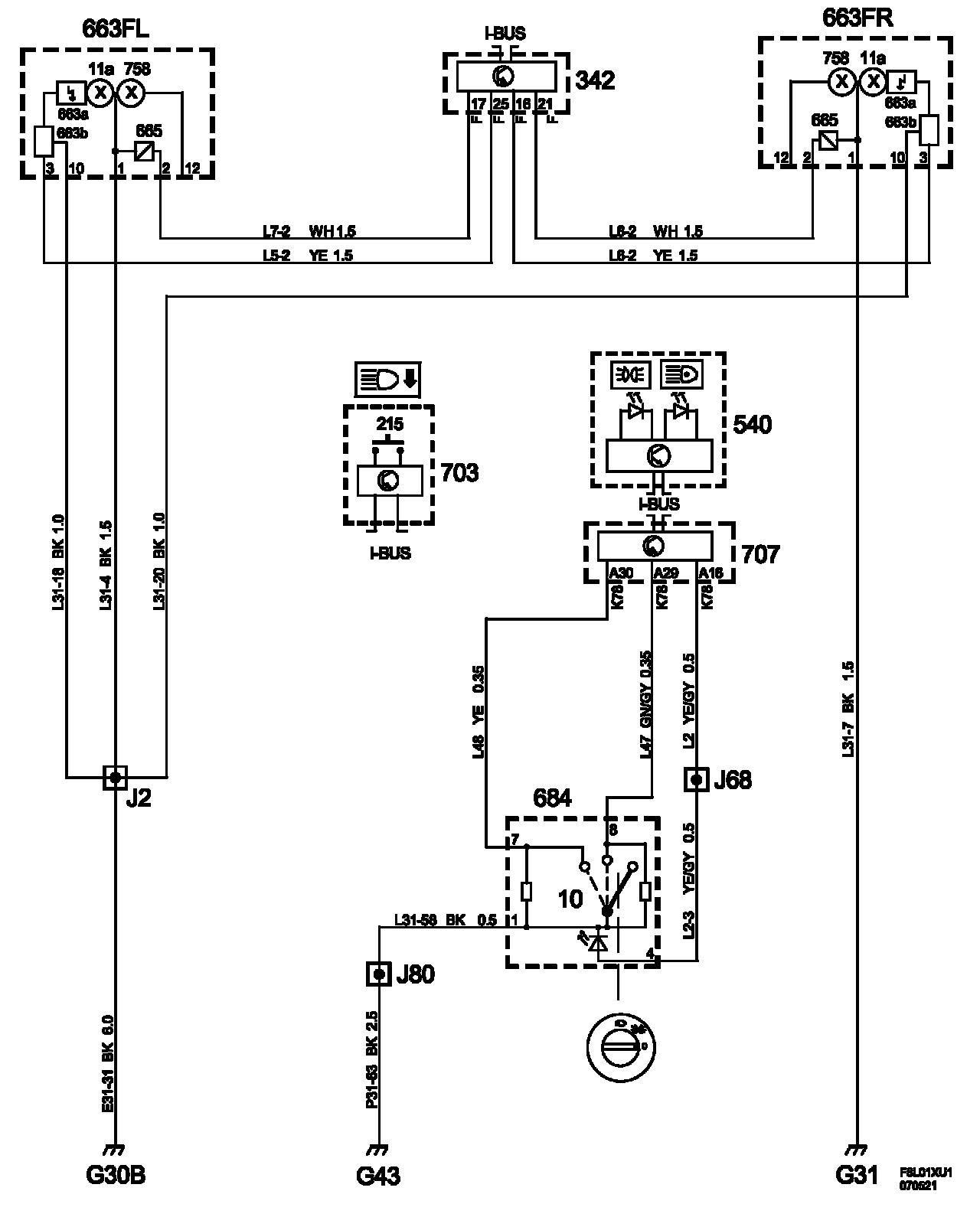

Xenon Headlamps, US/CA Markets
Xenon Headlamps, US/CA Markets
Xenon Headlamps, US/CA Markets:

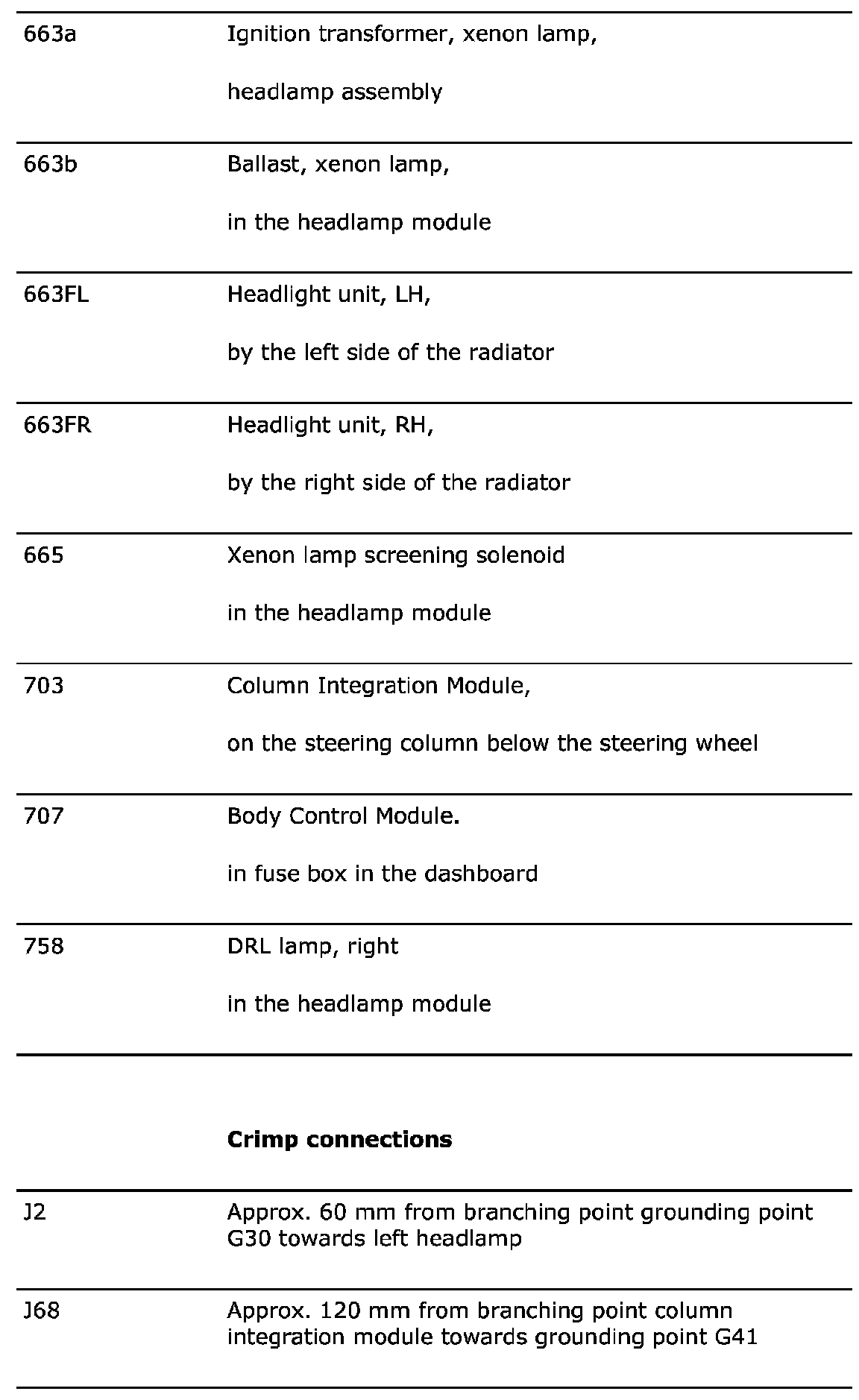

List Of Components (Part 1):
List Of Components (Part 2):

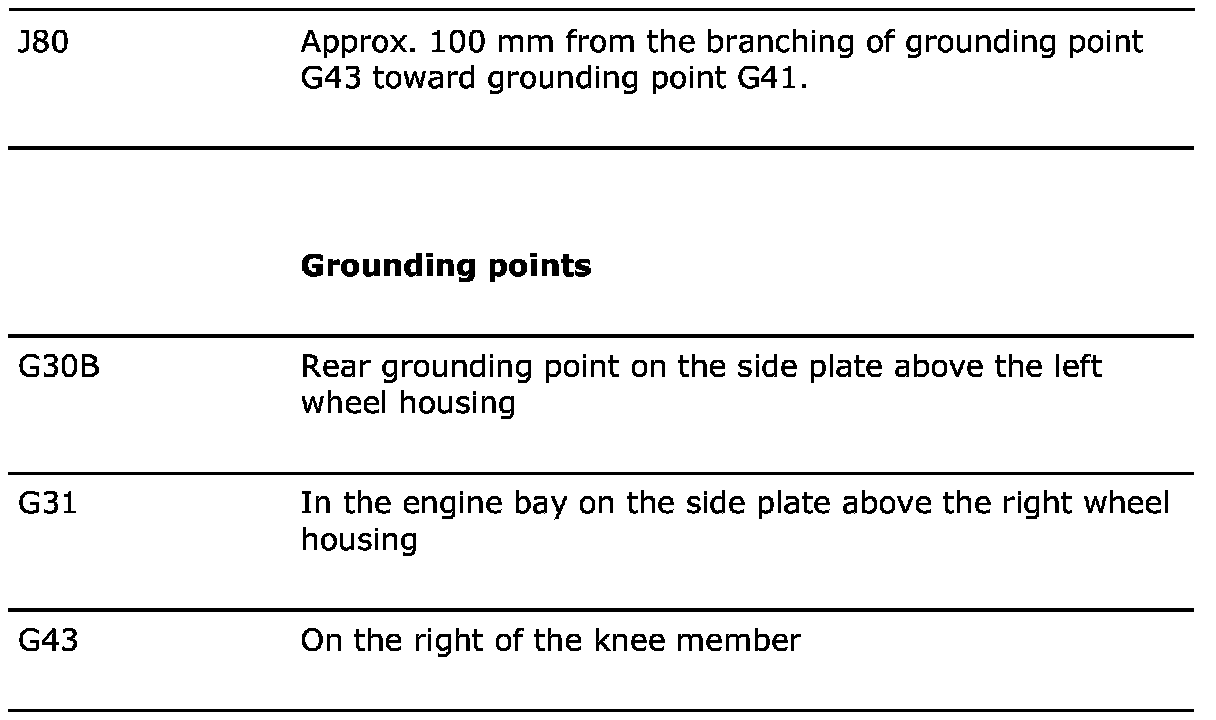

List Of Components (Part 3):
