Front Fog Light Bulb

Front Fog Light Bulb

To remove
1. Park the car on a lift and raise the car.
2. Remove the spoiler shield.
3. Remove the bulb:
^ Right side: Remove the cable tie from the bumper shell.

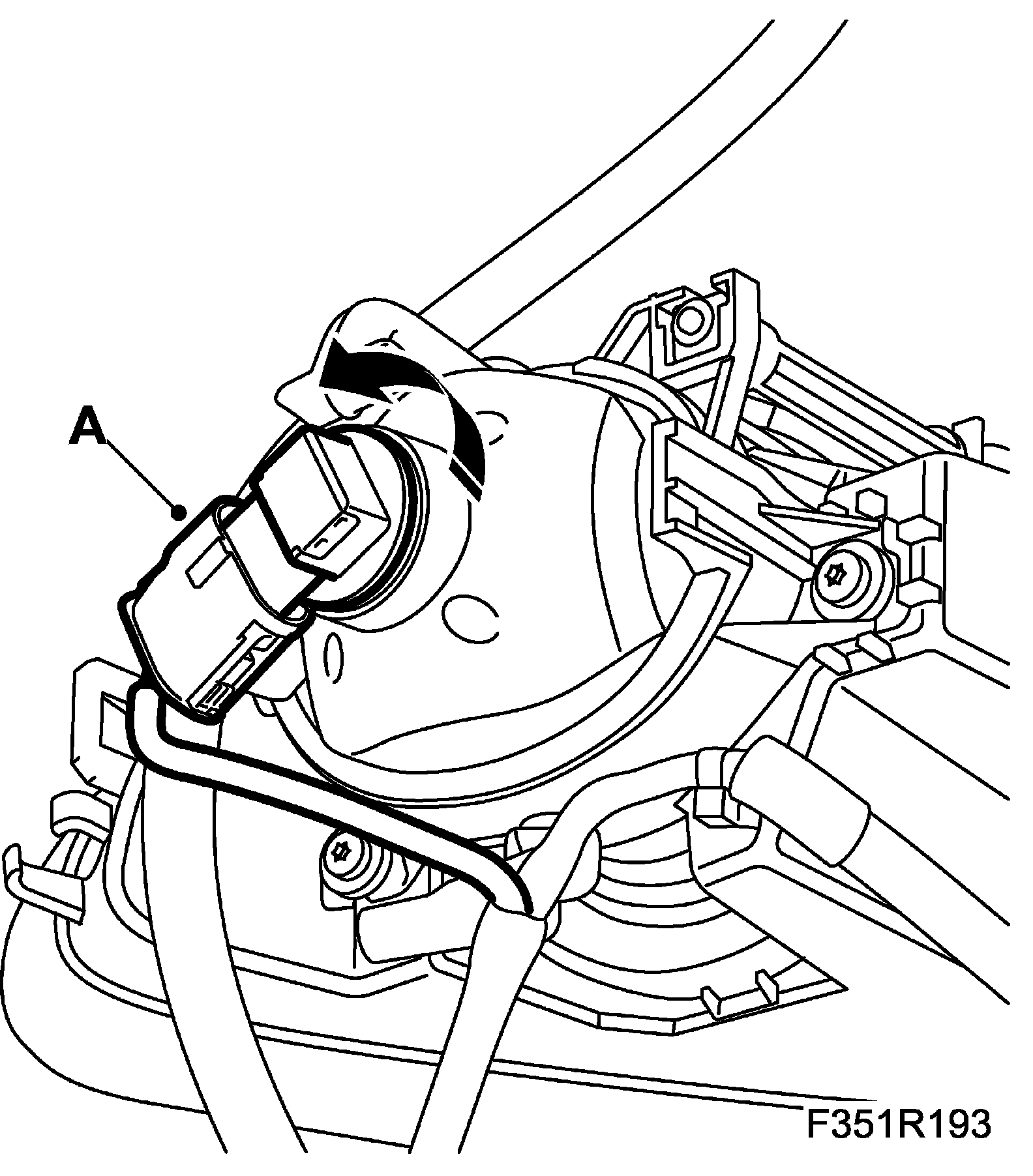

^ Remove the bulb socket (A) by turning anticlockwise.

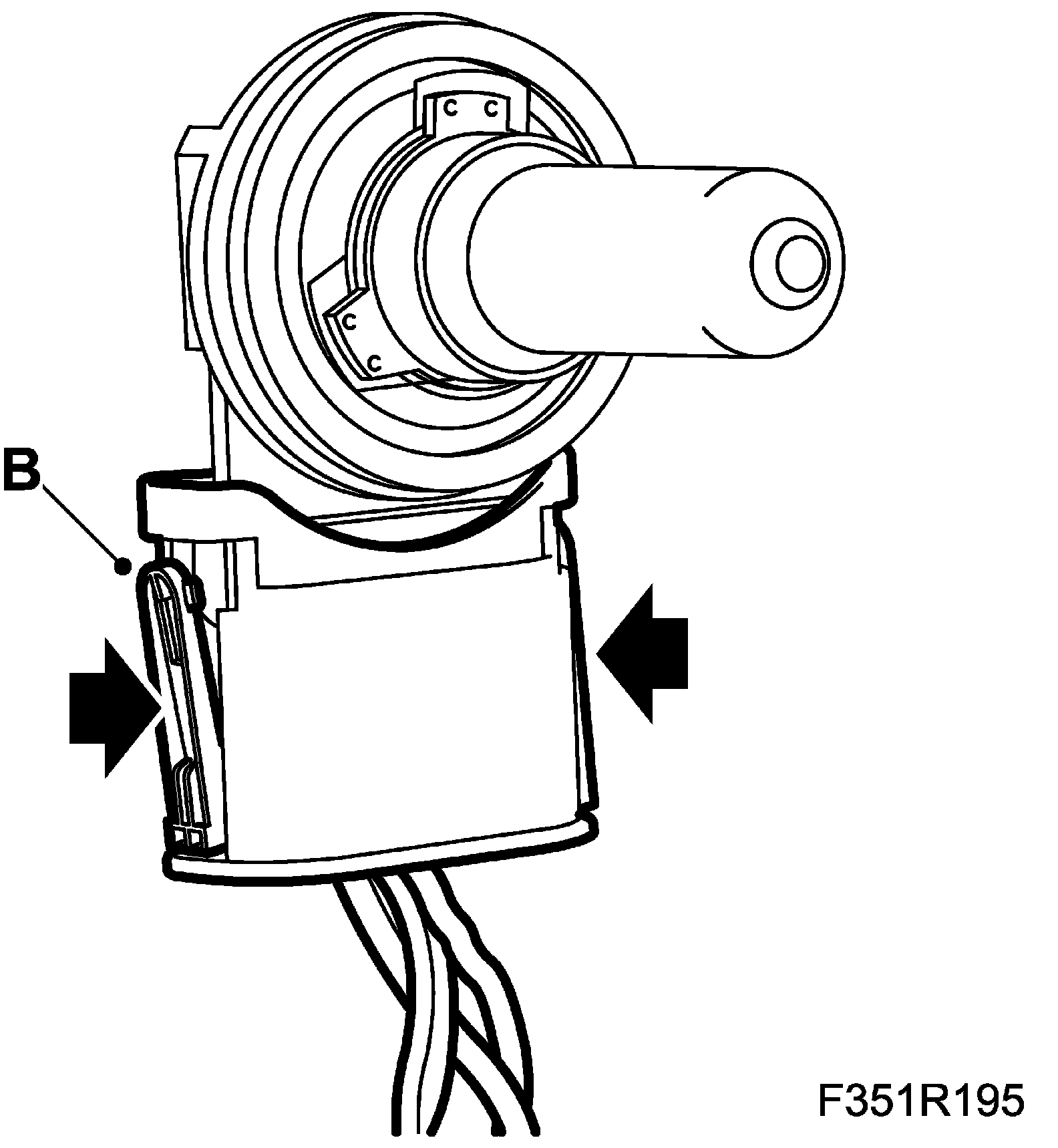

^ Remove the bulb (B) from the fitting.





To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

1. Fit the bulb:

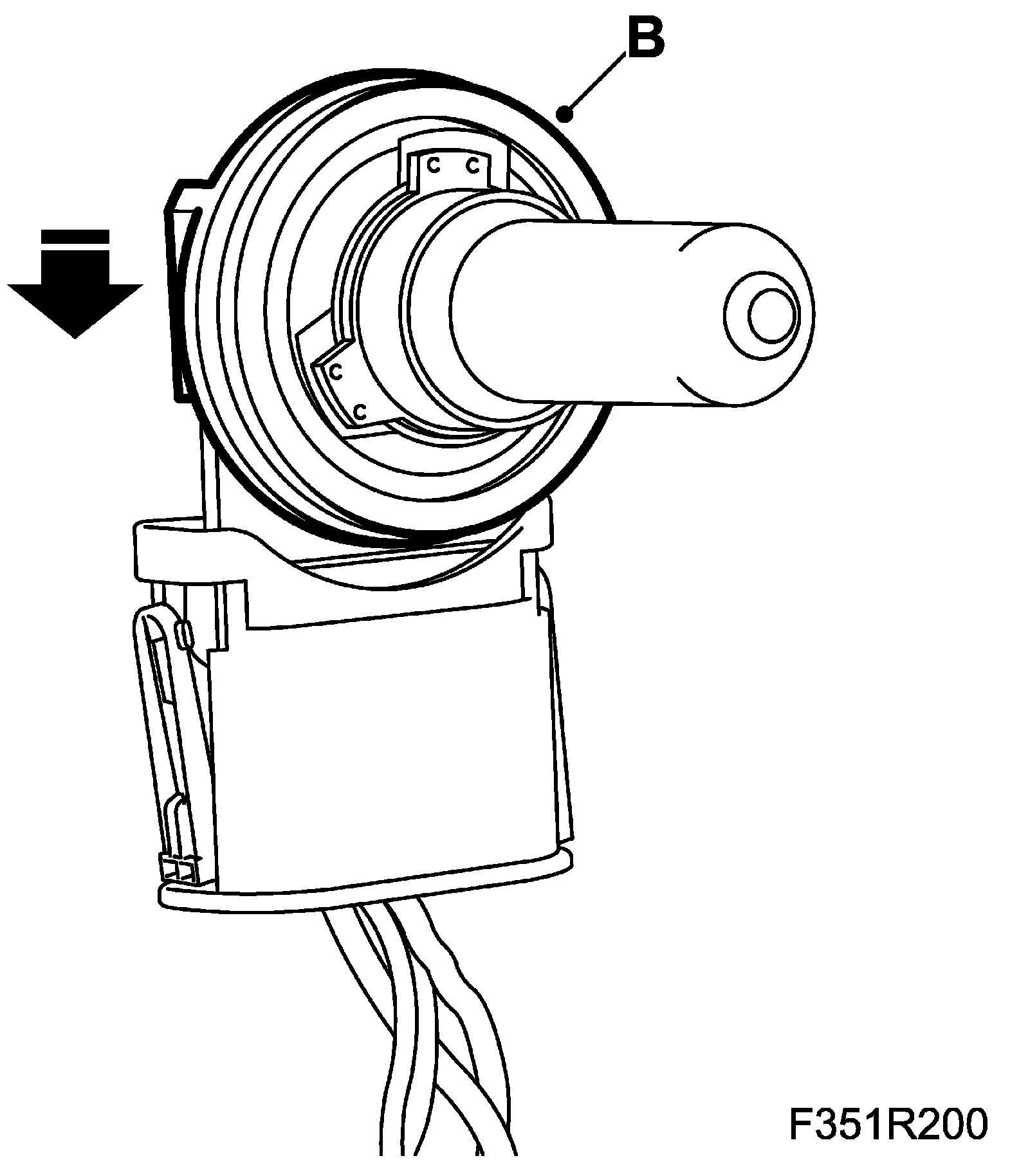

^ Fit the bulb (B) in the fitting.

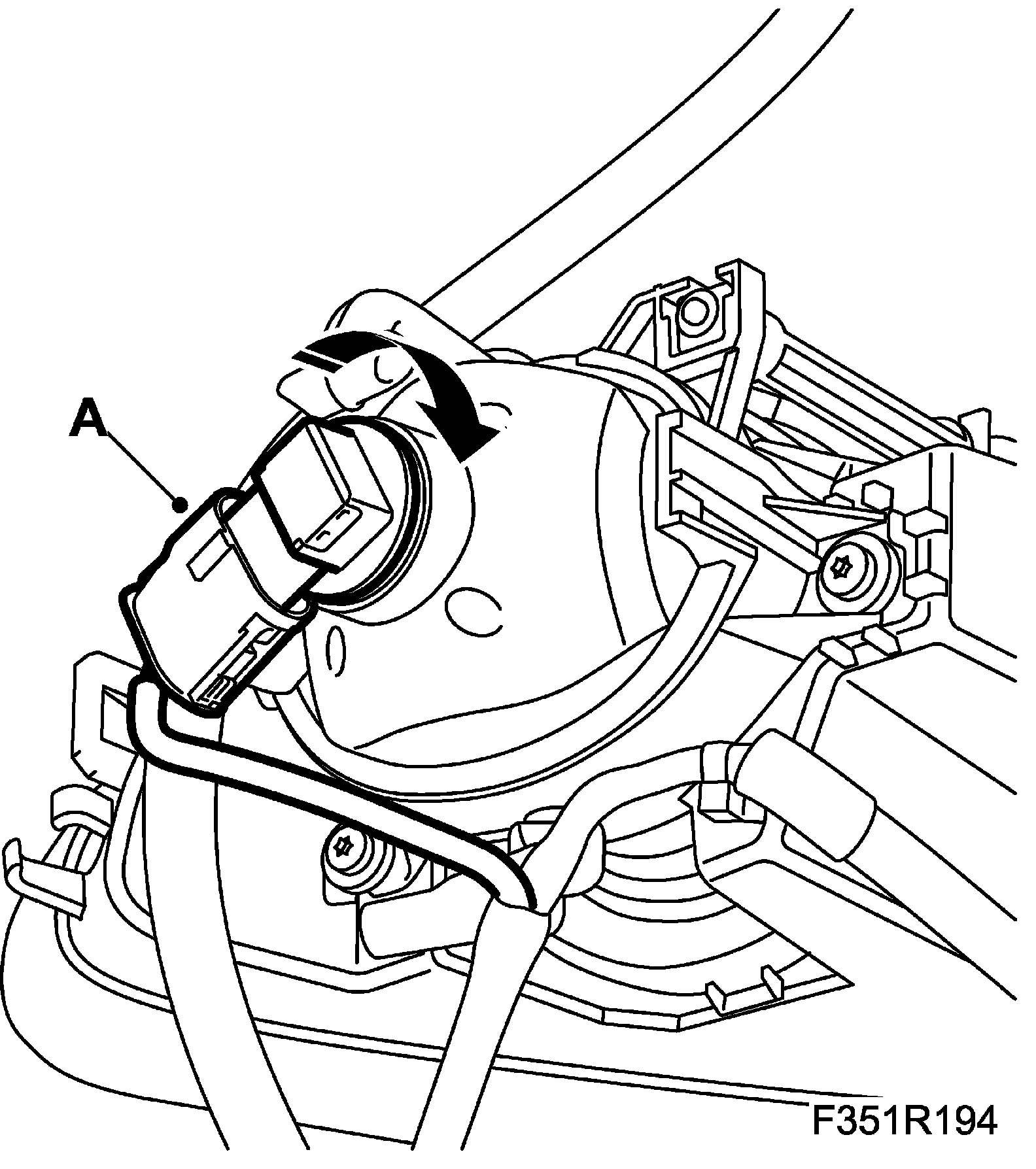

^ Fit the bulb socket (A) by turning clockwise.





^ Right side: Fit the cable tie to the bumper shell.

2. Fit the spoiler shield.
3. Lower the car.
4. Check the function of the fog light and adjust the light setting / light setting (US/CA).
