Lamp, Courtesy Lighting (209FL/FR)

Lamp, Courtesy Lighting (209FL/FR)

Location
Lamp, courtesy lighting, front left (209FL)
Lamp, courtesy lighting, front right (209FR)

Main task
Used to light the area at the door sill.

Type
One bulb in one socket.

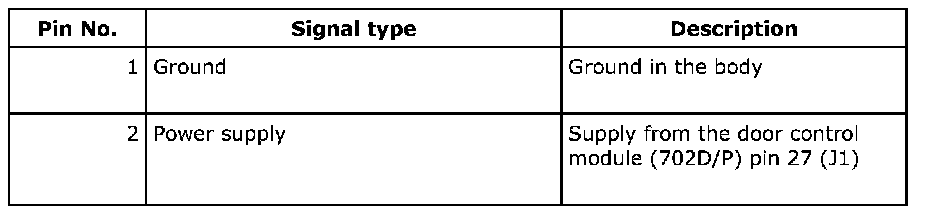

Connection
The lamp is grounded in the body and supplied with +PWM from the door control module.

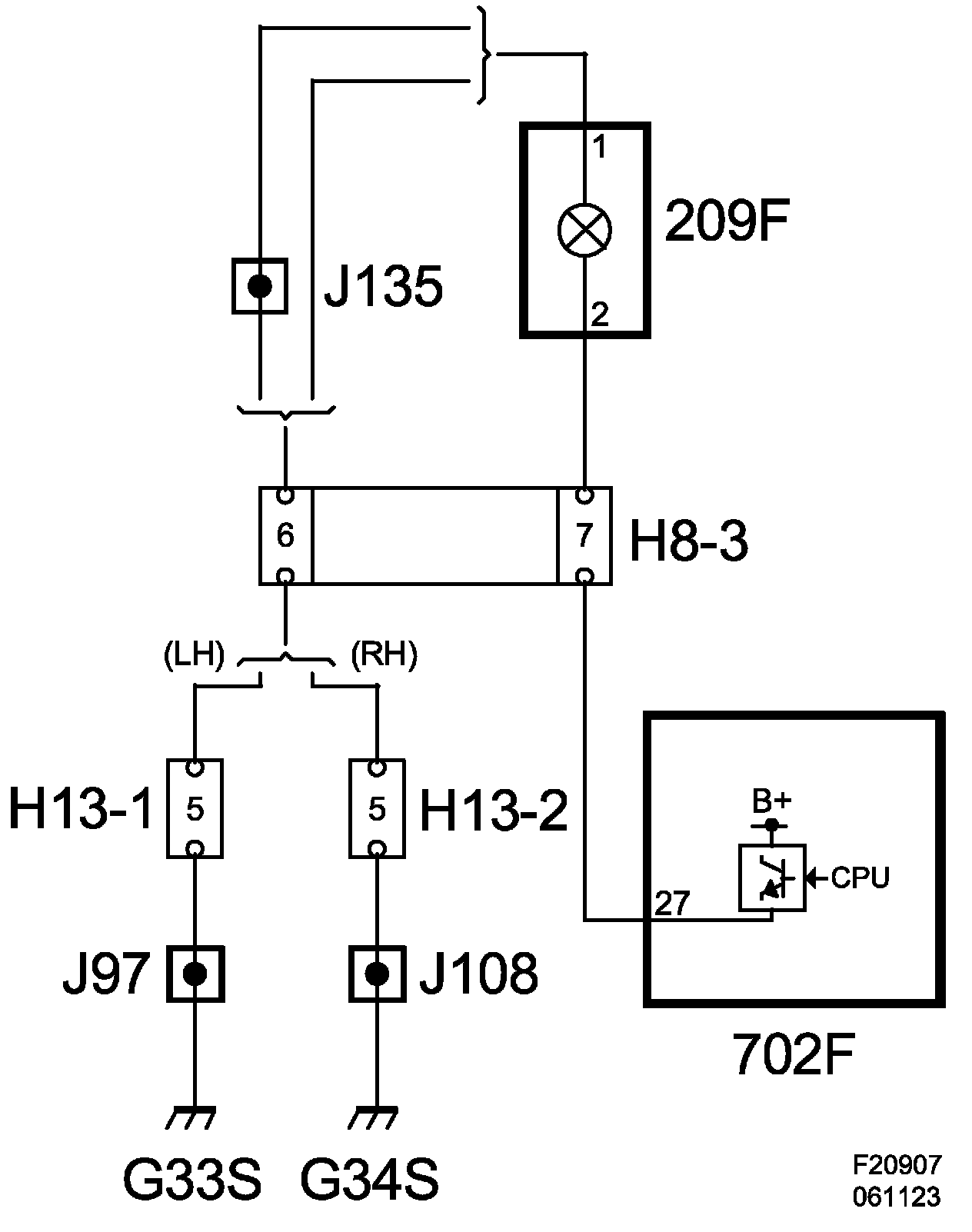

Diagram
