FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Center Mounted Brake Lamp
>>
Diagrams
>>
CV
CV

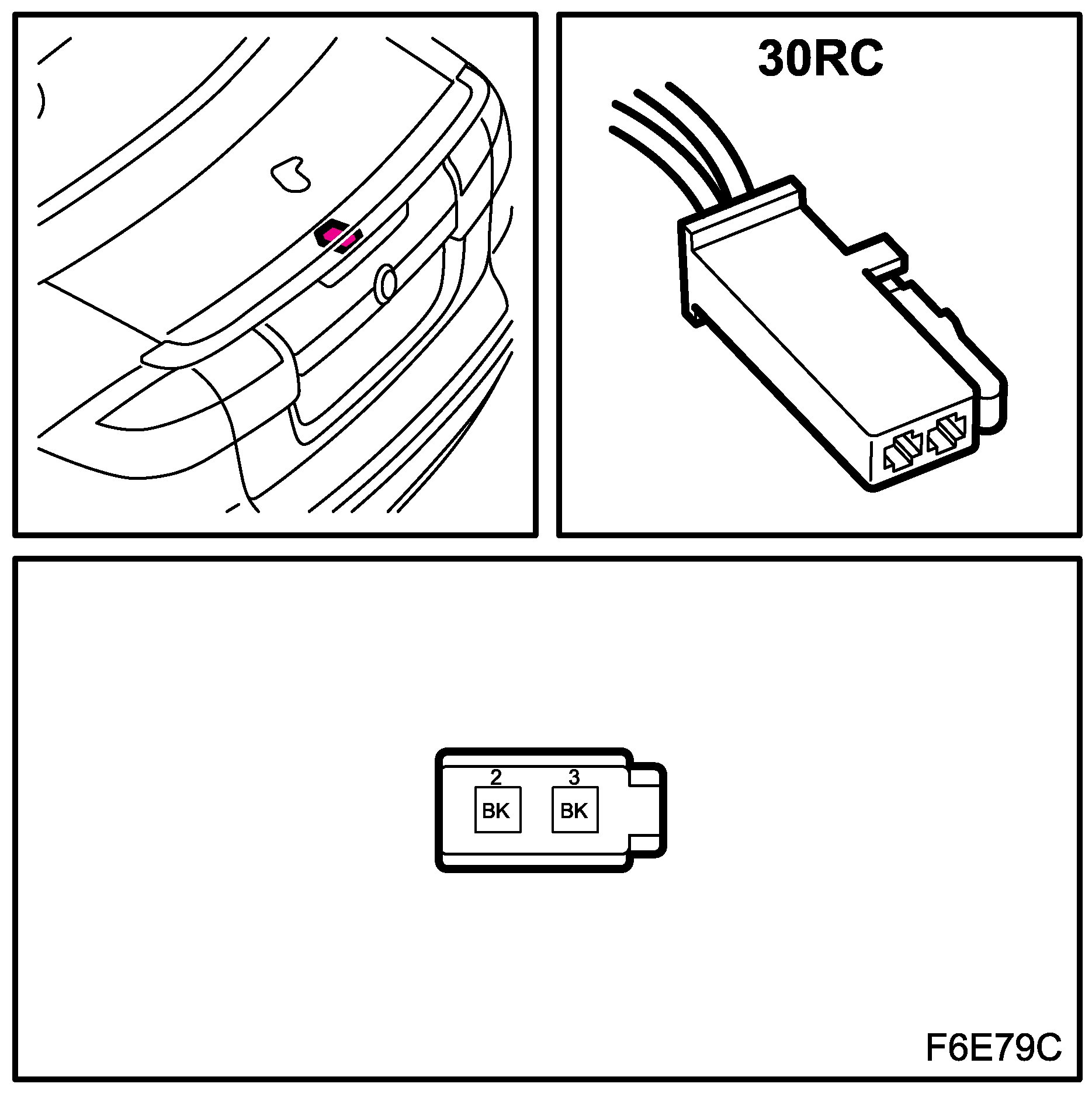

High Level Brake Light (30RC)
Location:
above rear screen
CV
High Level Brake Light (30RC):
