Center Mounted Brake Lamp: Description and Operation

Bulb, Elevated Brake Lights (30RC)

Location
Bulb, elevated brake lights (30RC)

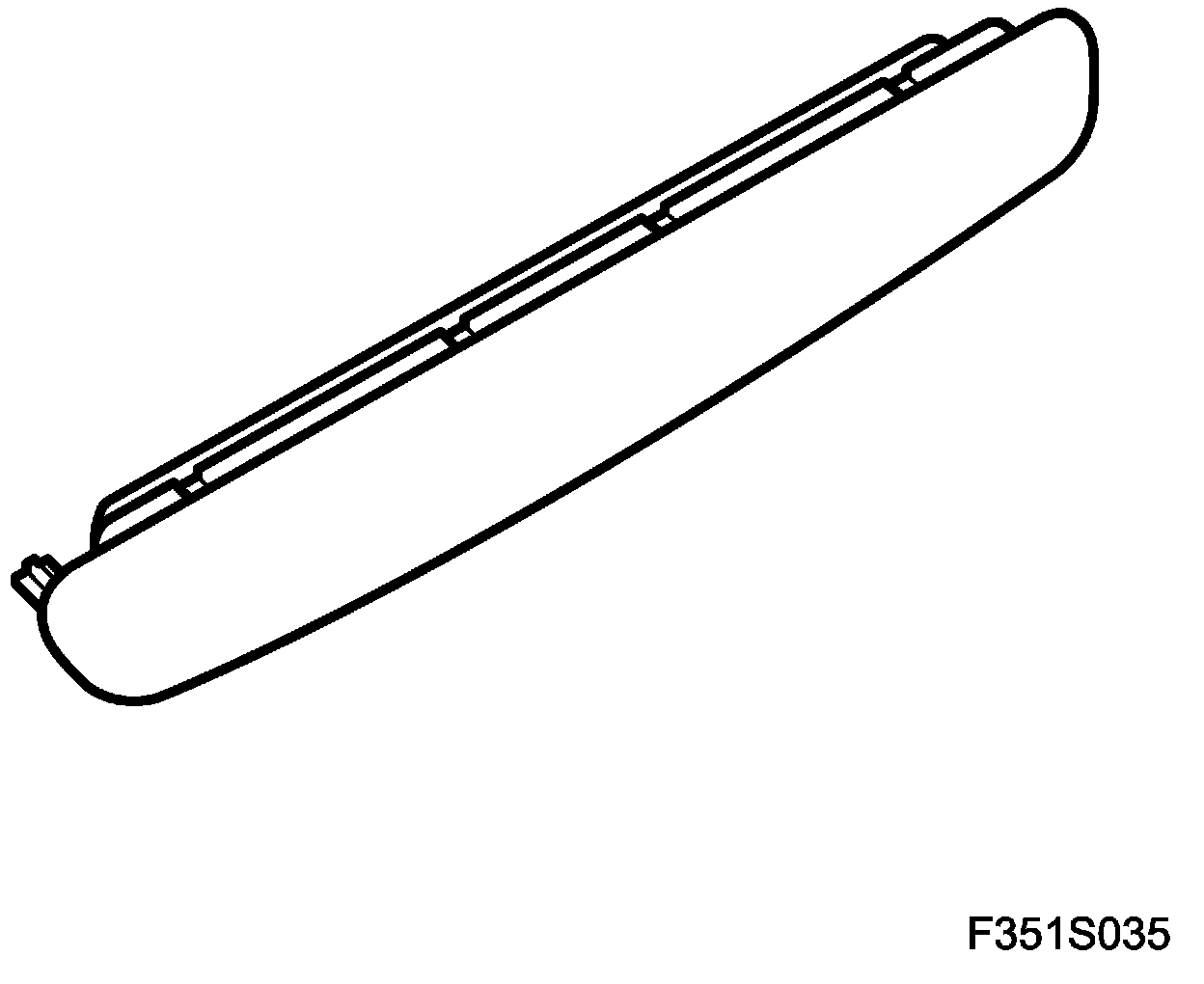

4D/5D

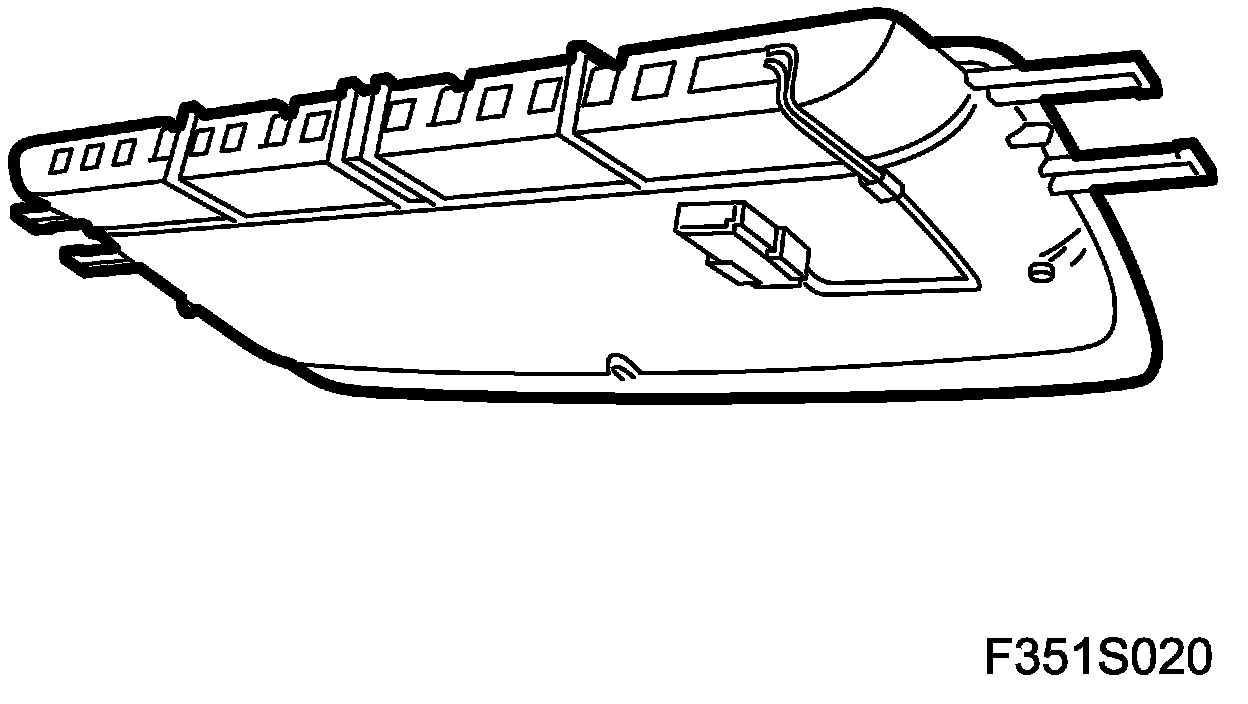

CV







Main task
High-level brake light.

Type
High-level brake light with red LEDs.

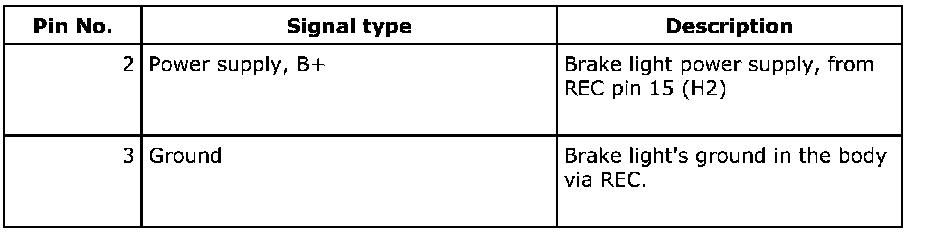

Connection

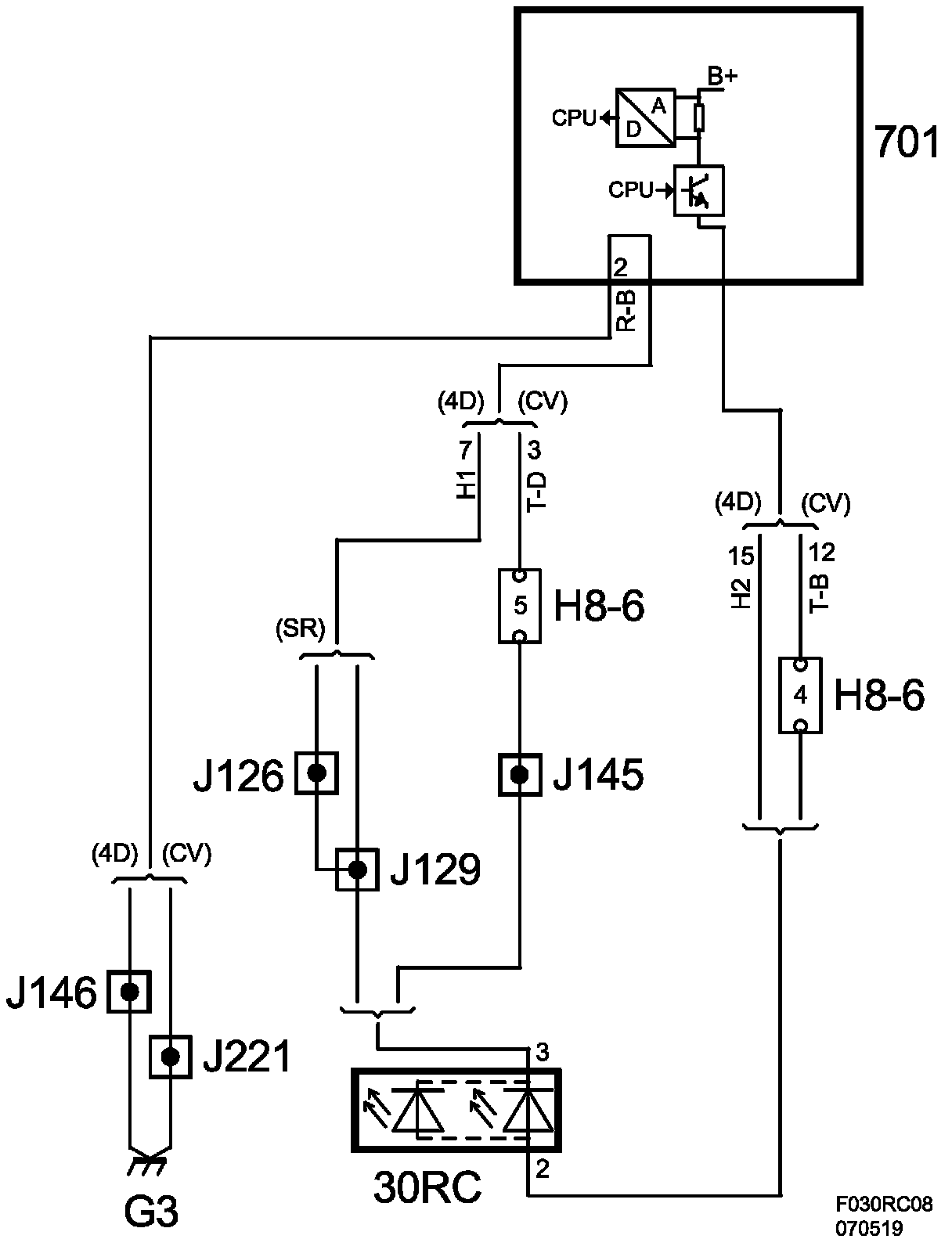

Diagram 4D/CV

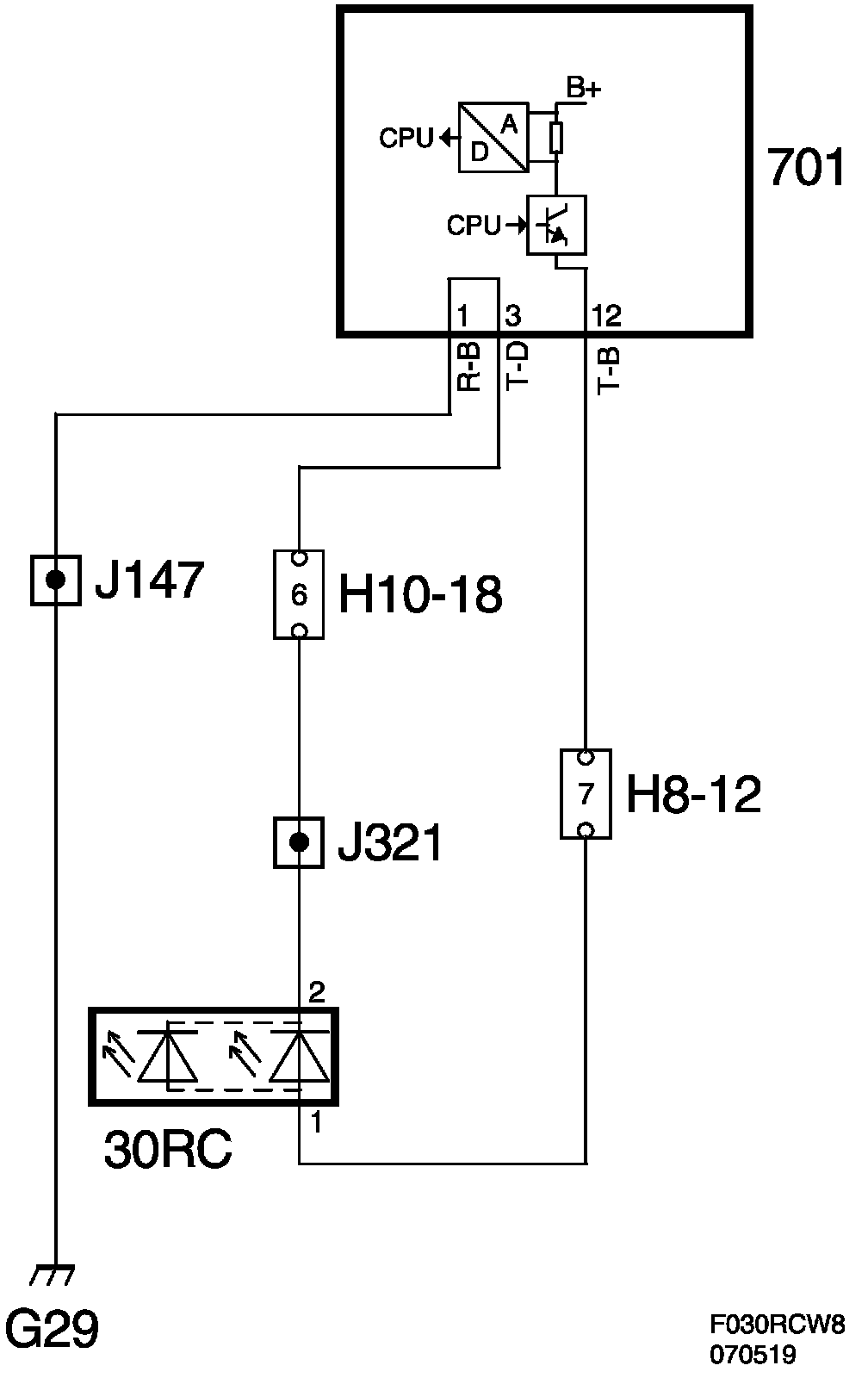

Diagram 5D
