Home
>>
Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Diagrams
>>
Connector Views
>>
Left Brake Light (30RL)
>>
4D/CV
4D/CV

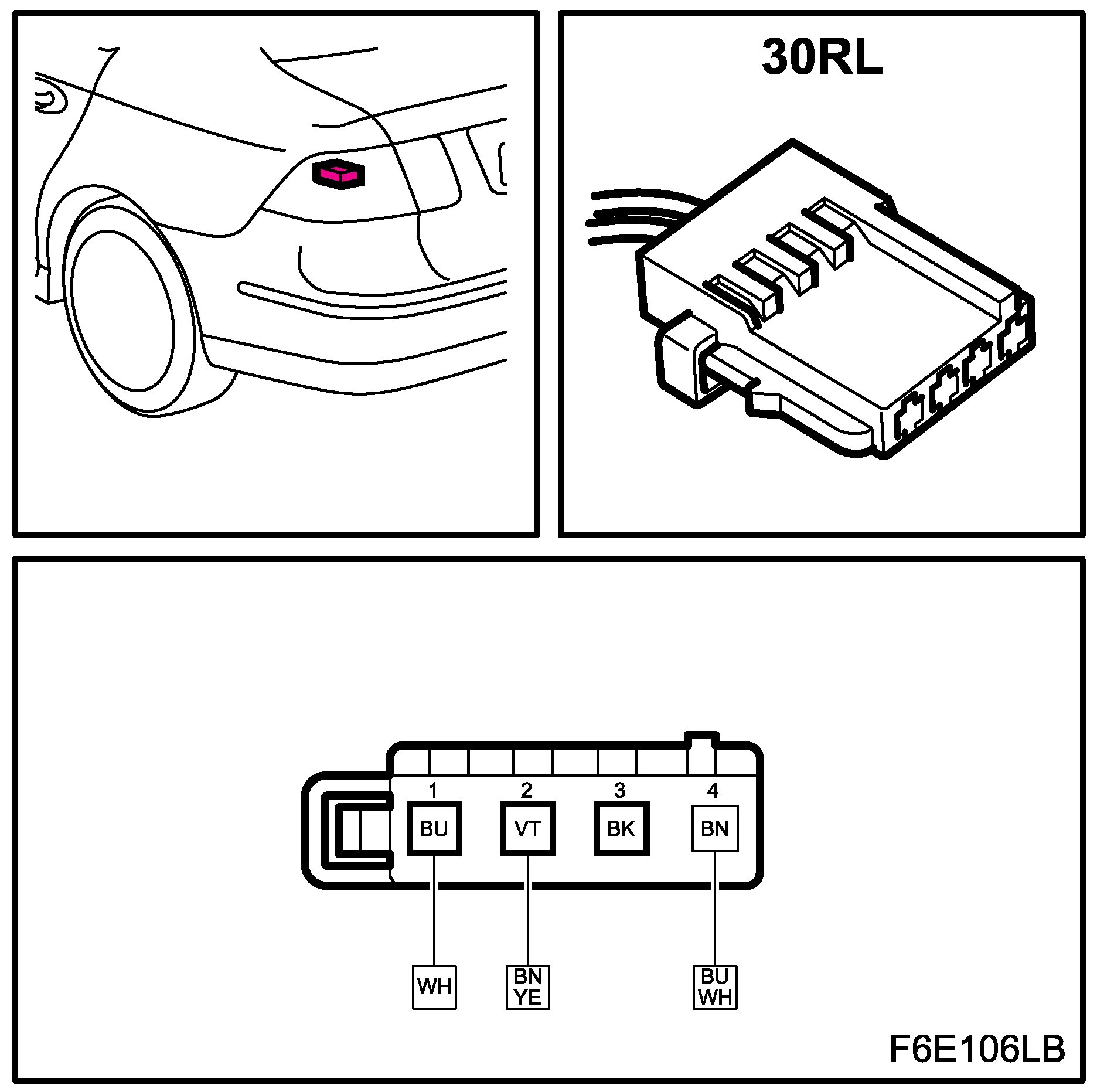

Left Brake Light (30RL)
Location:
in the rear wing light cluster
4D/CV
Left Brake Light (30RL):
