Home
>>
Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Diagrams
>>
Connector Views
>>

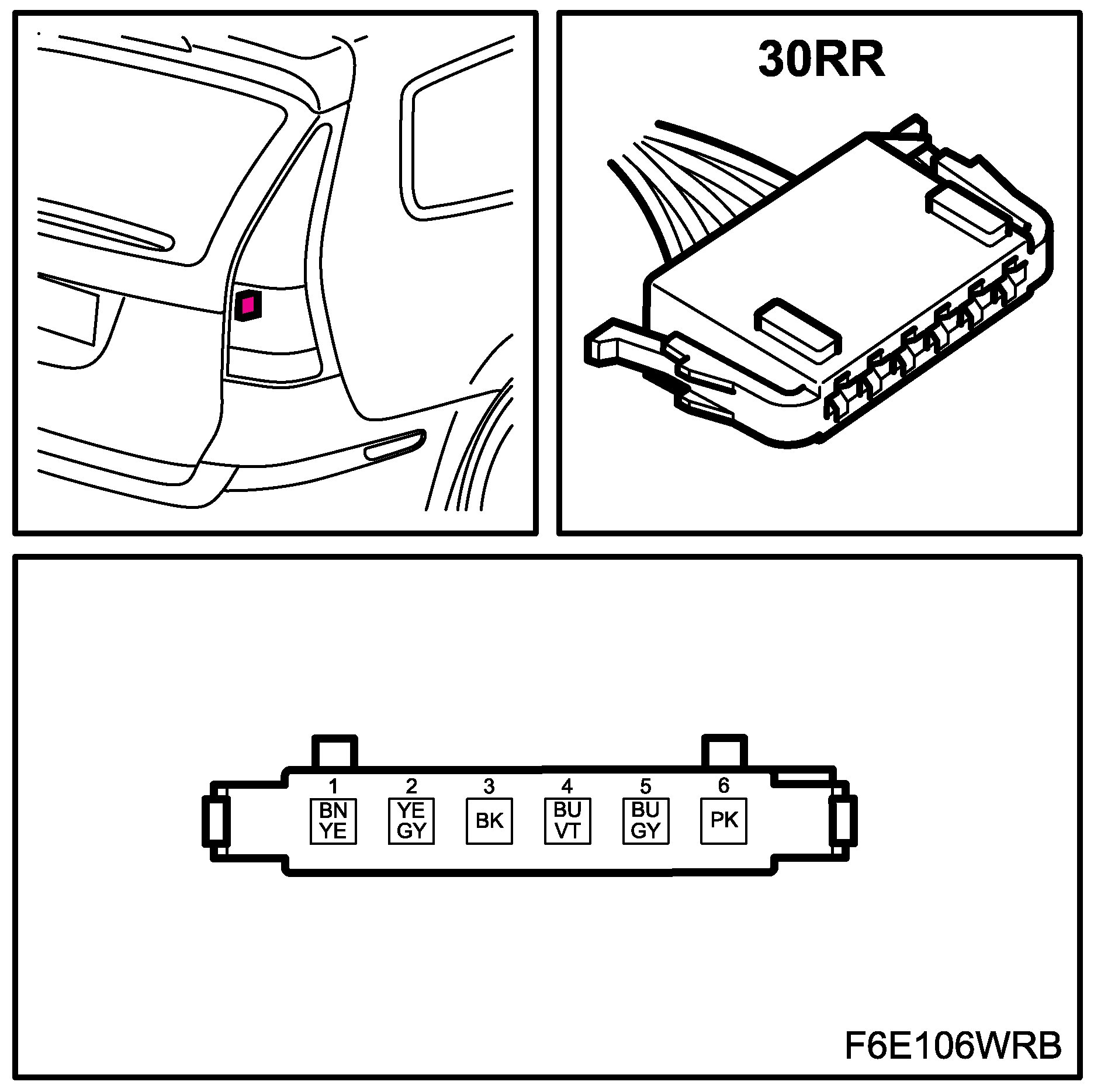

Lamp, Brake Light, Right (30RR)
>>
5D
5D
Lamp, Brake Light, Right (30RR)
Location:
in the rear wing light cluster
5D
Lamp, Brake Light, Right (30RR):
