Tire Pressure Monitoring, Bus Information

Tire pressure monitoring, bus information

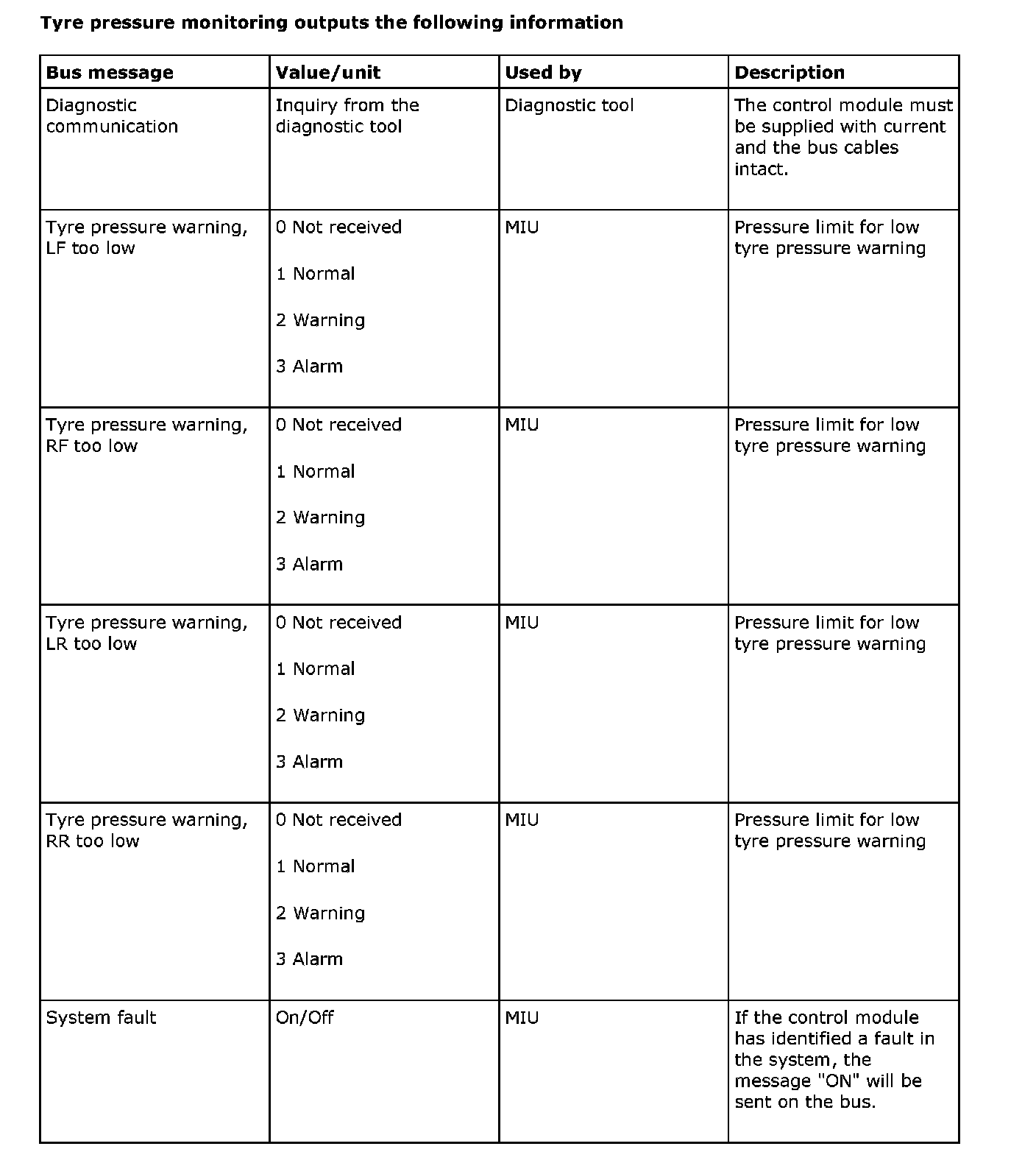

Tire pressure monitoring outputs the following information

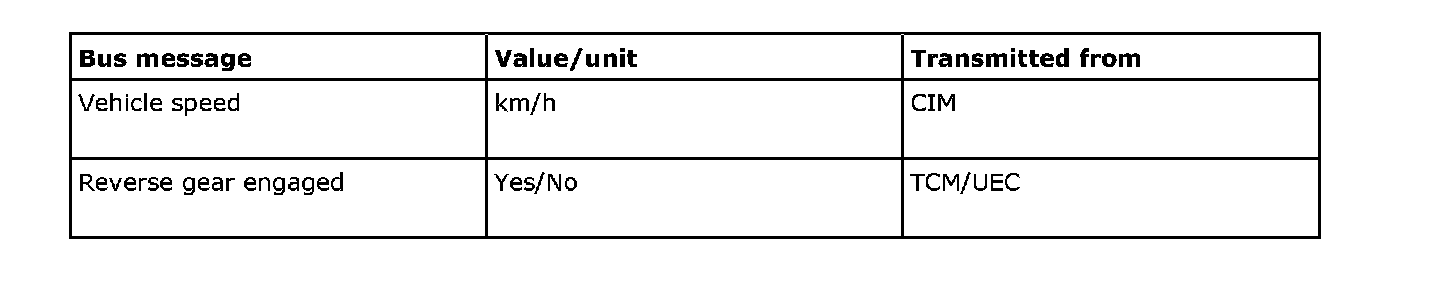

Tire pressure monitoring uses the following information
