Air Conditioning A/C

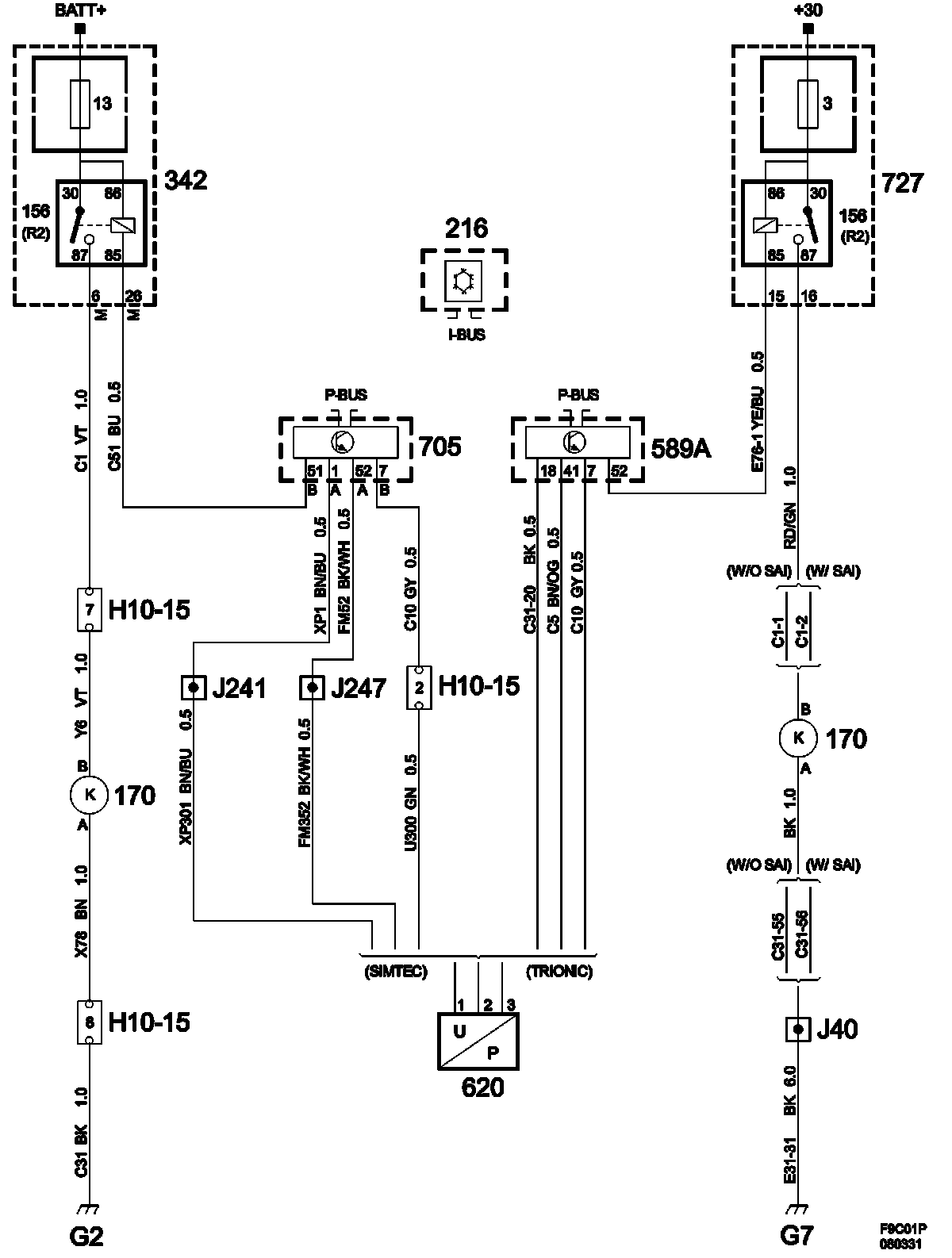

Air Conditioning A/C:

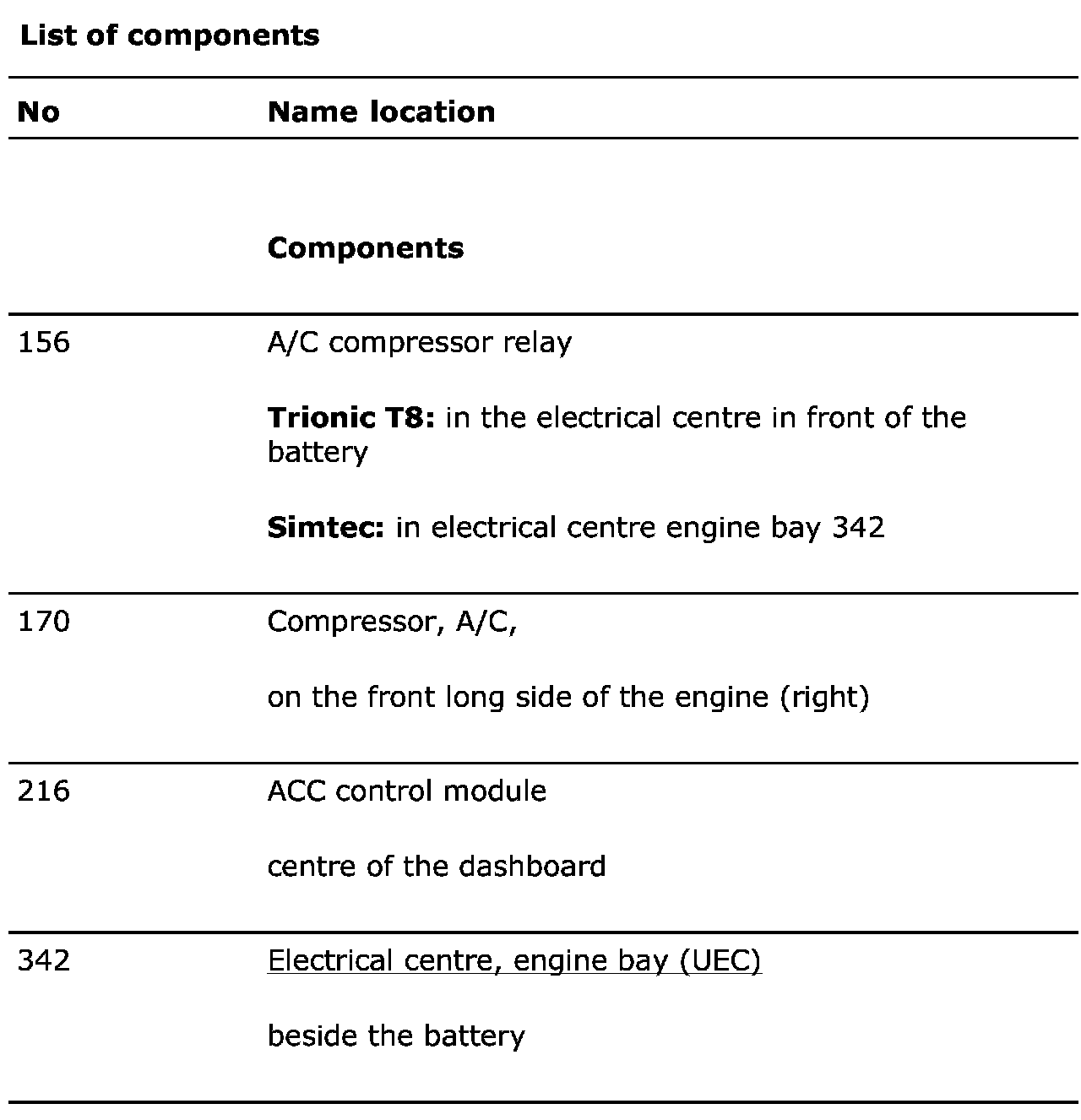

List Of Components (Part 1):

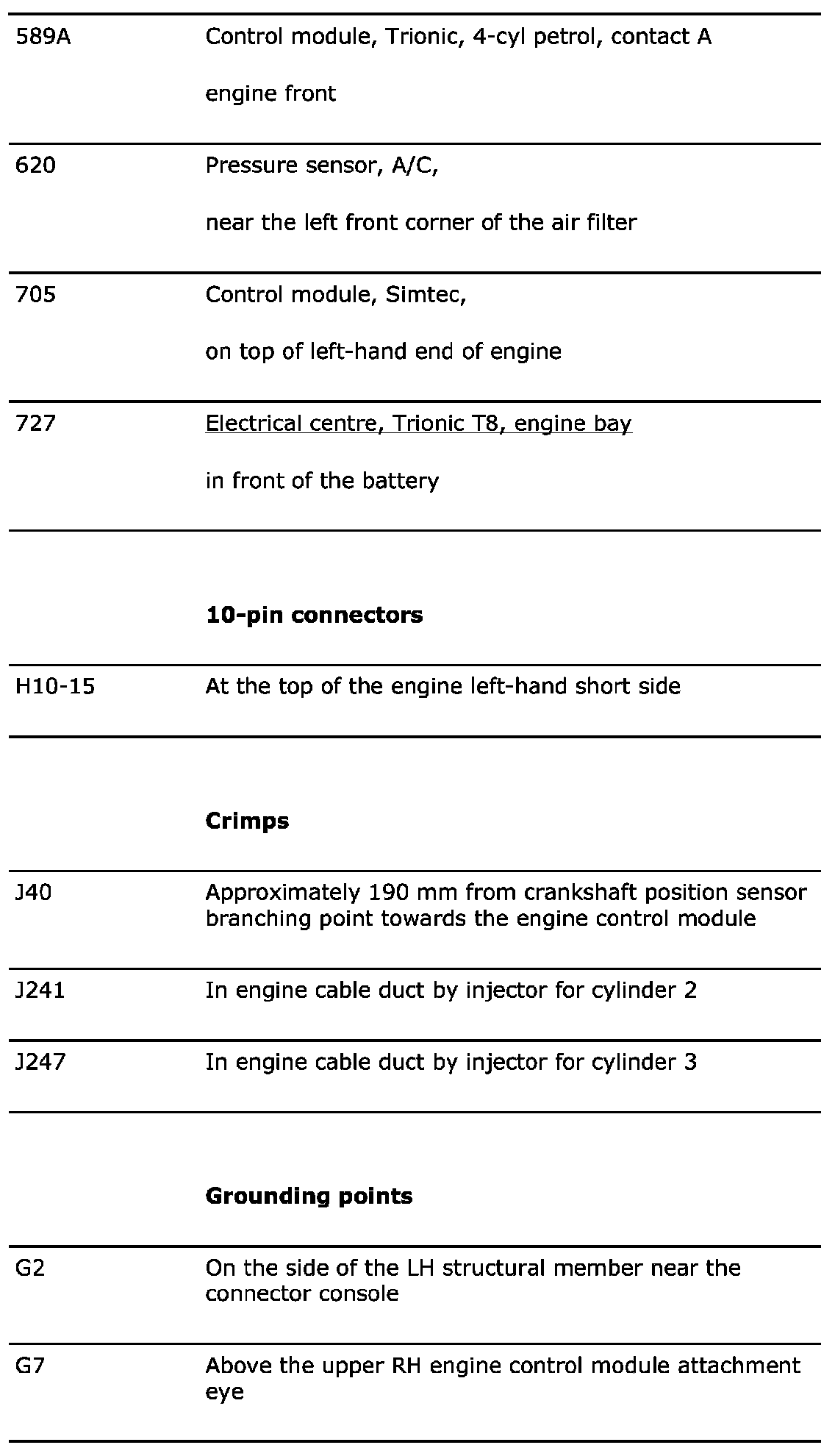

List Of Components (Part 2):
