Center, Rear Silencer, 4WD
Center, rear silencer, 4WDTo remove
1. Remove the Exhaust system assembly, 4WD.
To fit

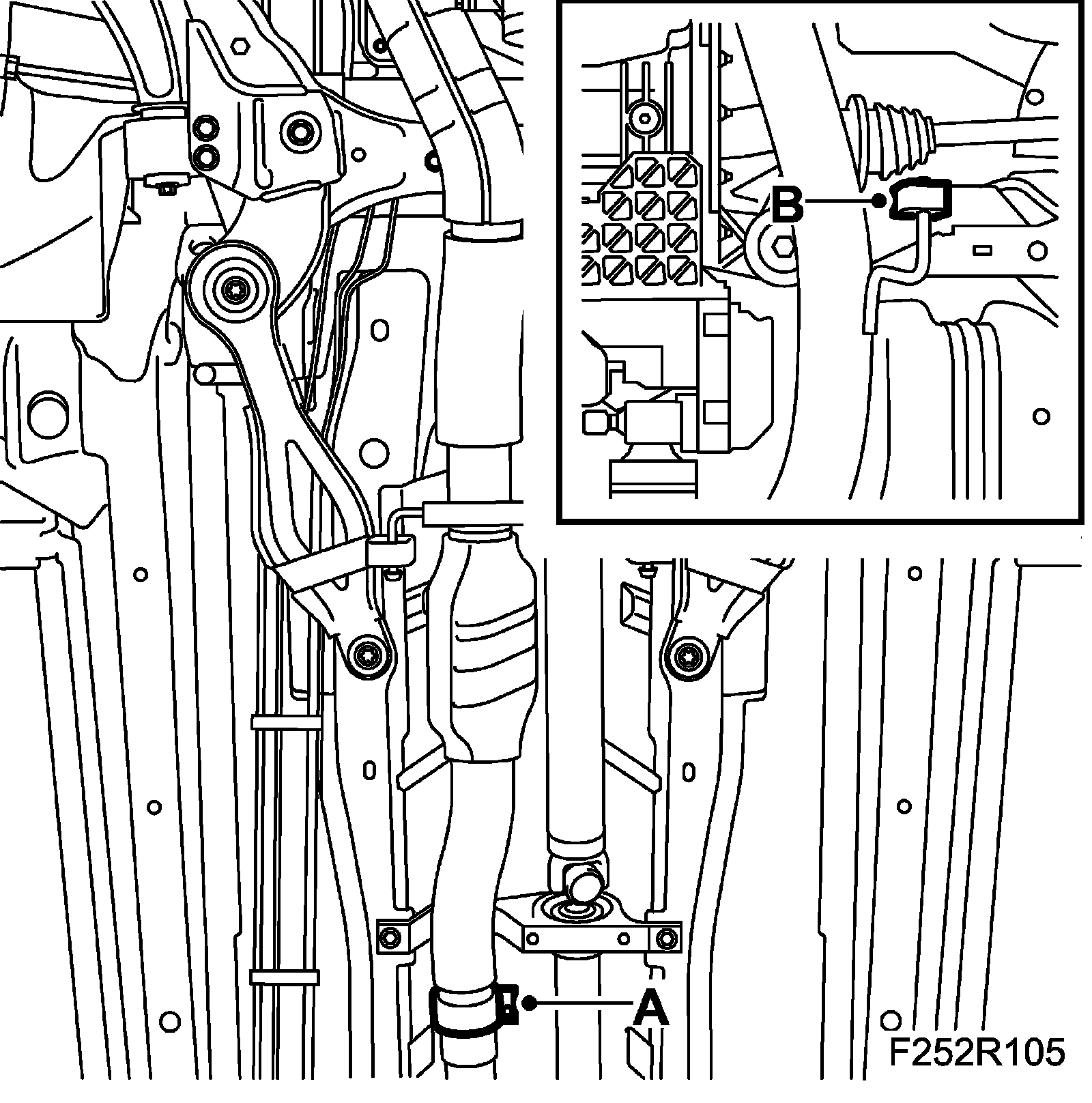

1. Fit the center rear silence to the rear catalytic converter (A) and fit the bracket (B).

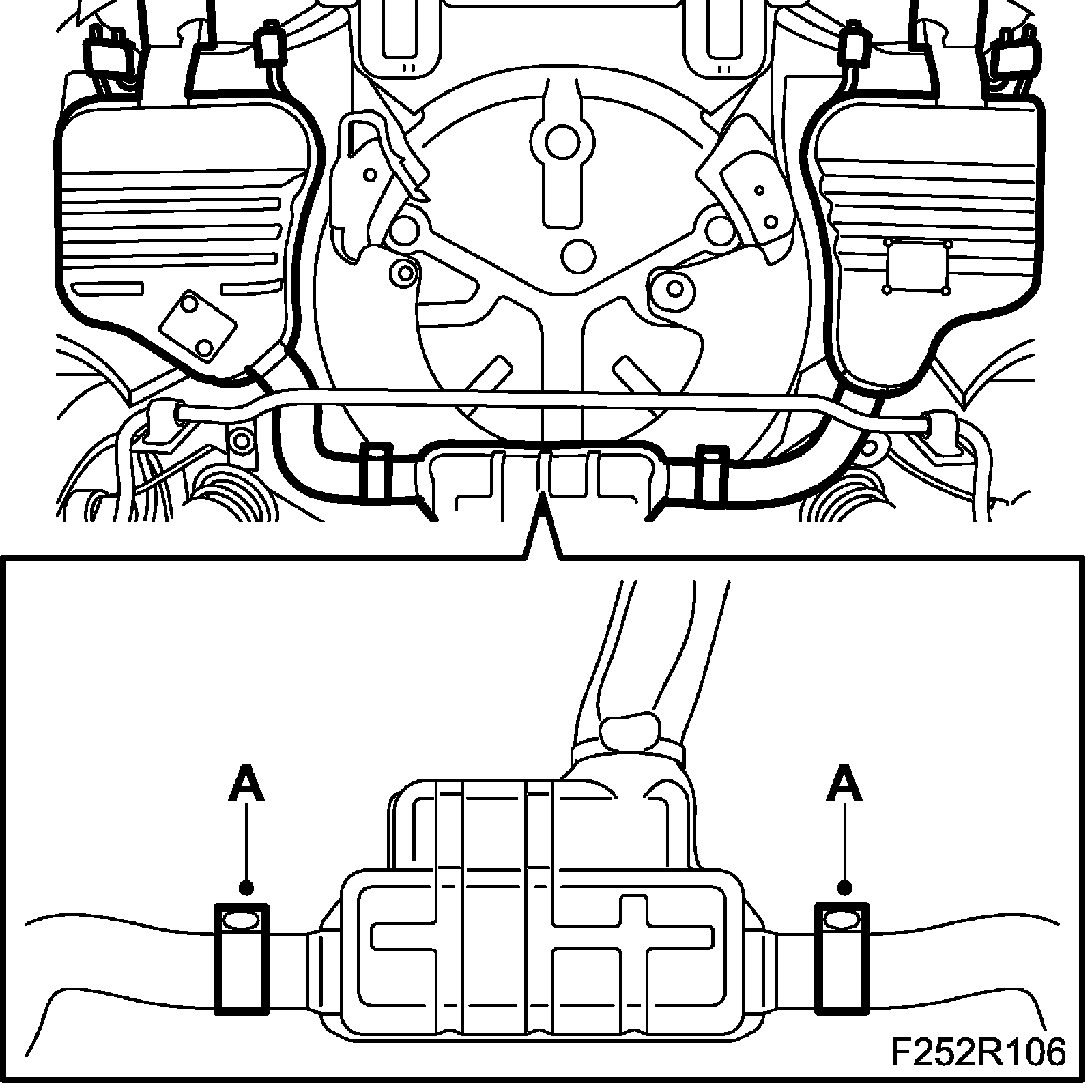

2. Fit the rear spare part silencers to the center rear silence (A). Suspend the rear silences in the rubber mountings (B).
3. Adjust the front and rear silencers so they hang evenly.
4. If the tail pipe is visible: Check that the tail pipe is in the center of the bumper recess and flush with the bumper profile.
5. Tighten the clamps of the spare part silencers.
Tightening torque 40 Nm (30 lbf ft).
6. Tighten the clamp between the rear catalytic converter and the exhaust system.
Tightening torque 40 Nm (30 lbf ft).
7. Lower the car.
8. Connect an exhaust hose and start the engine. Check the exhaust system for leaks.
