Chain Tensioner

Chain tensioner

To remove
1. Remove Timing chain and camshaft sprocket.
2. Remove the chain tensioner.

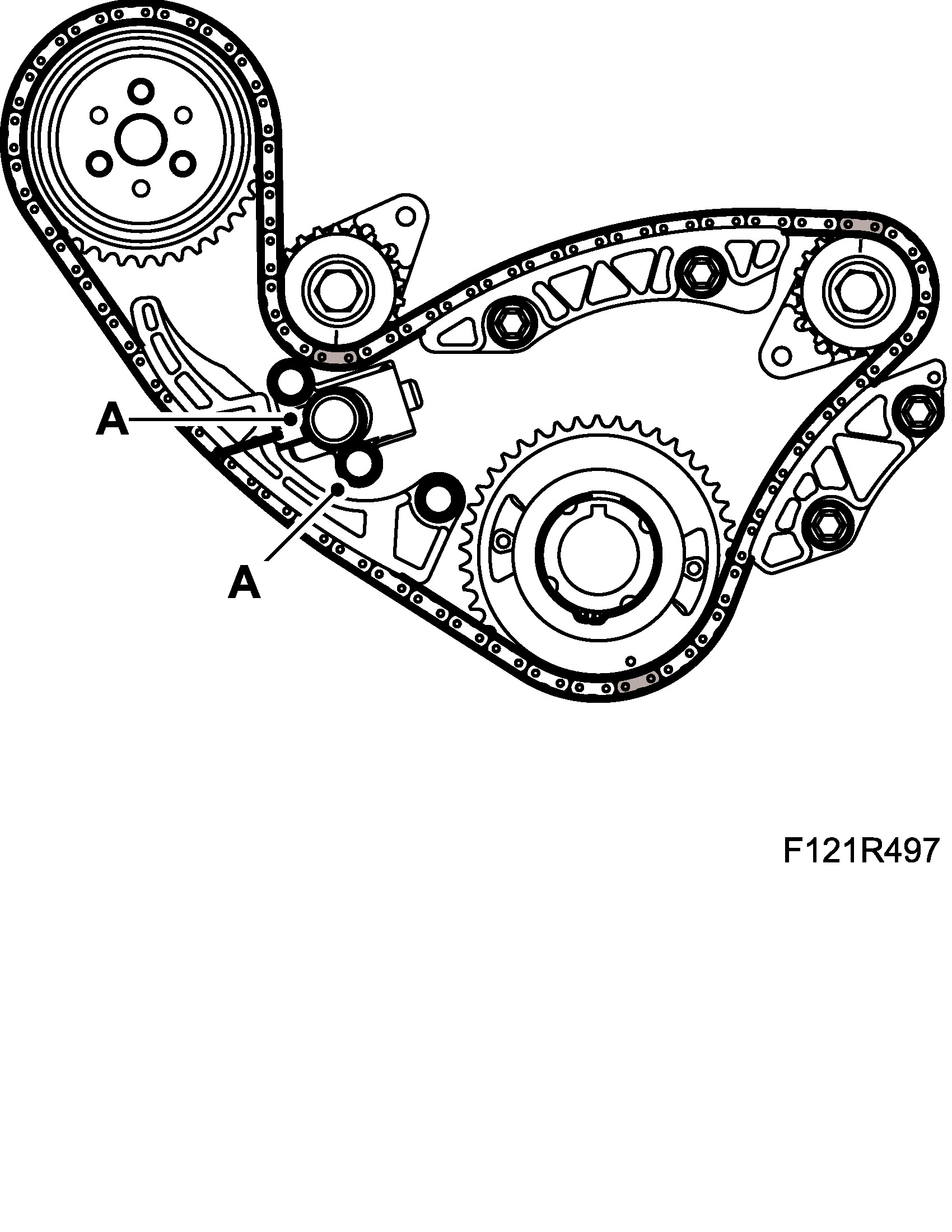

^ Remove the chain tensioner (A).

To fit
1. Fit the chain tensioner.

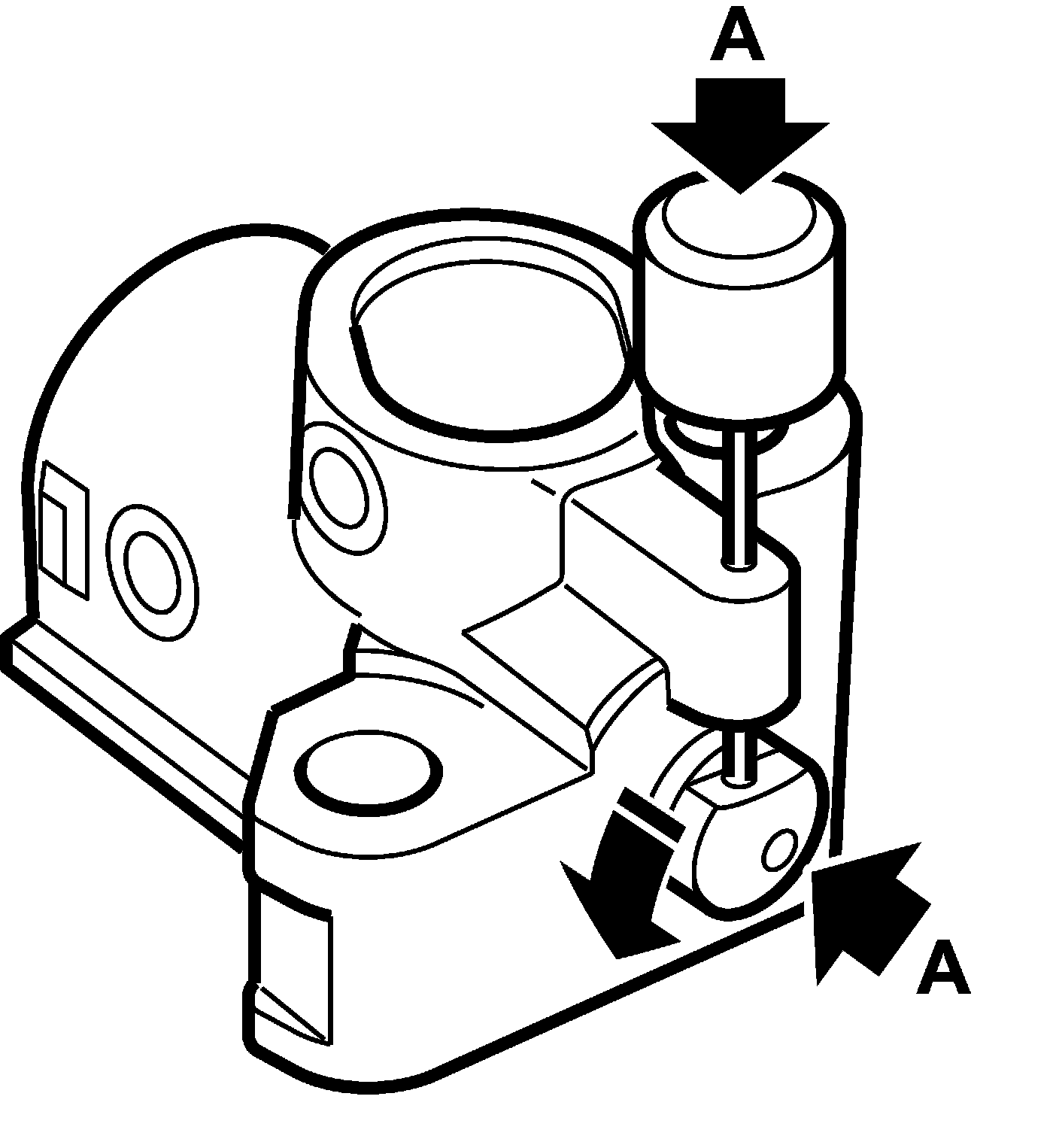

^ Load the tensioner by pressing in the plunger and turning to the right.





^ Secure with tool 83 96 392 Lock pin (A).
2. Fit the chain tensioner screws (A). Use Thread locking adhesive, Loctite 270
Tightening torque 10 Nm (7 ft. lbs.)





3. Remove the tool from the tensioner. Press the tensioner guide rail to check that backward movement of the plunger is prevented.
4. Fit Timing chain and camshaft sprocket.
