Front Torque Arm

Front torque arm

To remove
1. Raise the car.

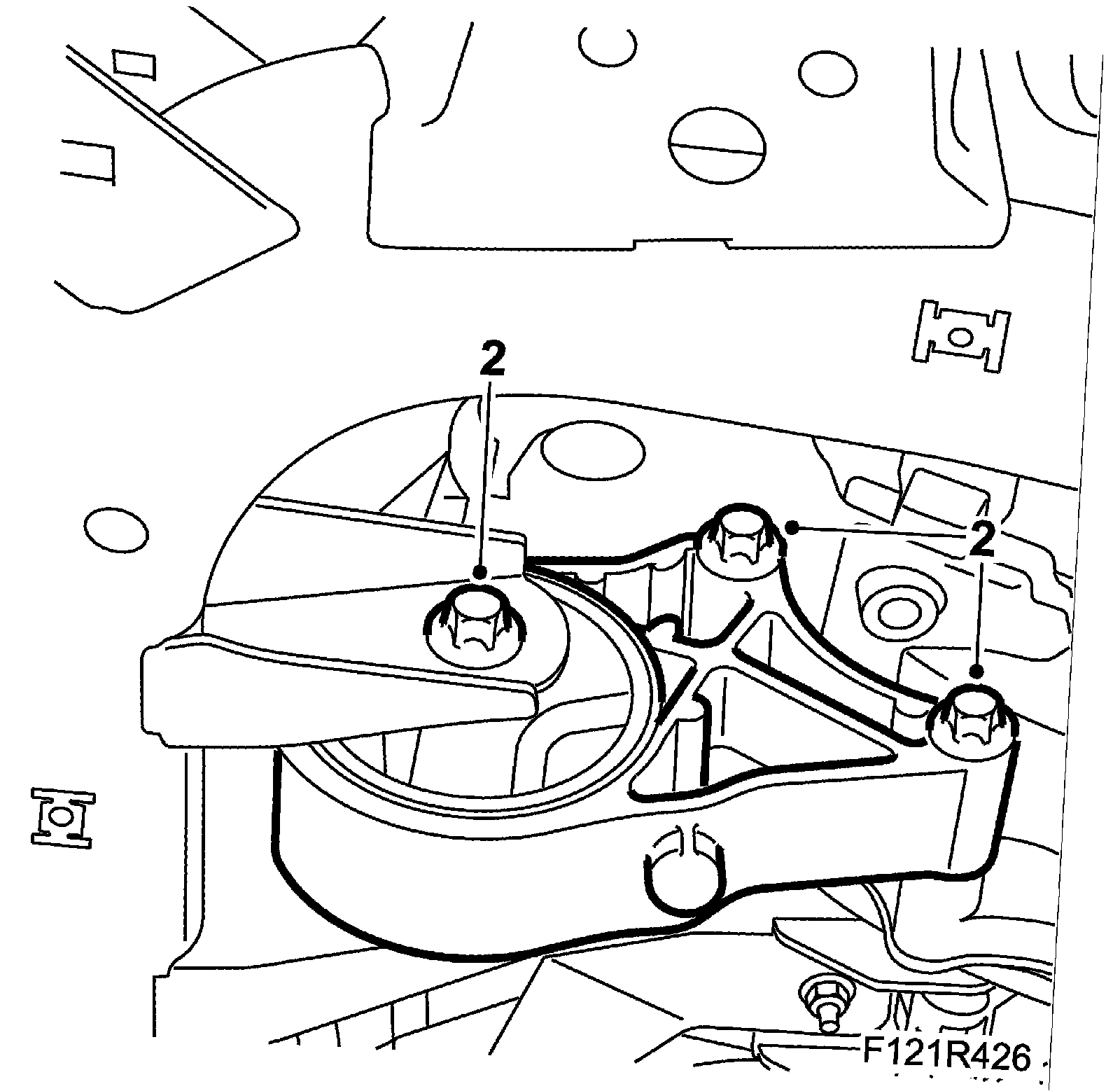

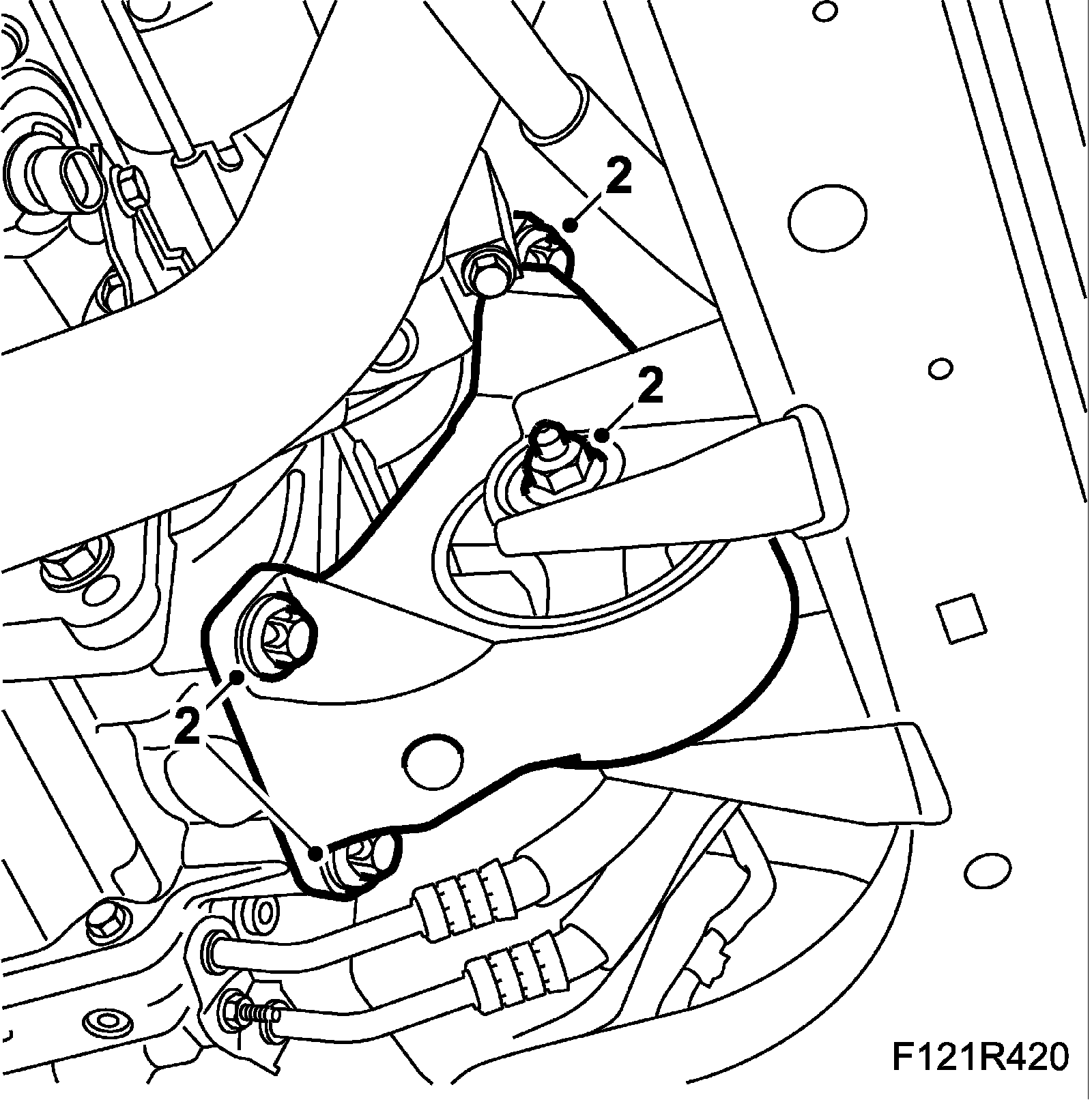

2. Remove the front torque arm.

Aut:





Man:





To fit

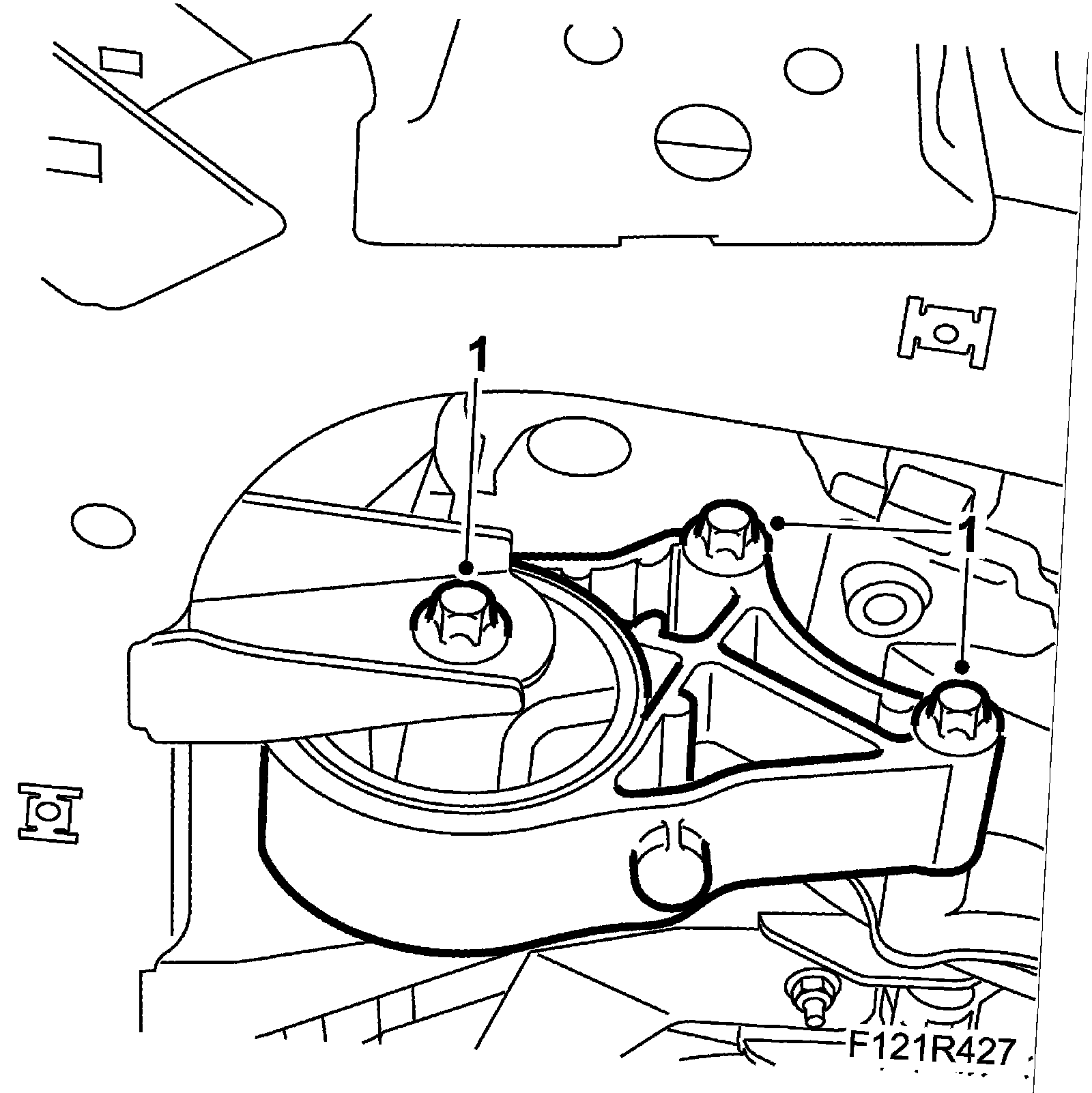

1. Fit the front torque arm.
Tightening torque, nut and bolt 60 Nm + 90 degrees (44 ft. lbs. + 90 degrees)
Tightening torque bolt to gearbox 80 Nm (59 ft. lbs.)
Aut:





Man:





2. Lower the car.
