Harmonic Balancer - Crankshaft Pulley: Service and Repair

Idler wheel, balancer shaft chain circuit

To remove
1. Remove the balancer shaft chain.

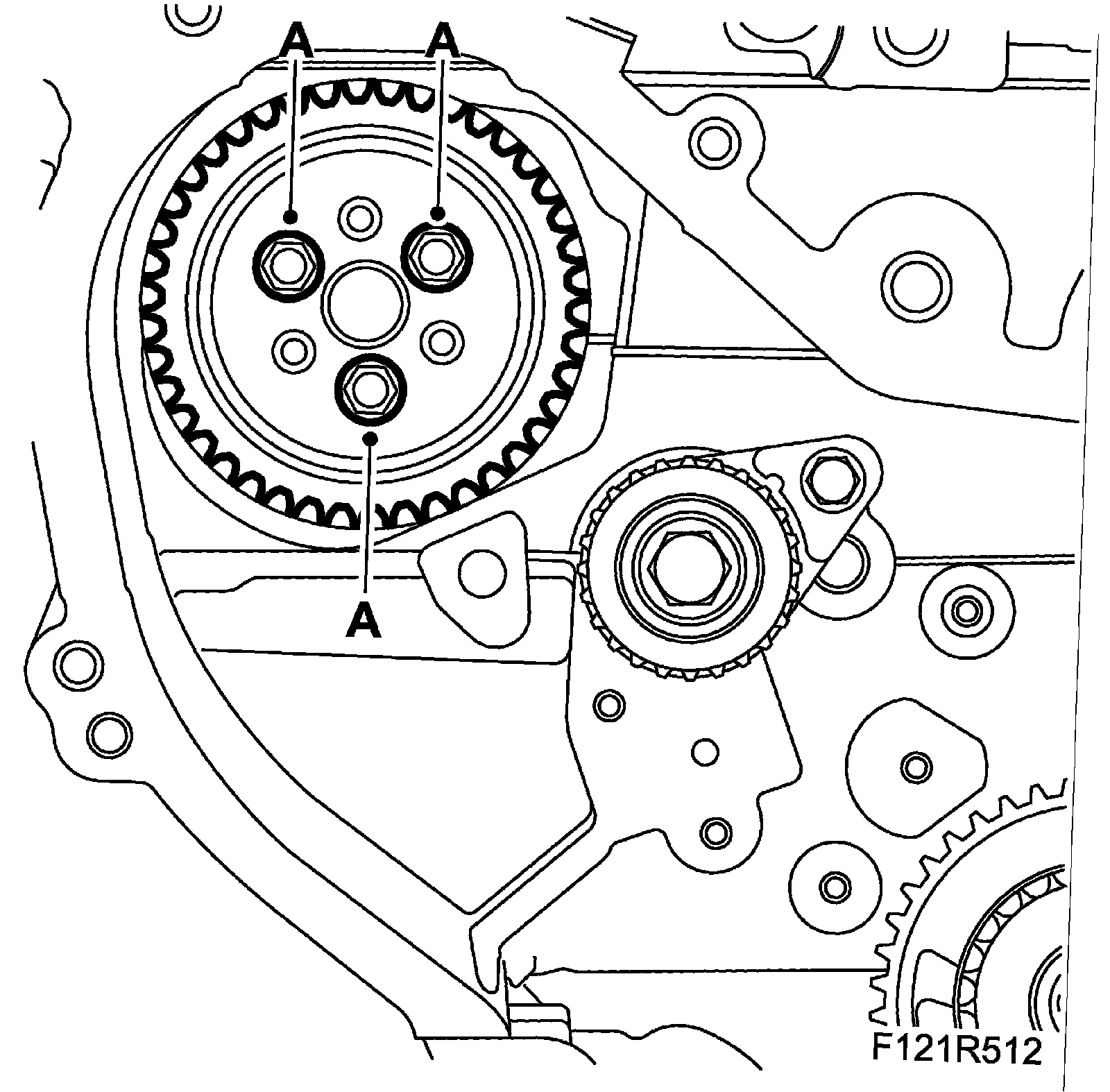

2. Remove the idler wheel bolts (A).





To fit
1. Fit the idler wheel bolts (A).
Tightening torque 10 Nm (7 ft. lbs.)
2. Fit the balancer shaft chain.
