Crimp Connection J1, Front Harness

Crimp connection J1, front harness

Location: Approx. 210 mm from branching of grounding point G30 towards the left headlamp

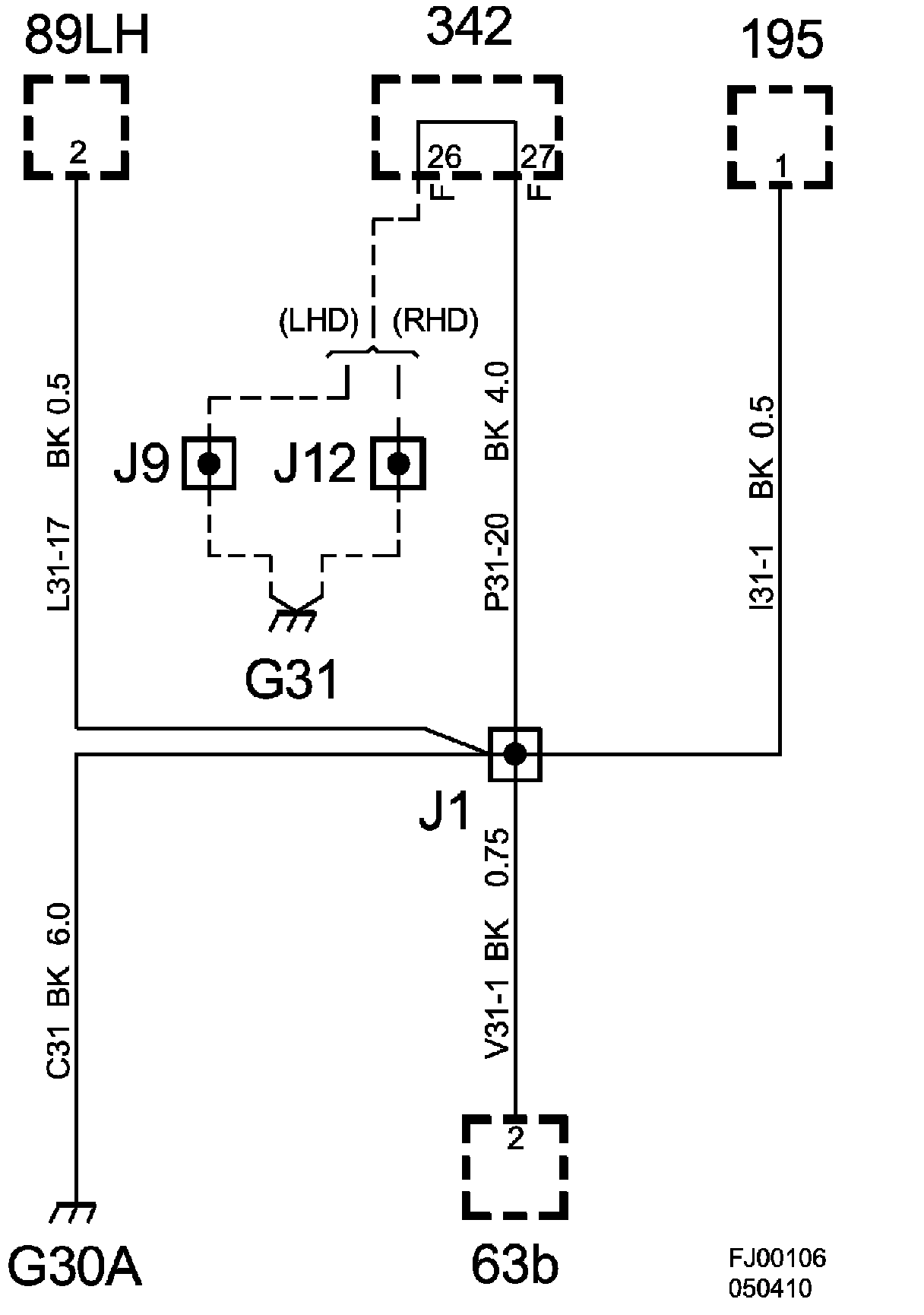

Crimp connection J1, front harness:

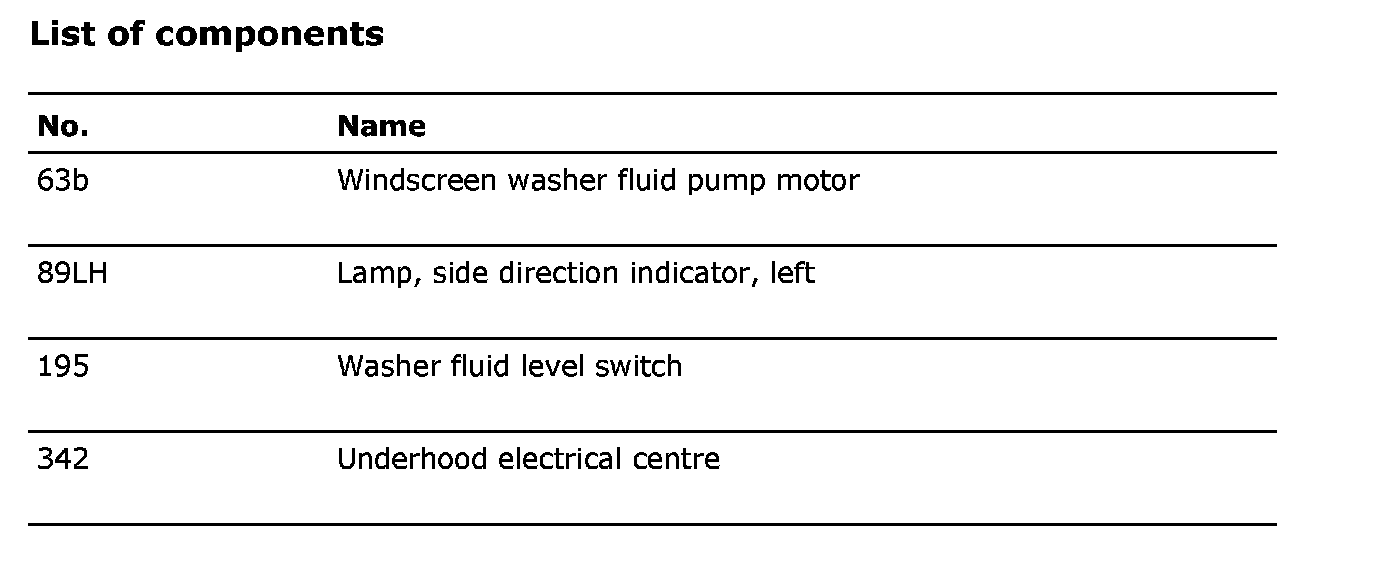

List of components

List Of Components:





Crimp connection J9, front harness

Crimp connection J12, front harness
