FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2009
>>
9-3 FWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G7R
Grounding Point G7R
Grounding Point G7R
Grounding Point G7R:

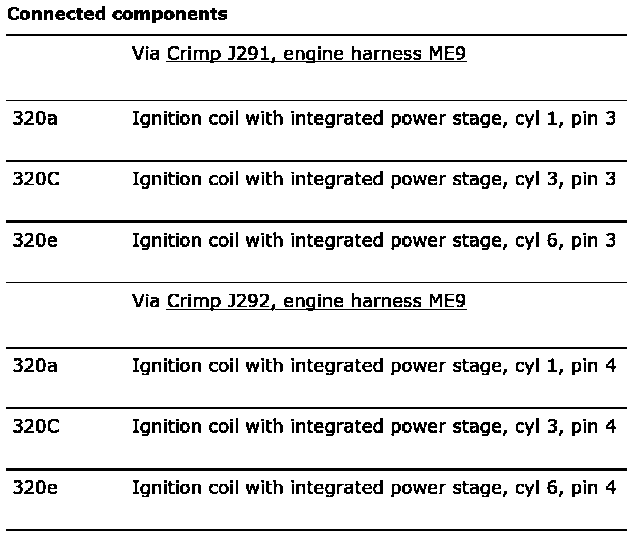

Connected Components:

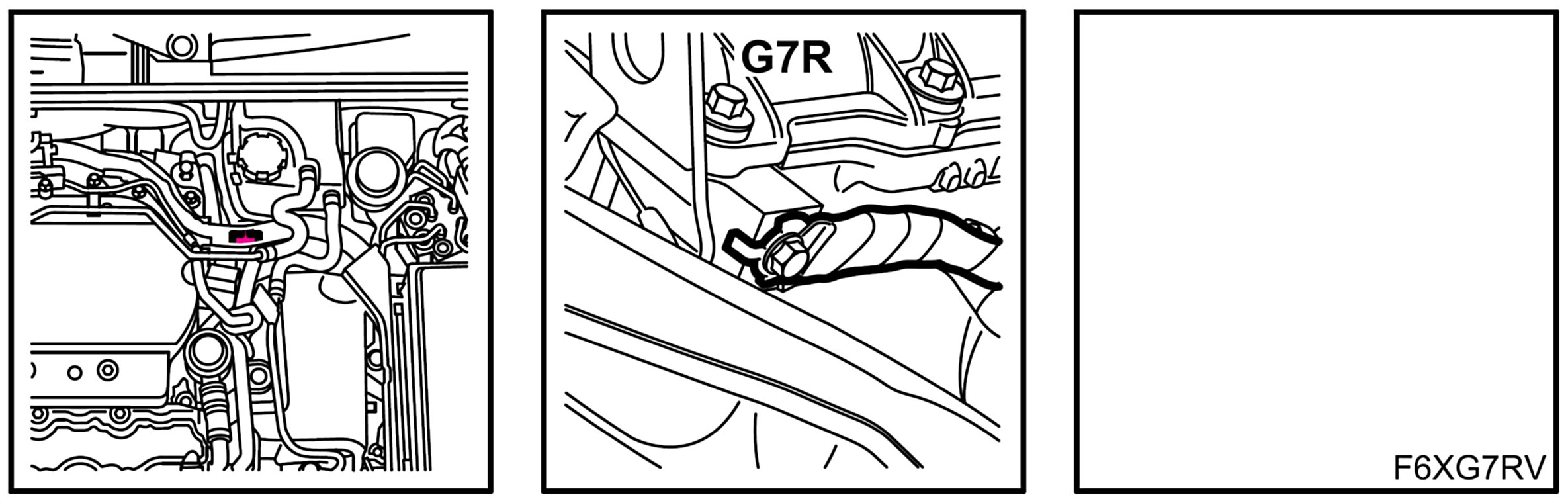

Location:
On the rear cylinder bank toward the gearbox side
