Grounding Point G7



Grounding Point G7, B207

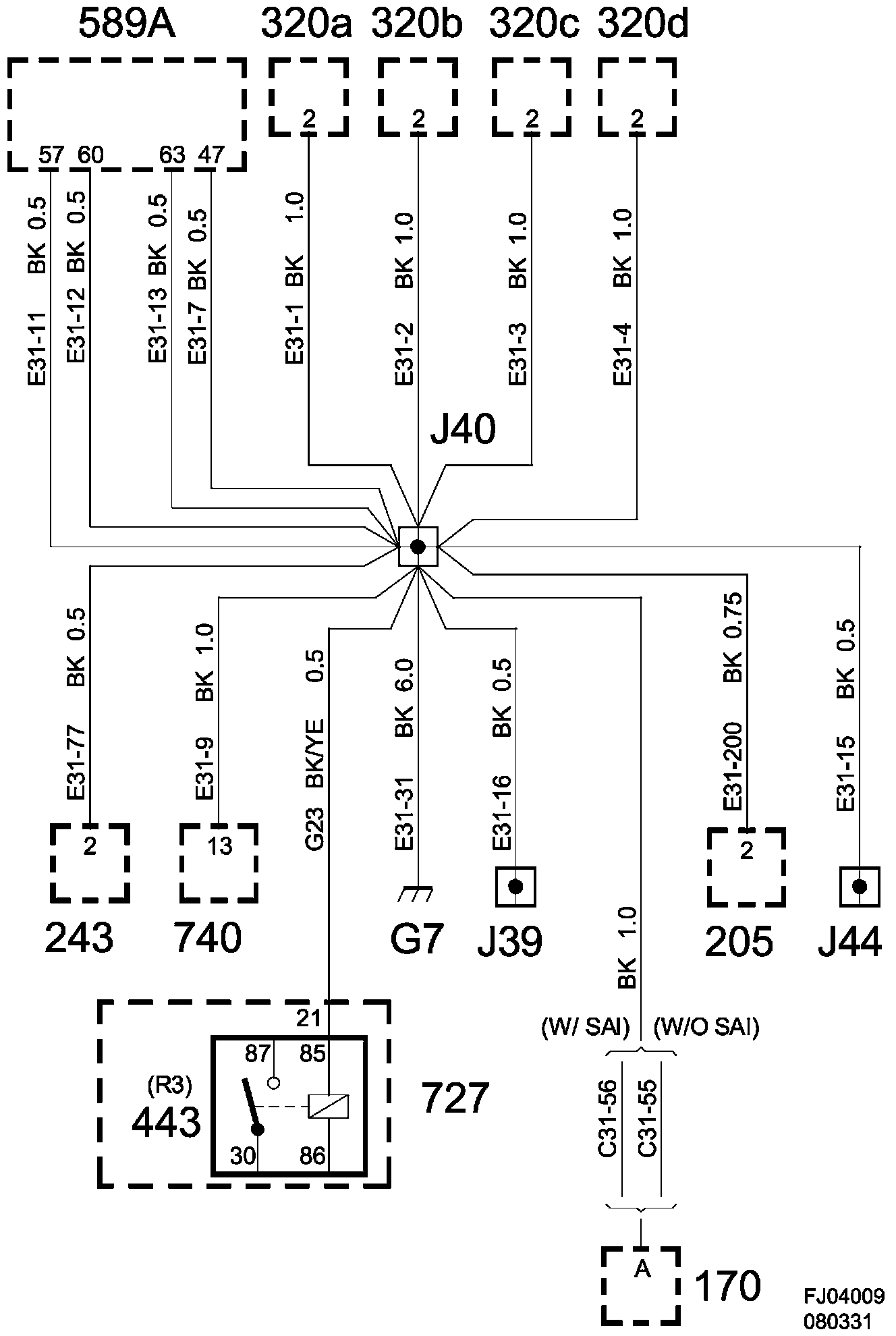

Grounding Point G7, B207:




Connected Components:









Location: Above the upper RH engine control module attachment eye
