Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounding Point G52, 5D

Grounding Point G52, 5D

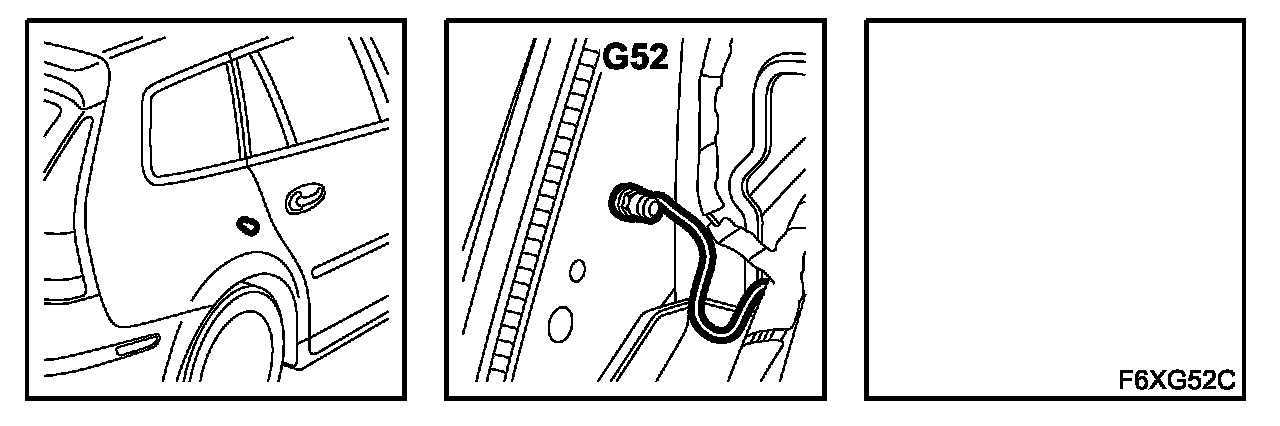

Location: At shoulder height on right-hand C-pillar

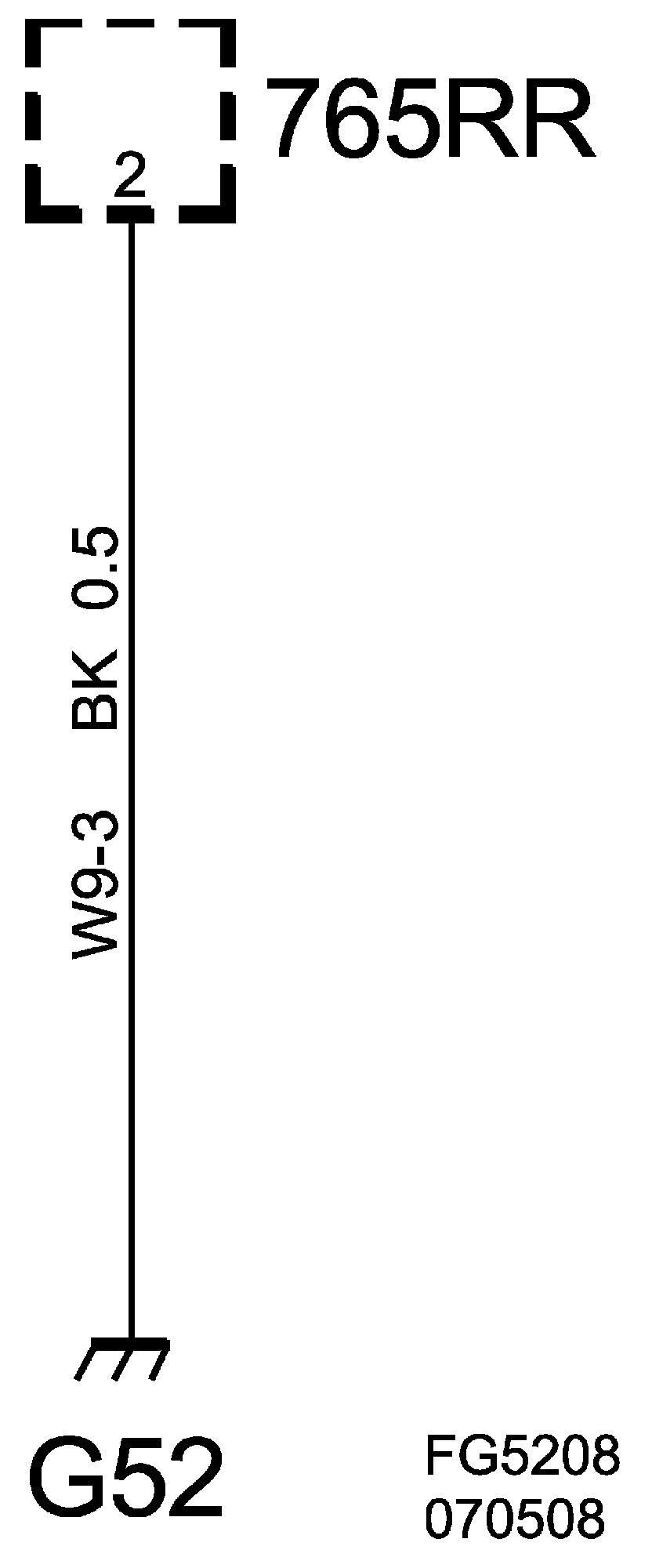

Grounding Point G52 (5D):

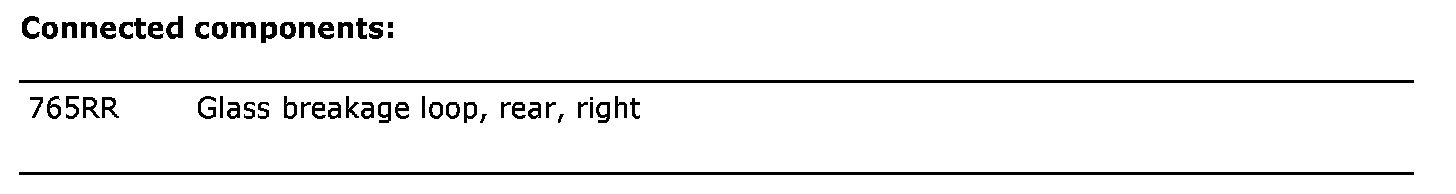

Connected Components:
