Grounding Point G52
Grounding Point G52

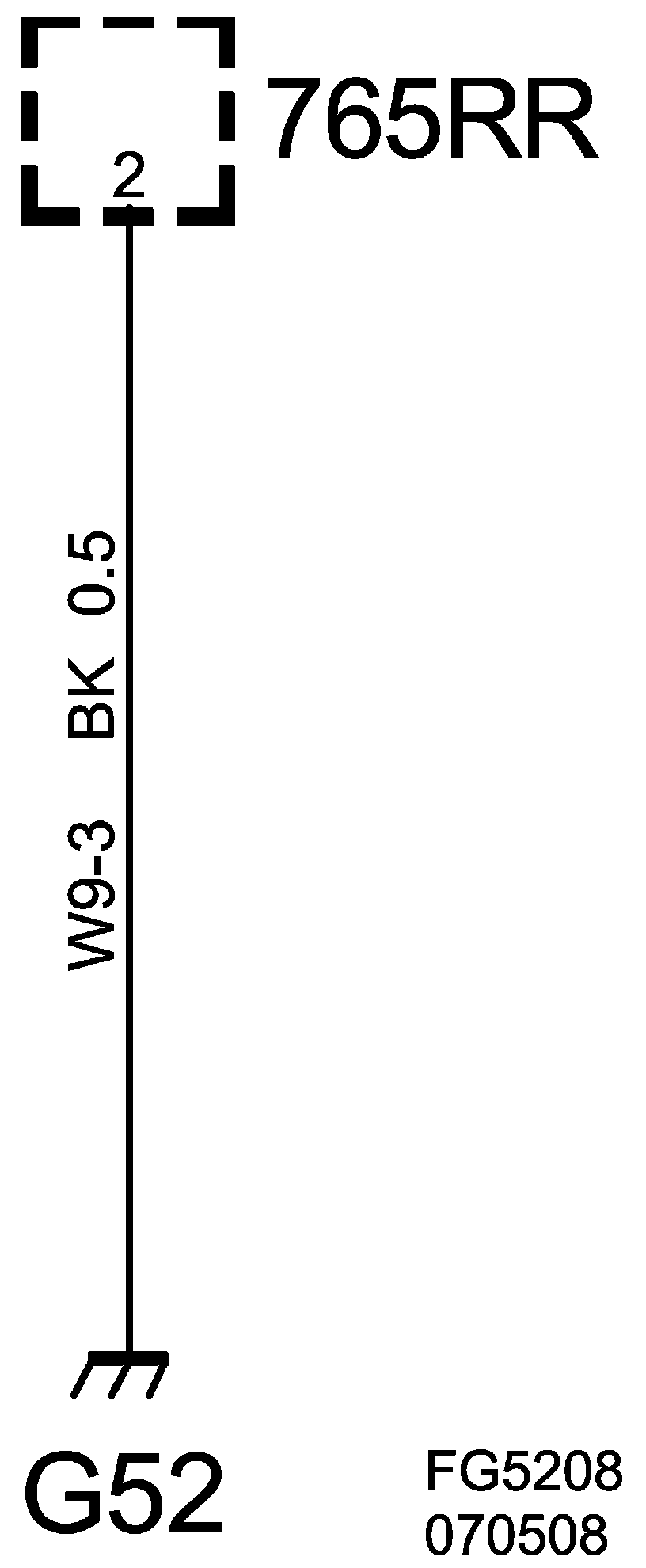

Grounding Point G52 (5D)
Grounding Point G52 (5D):

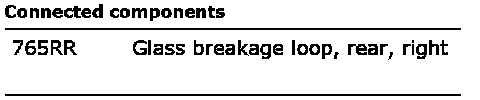

Connected Components:

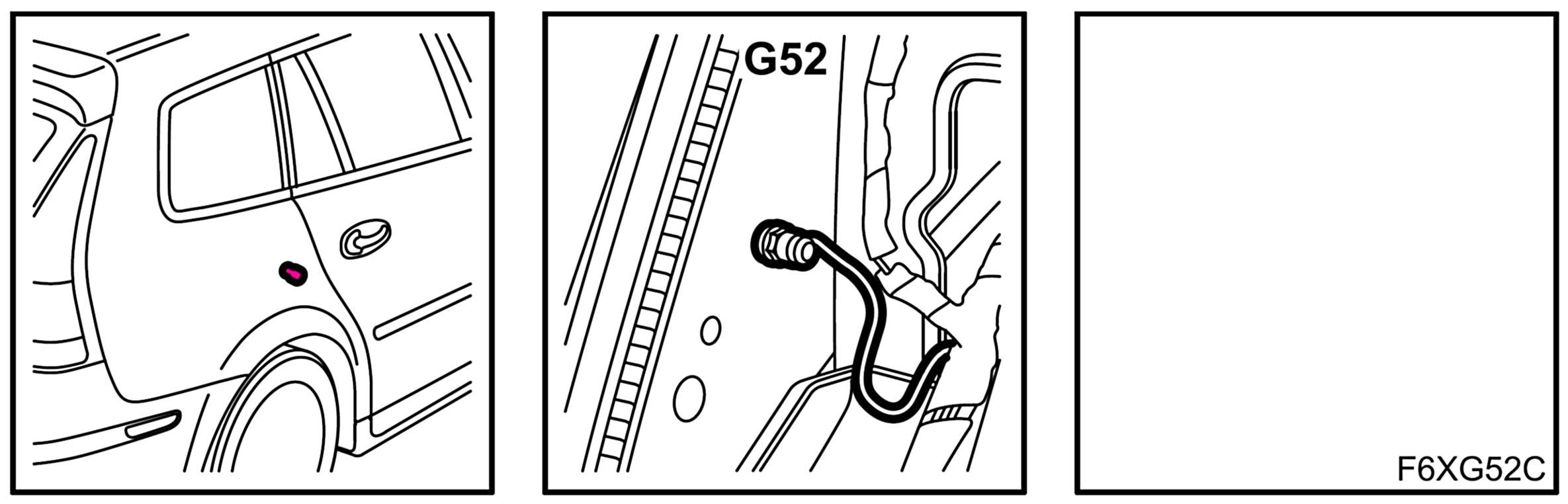

Location:
At shoulder height on right-hand C-pillar
