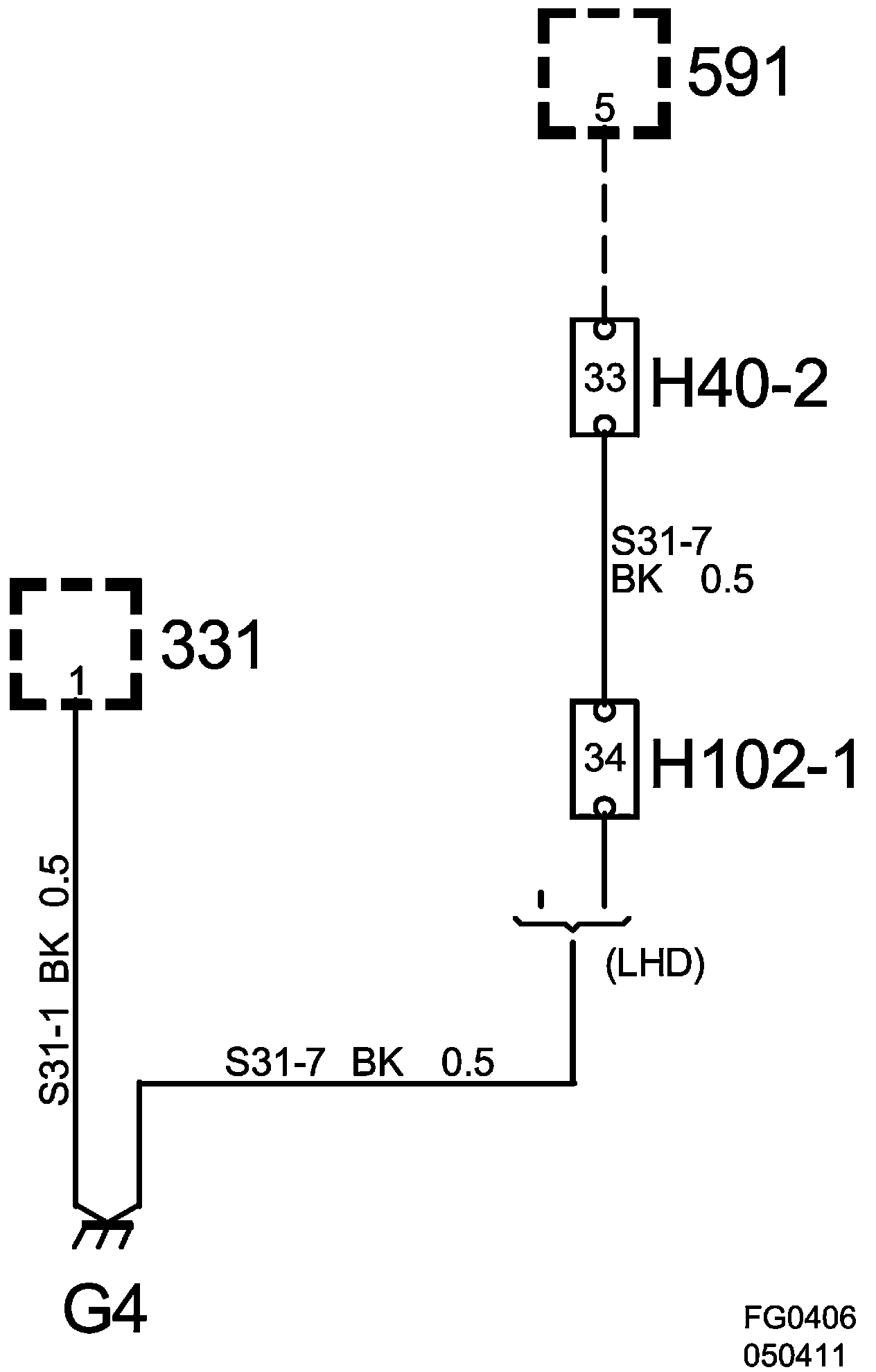

Grounding Point G4
Grounding Point G4
Grounding Point G4
Grounding Point G4:

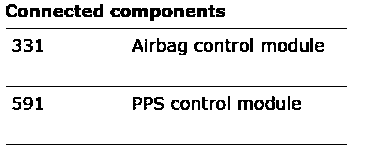

Connected Components:

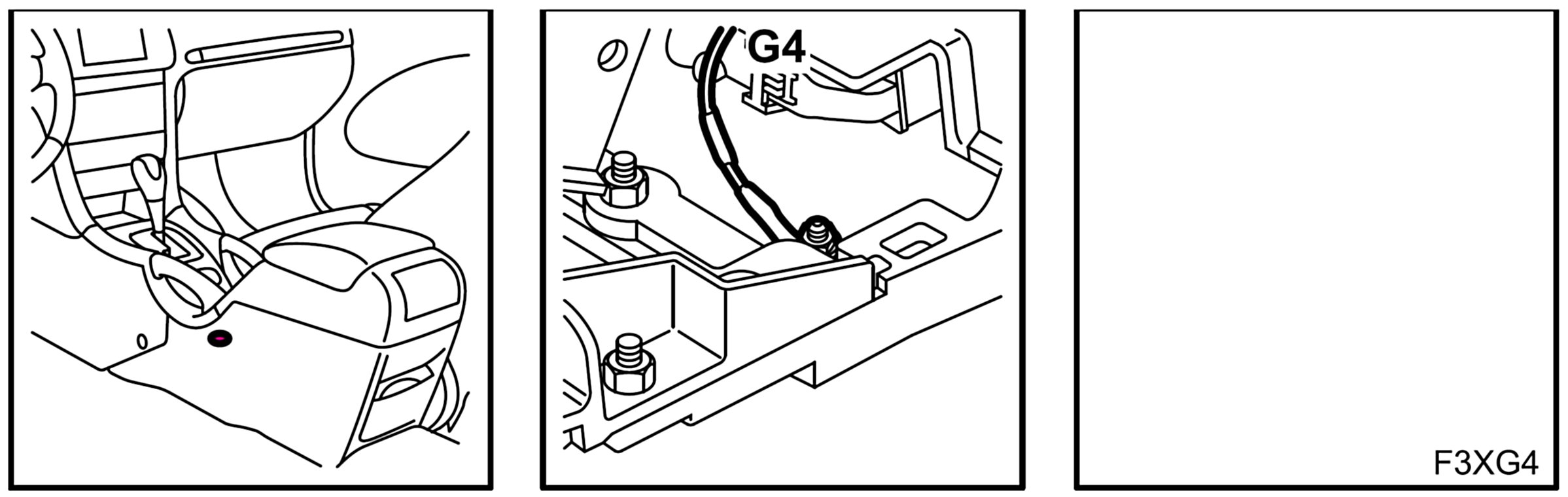

Location:
On the centre tunnel
